Good Connections 8070R-003S RNS Cat 7 Raw Cable S/FTP PiMF Patch Cable 0.25 m Black Cat 6A RJ45 LSZH OFC Copper 10 Gbps

Brand:
GoodConnections
Alcasa 8070R-003S / 0.25 m / Cat7 / S/FTP (S-STP) / RJ-45 / RJ-45
Good Connections 8070R-003S RNS Cat 7 Raw Cable S/FTP PiMF Patch Cable 0.25 m Black Cat 6A RJ45 LSZH OFC Copper 10 Gbps
€3.59 inc. VAT
Buy
8070R-003S
€3.02
€3.59 inc. VAT
Ships from EU stock: 109 item(s)
+ −
Add to wish list Ask a question
Product Code
04:479583
EAN Code
4014619323999
Manufacturer
GoodConnections
Quick Specs
Channel / Raw Cable
Cat 6A plugs · Cat 7 cable
Shielding
S/FTP PiMF (foil + braid)
Length
0.25 m
Colour / Jacket
Black · LSZH
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Good Connections 8070R-003S RNS Cat 7 Raw Cable Patch Cord, 0.25 m, Black

Cat 7 raw cable · 600 MHzCat 6A RJ45 · 10 Gbps0.25 m · BlackLSZH · OFC copper

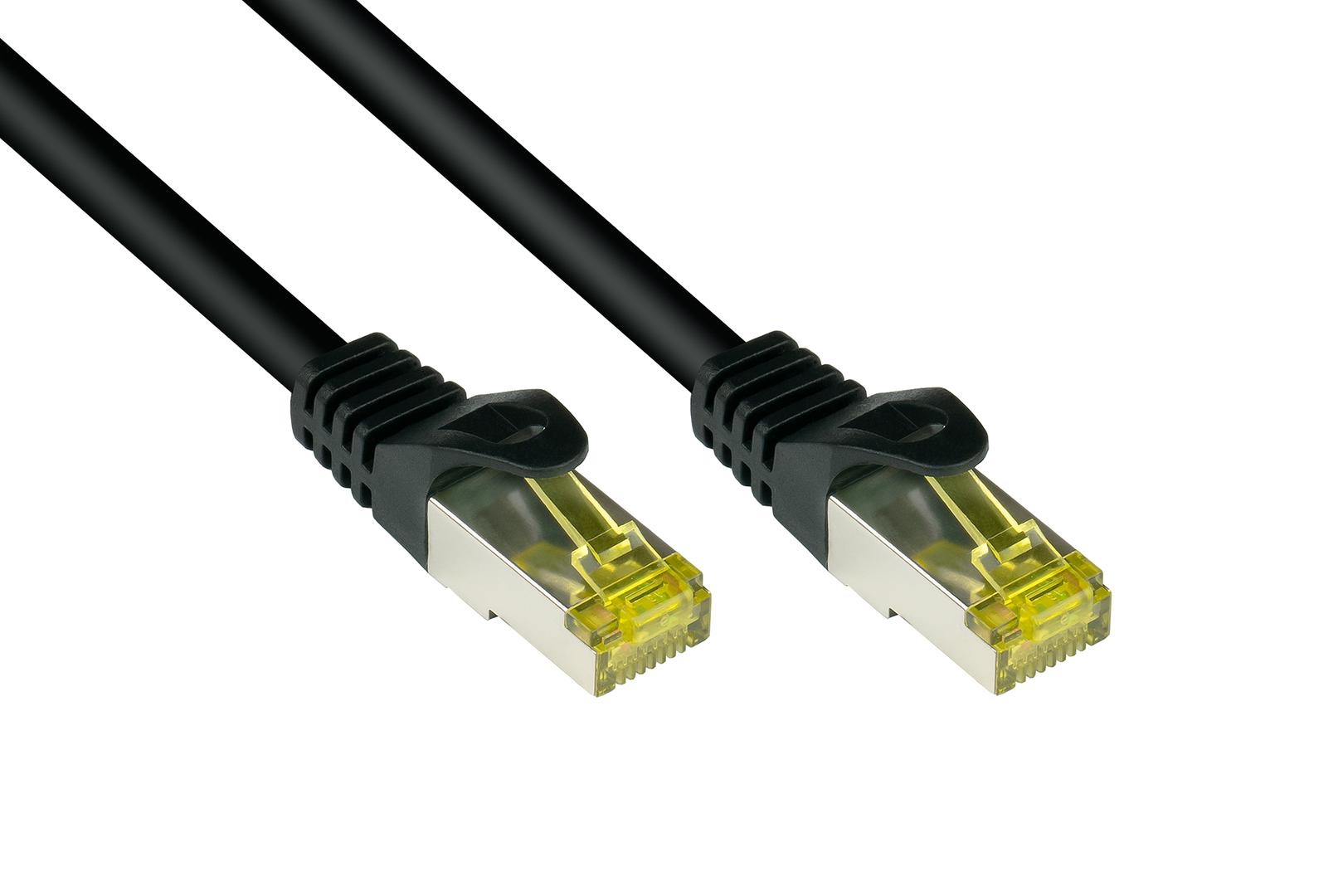

The Good Connections 8070R-003S is a 0.25 m patch cable in black built from Cat 7 S/FTP PiMF raw cable with Cat 6A RJ45 plugs and RNS latch protection — a very short, fully shielded 10 Gbit/s jumper for switch stacking and patch-panel connections inside a rack.

Part number 8070R-003S (EAN 4014619323999) uses 99.9 % oxygen-free copper (OFC) AWG 26/7 stranded conductors, individual pair foils plus an aluminium-magnesium braid, gold-plated contacts and a halogen-free LSZH jacket. Typically in stock with fast delivery across Cyprus.

Before you buy
"Cat 7" refers to the raw cable (tested to 600 MHz). Because the connectors are RJ45, the finished cord performs as a Cat 6A channel (500 MHz, 10GBASE-T) — that is the correct expectation for any Cat 7-cable RJ45 patch cord. At 0.25 m this is strictly an in-rack jumper: check that the two ports are directly adjacent (e.g. patch panel right above the switch). Good Connections publishes no PoE class for this cord.

Key Features


Cat 7 raw cable, Cat 6A plugs
600 MHz S/FTP PiMF cable terminated with shielded Cat 6A RJ45 connectors (yellow housings) — full 10 Gbit/s headroom in a very short cord.

LSZH + oxygen-free copper
99.9 % OFC AWG 26/7 stranded conductors for low attenuation and flexibility, in a halogen-free, low-smoke, flame-retardant jacket (IEC 60754-2, IEC 61034, IEC 60332-1).

RNS latch protection
The Rastnasenschutz boot covers the RJ45 latch so it cannot snag or break, and adds bend protection and strain relief; the length is printed on the cable.

Technical Specifications

Identification
Brand Good Connections
Product Line 8070R RNS Cat 7 raw-cable patch cords
Part Number / MPN 8070R-003S
EAN / GTIN 4014619323999
Performance
Channel Class Cat 6A — 500 MHz, set by the RJ45 plugs
Raw Cable Grade Cat 7, tested up to 600 MHz
Data Rate Up to 10 Gbit/s (10GBASE-T)
Cable

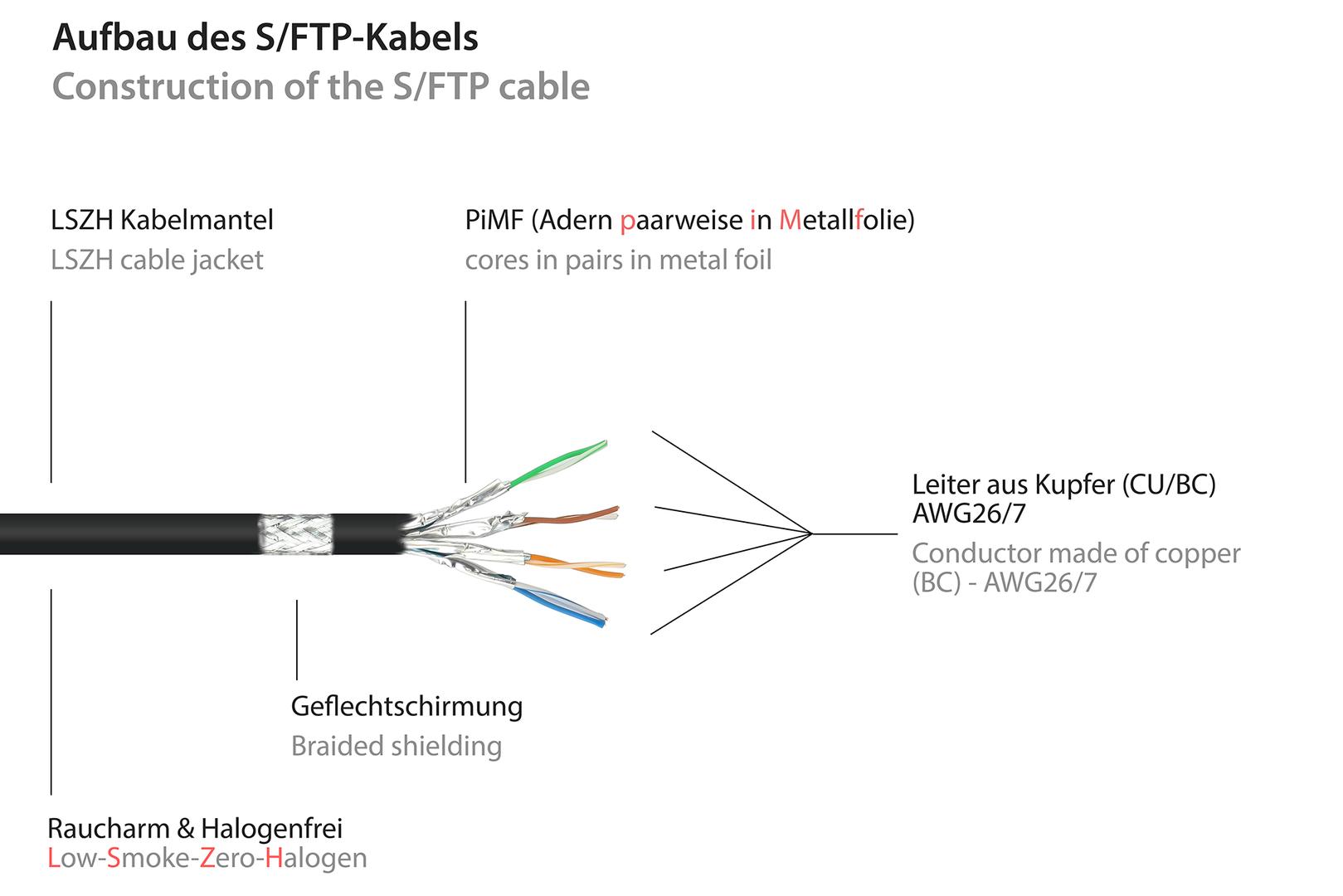

Shielding S/FTP PiMF — metal foil per pair + aluminium-magnesium braid
Conductor 99.9 % oxygen-free copper (OFC), AWG 26/7, 4 pairs / 8 wires
Jacket LSZH — halogen-free (IEC 60754-2), low smoke (IEC 61034), flame retardant (IEC 60332-1)
Length 0.25 m (25 cm)
Colour Black
Connectors

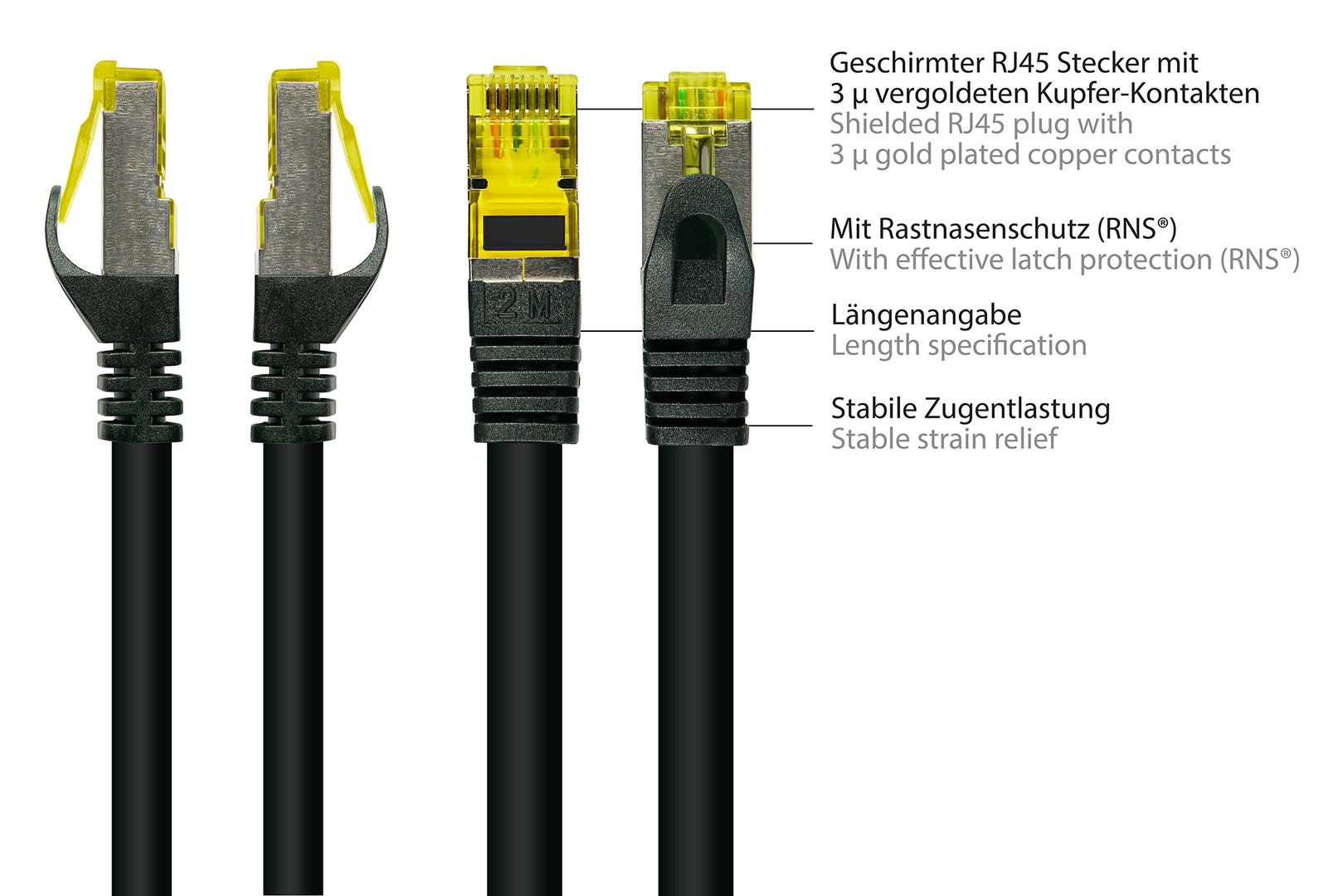

Connector 1 / 2 RJ45 male, shielded, gold-plated, yellow housing
Protection RNS latch guard, moulded boot, bend protection, strain relief, length indication
Standards
Compliance ISO/IEC 11801, EN 50173-1, TIA/EIA-568-B.2.1, RoHS
PoE Not specified by manufacturer

Frequently Asked Questions

Is the Good Connections 8070R-003S a real Cat 7 cable?
The raw cable is Cat 7 (600 MHz), but RJ45 plugs limit the complete cord to Cat 6A performance — 500 MHz and 10 Gbit/s. That is the same for every RJ45-terminated "Cat 7" patch cable and is more than enough for 10GBASE-T.
What do I need to know before buying the 8070R-003S?
At 25 cm it only bridges directly adjacent ports, such as a patch panel mounted right above a switch. If the ports are one or two rack units apart, pick the 0.5 m 8070R-005 version instead.
Singular Expert Insight
Ultra-short shielded jumpers like the 8070R-003S are how professional racks stay clean: no slack loops, no blocked airflow. The 8070R line is our pick when you want LSZH jackets and 10 Gbit/s headroom at the same time — the cheaper 8060 RNS series is Cat 6 with a PVC jacket. Use colour to mark roles (black for one service, other 8070R colours for uplinks) and keep 0.5 m cords on hand for ports that are not directly adjacent on your network switches.

Buyer's Guide

Buy it if
You need a 25 cm fully shielded 10 Gbit/s jumper in black with LSZH jacket for directly adjacent rack ports.
Skip it if
Your ports are more than about 20 cm apart or you need a published PoE rating — choose a longer or PoE-rated cord.
Also consider
Good Connections 8070R-005 (0.5 m) for slightly longer jumps, or the 8060 RNS Cat 6 series for budget Gigabit patching.

Features - GoodConnections - 8070R-003S

Colour
black
Length
0.25m
Standard
CAT6a
More Details
Product Code
04:479583
EAN Code
4014619323999
Manufacturer
GoodConnections
