Good Connections GC-N0097 — Network Cable Tester with Remote Unit
RJ45 / RJ11 / BNC / USBRemote unitLED + beeperCase included

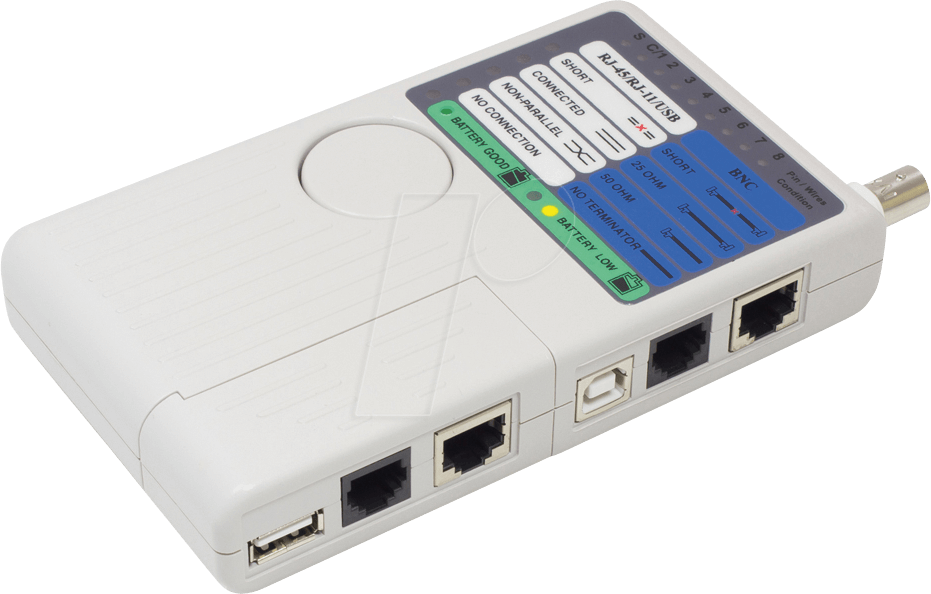

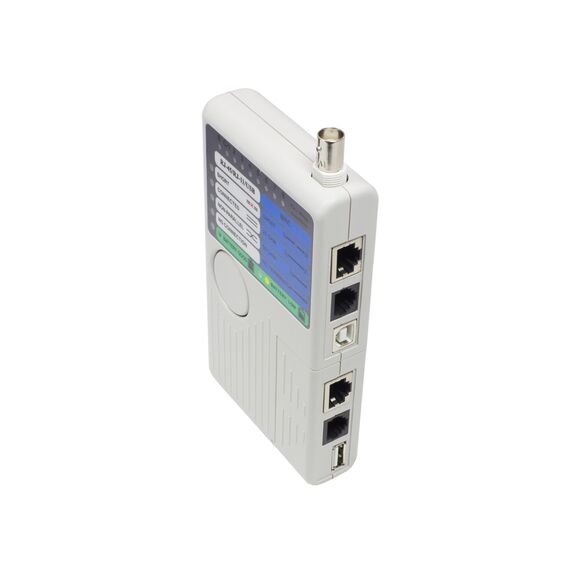

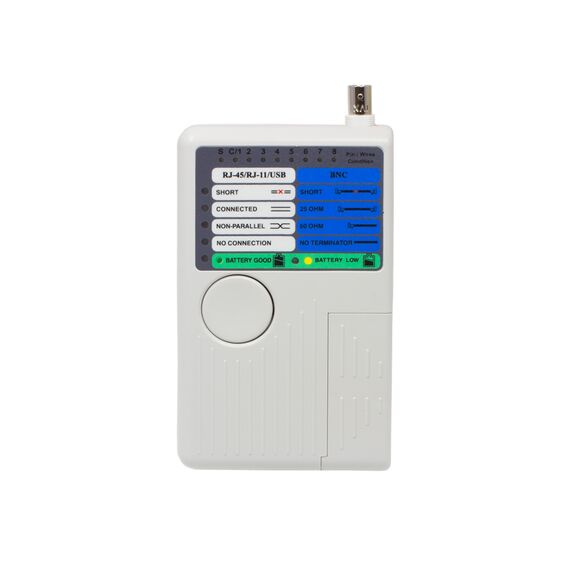

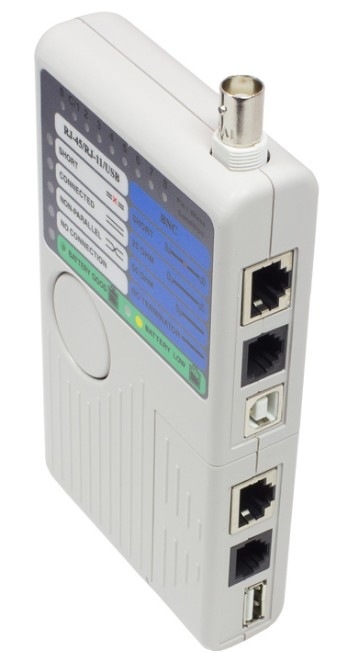

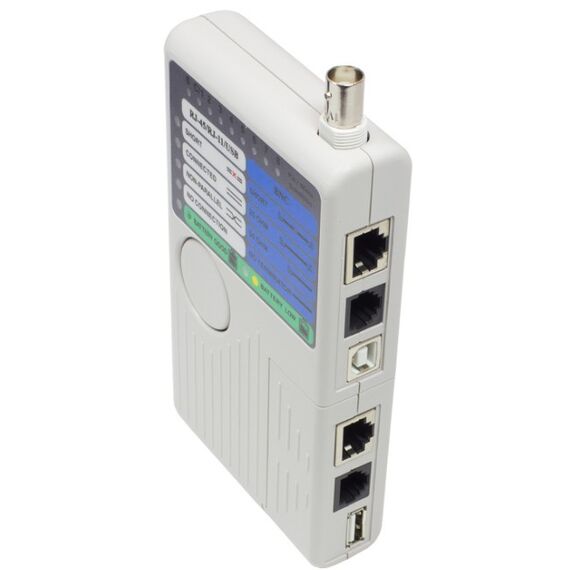

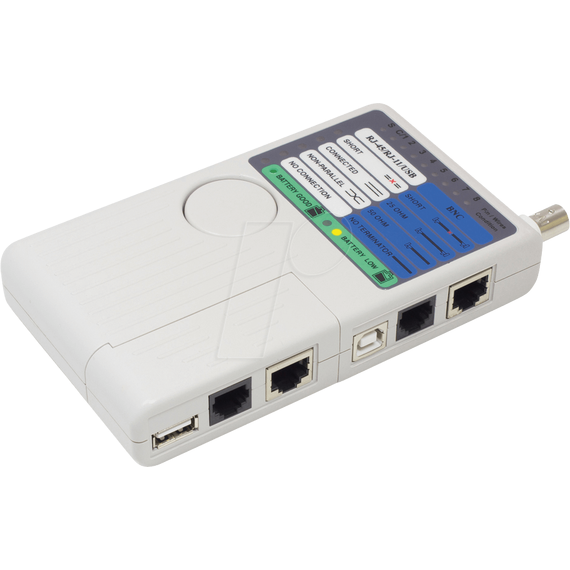

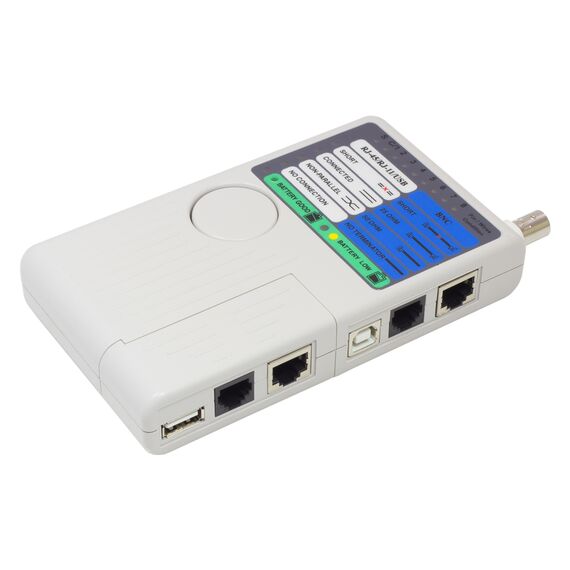

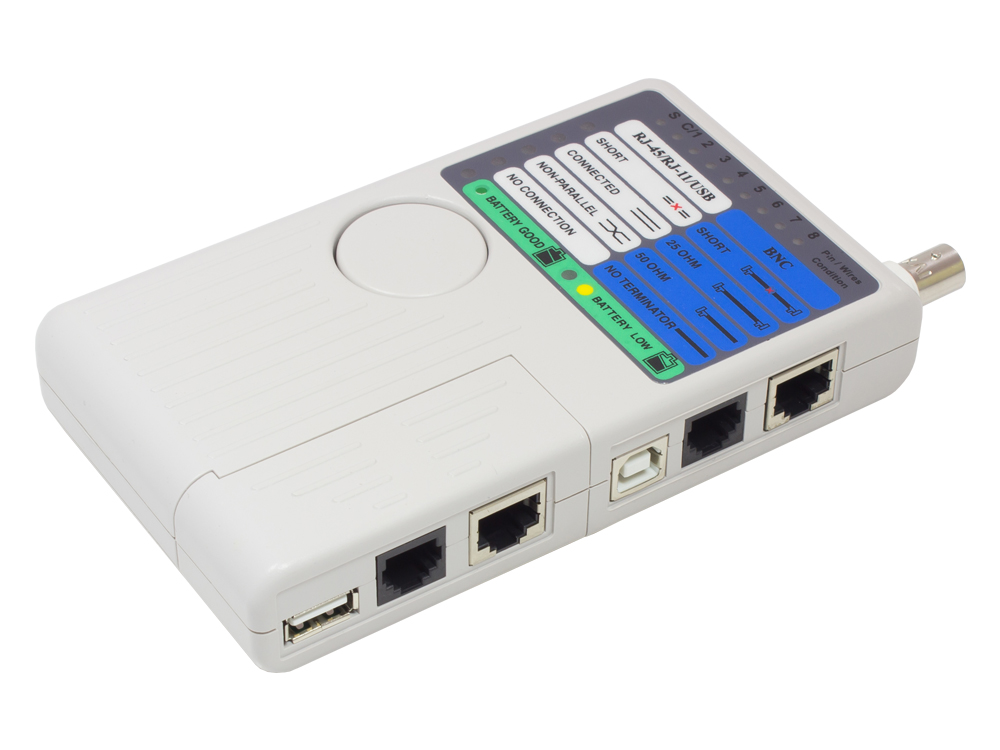

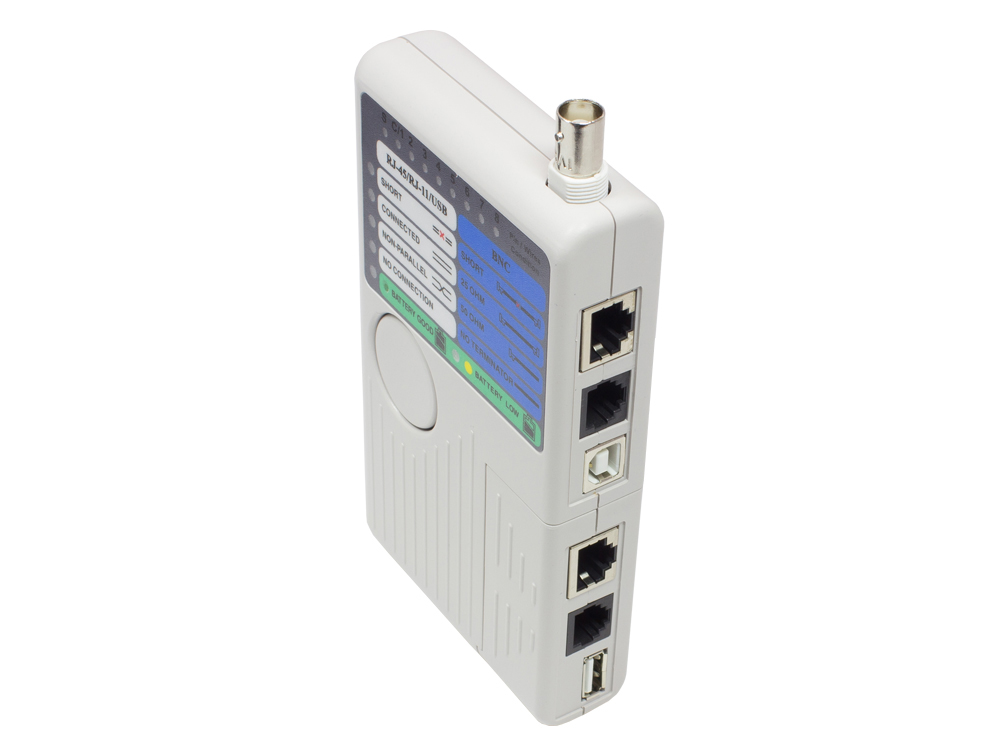

The Good Connections GC-N0097 from Alcasa is a handheld cable tester with a detachable remote unit. It checks network cables (RJ45, UTP and STP), telephone cables (RJ11), coax with BNC and USB cables for continuity, open wires, shorts, crossed or non-parallel pairs and the shield connection, and shows the result on LEDs for each conductor with a beeper. Because the remote unit separates from the main unit, you can also test a cable that is already installed between two rooms. In practice it tells you in seconds whether a patch cord or wall run is wired correctly before you blame the switch or the PC.
Compatibility — check before buying:

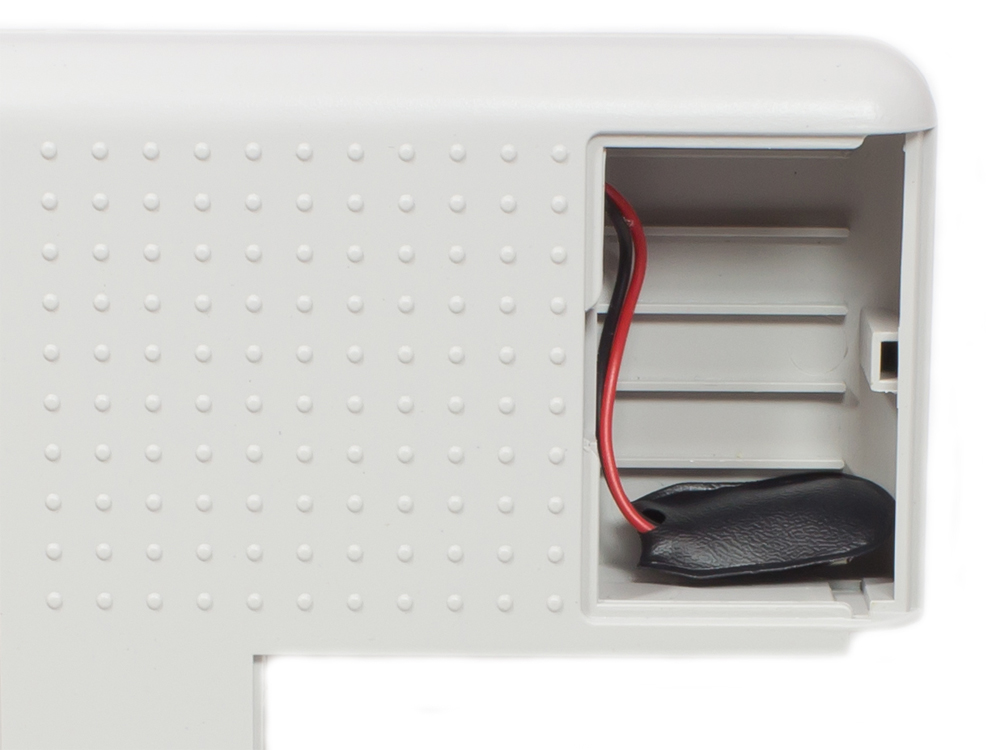

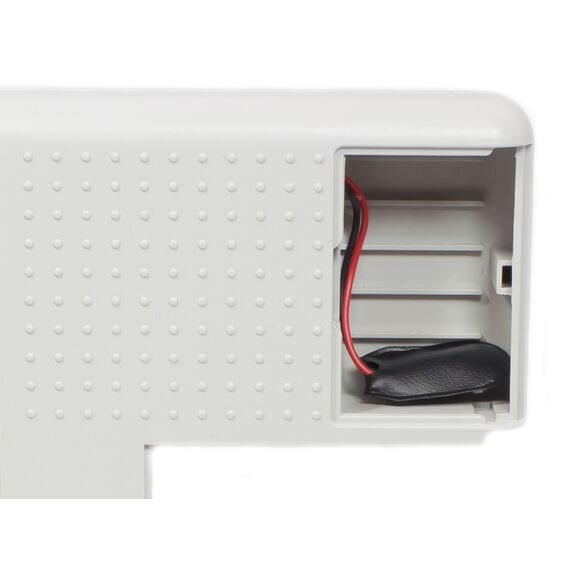

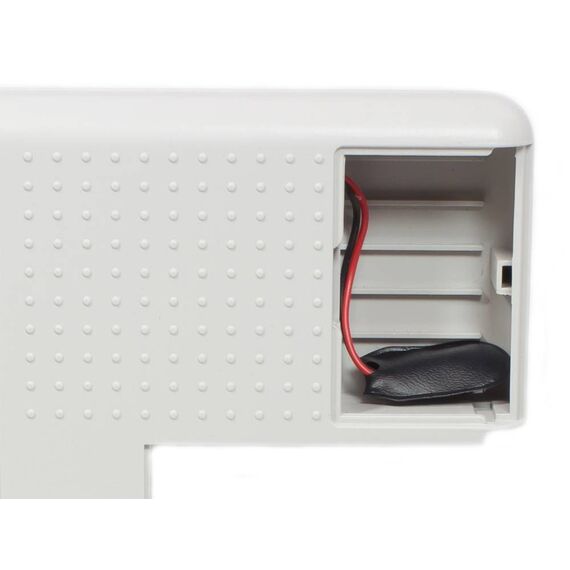

It is a wiring and continuity tester: it does not measure cable length, speed or Cat certification, does not detect PoE and has no tone generator for tracing cables. The 9 V block battery is not included. The two Alcasa documents disagree on which unit carries the USB-A and which the USB-B socket, so we simply state that both USB types are covered. If you need to certify a cabling installation, ask us about a certifier instead.
Best For
✓ Checking patch cords
✓ Installed wall and floor runs
✓ Telephone RJ11 cables
✓ BNC coax and CCTV cables
✓ IT support and technicians
✓ Before blaming the switch
Key Features
Many cable types
RJ45 UTP/STP, RJ11, BNC and USB cables with one tester.
Remote unit
Detach the remote and test cables already installed between rooms.
Clear fault display

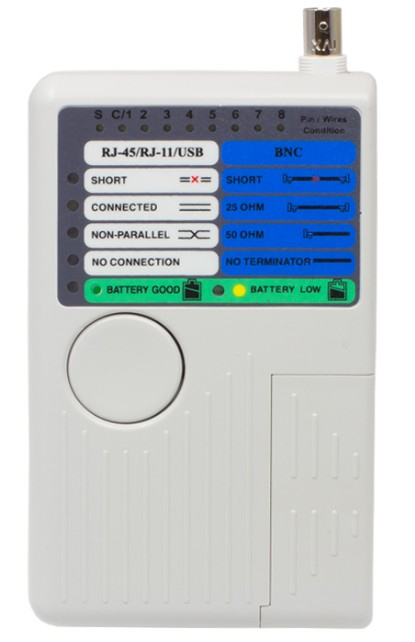

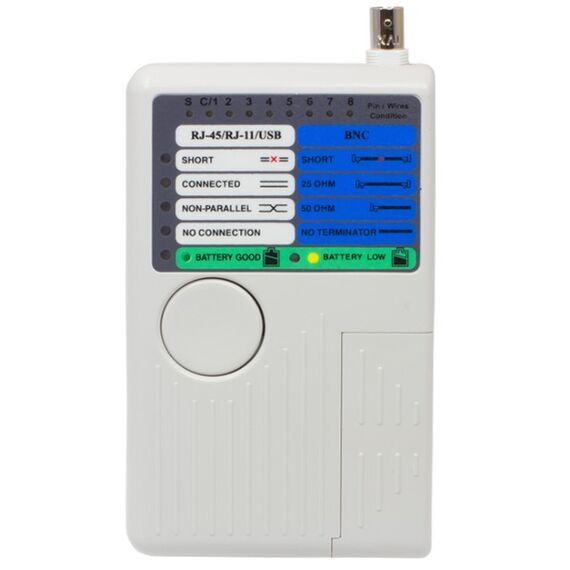

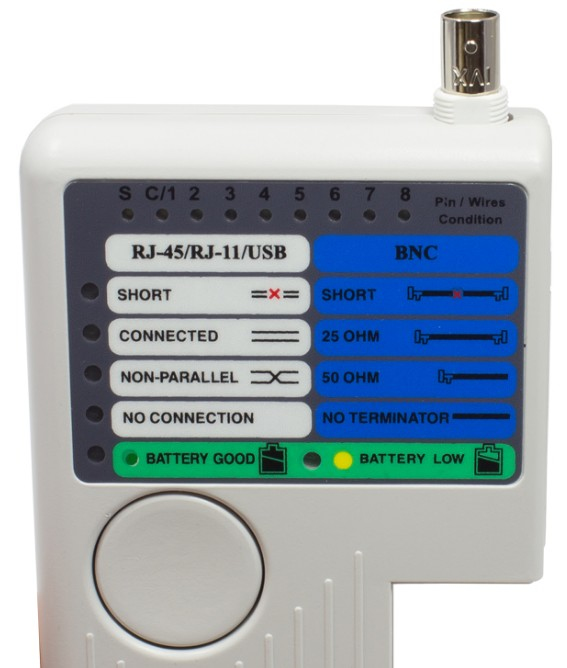

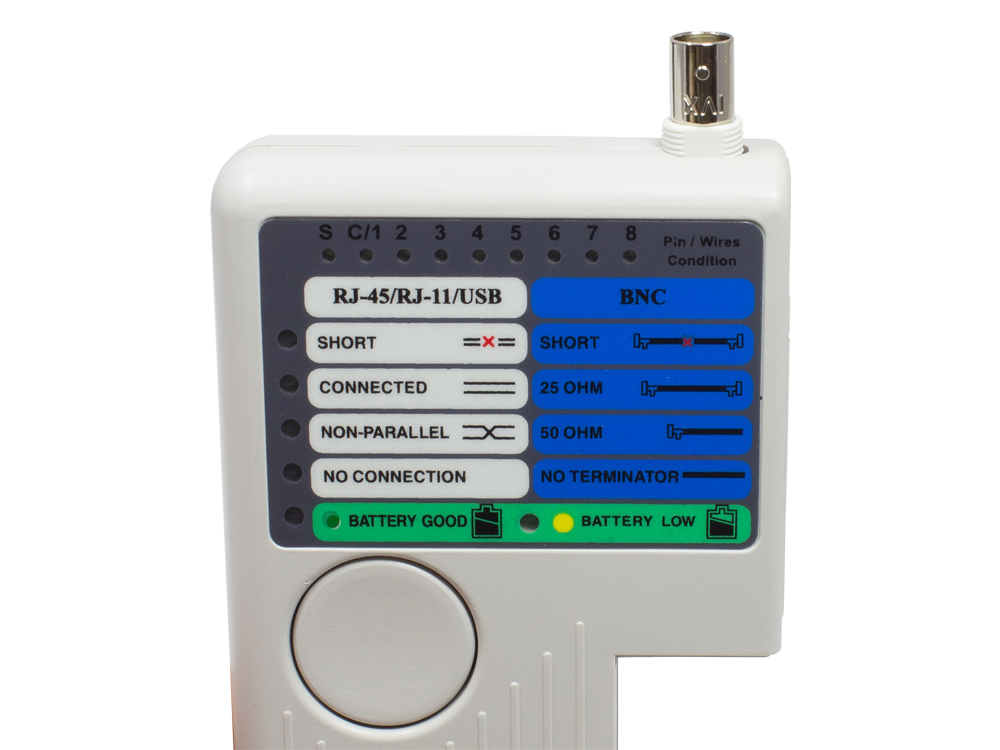

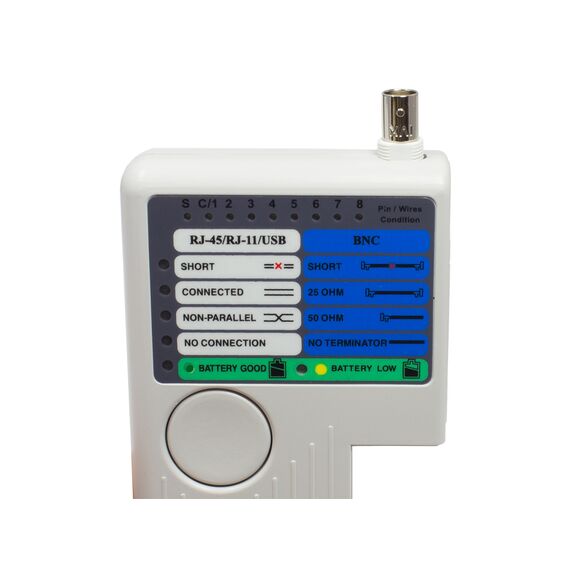

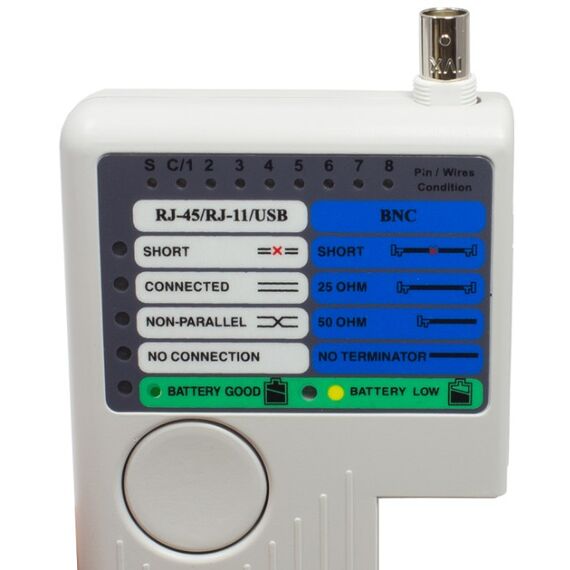

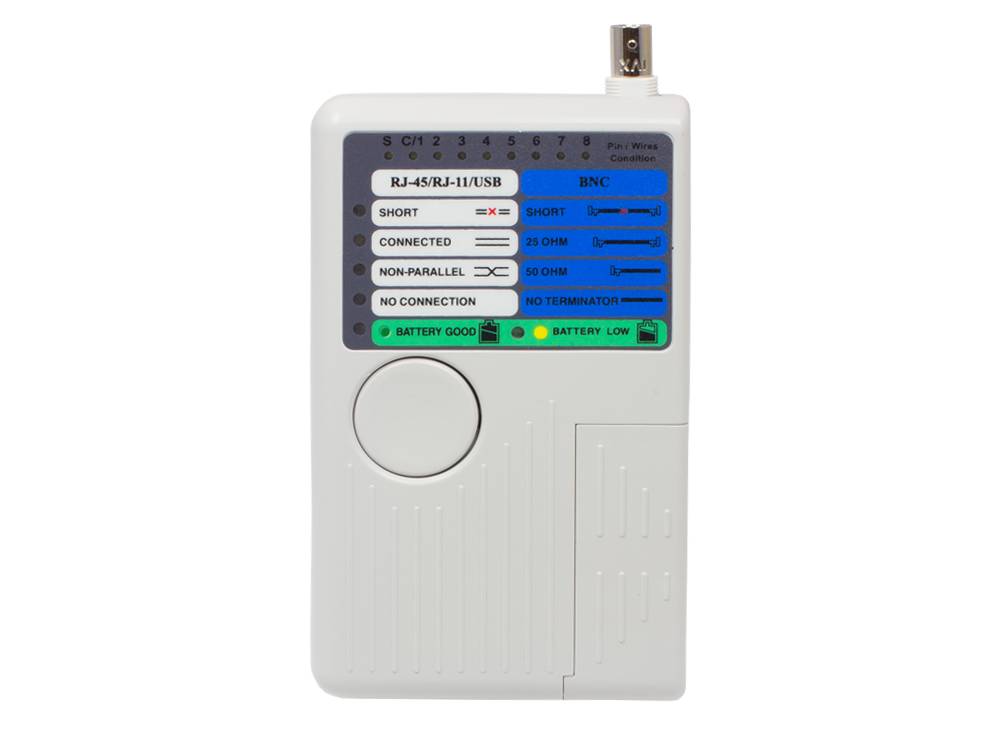

LEDs per conductor plus shield, with SHORT, CONNECTED, NON-PARALLEL and NO CONNECTION signals.
Ready to carry
Protective case and BNC terminator in the box, auto power-off saves the battery.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We keep a tester like the GC-N0097 in every service bag: most “network problems” on site turn out to be a badly crimped plug or a crossed pair, and this finds them in seconds. Add a 9 V battery to the order. See our network cards and network switches.
Buyer’s Guide
Buy it if
You install or maintain network, phone, coax or USB cabling and need a quick wiring check.
Skip it if
You need to certify cabling to Cat 6A or measure length and speed.
Also consider
A cable certifier for formal installation tests.
Features - GoodConnections - GC-N0097
More Details
Product Code
04:480028
EAN Code
4014619171194
Manufacturer
GoodConnections
