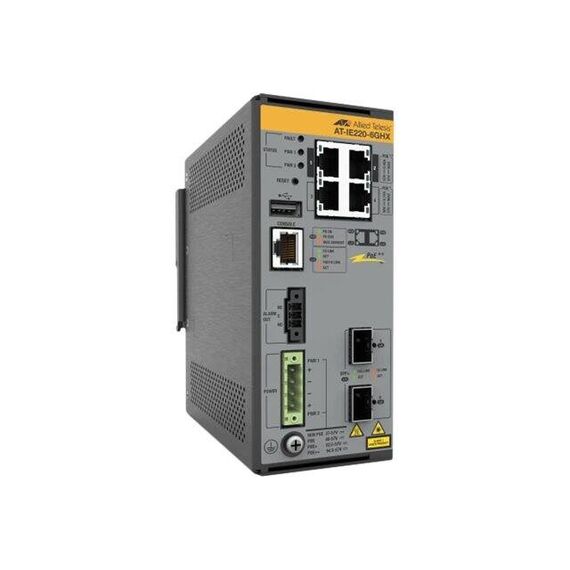

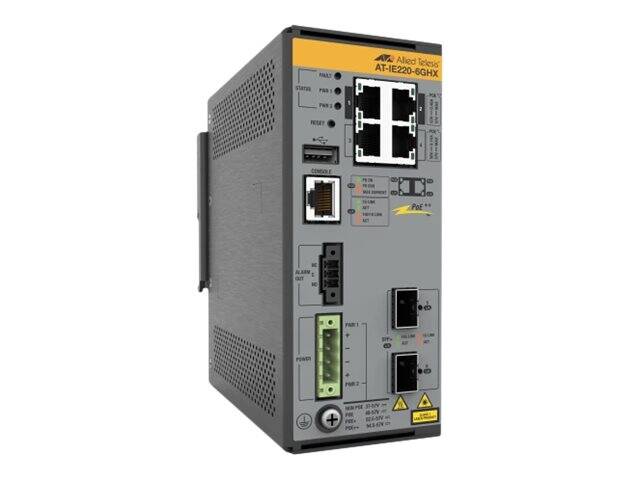

Allied Telesis AT IE220-6GHX - Switch - L2+ - Managed - 4 x 10/100/1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - DIN rail mountable, wall-mountable - PoE++ (180 W) | AT-IE220-6GHX-80

Allied Telesis AT IE220-6GHX - Switch - L2+ - | AT-IE220-6GHX-80

Description
Features
Reviews

Special Fetures

AlliedWare Plus feature-rich operating system
1GbE PoE++ copper ports with 10GbE fiber uplinks
Fanless design for high-reliability and silent operation
Extended operating temperature of -40°C to 75°C for harsh environments
Surge immunity for outdoor deployment
PoE++ supplies up to 95 W per port to high-power devices
Continuous PoE maximizes endpoint connectivity
Active Fiber Monitoring (AFM) for secure fiber uplinks
Certified for plenums
MRP, EPSRing, and G.8032 ERPS for high-availability resilient ring based networks
Redundant power inputs for resilient operation
Graceful thermal shutdown for network protection
Alarm monitoring and triggers for proactive administration

Product Specification

Device Type	Switch - 6 ports - L2+ - Managed
Enclosure Type	DIN rail mountable, wall-mountable
Subtype	Gigabit Ethernet
Ports	4 x 10/100/1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)	PoE++
PoE Budget	180 W
Performance	Switching fabric bandwidth: 48 Gbps ¦ Forwarding rate: 35.7 Mpps
Capacity	Buffer capacity (MB): 2 ¦ Priority queues: 8 ¦ Simultaneous VLANs: 4000 ¦ Multicast groups: 1023
MAC Address Table Size	16K entries
Jumbo Frame Support	12KB
Routing Protocol	IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, NETCONF, RESTCONF, DHCP, YANG, Syslog, MIB
Encryption Algorithm	DES, RSA, MD5, SSL, TLS, SHA-1, PEAP, TTLS, SHA-2, TLS 1.2, 3DES
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features	Flow control, DiffServ support, surge protection, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, Uni-Directional Link Detection (UDLD), fanless, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Denial of Service (DoS), OpenFlow support, Ethernet Protection Switched Ring (EPSRing), black hole routing, Secure Copy (SCP), Built-In Self Test (BIST), Cable fault locator (TDR), Software Defined Networking (SDN), Digital Diagnostics Monitoring (DDM), Active Fiber Monitoring, Authentication, Authorization and Accounting (AAA), VLAN mirroring, Connectivity Fault Management (CFM), storm protection, Link Aggregation Group (LAG), Media Redundancy Protocol (MRP), BPDU protection, Media Endpoint Discovery (LLDP-MED), IP Directed Broadcast, Continuity Check Protocol (CCP), Upstream Forwarding Only (UFO)
Compliant Standards	IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ag, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bt
RAM	512 MB DDR SDRAM
Flash Memory	128 MB
Status Indicators	PoE, link/activity, fault, power 1, power 2
Expansion / Connectivity
Interfaces	2 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-T RJ-45 PoE++ - 60 W ¦ 2 x 1000Base-X/10GBase-X SFP+ uplink ¦ 1 x serial (console) RJ-45 management ¦ 1 x USB 2.0 Type A ¦ 1 x alarm 3 pin terminal block
Power
Power Device	Internal power supply
Features	Redundant Power System (RPS) connector
Miscellaneous
Included Accessories	Mounting kit
Compliant Standards	UL, VCCI, ICES-003 Class A, UL 2043, FCC, RoHS, WEEE, IEC 60068-2-27, IEC 60068-2-6, ICES, REACH, IEC 60068-2-31, IP30, VCCI Class A, NEMA TS-2, China RoHS, RCM, IEC 60950-22, TSCA, FCC CFR47 Part 15 B Class A, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-29, AS/NZS CISPR 32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, CISPR 32 Class A, ITU-T G.8032, EN 55035, IEC/EN/UL 62368-1, IEC/EN 61000-3-3, EN 60715, EN 50021, IEC 62439-2, AS/NZS 62368-1, TEC, IEC 60512-99-002, UKCA, SCIP, UL/CSA 62368-1, EN IEC 61000-3-2
Software / System Requirements
OS Required	AlliedWare Plus
Dimensions & Weight
Width	15.5 cm
Depth	13.7 cm
Height	6.5 cm
Manufacturer Warranty
Service & Support	Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature	-40 °C
Max Operating Temperature	75 °C
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-40 °C
Max Storage Temperature	85 °C
Humidity Range Storage	5 - 95% (non-condensing)
