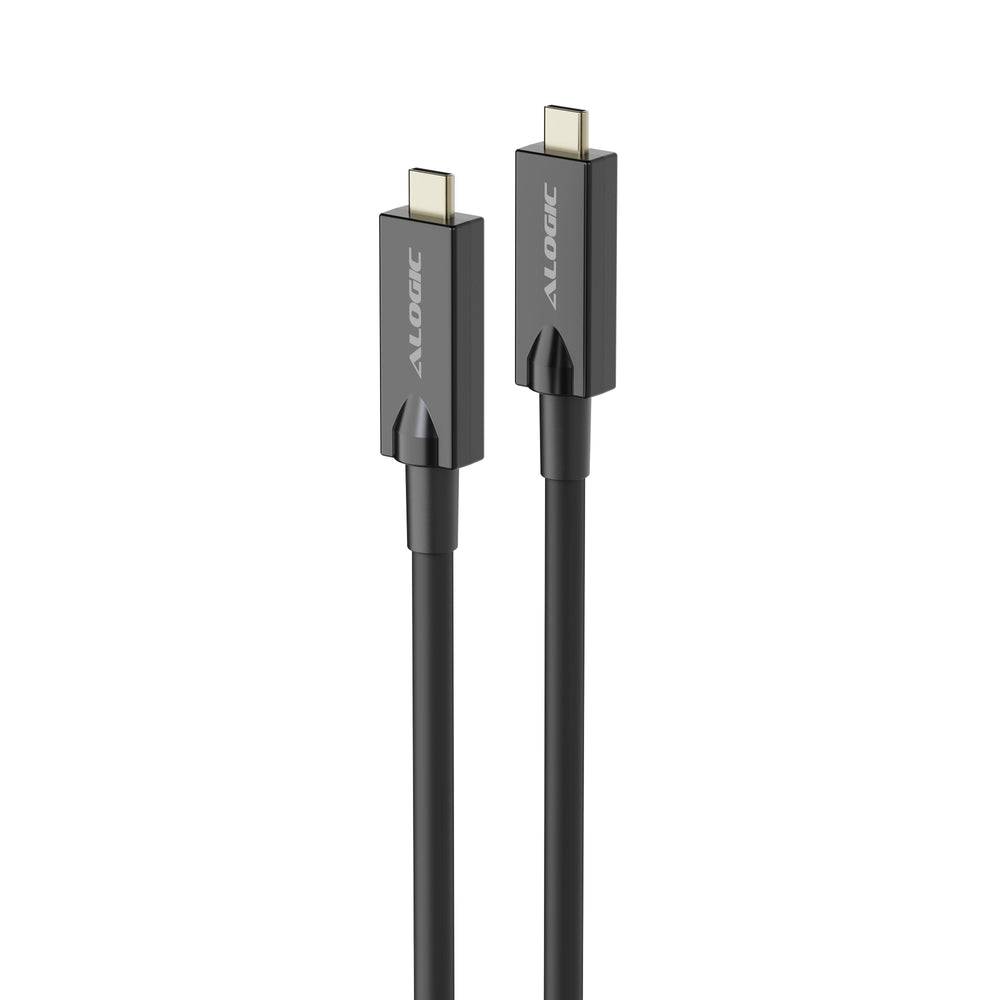

ALOGIC U3-TCC10-MM-H USB-C Hybrid Active Optical Cable 10 m
One USB-C cable for data, video and charging across a room: copper for power, optical fibre for the high-speed lanes.
10 m hybrid AOCUSB 3.2 Gen 2 10Gbps4K 60Hz DP Alt Mode60W Power Delivery
The ALOGIC U3-TCC10-MM-H is a 10-metre USB-C to USB-C hybrid active optical cable that carries USB 3.2 Gen 2 data at 10Gbps, DisplayPort video up to 4K at 60Hz and up to 60W of USB Power Delivery, built for meeting rooms, classrooms and AV installs where a normal 1–2 m USB-C cable cannot reach. It combines copper conductors with multimode optical fibre inside a 6.5 mm jacket, so the signal stays clean at a distance where passive USB-C cables fail.
Typical uses are a laptop at the lectern driving a display or USB-C touch panel on the far wall, a conference-room PC linked to a USB-C camera or dock, or a desktop tucked away from the workspace. The zinc-alloy connector housings and Kevlar-reinforced construction are designed for repeated handling and installation pulls.
Compatibility Note: Video travels in one direction only, so the cable must be installed the right way round (source end at the computer, display end at the monitor); data and charging work in both directions. The host USB-C port must support DisplayPort Alt Mode for video and USB PD for charging (up to 60W, not 100W laptop charging). The cable draws a small amount of power from the host port (VCONN) to run its optics.
Key Features
Hybrid copper + fibre design
Multimode optical fibre carries the high-speed lanes while copper handles power and USB 2.0, keeping 10Gbps data and 4K video stable over 10 m without a separate booster.
Video, data and power in one
DisplayPort 1.4 (2-lane) Alt Mode video up to 3840 x 2160 at 60Hz, USB 3.2 Gen 2 10Gbps plus USB 2.0, and up to 20V/3A (60W) charging through a single USB-C connection.
Built for installation
6.5 mm diameter, 60 mm minimum bend radius, 15 kg maximum pull strength, zinc-alloy housings and PE + Kevlar/cotton + aluminium Mylar shielding for conduit and ceiling runs.
Technical Specifications
| Identification |
| Part Number |
U3-TCC10-MM-H |
| EAN / GTIN |
9350784100344 |
| MPN |
U3-TCC10-MM-H |
| Brand |
ALOGIC |
| Connectivity |
| Connector A |
USB-C male |
| Connector B |
USB-C male |
| Cable length |
10 m |
| Cable type |
Hybrid active optical cable — copper conductors plus multimode optical fibre, powered by the host port |
| Performance |
| USB data |
USB 3.2 Gen 2x1 up to 10Gbps + USB 2.0 |
| Video |
DisplayPort 1.4 (2-lane) Alt Mode, up to 3840 x 2160 at 60Hz |
| Video direction |
Unidirectional — source end to display end |
| Power Delivery |
Up to 20V / 3A (60W) |
| Cable power |
Host VCONN, approx. 1100 mW |
| Physical |
| Cable diameter |
6.5 ± 0.3 mm |
| Minimum bend radius |
60 mm |
| Max pull strength |
15 kg |
| Housing |
Zinc alloy, 39 x 15 mm |
| Shielding |
PE + Kevlar/cotton + aluminium Mylar |
| Colour |
Black |
| Weight |
720 g |
| Operating temperature |
-10 to +50 °C |
| Compliance & support |
| OS compatibility |
Windows, macOS, ChromeOS |
| Certifications |
FCC, CE, UKCA, RoHS |
| Warranty |
2 years (manufacturer) |
Frequently Asked Questions
Does the ALOGIC U3-TCC10-MM-H work with Thunderbolt and USB4 laptops?
Yes, as a USB-C device: Thunderbolt 3/4 and USB4 ports normally provide DisplayPort Alt Mode, USB data and PD charging, so video, 10Gbps data and up to 60W charging work. It is not a Thunderbolt cable, so Thunderbolt-only devices such as Thunderbolt docks or PCIe enclosures will fall back to USB speeds or not connect.
Can I charge my laptop through this cable?
Yes, up to 60W (20V/3A). That covers most ultrabooks and tablets; larger laptops that expect 90–100W will charge more slowly or only maintain their battery under load.
Which length should I choose?
Measure the actual route including ceiling or floor detours and add some slack. ALOGIC makes the same hybrid cable in 5, 10 and 15 m; choose the shortest that reaches, as extra length adds weight (720 g for this 10 m version) and bulk in conduit.
Singular Expert Insight
We recommend the U3-TCC10-MM-H when a room needs a genuine single-cable USB-C connection at 10 m — 10Gbps data, 4K60 video and 60W charging together — which passive copper USB-C cables cannot deliver beyond about 2 m. If you only need video to a display, a USB-C to HDMI AOC such as the DIGITUS AK-330150-200-S is cheaper; if you need a different length, look at the 5 m U3-TCC05-MM-H or 15 m U3-TCC15-MM-H.
✓ Buy it if you want one USB-C cable carrying 10Gbps data, 4K 60Hz video and 60W charging over 10 m in a meeting room or AV install.
✕ Skip it if your laptop needs more than 60W, your devices are Thunderbolt-only, or you cannot control which end goes to the source.
→ Also consider Equip 119461/119462/119463 AOC cables (same 10Gbps/4K60/60W class) or the 5 m U3-TCC05-MM-H or 15 m U3-TCC15-MM-H.
