ALOGIC Fibre Patch Cable LC-LC Duplex OM3 Multimode 50/125 LSZH 1m 2mm 10G Ethernet

Brand:
Alogic
ALOGIC 1m LCLC 10G Multi Mode Duplex LSZH Fibre LCLC01OM3
ALOGIC Fibre Patch Cable LC-LC Duplex OM3 Multimode 50/125 LSZH 1m 2mm 10G Ethernet
€10.09 inc. VAT
Buy
LCLC-01-OM3
€8.48
€10.09 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
CG64171
EAN Code
9350784004390
Manufacturer
Alogic

Quick Specs

Fibre type
OM3 multimode 50/125 µm
Length
1 m
Connectors
LC – LC duplex
Jacket
LSZH 2 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

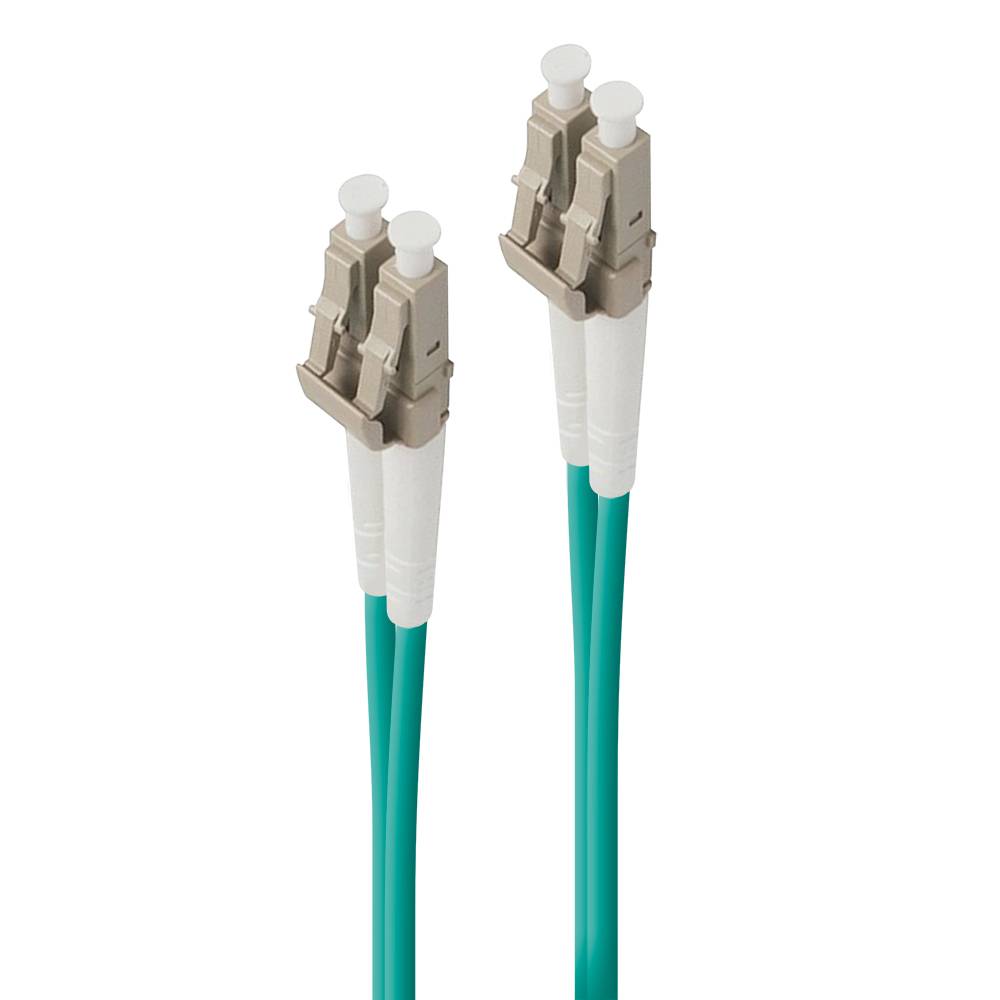

ALOGIC LC-LC OM3 Duplex Fibre Patch Cable — 1 m

OM3 MultimodeLC – LC1 mLSZH 2 mm

The ALOGIC LCLC-01-OM3 is a 1 m duplex fibre optic patch cable with LC and LC connectors on OM3 multimode fibre (50/125 µm), for connecting multimode SFP/SFP+ transceivers, media converters and patch panels in racks, offices and server rooms.

OM3 is laser-optimised 50/125 µm multimode fibre, the usual choice for 1G and 10G short-reach links between switches, servers and storage in the same room or building. The aqua jacket follows the common OM3 colour convention, so the link is easy to identify in the rack.

Before you order: This is OM3 multimode cable. It only works with multimode optics (SR/SX, 850 nm) and multimode panels, not with LX/LR singlemode transceivers.

What's in the Box

  • 1 × ALOGIC LCLC-01-OM3 duplex fibre patch cable, LC – LC, 1 m
  • Individual test report (each cable is tested before shipping)
  • Supplied in a polybag

What It Means in Practice

  • 1 m is a short jumper: switch to patch panel in the same rack, transceiver to a nearby panel, or port to port in adjacent units.
  • Duplex means two fibres (transmit and receive) in one cable, which is exactly what a standard duplex SFP, SFP+ or QSFP transceiver needs.
  • LSZH jacket, 2 mm outer diameter, undefined: halogen-free, the usual requirement for cabling inside offices, public buildings and data rooms.

What Will Not Work

  • Both ends are LC. It will not plug into SC or ST ports without the matching hybrid cable.
  • It is not a copper cable: it does not connect to RJ45 ports or copper (RJ45) SFP modules.

Key Features


Connectors
LC to LC.

Fibre
OM3 multimode, 50/125 µm, 2 fibres.

Jacket
LSZH, 2 mm, undefined.

Quality
Each cable is tested and supplied with its own measurement report.

Technical Specifications

Identification
Part Number LCLC-01-OM3
EAN / GTIN 9350784004390
Brand ALOGIC
Connectivity
Connector A LC
Connector B LC
Fibre count Duplex (2 fibres)
Fibre
Fibre type OM3 Multimode
Core / cladding 50/125 µm
Physical
Length 1 m
Jacket material LSZH (halogen-free)
Jacket diameter 2 mm
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term 2-year manufacturer warranty per ALOGIC — claims handled through Singular

Frequently Asked Questions

Will it work with my SFP/SFP+ transceiver?
Yes if the transceiver is multimode (SR/SX, 850 nm) and the end you plug in is LC, which is the standard SFP/SFP+ port. LR/LX singlemode optics need an OS2 cable.
The link does not come up. What should I check?
First clean both connector end-faces and check that the transceivers on both sides are the same type and wavelength. Then check polarity: transmit on one side must reach receive on the other.
Can I join two cables to make a longer run?
Yes, with a matching LC coupler, but every mated pair adds loss. For a permanent longer link it is better to order the right length in one piece; ask us and we will check which lengths of this series we can supply.
Singular Expert Insight · Buyer's Guide
Most fibre problems we see come from three mismatches: multimode vs singlemode, UPC vs APC, and LC vs SC. This ALOGIC cable is OM3 multimode, LC-LC, so match it to your optics and panel first. If you are building the link from scratch, pick the transceivers and switches with SFP ports first, then choose the cable that matches them.
✓ Buy it if your equipment uses OM3 multimode fibre with LC and LC ports and 1 m covers the distance.
✕ Skip it if your transceivers are singlemode (LR/LX), or your ports are APC.
→ Also consider the same cable in other lengths, or an LC-SC hybrid version if your ports differ; matching SFP/SFP+ transceivers.
Not sure which cable you need? Send us the model of your switch, transceiver or panel and we will check connectors and fibre type before you order.
