AMD Ryzen 5 5500F 6-Core AM4 Processor Tray

Brand:
AMD

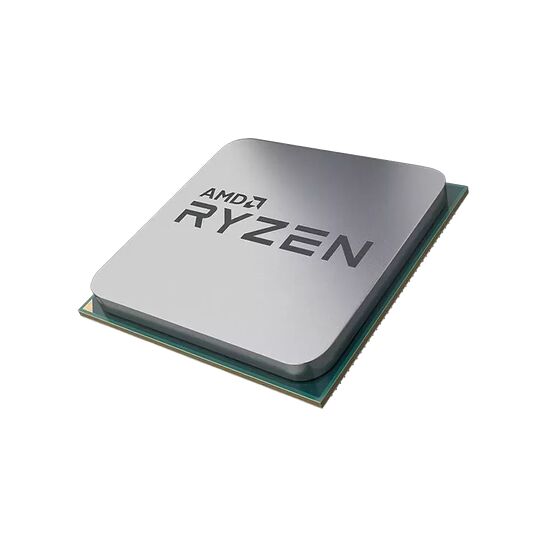

AMD Ryzen 5 5500F tray processor illustration from exact product listing
AMD Ryzen 5 5500F 6-Core AM4 Processor Tray
€124.45 inc. VAT
Buy
100-000001905
€104.58 €116.20
€124.45 inc. VAT
Ships from EU stock: 100 item(s)
+ −
Add to wish list Ask a question
CPU Type
AMD Ryzen
Product Code
04:603723
Manufacturer
AMD
Quick Specs
Cores / threads
6 /12
Clock
3.0GHz / up to 4.4GHz
Platform
AM4 / DDR4
Requirements
Discrete GPU + CPU cooler
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Six-core Zen 3 processing for an AM4 desktop with a separate graphics card

6 cores /12 threadsUp to 4.4GHzAM4 + DDR465W TDP

The AMD Ryzen 5 5500F brings 6 Zen 3 cores and 12 threads to the AM4 platform, with a 3.0GHz base clock and boost up to 4.4GHz. The exact tray ordering code is 100-000001905. AMD identifies this model as Vermeer, with 16MB L3 and 3MB L2 cache, DDR4 memory support and PCIe 4.0 connectivity.

Best For: Value-focused AM4 desktop builds and supported upgrades that already include a discrete graphics card and a suitable CPU cooler.
Before you order: This is the tray CPU, not the boxed 100-100001905BOX package. A cooler is not included. The 5500F requires a separate graphics card; motherboard video outputs do not supply processor graphics. Verify exact CPU support and required BIOS on your motherboard before ordering.

What's in the Box

  • One AMD Ryzen 5 5500F processor, tray code100-000001905.
  • CPU cooler and retail boxed package are not included.

What It Means in Practice

  • Six cores and12 threads can share everyday desktop, gaming and multitasking work; results depend on the complete system and application.
  • Select compatible DDR4 UDIMM memory and follow the motherboard memory population guide.
  • Install an AM4-compatible cooler and a discrete graphics card, then check firmware support and cooling operation.

What Will Not Work

  • No integrated graphics; a separate graphics card is mandatory.
  • Not compatible with AM5 or DDR5 platforms.
  • A listed AM4 chipset does not guarantee every motherboard BIOS supports this exact CPU.
  • Maximum boost is an up-to specification, not the sustained frequency of all cores under every workload.

Key Features


6-core/12-thread Zen 3
The Vermeer architecture supports simultaneous multithreading for compatible applications.

Up to 4.4GHz boost
3.0GHz base frequency with Precision Boost 2 and operating-condition-dependent boost.

AM4 and DDR4
Reuse only a verified compatible AM4 platform with supported BIOS and DDR4 memory.

Tray supply clarity
Plan a separate graphics card and CPU cooler; boxed cooler contents are not part of this SKU.

Technical Specifications

Model AMD Ryzen 5 5500F
Family / series Ryzen / Ryzen 5000 Series
Tray ordering code 100-000001905
Platform / segment Mainstream desktop
Architecture / codename Zen 3 / Vermeer
CPU cores 6
Threads / SMT 12 / supported
Base clock 3.0GHz
Maximum boost Up to 4.4GHz
L2 cache 3MB
L3 cache 16MB
Combined L2 + L3 cache 19MB
Default TDP 65W
CPU core process TSMC 7nm FinFET
I/O die process 12nm Globalfoundries
CPU compute die area 74mm²
I/O die area 125mm²
Package die count 2
Unlocked multiplier Yes; system/operating conditions apply
Socket AM4
Listed chipsets X570, X470, X370, B550, B450, B350, A520; motherboard CPU/BIOS support required
Boost technology Precision Boost 2
Instruction set x86-64
Instruction extensions AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE2, SSE4.2, SSE4A, SSE4.1, SSE3, SSSE3, SSE, x86-64
Maximum operating temperature 95°C
Native USB3.2 Gen2 (10Gbps) 4
Native USB3.2 Gen1 / USB2.0 0 / 0; motherboard may add ports/controllers
Native SATA ports 2
PCI Express version PCIe 4.0
Native PCIe lanes total / usable 24 / 20
NVMe support Boot, RAID0, RAID1, RAID10
Memory type / subtype DDR4 UDIMM
Memory channels 2
Maximum memory 128GB; motherboard restrictions apply
Memory specification Up to DDR4-3200
Memory population 2×1R / 2×2R DDR4-3200 / DDR4-3200
Memory population 4×1R / 4×2R DDR4-2933 / DDR4-2667
ECC support Yes, requires motherboard support
Graphics Discrete graphics card required
Supported OS listed by AMD Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit
Listed technologies AMD StoreMI, Ryzen Master, Ryzen VR-Ready Premium
Supply / cooler Tray CPU; cooler not included
Condition New

Frequently Asked Questions

Does the5500F include integrated graphics?
No. AMD specifies that a discrete graphics card is required.
Is the Wraith Stealth cooler included?
No. AMD labels Wraith Stealth as a PIB boxed thermal solution. This product is the tray code100-000001905 and is supplied without a cooler.
Will every AM4 motherboard support it?
Check the exact board CPU support list and BIOS version. Socket and chipset alone do not establish compatibility.
Is this the same as Ryzen 5 5500?
Use the exact5500F model and tray code when comparing. AMD lists this5500F as Zen 3 Vermeer with PCIe 4.0; do not substitute another similarly named CPU’s specifications.
Singular Expert Insight

The practical purchase check is the complete platform: supported BIOS, suitable AM4 cooler, DDR4 memory and a separate graphics card. These requirements matter more than the headline boost number when turning a tray processor into a working upgrade.

Buyer’s Guide

✓ Buy it if Your AM4 board explicitly supports the 5500F and you already have, or are budgeting for, its separate cooler and graphics card.
✕ Skip it if You require built-in graphics, a cooler in the package, or an AM5/DDR5 upgrade.
→ Also consider The motherboard CPU support list, any required BIOS update and an appropriate AM4 cooler before installation.
