GIGABYTE AORUS GeForce RTX 5090 MASTER ICE 32G | 32GB GDDR7 512-bit | PCIe 5.0 | WINDFORCE | LCD Edge View | RGB Halo | White | 3×DP 2.1b + HDMI 2.1b
GIGABYTE AORUS GeForce RTX 5090 MASTER ICE 32G — 32GB GDDR7, Blackwell, WINDFORCE Cooling
The GIGABYTE AORUS GeForce RTX 5090 MASTER ICE 32G (GV-N5090AORUSM ICE-32GD) is a flagship white-edition graphics card built around NVIDIA Blackwell architecture for ultra-high-end gaming, AI workloads, and premium creator systems. It combines 21760 CUDA cores, 32 GB GDDR7 on a 512-bit memory interface, a factory-set 2655 MHz core clock, and DLSS 4 in a premium AORUS design with LCD Edge View, RGB Halo lighting, and advanced WINDFORCE cooling.
Blackwell Flagship Performance
Powered by NVIDIA GeForce RTX 5090, this AORUS MASTER ICE model targets enthusiasts who need top-tier gaming performance, advanced ray tracing, and next-generation AI acceleration. With 21760 CUDA cores, 32 GB GDDR7 memory, and 28 Gbps memory speed, it is built for demanding 4K gaming, 8K-ready visual pipelines, complex 3D scenes, and high-end creator workloads. DLSS 4 helps increase effective frame rates in supported titles while maintaining image quality.
WINDFORCE Cooling Engineering

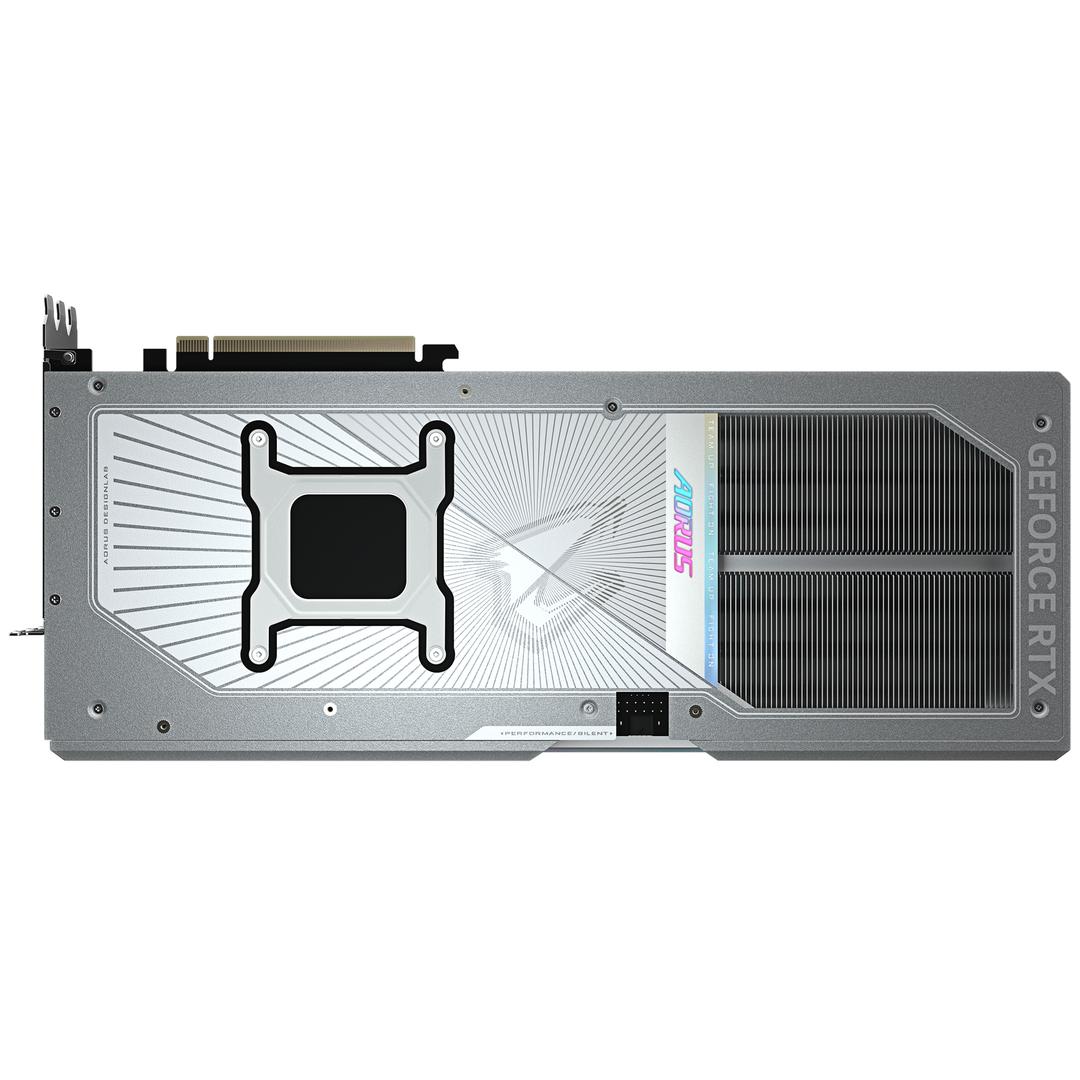

GIGABYTE equips the card with its advanced WINDFORCE cooling system, combining Hawk Fan design, composite metal grease for GPU, server-grade thermal conductive gel, and superconducting heat pipes. This thermal solution is designed for stable operation under heavy sustained load. Dual BIOS support allows easy switching between Performance and Silent modes, giving users a practical balance between maximum cooling and lower acoustics.
Premium ICE Design Features

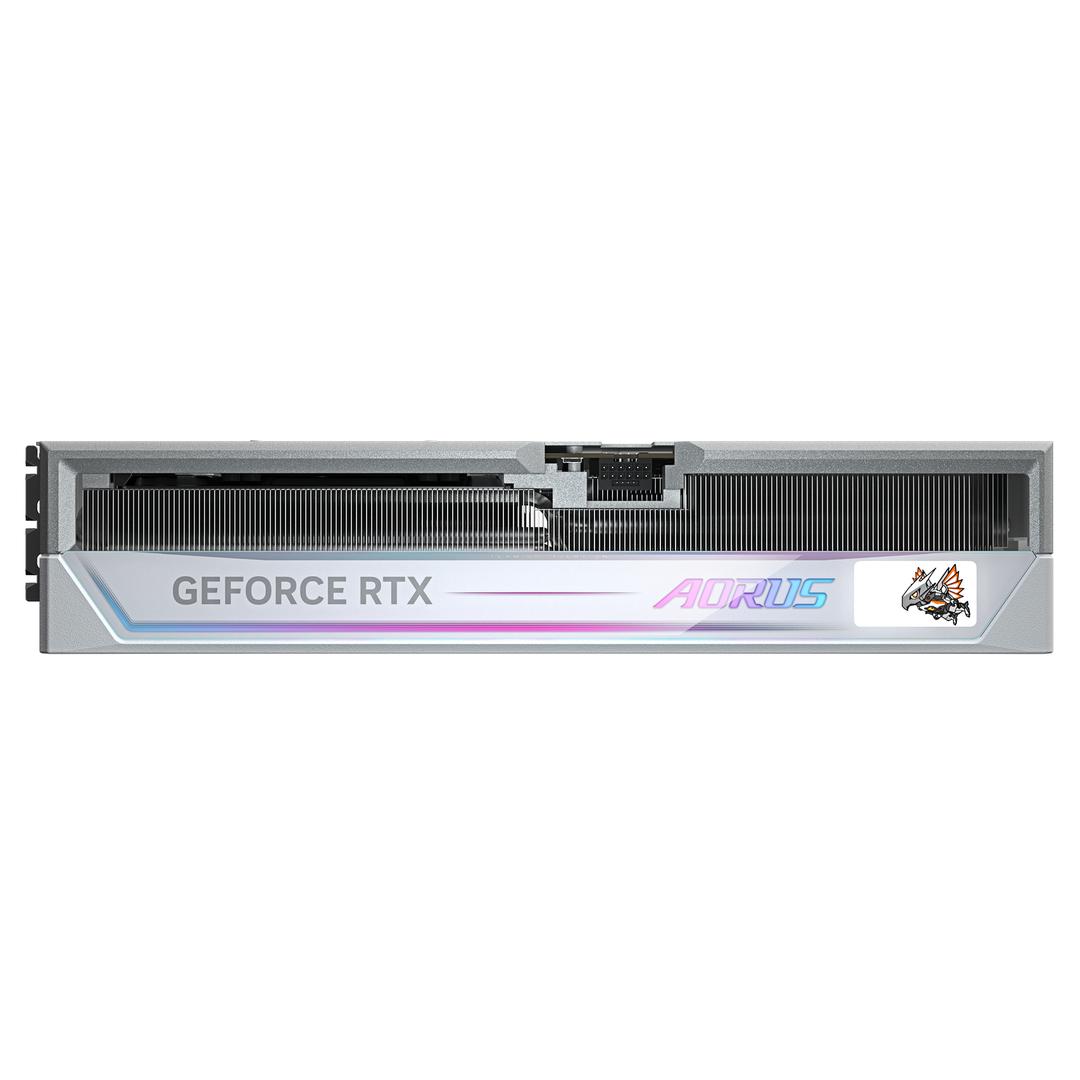

The ICE version brings the same flagship AORUS MASTER platform in a premium white finish that suits modern high-end showcase systems. LCD Edge View adds a customizable display element on the card, while RGB Halo lighting enhances the visual presentation. A reinforced structure and included versatile VGA holder help support the weight and size of this large flagship GPU more securely inside demanding desktop builds.
Display Connectivity & System Requirements

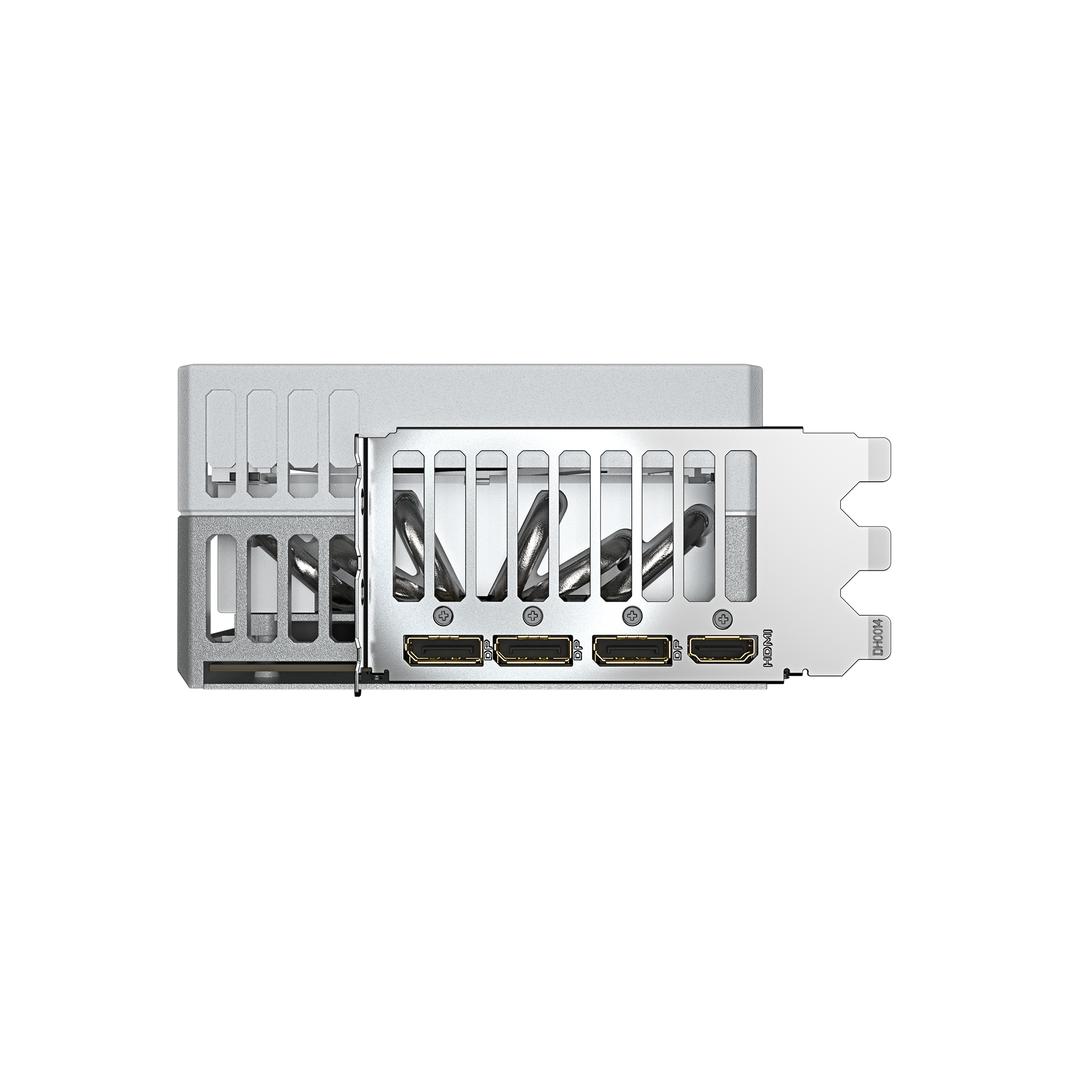

This model uses a PCI Express 5.0 interface and supports up to 4 displays with a maximum digital resolution of 7680 × 4320. Rear I/O includes 3× DisplayPort 2.1b and 1× HDMI 2.1b, making it well suited for modern high-refresh monitors and premium multi-display setups. Power is supplied through 1× 16-pin connector, and GIGABYTE recommends a 1000W PSU for stable operation in enthusiast-class systems.
Technical Specifications
| GPU & Memory | |
|---|---|
| Graphics Processing | NVIDIA GeForce RTX 5090 |
| CUDA Cores | 21,760 |
| Core Clock | 2655 MHz |
| Reference Clock | 2407 MHz |
| Memory | 32 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |
| Connectivity & Outputs | |
| Bus Standard | PCI Express 5.0 |
| DisplayPort | 3× DisplayPort 2.1b |
| HDMI | 1× HDMI 2.1b |
| Maximum Resolution | 7680 × 4320 |
| Multi-View | 4 |
| Cooling & Power | |
| Cooling System | WINDFORCE cooling system |
| Cooling Features | Hawk Fan, composite metal grease, server-grade thermal conductive gel, superconducting heat pipes |
| Dual BIOS | Yes — Performance / Silent |
| Power Connector | 1× 16-pin |
| Recommended PSU | 1000W |
| Dimensions & Form Factor | |
| Card Size | 360 × 150 × 75 mm |
| PCB Form | ATX |
| Software & In the Box | |
| DirectX | DirectX 12 API |
| OpenGL | 4.6 |
| Included Accessories | Quick guide, warranty registration, 12V-2x6 to 4× PCIe 8-pin adapter, AORUS identity stickers, AORUS metal sticker, versatile VGA holder, VGA holder manual |
| Part Number | GV-N5090AORUSM ICE-32GD |
Frequently Asked Questions
Is this card suitable for 4K high-refresh gaming?
Yes. The RTX 5090 GPU, 32 GB GDDR7 memory, and 512-bit memory bus place this model in the flagship class for demanding 4K gaming and advanced visual workloads.
How large is the card?
This AORUS MASTER ICE model measures 360 × 150 × 75 mm. It is a physically large graphics card, so chassis clearance should be checked before ordering.
What display outputs does it have?
It includes 3× DisplayPort 2.1b and 1× HDMI 2.1b, supporting modern high-resolution and high-refresh displays.
Does it include a power adapter and support bracket?
Yes. In the box, GIGABYTE includes a 12V-2x6 to 4× PCIe 8-pin adapter and a versatile VGA holder for installation support.
Buyer's Guide
Enthusiast gamers, premium white-build PC users, creators, and high-end desktop builders who want one of the most advanced AORUS graphics cards available with elite-class cooling, large onboard memory, and standout ICE styling.
The main reason to choose this model over a more basic RTX 5090 is the full AORUS treatment in white: WINDFORCE thermal design, LCD Edge View, RGB Halo lighting, Dual BIOS, and a reinforced premium build designed for showcase systems and sustained heavy-load operation.
This is a very large ATX-class graphics card at 360 mm length and requires a 1000W power supply recommendation. Before purchase, confirm case clearance, power connector compatibility, and airflow capacity for a flagship GPU of this size.
