AORUS Z890 A XTREME AI TOP / Motherboard / extended ATX / LGA1851 Socket / Z890 Chipset / USB4, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 / 2 x 2.5 Gigabit LAN, Bluetooth, Wi-Fi 7 / onboard graphics (CPU required) / HD Audio | Z890 A XTREME AI TOP
AORUS Z890 A XTREME AI TOP / Motherboard / extended ATX / LGA1851 Socket / Z890 Chipset / USB4, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 / 2 x 2.5 Gigabit LAN, Bluetooth, Wi-Fi 7 / onboard graphics (CPU required) / HD Audio | Z890 A XTREME AI TOP
€1903.57 inc. VAT
Z890 A XTREME AI TOP
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Powerful expansion capabilities
With multiple expansion slots, including PCIe 4.0 x16 and various M.2 configurations, the motherboard provides significant flexibility for adding new components or storage solutions, making it suited for a wide range of applications from gaming to content creation. - High-performance memory support
The AORUS Z890 motherboard supports up to 4 DIMM slots for DDR5 RAM, enabling an exceptional memory speed range that can be overclocked up to 4733 MHz, ensuring that high-performance applications run smoothly. - Advanced connectivity options
Featuring a rich array of connectivity options such as Thunderbolt 5, USB 3.2 Gen 2, and 2.5 Gigabit Ethernet, this motherboard is designed to meet the demands of modern peripherals and networking needs. - Enhanced thermal management
Equipped with advanced thermal solutions such as VRM Thermal Armor and M.2 Thermal Guards, this motherboard ensures optimal temperatures and system stability during heavy workloads, thereby extending the lifespan of components. - Immersive audio experience
Support for high-definition audio and an 8-channel output provides a rich and immersive sound experience, essential for both gaming and professional audio work, making it an excellent choice for multimedia setups.
Special Features
- Supports Intel Core Ultra processors with an LGA1851 socket
- Up to 4 DIMM slots for DDR5 RAM with speeds exceeding 4733 MHz
- Multiple expansion slots including PCIe 4.0 x16 and M.2 connections
- Dual 2.5 Gigabit Ethernet and Wi-Fi 7 connectivity options
- Advanced thermal management with M.2 Thermal Guards and VRM Thermal Armor
Product Specification
| Product Type | Motherboard - extended ATX |
| Chipset Type | Intel Z890 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4750 MHz (O.C.), 4733 MHz (O.C.), 4666 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4466 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 3100 MHz, 3000 MHz, 2900 MHz, 2800 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2 x 2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 5.0 x16 (x8 mode) PCIe 4.0 x16 (x4 mode) 2 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) 2 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

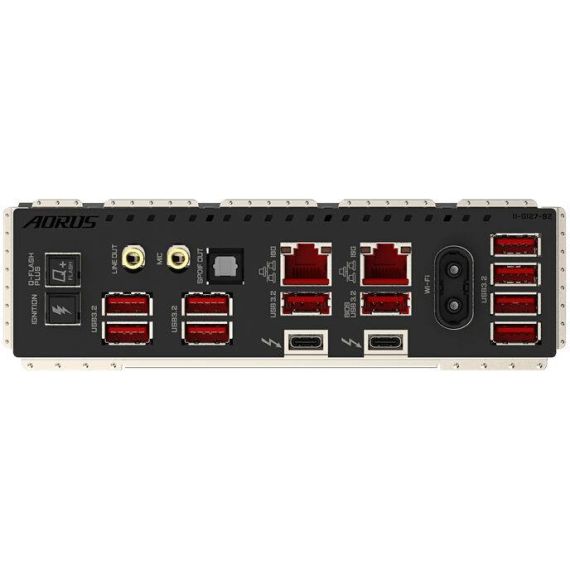

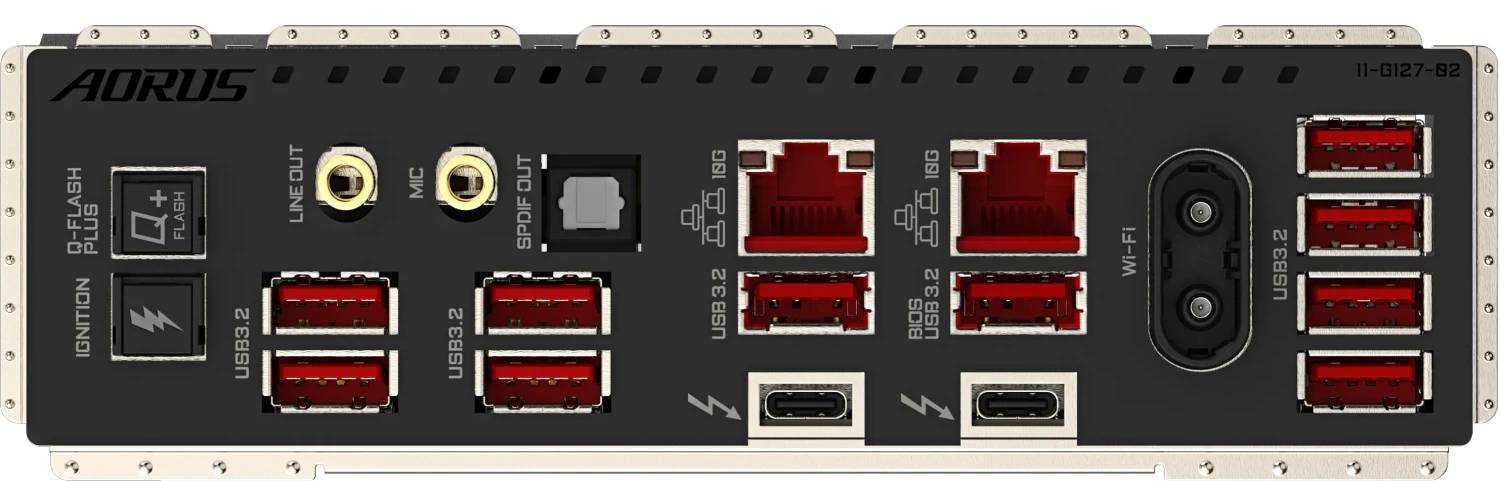

| Interfaces | 2 x Thunderbolt 5 10 x USB 3.2 Gen 2 1 x SPDIF out 1 x DisplayPort 1 x HDMI 2 x aerial 2 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack |
| Internal Interfaces | 1 x Thunderbolt 4 - header 2 x USB-C 3.2 Gen 2x2 - header 2 x USB 3.2 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan control, fan fail warning, fan speed detection, system voltage, temperature detection |
| Hardware Features | CUDIMM support, reset button, power button, Q-Flash Plus button, Q-Flash, Q-Flash Plus, 2x Copper PCB, M.2 Thermal Guard Ext., M.2 Thermal Guard L, VRM Thermal Armor Advanced, GIGABYTE VisionLINK TB, EZ Debug LED, AI SNATCH Engine, VRM heatsink design, GIGABYTE Smart Fan 6, Ultra Durable PCIe Armor, RGB FUSION, AI Perfdrive, WIFI EZ-Plug, M.2 EZ Latch plus, PCIe EZ Latch Plus, 22+1+2+2 Phase Power Design |
| Miscellaneous | Miscellaneous |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
| Width | 30.48 cm |
| Depth | 30.5 cm |
Features - GigaByte - Z890 A XTREME AI TOP
CPU Socket
- Socket 1851
More Details
Product Code
07:21231199
EAN Code
4719331866174
Manufacturer
GigaByte
