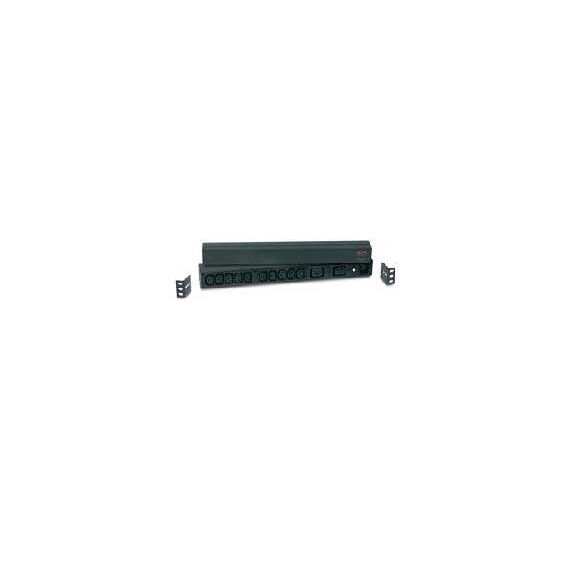

APC Basic Rack-Mount PDU - Power distribution strip ( rack-mountable ) - AC 208/230 V - 12 Output Connector(s)

Ask a question
AP9559
Product Code2701221 EAN Code0731304123521 ManufacturerAPC
426.65
507.71  inc. VAT
Out of stock

We (Singular Computer Systems LTD) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to [email protected]

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to wish list
Find similar
Delivery
Payment options

APC AP9559 APC Basic Rack-Mount PDU - Power distribution strip ( rack-mountable ) - AC 208/230 V - 12 Output Connector(s)

APC Basic Rack-Mount PDU - Power distribution strip ( rack-mountable ) - AC 208/230 V - 12 Output Connector(s)

Description:

APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet 2.5 meters , Output : 120, 208, 230V , Output Connections : 10IEC 320 C13, 2IEC 320 C19

Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities

Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual


Output Voltages main only - 120, 208, 230 V

Maximum Total Current Draw per Phase - 16 A

Output Connections - 10IEC 320 C13; 2IEC 320 C19

Always on Outlets - 12
Overload Protection

Input:

Nominal input voltage - 120, 208, 230

Input frequency Hz - 50/60 Hz

Input Connection Type - IEC-320 C20

Cord Length 8.2 feet 2.5 meters

Acceptable Input Voltage - 90-250 VAC

Maximum Line Current per phase - 16.0 A

Maximum Input Current per phase - 16.0 A

Load Capacity - 3680


Feature list

Nominal input voltage: 120, 208, 230 V
Cable length: 2.5 m
Output voltage: 120, 208, 230 V
Colour of product: Black
Storage temperature range T-T: -25 - 65 °C
Operating relative humidity range: 0 - 95 %
Storage relative humidity range: 0 - 95 %
Operating temperature range T-T: 0 - 45 °C
Dimensions W x D x H: 447.0 x 57.2 x 44.5 mm
Weight: 980 g
I/O ports: Output Connections - 10IEC 320 C13; 2IEC 320 C19
Input Connection Type - IEC-320 C20

APC Basic Rack-Mount PDU - Power distribution strip ( rack-mountable ) - AC 208/230 V - 12 Output Connector(s)

Features - APC - AP9559

More Details
Product Code
2701221
EAN Code
0731304123521
Manufacturer
APC
