APC AR7580A — High-Capacity Vertical Cable Manager for 750 mm NetShelter SX
42U · 1778 mm97 mm wide channel6 cable retainersBlack

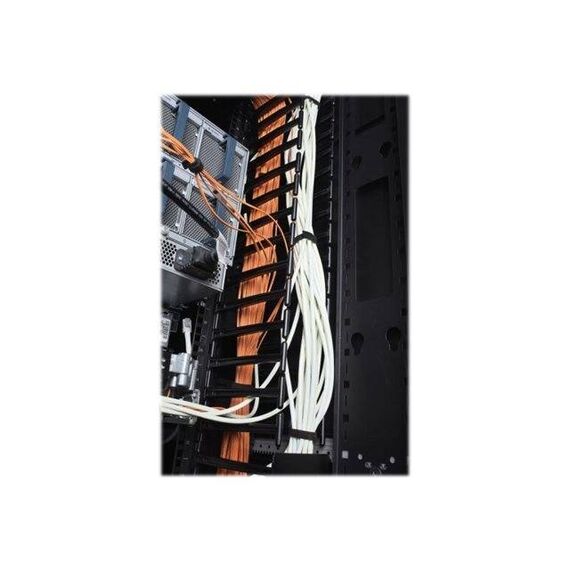

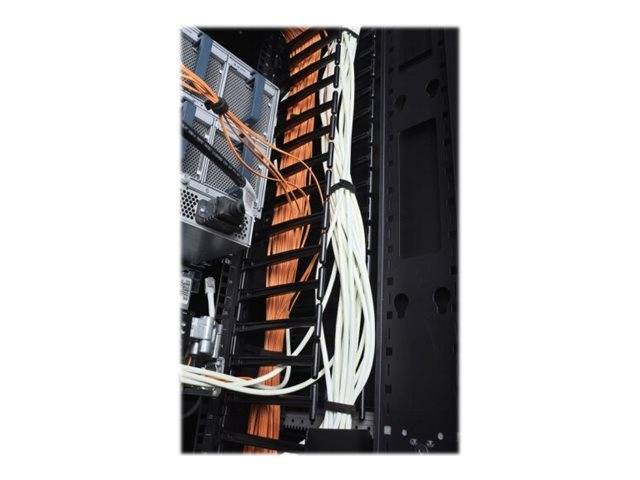

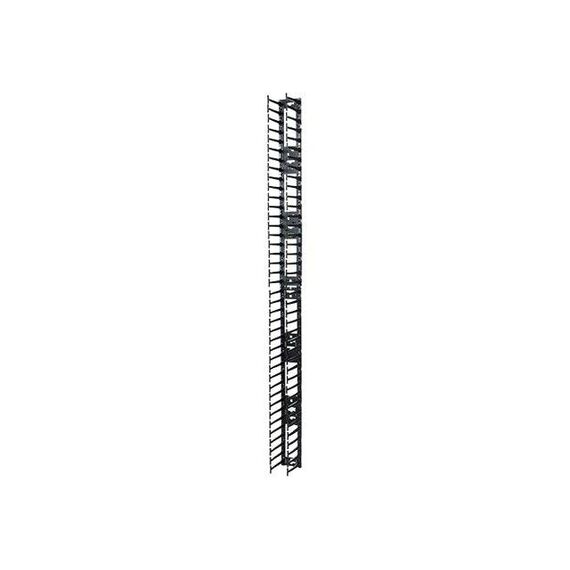

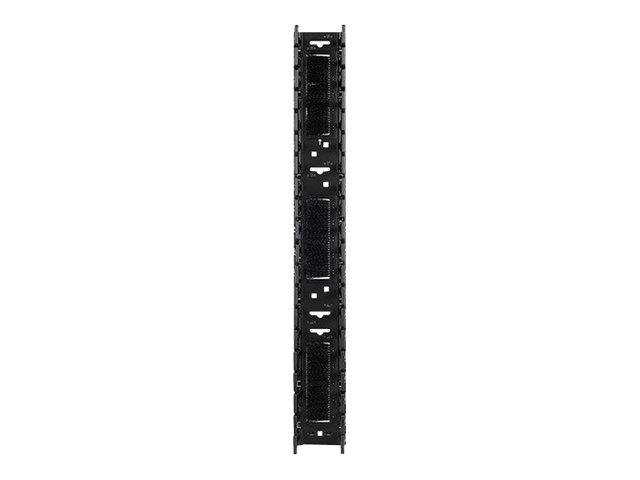

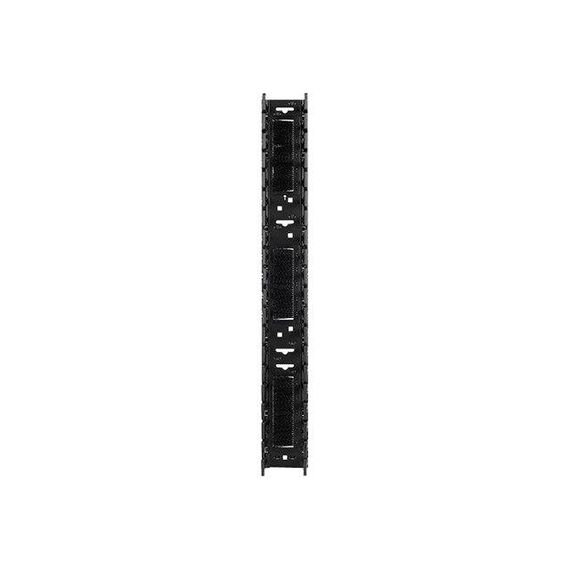

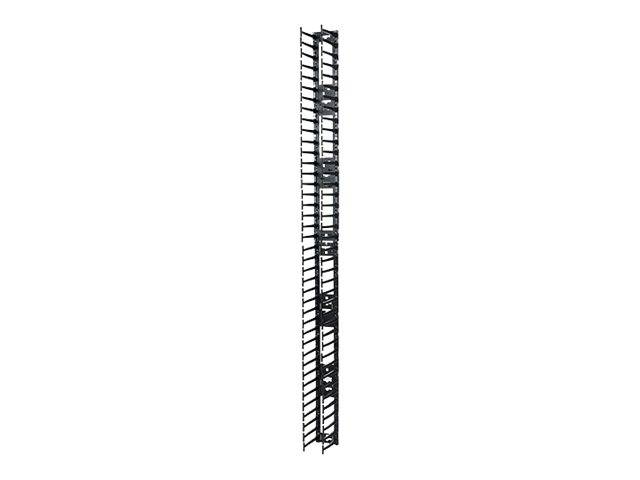

The APC AR7580A is a high-capacity vertical cable manager for 750 mm-wide NetShelter SX 42U enclosures (AR3150 and AR3350): it fills the space beside the 19-inch rails with a 97 mm-wide channel and smooth plastic fingers at every 1U, so dense patch cabling stays organised from top to bottom.
Wide enclosures exist precisely to give room for cabling. The AR7580A uses that room properly, with snap-hinge cable retainers to hold bundles in place and a toolless backplate for mounting accessories. It installs at the front or the rear of the enclosure.
Before you order: Designed for 750 mm-wide NetShelter SX 42U enclosures — AR3150 and AR3350 are confirmed by Schneider. It does not fit 600 mm-wide enclosures (no space beside the rails) or non-APC racks. For rear installation the vertical 0U accessory channel may need to be moved or removed.
What's in the Box
- Vertical cable manager (2 sections)
- Support plate
- Top securing bracket
- 6 snap-hinge cable retainers
- Screws and spacers
- Installation guide
What It Means in Practice
- One manager per side handles the patch cords of several 48-port panels.
- Retainers keep bundles in place when doors are opened and closed.
- Leave at least 190 mm (273 mm recommended) front clearance between the rails and the door.
- A Phillips screwdriver and Torx T30 are needed (not included).
What Will Not Work
- It does not fit 600 mm-wide enclosures.
- It is not a universal part for non-APC racks.
- It does not include cable ties or hook-and-loop straps.
- It is supplied as one manager, not a pair for both sides.
Key Features
High capacity
97 mm-wide channel for dense patch cabling.
1U finger spacing
Fingers at every 1U protect bend radius.
Cable retainers
6 snap-hinge retainers included.
Front or rear
Mounts in the space beside the 19-inch rails.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
If you chose a 750 mm-wide NetShelter SX for a network core, the AR7580A is what makes the extra width useful. Order one per side. For blanking panels, shelves and PDUs to complete the rack, see our rack accessories.
✓ Buy it if you have a 750 mm-wide NetShelter SX 42U and dense patch cabling.
✕ Skip it if your enclosure is 600 mm wide (see AR7717A) or not an APC NetShelter SX.
→ Also consider APC AR7717A set of 4 vertical cable managers for NetShelter SX 42U networking enclosures.
Send us the model on your rack label and we will confirm the fit before you order.
