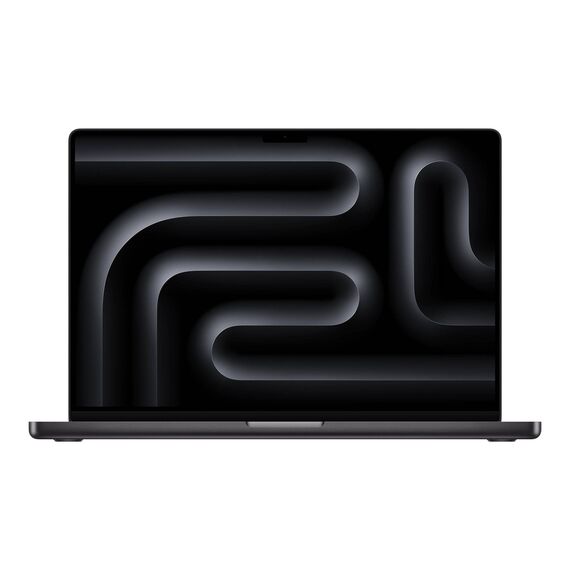

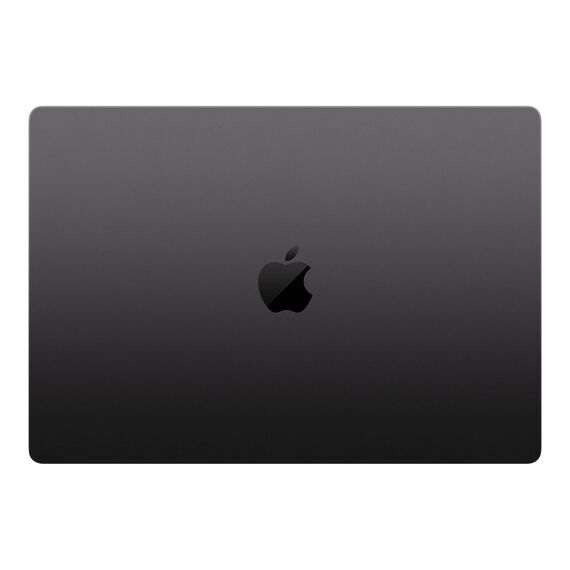

Apple MacBook Pro 16" M5 Max — 18-Core CPU, 32-Core GPU, 36 GB, 2 TB, Space Black (US Configuration)
M5 Max 18C CPU / 32C GPU36 GB unified memory2 TB SSDSpace Black
The Apple MacBook Pro 16-inch with M5 Max (Z1N1-US01) is a configured-to-order MacBook Pro in Space Black with an 18-core CPU, 32-core GPU, 36 GB of unified memory and a 2 TB SSD, built for video editors, colourists, 3D artists and developers who need desktop-class GPU power and the largest MacBook screen.
It has a 16.2-inch Liquid Retina XDR display (3456 × 2234) with the standard finish, 1000 nits sustained and 1600 nits HDR peak brightness and 120 Hz ProMotion; three Thunderbolt 5 ports, HDMI, an SDXC card slot and MagSafe 3; a 100 Wh battery with up to 22 hours of video streaming; Wi-Fi 7 and Bluetooth 6. This is a US configuration with a US (ANSI) keyboard.
Before you order: No power adapter is included with this configuration. Any USB-C Power Delivery charger works, and Apple specifies fast charging with a 140W or higher USB-C PD power source — ask us and we will add a suitable adapter to your order.
What's in the Box
- Apple MacBook Pro 16-inch (M5 Max, 18-core CPU, 32-core GPU, 36 GB, 2 TB SSD), Space Black
- Power adapter sold separately (not included in this configuration)
What It Means in Practice
- The 32-core GPU with ray tracing and 460 GB/s memory bandwidth accelerates 3D rendering, GPU effects in DaVinci Resolve and Final Cut Pro, and on-device machine learning.
- Two video encode engines and two ProRes engines speed up multi-stream 4K and 8K exports — a real time saver for editors delivering several formats.
- The 16.2-inch XDR screen gives more timeline and canvas space than the 14-inch, and up to four external displays can be connected (6K 60 Hz each) over Thunderbolt 5 and HDMI.
- 2 TB of internal storage holds active projects and caches on board; the SDXC slot and 120 Gb/s Thunderbolt 5 handle camera cards and fast external RAID.
- The 100 Wh battery gives up to 22 hours of video streaming or 16 hours of wireless web.
What Will Not Work
- Memory and storage cannot be upgraded later — and 36 GB is the only memory option with the 32-core GPU; more memory requires the 40-core GPU M5 Max.
- The display is the standard glossy finish, not the nano-texture option.
- Windows does not run natively on Apple silicon.
- The US ANSI keyboard has US key labels; Greek typing works through a macOS input source, but keys are not printed in Greek.
Key Features
Apple M5 Max
18-core CPU (6 super + 12 performance cores), 32-core GPU with Neural Accelerators and ray tracing, 16-core Neural Engine, 460 GB/s.
16.2" Liquid Retina XDR
3456 × 2234 at 254 ppi, 1,000,000:1 contrast, 1000 nits sustained / 1600 nits peak HDR, ProMotion up to 120 Hz.
Pro media engine
Two video encode engines and two ProRes encode/decode engines with ProRes RAW and AV1 decode.
Thunderbolt 5 I/O
Three Thunderbolt 5 ports up to 120 Gb/s, HDMI, SDXC card slot, MagSafe 3; up to four external displays.
Technical Specifications
| Identification |
| Part Number |
Z1N1-US01 |
| Brand |
Apple |
| Model |
MacBook Pro (16-inch, M5 Max) — configured to order, US configuration |
| Colour |
Space Black |
| Chip & Memory |
| Processor |
Apple M5 Max, 18-core CPU (6 super cores, 12 performance cores) |
| Graphics |
32-core GPU with Neural Accelerators, hardware-accelerated ray tracing |
| Neural Engine |
16-core Neural Engine |
| Media Engine |
Video decode engine; two video encode engines; two ProRes encode/decode engines; AV1 decode |
| Memory |
36 GB unified memory (460 GB/s) |
| Storage |
2 TB SSD |
| Display |
| Screen |
16.2-inch Liquid Retina XDR, 3456 × 2234 at 254 ppi, standard finish |
| Brightness |
XDR 1000 nits sustained, 1600 nits peak (HDR); SDR up to 1000 nits (outdoor) |
| Colour & refresh |
1 billion colours, P3, True Tone; ProMotion up to 120 Hz |
| External displays |
Up to four: 6K 60 Hz or 4K 144 Hz each; or two up to 8K 60 Hz / 5K 120 Hz / 4K 240 Hz |
| Ports & Wireless |
| Ports |
3 × Thunderbolt 5 (USB-C, up to 120 Gb/s, charging, DisplayPort); HDMI; SDXC card slot; MagSafe 3; 3.5 mm headphone jack |
| Wireless |
Apple N1 chip: Wi-Fi 7 (802.11be), Bluetooth 6, Thread |
| Input, Camera & Audio |
| Keyboard |
Backlit Magic Keyboard, US (ANSI) layout, 78 keys incl. 12 full-height function keys, Touch ID |
| Trackpad |
Force Touch trackpad |
| Camera |
12MP Center Stage camera with Desk View, 1080p video |
| Audio |
Six-speaker system with force-cancelling woofers, Spatial Audio; studio-quality three-mic array |
| Battery & Physical |
| Battery |
100 Wh lithium-polymer; up to 22 h video streaming, up to 16 h wireless web |
| Charging |
MagSafe 3 or Thunderbolt/USB-C; fast charge with 140W or higher USB PD source; power adapter not included |
| Dimensions |
35.57 x 24.81 x 1.68 cm |
| Weight |
2.15 kg |
| Operating system |
macOS |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
Apple One (1) Year Limited Warranty per Apple — claims handled through Singular |
Frequently Asked Questions
Which charger should I use?
No adapter is included, so choose a USB-C Power Delivery charger for the Thunderbolt ports, or an Apple adapter with a MagSafe 3 cable. For fast charging Apple specifies 140W or higher. Tell us and we will quote a matching adapter.
Is 36 GB enough for M5 Max work?
For 4K/8K editing, colour grading and most 3D work, yes. For very large scenes, local AI models or heavy multi-app workflows, the 40-core GPU M5 Max with 48–128 GB is the step up — ask us for a quote.
14-inch or 16-inch?
The 16-inch gives a larger 3456 × 2234 screen and a 100 Wh battery at 2.15 kg; the 14-inch is lighter at around 1.6 kg. Performance of the same chip is comparable.
Singular Expert Insight · Buyer's Guide
The 16-inch M5 Max with 32-core GPU, 36 GB and 2 TB is the entry to Apple’s top laptop GPU tier: full media engines, four-display support and the largest XDR screen. Budget for a 140W charger and, for a desk setup, a Thunderbolt dock from our
docking station range. If your work is memory-bound, choose the 40-core GPU version now — memory cannot be added later.
✓ Buy it if you edit video, grade colour or render 3D on the move and want the biggest MacBook screen with M5 Max GPU power, and a US keyboard suits you.
✕ Skip it if you need more than 36 GB memory, a nano-texture display, a local-layout keyboard, or a lighter laptop.
→ Also consider the 14-inch MacBook Pro M5 Pro for lighter weight, or the Mac Studio M5 Max for a desk-bound setup.
Not sure which MacBook Pro configuration fits? Tell us your apps, displays and accessories, and we will check it before you order.
