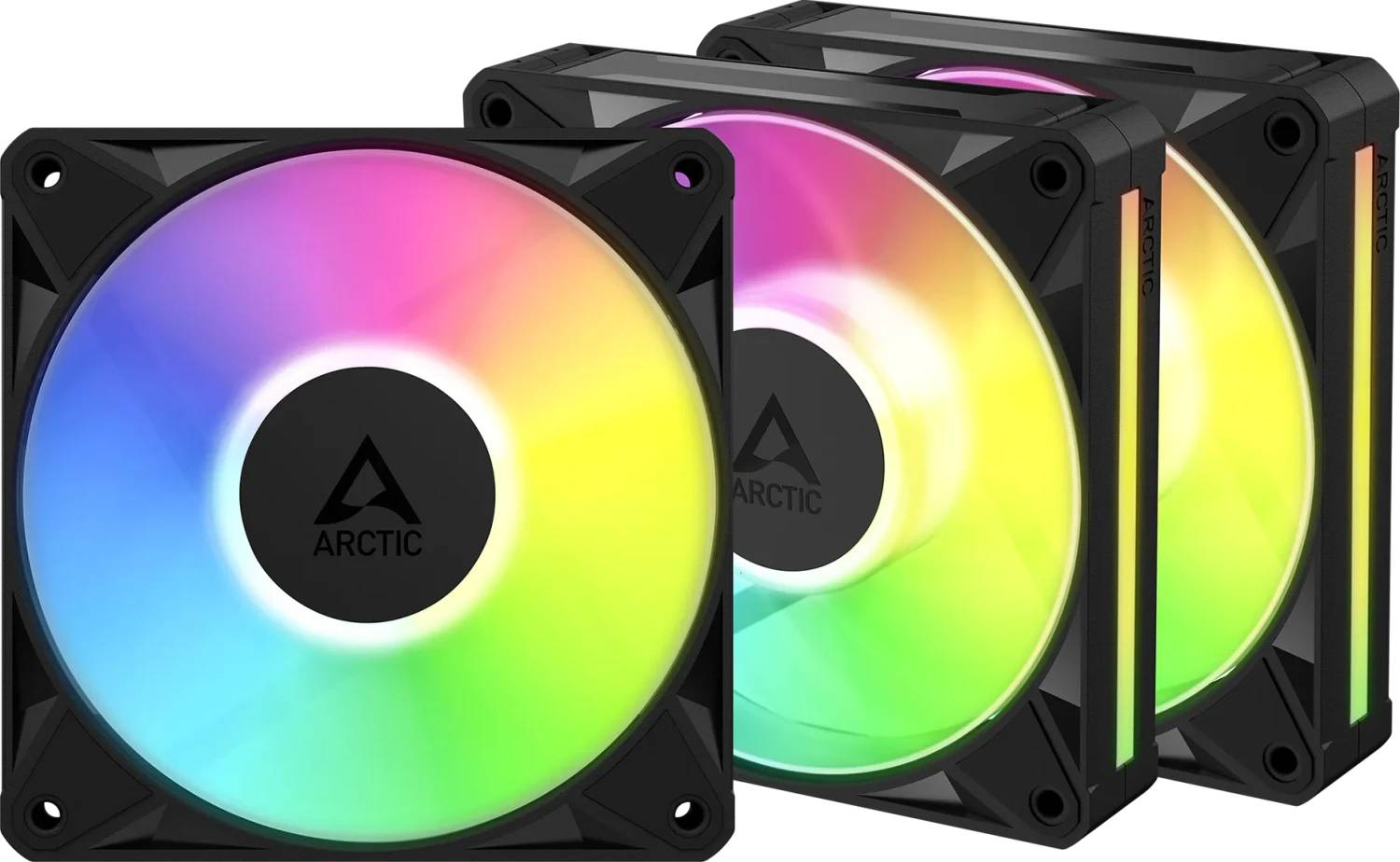

ARCTIC BioniX P14 A-RGB 3-Pack — Three 140 mm PWM Fans, One Cable
Three 140 mm fans400-2500 rpm, 110 cfm16 A-RGB LEDs per fanBridge Cable included
The ARCTIC BioniX P14 A-RGB 3-Pack, part number ACFAN00341A, is three black 140 mm PWM fans with sixteen addressable LEDs each, built to chain to one another through ARCTIC bridge modules so a whole row of fans reaches the motherboard on a single cable. Each fan runs from 400 to 2500 rpm on a fluid dynamic bearing, moves 110 cfm at 5.4 mmH2O of static pressure, and stops turning below 5 percent PWM duty. The Bridge Cable that links separate fan groups is included only with the 3-Pack.
Compatibility — check before buying:
The lighting connector is a 3-pin 5 V A-RGB header, not the 4-pin 12 V RGB type. Plugging an A-RGB fan into a 4-pin 12 V RGB header destroys the LEDs, so confirm the header on your motherboard is the addressable 5 V kind before connecting anything. ARCTIC also publishes current limits: no more than 3 fans on a 2 A A-RGB header and 5 on a 3 A header, and on the fan side no more than 3 on a 1 A header, 6 on a 2 A header and 9 on a 3 A header. The fan is 28 mm thick rather than the usual 25 mm, so check clearance in slim radiator and front-bracket positions. A 3-pin fan socket will run it but without PWM speed control. Do not confuse it with the P14 Pro A-RGB line, which uses a cable splitter instead of the BioniX bridge modules and is not cross-compatible.
Best For
✓ Case builds that want addressable lighting without a fan hub
✓ Front and top intakes where 140 mm moves more air at lower rpm
✓ Radiator duty, where 5.4 mmH2O static pressure matters
✓ PWM systems that should stop completely at low duty
✓ Builds daisy-chaining several fans from one header
✓ Anyone replacing noisy stock case fans
Key Features
140 mm, 400 to 2500 rpm, 110 cfm
A wide PWM range on a fluid dynamic bearing: quiet at the bottom, 110 cfm and 5.4 mmH2O static pressure at the top. ARCTIC publishes a 0 dB point below 5 percent duty, where the fan stops turning entirely.

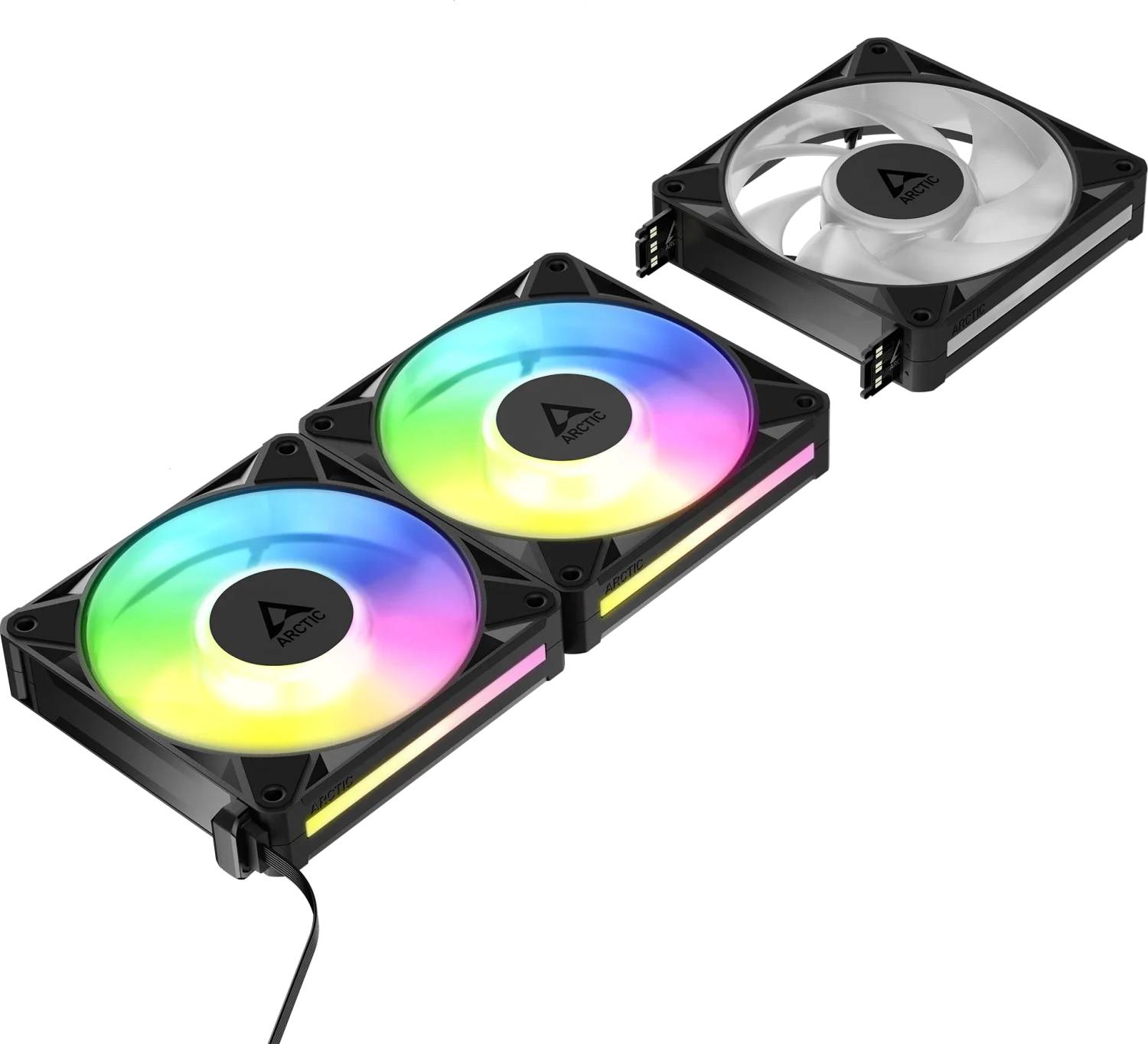

Daisy chain instead of a hub
Power and A-RGB travel from fan to fan through the Bridge Module system, so one input cable to the motherboard feeds a row of fans. No separate fan hub and no A-RGB controller to find space for.
16 addressable LEDs per fan
Sixteen A-RGB LEDs on a 3-pin 5 V connector drawing 0.6 A, driven by your motherboard’s own addressable lighting software rather than a proprietary app.
Fluid dynamic bearing
FDB rather than sleeve or rifle, rated for 0 to 40 °C ambient, running at 0.39 A and 12 V DC with a 5 V DC start-up voltage.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The BioniX P14 A-RGB is the 140 mm fan to buy when you want addressable lighting without adding a hub and a controller to the build. The bridge modules are the whole idea: one cable to the motherboard, fans chained to one another, and no extra box stuck behind the tray. Performance is genuine rather than decorative — 110 cfm and 5.4 mmH2O on a fluid dynamic bearing is radiator-capable, not just case airflow. Two things to check before ordering: the header must be the 3-pin 5 V addressable type, and the fan is 28 mm thick, not 25 mm. If the job is cooling the processor rather than moving case air, look at the CPU coolers range instead.
Buyer’s Guide
Buy it if
Your motherboard has a 3-pin 5 V addressable RGB header, you want 140 mm airflow with real static pressure, and you would rather chain fans to each other than install a separate hub and controller.
Skip it if
Your board only has a 4-pin 12 V RGB header, or the position needs a 25 mm fan. In both cases this is the wrong fan: the first destroys the LEDs and the second will not fit.
Also consider
The single ACFAN00340A in white or ACFAN00339A in black if only one position needs filling, and a motherboard with a 3 A addressable header if you plan to run more than three fans.
Features - Arctic Cooling - ACFAN00341A
Colour
black
More Details
Product Code
03:281305
EAN Code
4895265001093
Manufacturer
Arctic Cooling
