ARCTIC TP-4 Thermal Pad 120×20×1.5mm 4-Pack Grey

Brand:
Arctic Cooling
ARCTIC TP-4 Thermal Pad 120×20×1.5mm 4-Pack Grey
ARCTIC TP-4 Thermal Pad 120×20×1.5mm 4-Pack Grey
€13.93 inc. VAT
Buy
ACTPD00067A
€11.71
€13.93 inc. VAT
Ships from EU stock: 25 item(s)
+ −
Add to wish list Ask a question
Product Code
03:280441
EAN Code
ACTPD00067A
Manufacturer
Arctic Cooling

Quick Specs

Pad Size
120×20 mm
Thickness
1.5 mm
Pack Quantity
4 pads
Operating Range
-40 to 200 °C
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

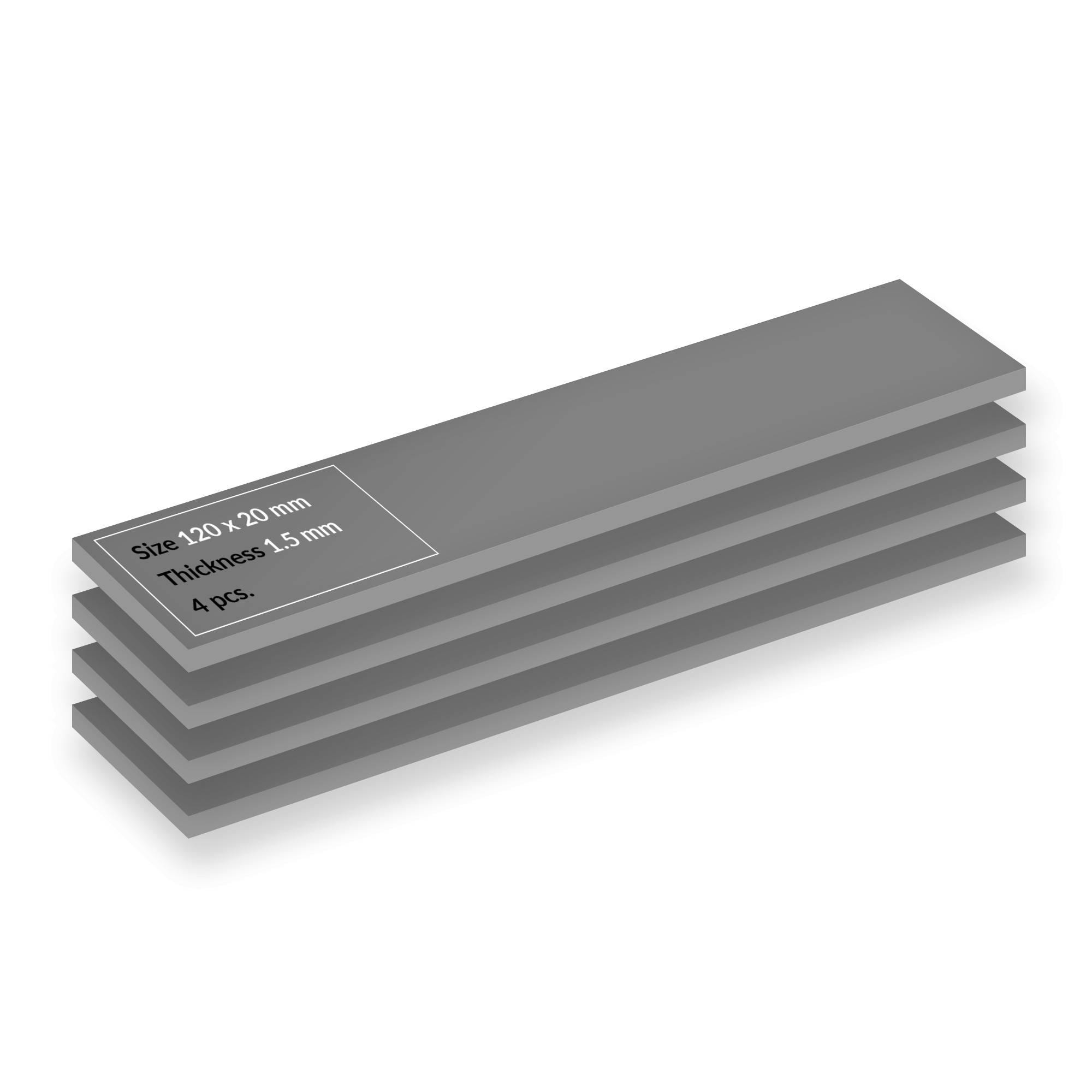

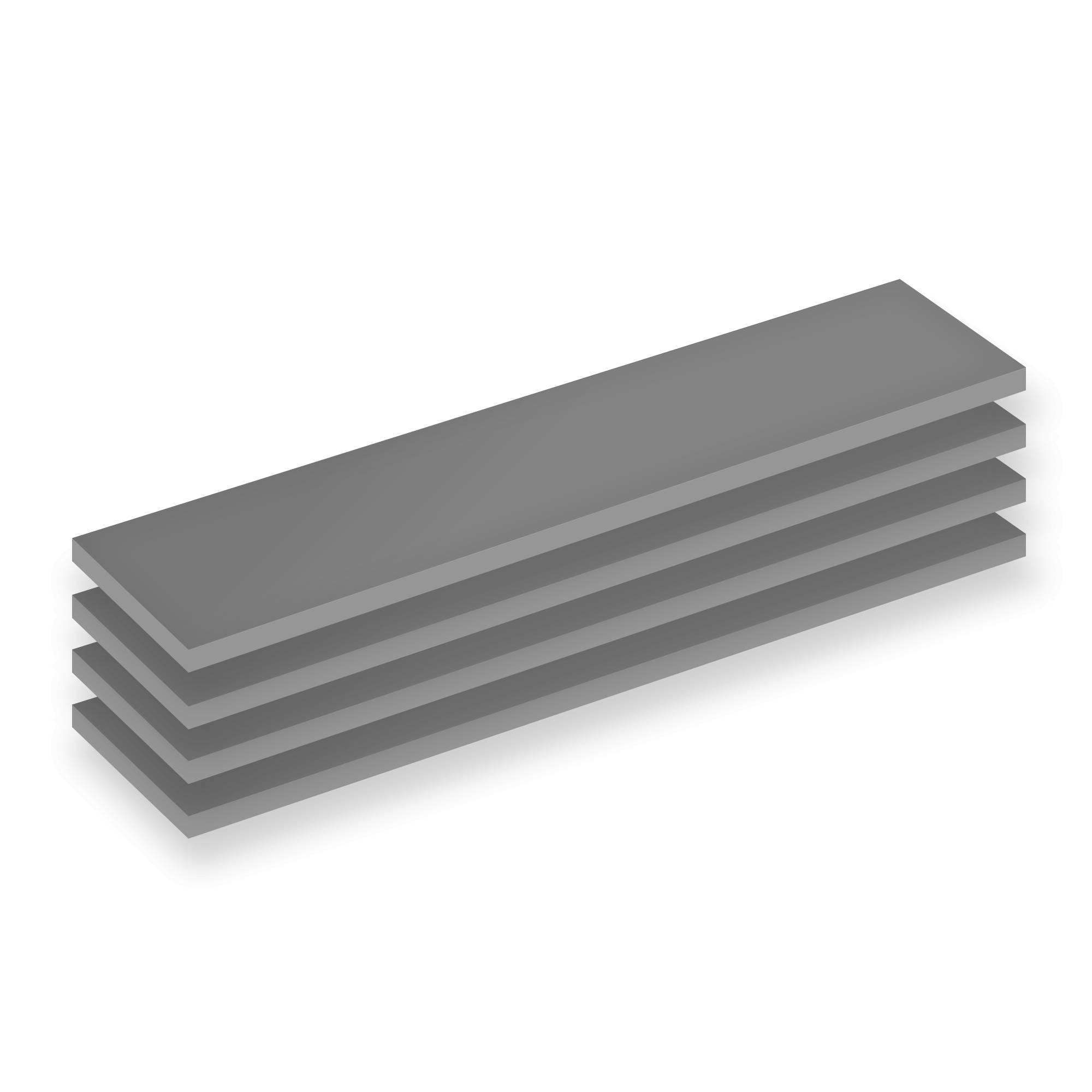

ARCTIC TP-4 Thermal Pad 120×20×1.5mm 4-Pack — Soft Gap-Filling Thermal Interface

120×20 mm1.5 mm Thick4 PadsElectrically Insulating

The ARCTIC TP-4 ACTPD00067A is a four-pack of soft 120×20×1.5mm silicone-based thermal pads for users replacing or upgrading thermal interfaces in GPUs, RAM, chipsets, laptops, consoles and other electronics. Its low hardness helps bridge air gaps and uneven component heights while maintaining reliable surface contact.

Compatibility & What's in the Box
Suitable for electronic components requiring a 1.5 mm thermal interface pad; measure the original pad thickness and contact gap before installation. Each pad can be cut to the required shape, and multiple TP-4 pads may be stacked when needed. The package contains 4 × ARCTIC TP-4 thermal pads measuring 120×20×1.5 mm each.

Best For

✓Replacing 1.5 mm GPU memory or VRM thermal pads
✓Improving contact on RAM modules and chipsets
✓Servicing laptops and compact electronics
✓Maintaining game consoles and graphics hardware
✓Bridging uneven surfaces and component height differences
✓Custom thermal projects requiring cut-to-size pads

Key Features


Soft Gap-Filling Material
The silicone-based TP-4 has a low 50 Shore OO hardness, helping it conform to uneven surfaces and manufacturing tolerances between components and heatsinks.

Safe Electrical Insulation
The pad is electrically insulating and non-adhesive, making it easier to position and handle around sensitive electronic components.

Flexible Installation
Each 120×20 mm pad can be cut to size, compressed under mounting pressure and stacked with other TP-4 pads when a larger gap must be bridged.

Technical Specifications

Identification
Part Number ACTPD00067A
EAN / GTIN 4895265001291
MPN ACTPD00067A
Brand ARCTIC
Thermal Pad
Product Series TP-4
Material Silicone-based thermal pad
Dimensions per Pad 120×20×1.5 mm
Quantity 4 pads
Hardness 50 Shore OO
Specific Gravity 3.4 g/cm³
Operating Ambient Temperature -40 to 200 °C
Flammability Rating UL 94 V-0
Electrical Properties
Breakdown Voltage 8620 V/mil
Dielectric Constant 7.2 at 1 MHz
Volume Resistance 1.52 × 10¹³ Ω-cm
Physical
Colour Grey
Package Dimensions 140×95×2.5 mm
Package Weight 61 g

Frequently Asked Questions

Can I use these pads on a GPU or laptop?
Yes, provided the device requires a 1.5 mm pad at the selected contact point. Always verify the original pad thickness and clearance before fitting.
Can the ARCTIC TP-4 pad be cut to size?
Yes. The 120×20 mm pads can be trimmed to match individual chips, memory modules or other component surfaces.
Is the TP-4 electrically conductive?
No. ARCTIC specifies the TP-4 as electrically insulating, helping support safe use around electronic components when correctly installed.
Singular Expert Insight
Choose this 1.5 mm four-pack when several small components need fresh thermal interfaces and their measured gap matches the pad thickness. For a different clearance, select the 0.5 mm or 1.0 mm TP-4 variant rather than forcing an incorrect thickness, as pad compression and mounting pressure affect heatsink contact.

Buyer's Guide

Buy it if

  • Your hardware requires 1.5 mm thermal pads
  • You need four cut-to-size strips for several components
  • You prefer a soft electrically insulating gap filler

Skip it if

  • Your device specifies a different pad thickness
  • You need thermal paste for direct CPU or GPU die contact
  • You require a large 100×100 mm sheet

Also consider

  • TP-4 0.5 mm for narrow component gaps
  • TP-4 1.0 mm for medium component gaps
  • TP-4 100×100 mm sheets for larger custom cuts
