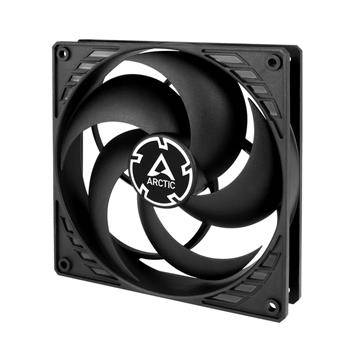

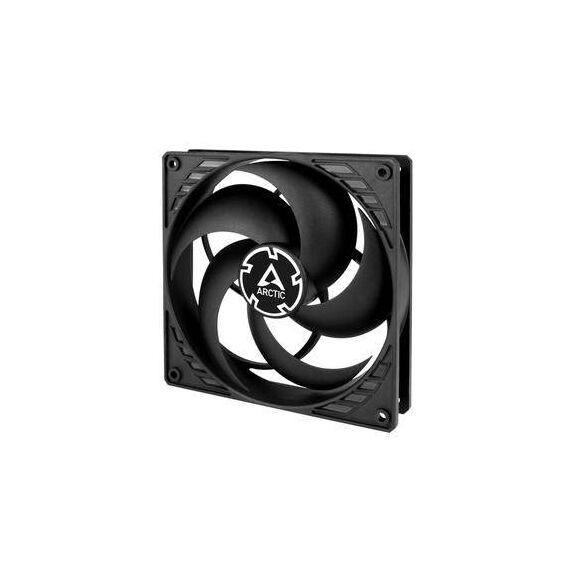

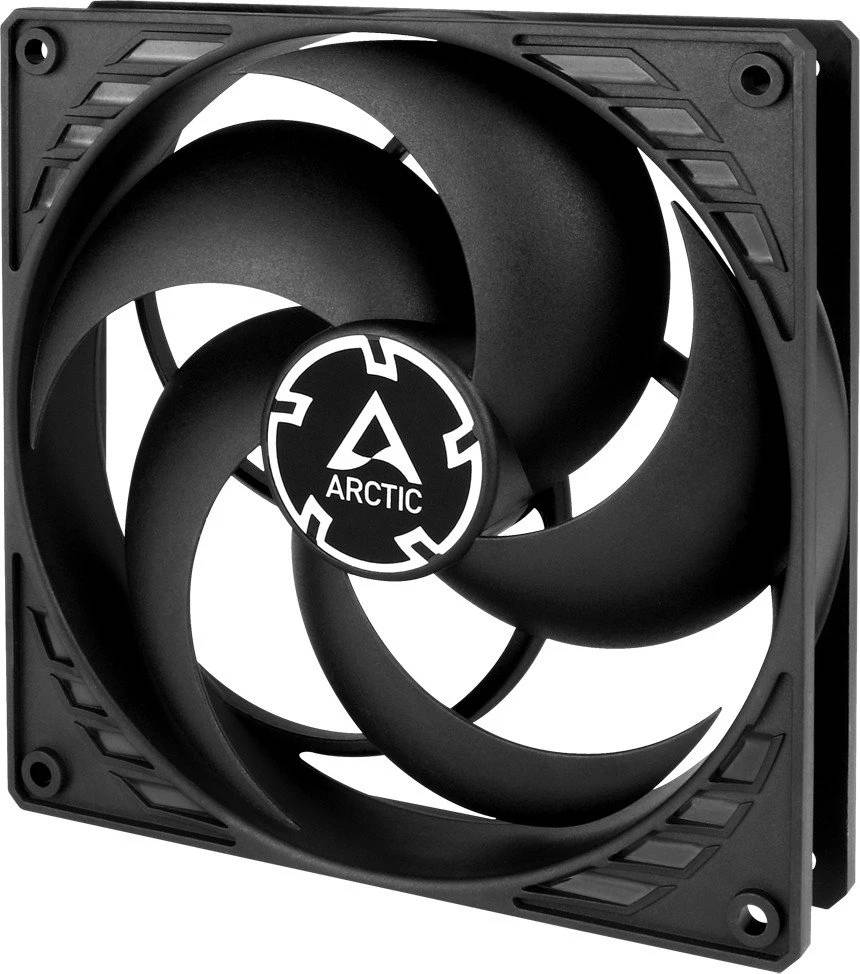

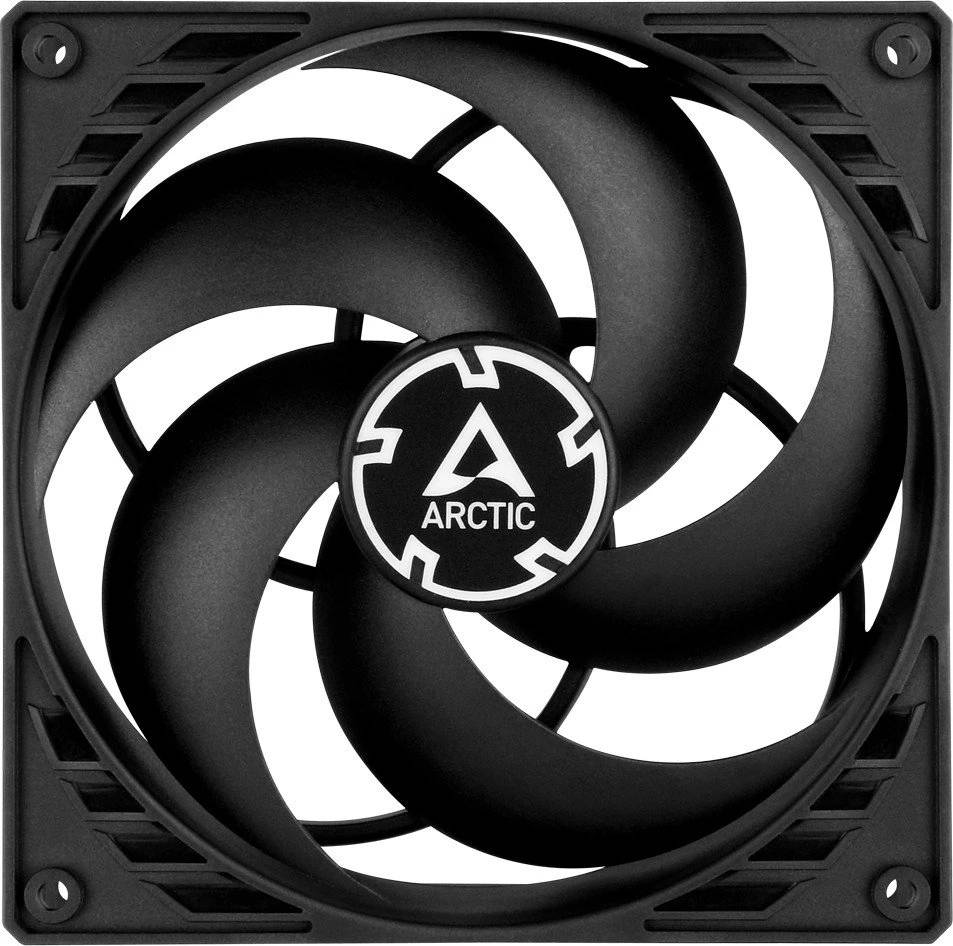

ARCTIC P14 — 140mm Pressure-Optimised Fan
1700 RPM72.8 CFM2.4 mmH₂O3-pin
The ARCTIC P14 ACFAN00123A is a 140mm black pressure-optimised fan designed to maintain airflow through restrictive cooling areas such as heatsinks, radiators and partially covered case vents. It runs at a fixed 1700 RPM, delivering up to 72.8 CFM airflow and 2.4 mmH₂O static pressure through a standard 3-pin connection.
Compatibility — check before buying:
This is the standard P14 with a 3-pin connector and fixed 1700 RPM speed. It is not the P14 PWM or P14 PWM PST version. Confirm that your case, heatsink or radiator supports a 140mm fan and has sufficient clearance for the fan's 27mm depth.
Best For
✓ 140mm radiator cooling
✓ Heatsinks and restrictive vents
✓ Standard 3-pin fan headers
✓ Pressure-focused case ventilation
Key Features
Optimised for static pressure
ARCTIC designed the P14 blades to create a focused airflow and high static pressure, helping air move effectively through radiator fins, heatsinks and other restrictive cooling paths.
72.8 CFM airflow
At its fixed 1700 RPM operating speed, the fan delivers up to 72.8 CFM, equivalent to approximately 123.76 m³/h.
Fluid Dynamic Bearing
The P14 uses a Fluid Dynamic Bearing designed to reduce friction, heat generation and bearing noise during operation.
Simple 3-pin connection
The 400mm cable terminates in a standard 3-pin connector providing power, ground and tachometer output for compatible motherboard or fan-controller headers.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The most important distinction with ACFAN00123A is that this is the fixed-speed 3-pin P14, not one of the similarly named PWM or PST models. Its 2.4 mmH₂O static pressure makes it useful where a normal airflow-focused case fan can struggle, particularly on radiators and restrictive vents. If motherboard-controlled PWM speed adjustment or daisy-chaining is required, choose the corresponding P14 PWM or PWM PST model instead.
Buyer’s Guide
Buy it if
You need a 140mm pressure-optimised fan for a radiator, heatsink or restrictive case vent and a simple 3-pin 1700 RPM fan suits the installation.
Check first
Confirm a 140mm mounting position, at least 27mm of depth clearance and a compatible 3-pin or suitable motherboard fan header.
Choose another model if
You specifically require 4-pin PWM control, PST daisy-chaining, RGB lighting, another fan size or a five-fan value pack.
Features - Arctic Cooling - ACFAN00123A
More Details
Product Code
03:536004
EAN Code
4895213701549
Manufacturer
Arctic Cooling
