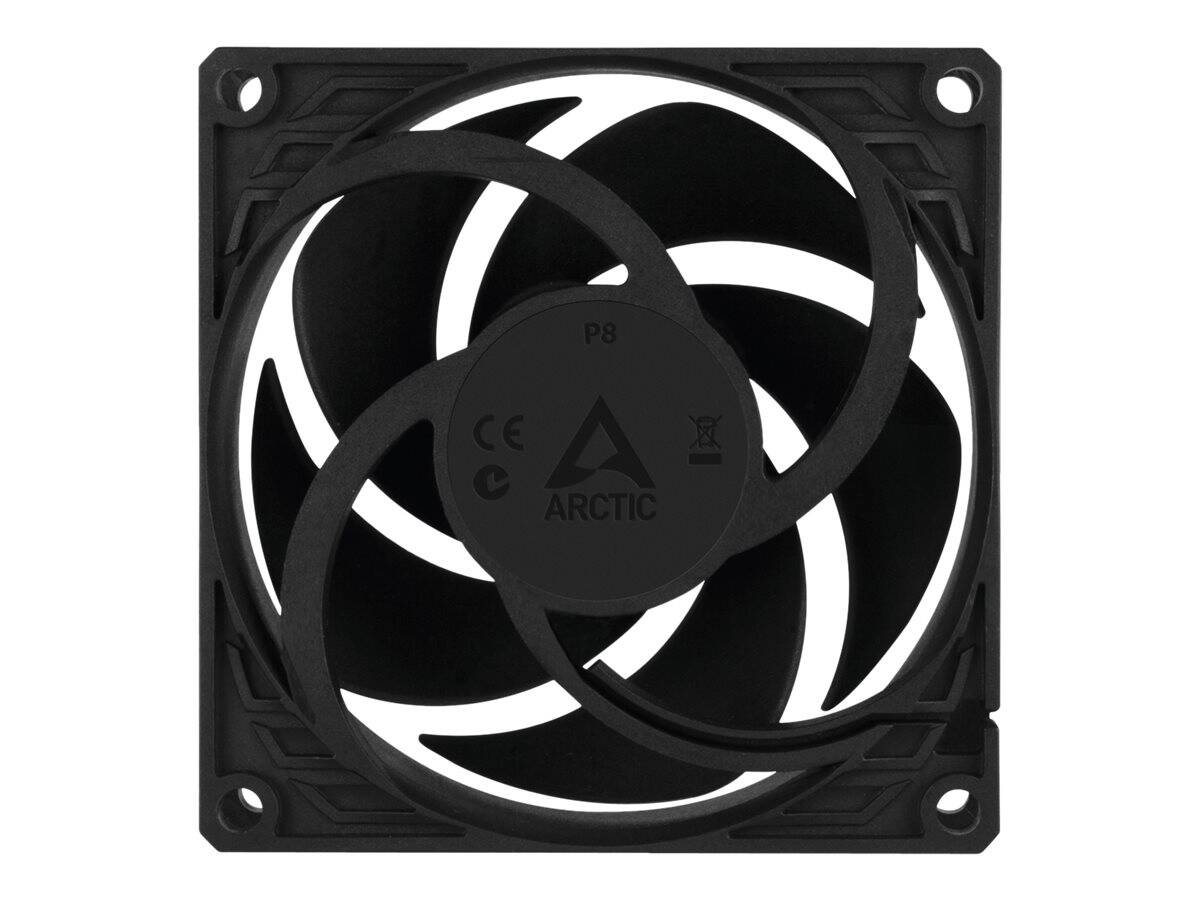

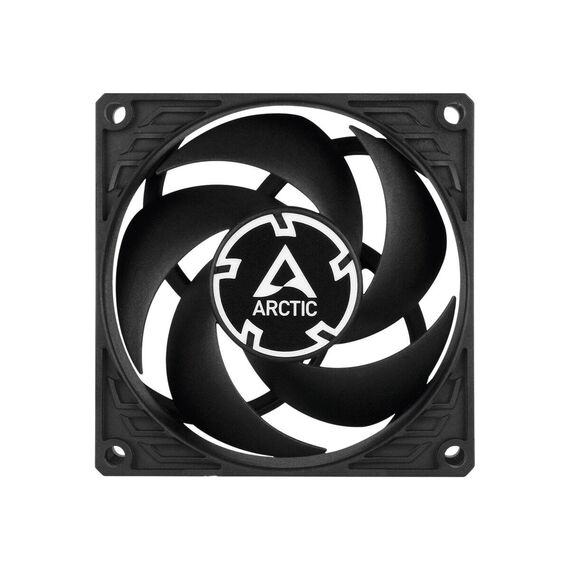

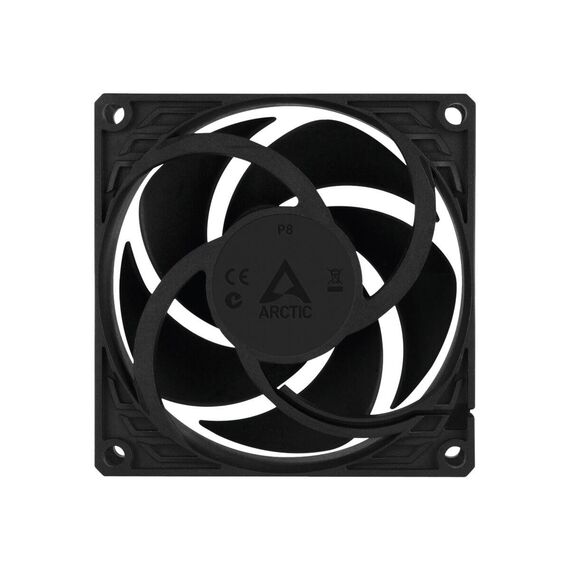

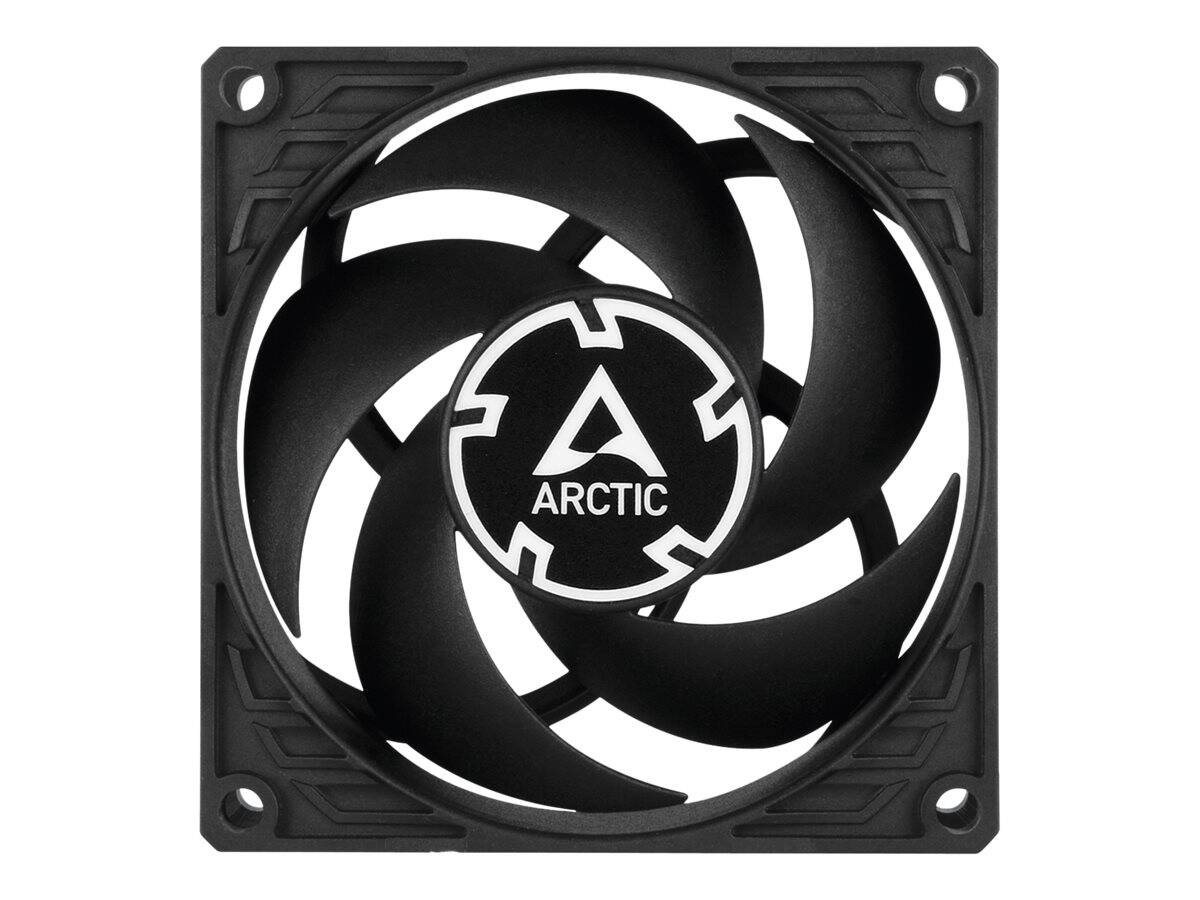

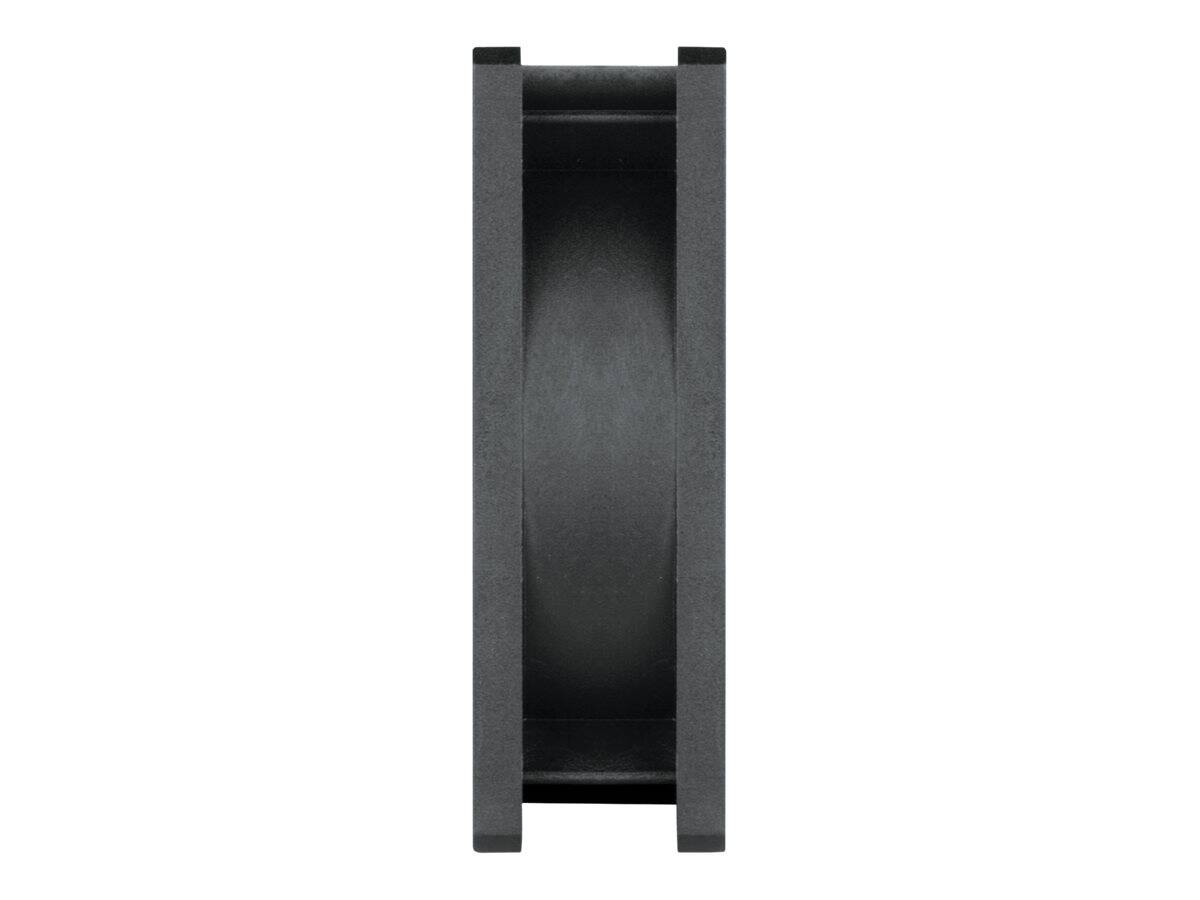

ARCTIC P Series 8 - Case fan - 80 mm | ACFAN00147A
Please sign in so that we can notify you about a reply
Product Features
- Optimized for static pressure
During the development of the P8, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 is particularly suitable for use on heatsinks and radiators. - High-quality bearing
Thanks to an alloy/lubricant combination, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. - Maximum quietness and minimum vibration
Even at low speeds the operating sound of the ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the motor only creates about 5 % of the vibration from commutation of a regular DC motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Special Fetures
- Optimized for static pressure
- High-quality bearing
- Maximum quietness and minimum vibration
Product Specification
| Product Type | Case fan |
| Width | 8 cm |
| Depth | 8 cm |
| Height | 2.5 cm |
| Weight | 81 g |
| Shipping Dimensions (WxDxH) / Weight | 8.25 cm x 8.25 cm x 2.6 cm / 100 g |
| Heatsink & Fan | |
| Fan Diameter | 80 mm |
| Fan Height | 25 mm |
| Fan Bearing | Fluid dynamic bearing |
| Rotation Speed | 3000 rpm |
| Air Flow | 23.4 cfm |
| Noise Level | 0.3 Sone |
| Power Connector | 3-pin fan connector |
| Rated Voltage | 12 V |
| Rated Current | 0.14 A |
| Cable Length | 40 cm |
| Features | Teflon bearing plate, pressure-optimised fan |
| Miscellaneous | |
| Features | Box package |
| Compliant Standards | CarbonNeutral |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 6 years |
Features - Arctic Cooling - ACFAN00147A
More Details
Product Code
07:135202
EAN Code
4895213701990
Manufacturer
Arctic Cooling
