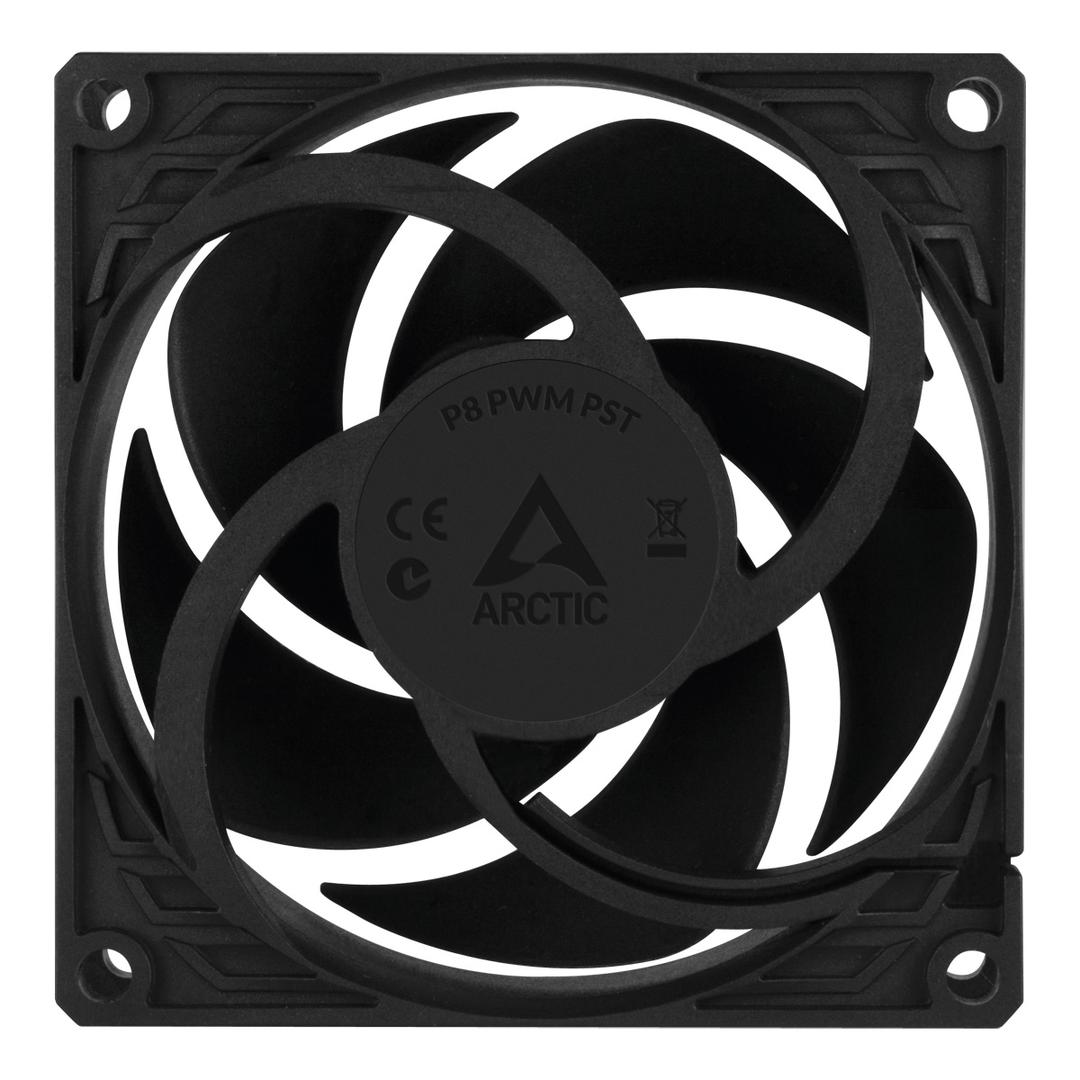

ARCTIC P8 PWM PST — 80mm Pressure-Optimised Fan
200–3000 RPM23.4 CFM1.9 mmH₂OPWM PST

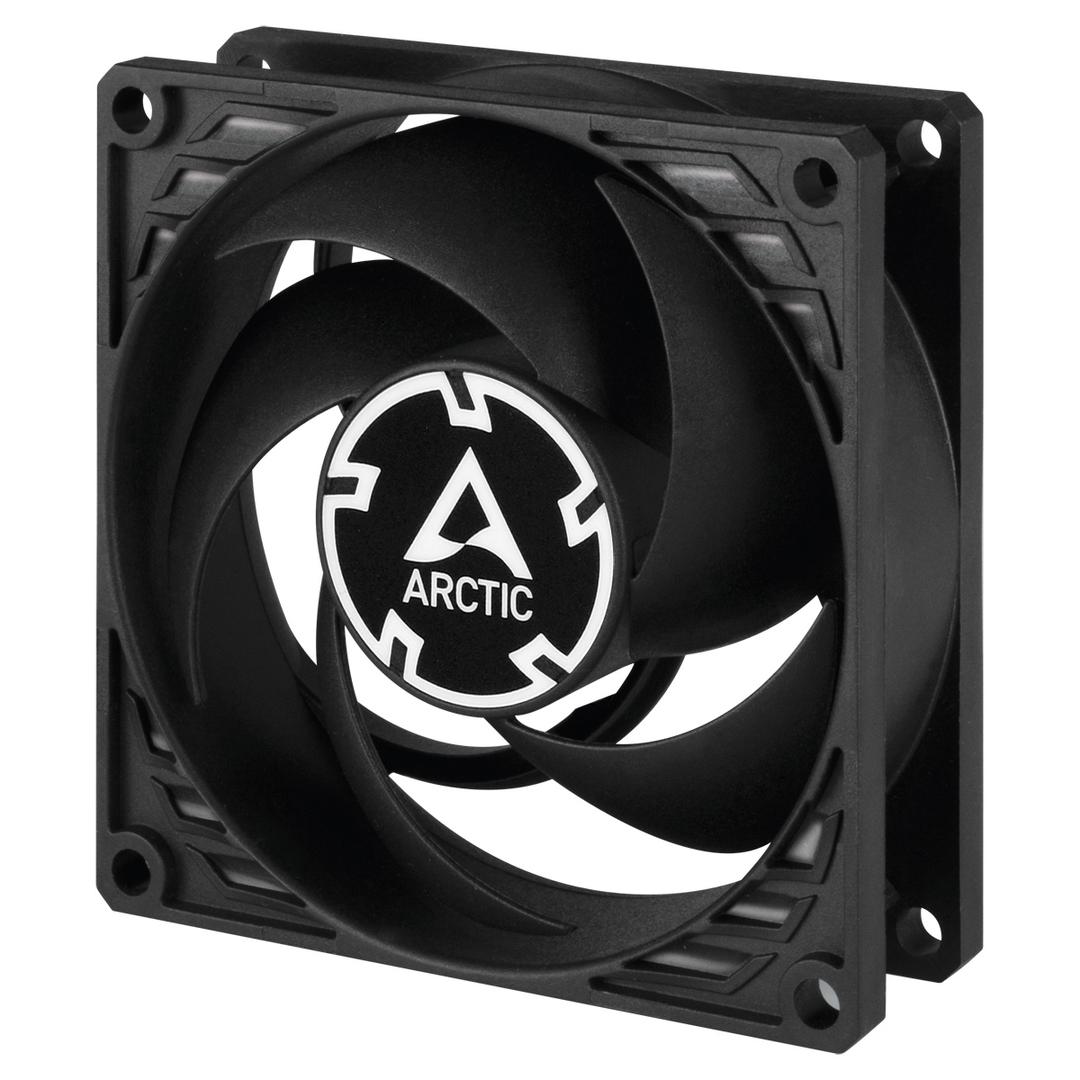

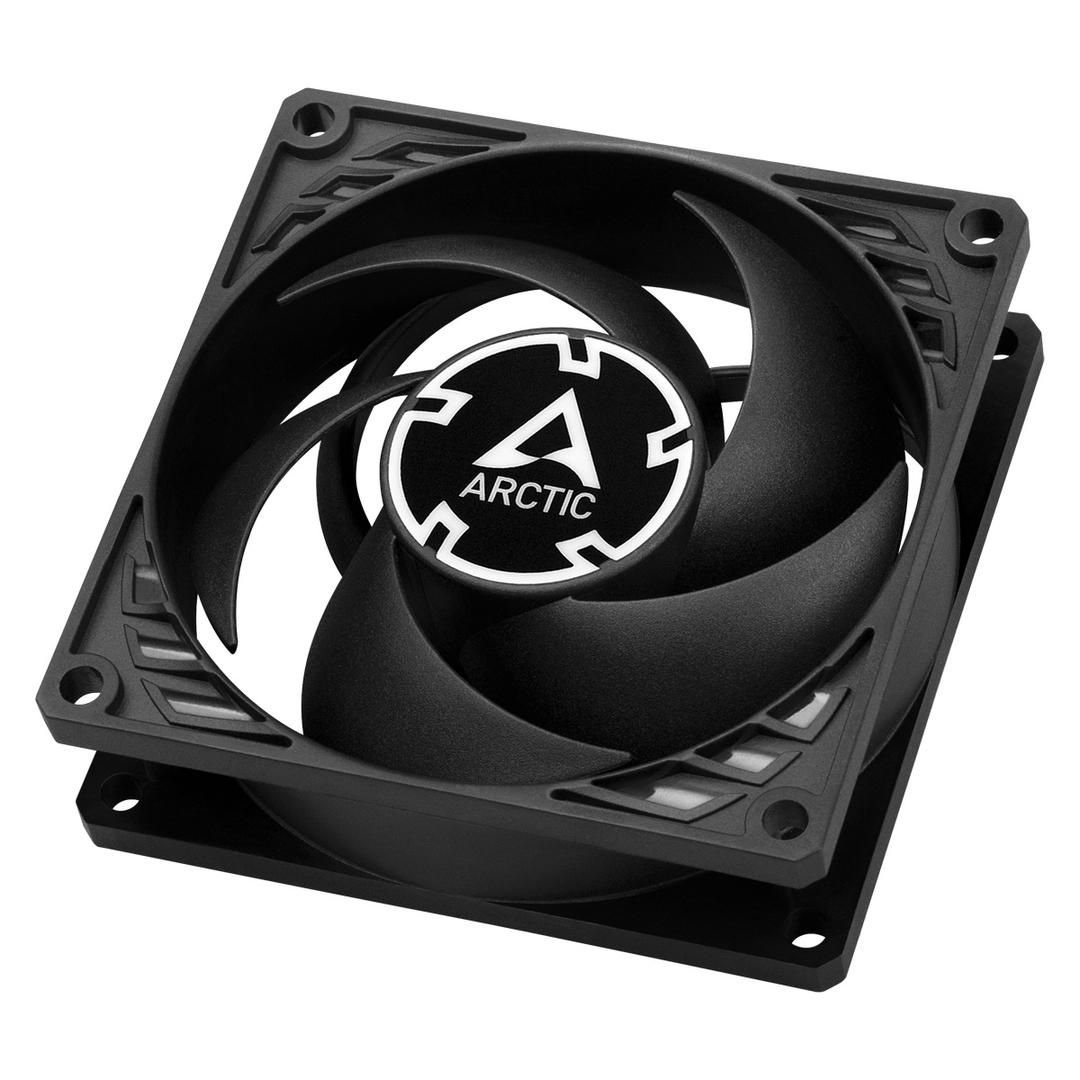

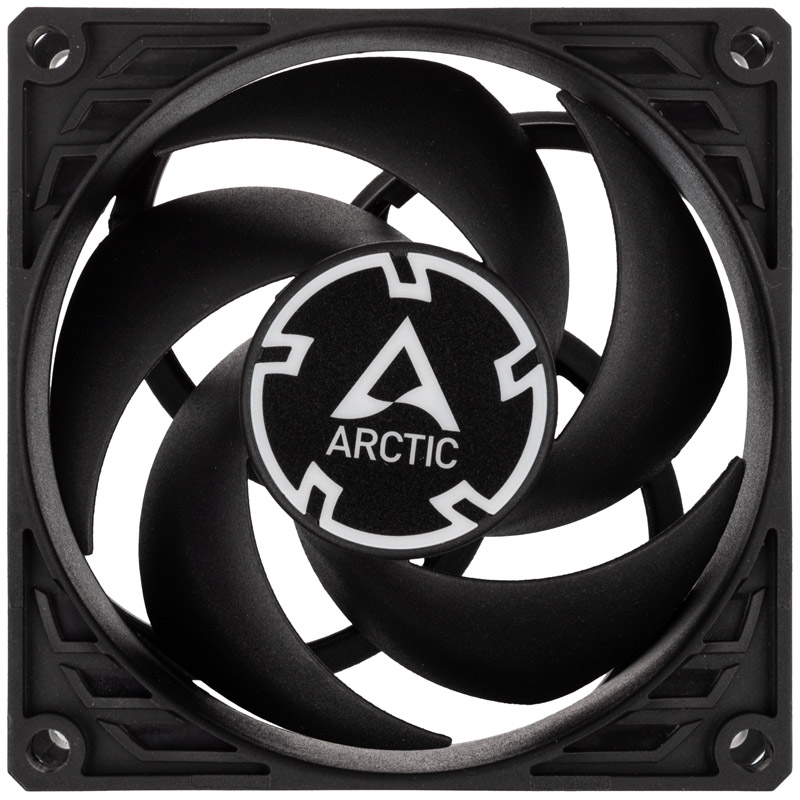

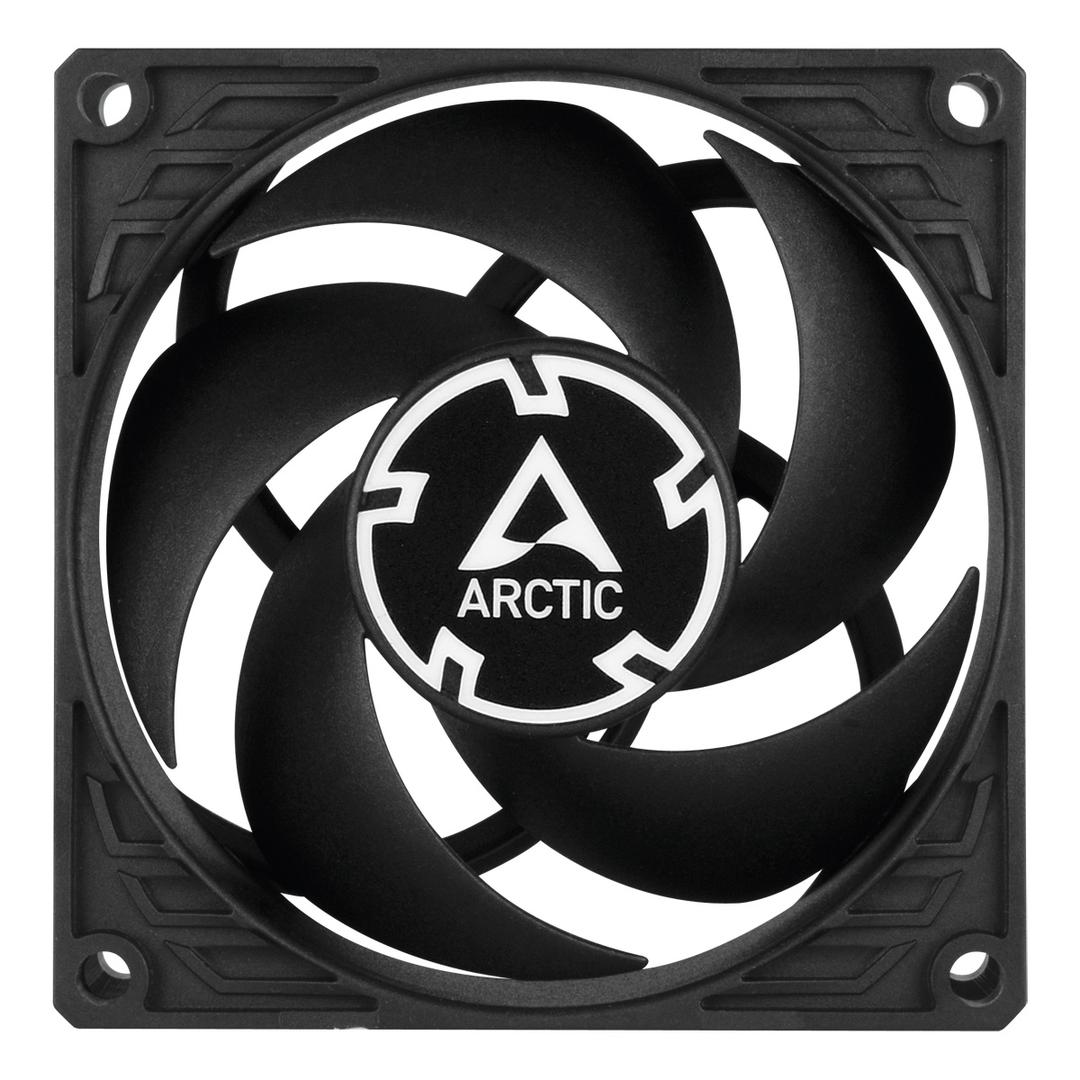

The ARCTIC P8 PWM PST ACFAN00150A is an 80mm black pressure-optimised fan designed for applications where airflow must pass through resistance such as heatsinks, radiators and restrictive ventilation areas. It operates from 200 to 3000 RPM, delivers up to 23.4 CFM airflow and 1.9 mmH₂O static pressure, and uses ARCTIC's PWM Sharing Technology for synchronised fan control.
Compatibility — check before buying:
This is an 80 × 80 × 25 mm 12V PWM fan. Confirm that your case, heatsink or radiator supports an 80mm fan and that your motherboard or fan controller provides a compatible 4-pin PWM header. The PST socket allows additional compatible PWM fans to share the same control signal.
Best For
✓ Compact PC cases with 80mm fan mounts
✓ Heatsinks and radiators with airflow resistance
✓ PWM-controlled cooling configurations
✓ Multi-fan setups using PST daisy-chaining
Key Features
Pressure-optimised airflow
ARCTIC developed the P8 series around a focused airflow and high static pressure. The P8 PWM PST reaches 1.9 mmH₂O, making it particularly suitable where air must move through fins, filters or other restrictions.
Wide PWM speed range
Fan speed is controllable from 200 to 3000 RPM through PWM. ARCTIC also specifies a 0 RPM mode when the PWM signal falls below 5%, provided the controller supports the required signal behaviour.
PWM Sharing Technology

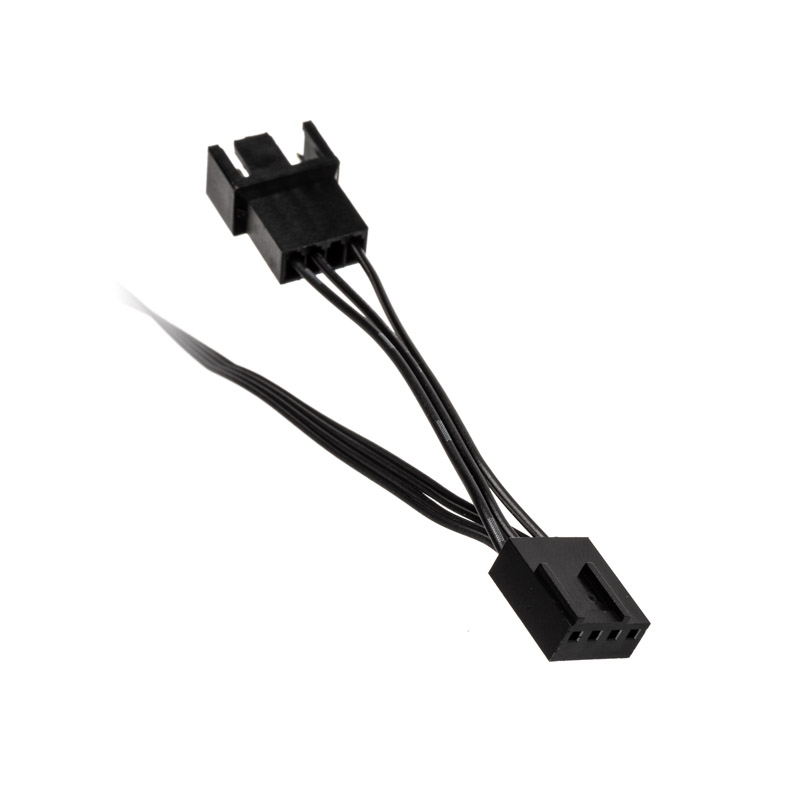

The cable provides both a 4-pin PWM connector and a 4-pin PST socket. Compatible fans can therefore share one PWM control signal and adjust their speeds together according to system cooling demand.
Fluid Dynamic Bearing
The P8 PWM PST uses a Fluid Dynamic Bearing and ARCTIC specifies a noise level of 0.3 Sone at maximum operating conditions.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The P8 PWM PST is most useful when an 80mm mounting position also has meaningful airflow resistance. Rather than being designed purely for unrestricted case airflow, its 1.9 mmH₂O static pressure helps push air through heatsinks, radiators and restrictive vents. The other practical advantage is PST: several compatible PWM fans can follow one control signal without requiring a separate motherboard header for each fan.
Buyer’s Guide
Buy it if
You need an 80mm PWM fan with strong static pressure, a wide 200–3000 RPM range and PST connectivity for synchronised multi-fan control.
Check first

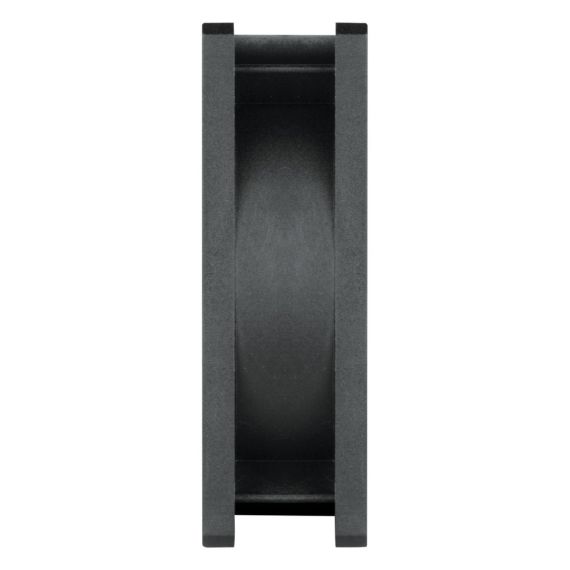

Confirm the available mounting position is 80mm and that your motherboard or controller has a compatible 4-pin PWM header. Also check clearance for the 25mm fan depth.
Choose another size if
Your case supports 120mm or 140mm fans instead. Larger mounting positions require different fan models and should not be fitted with this 80mm unit unless the chassis provides suitable mounting support.
