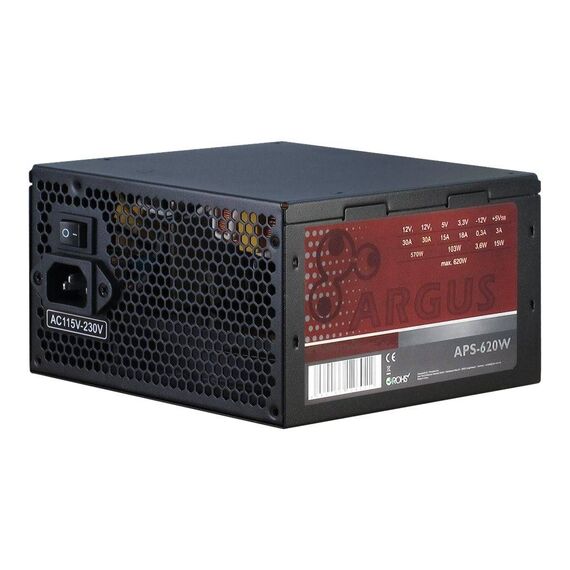

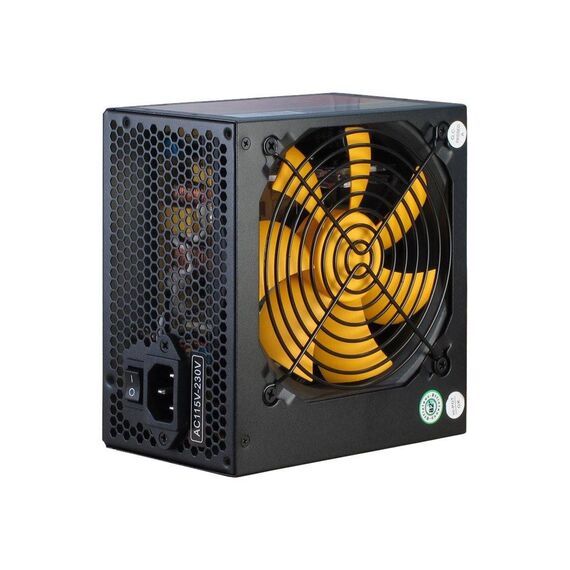

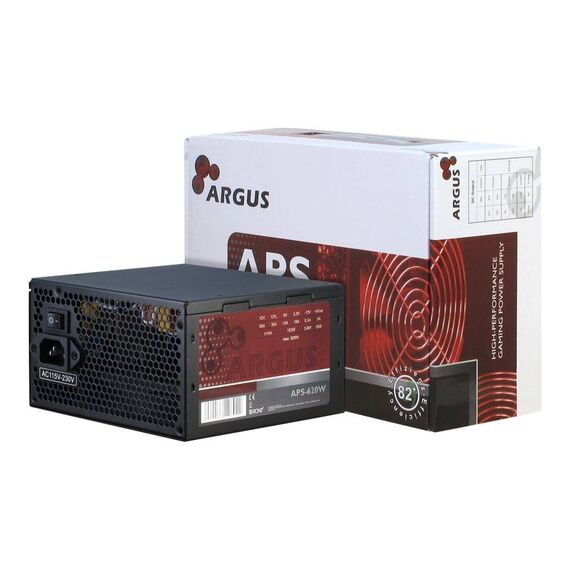

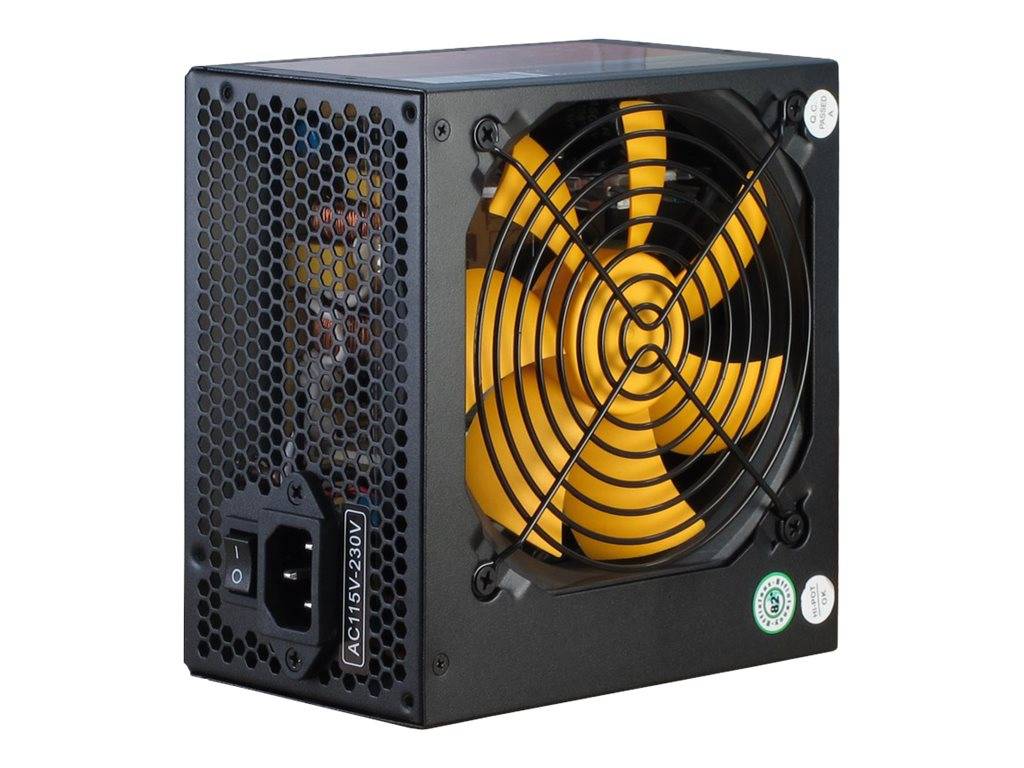

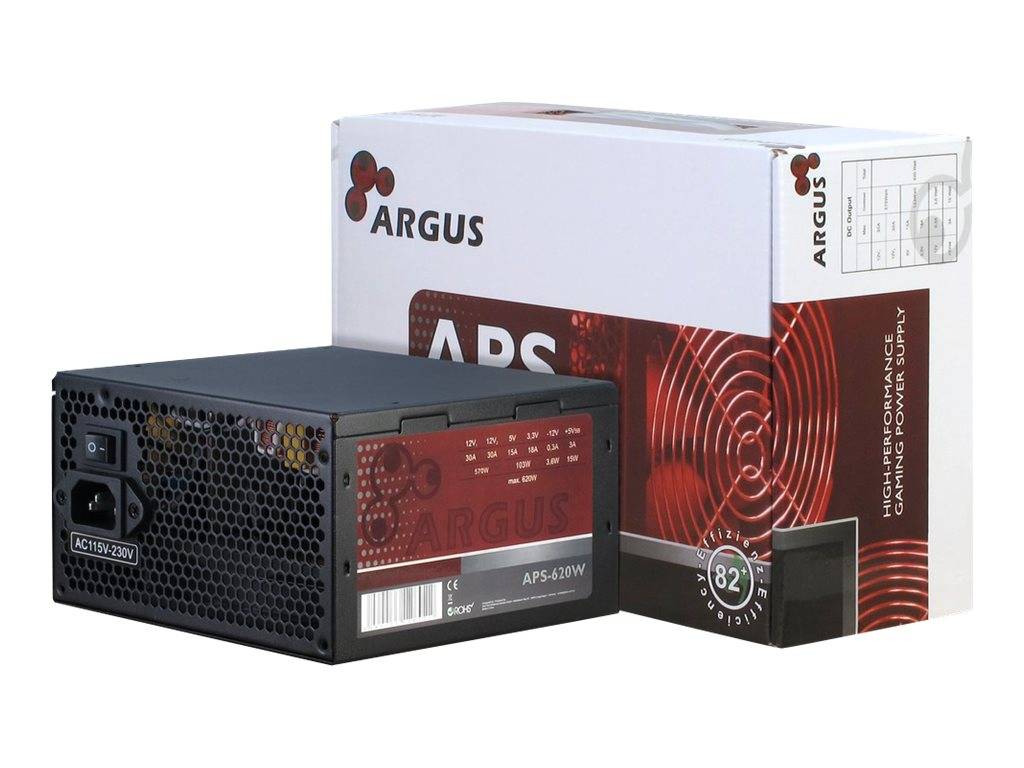

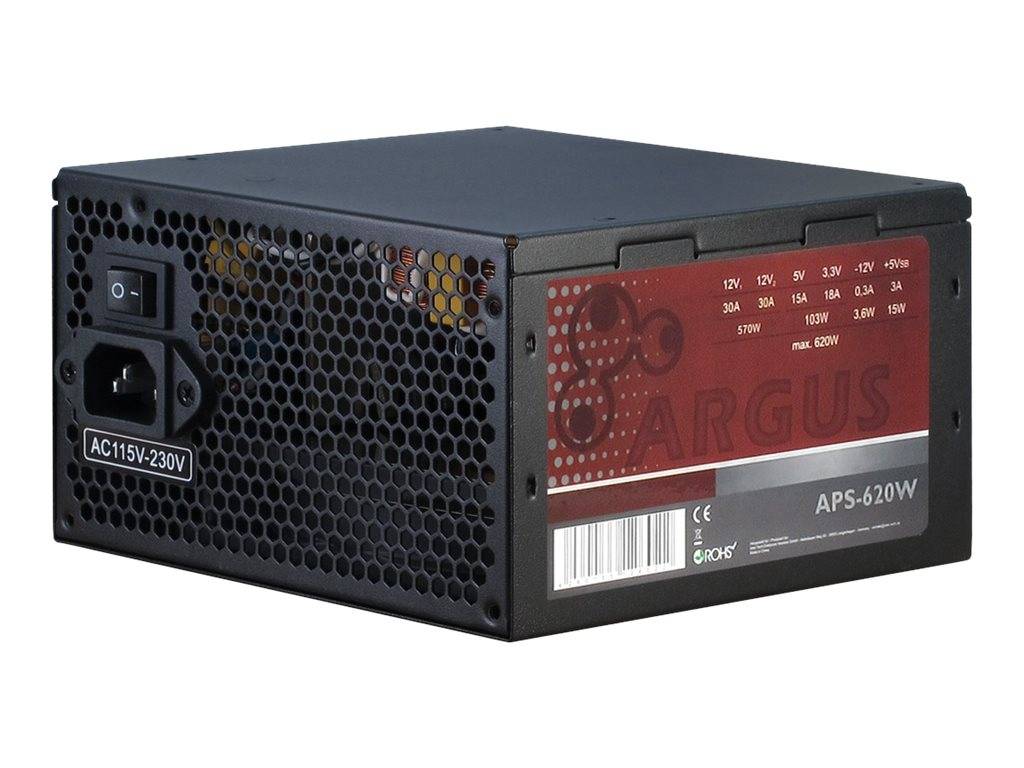

Argus APS-620W / Power supply (internal) / ATX12V 2.31 / AC 115/230 V / 620 Watt / active PFC | 88882118
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.31 |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 115/230 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 620 Watt |
| Output Current | +12V1 - 30 A ¦ +12V2 - 30 A ¦ +3.3V - 18 A ¦ +5V - 15 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 82% |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cable ties |
| Cooling System | 120 mm fan |
| Features | Over current protection, short-circuit protection, thermal protection |
| Compliant Standards | FCC, RoHS, WEEE |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.28 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 24 cm |
| Shipping Depth | 9.5 cm |
| Shipping Height | 17 cm |
| Shipping Weight | 1.62 kg |
Features - INTERTECH - 88882118
More Details
Product Code
04:152428
EAN Code
4260133126022
Manufacturer
INTERTECH
