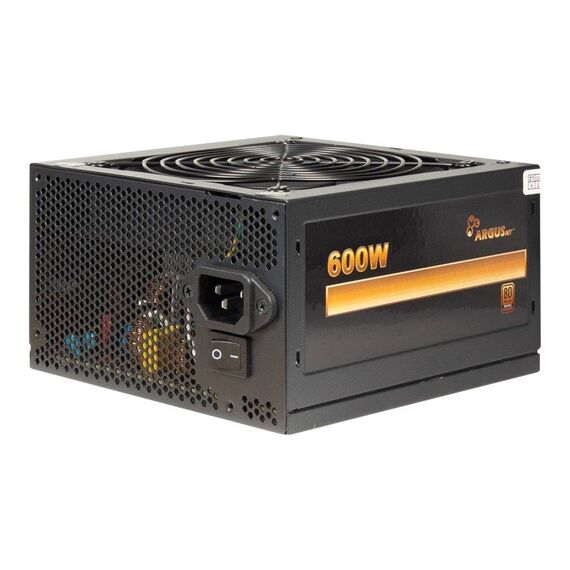

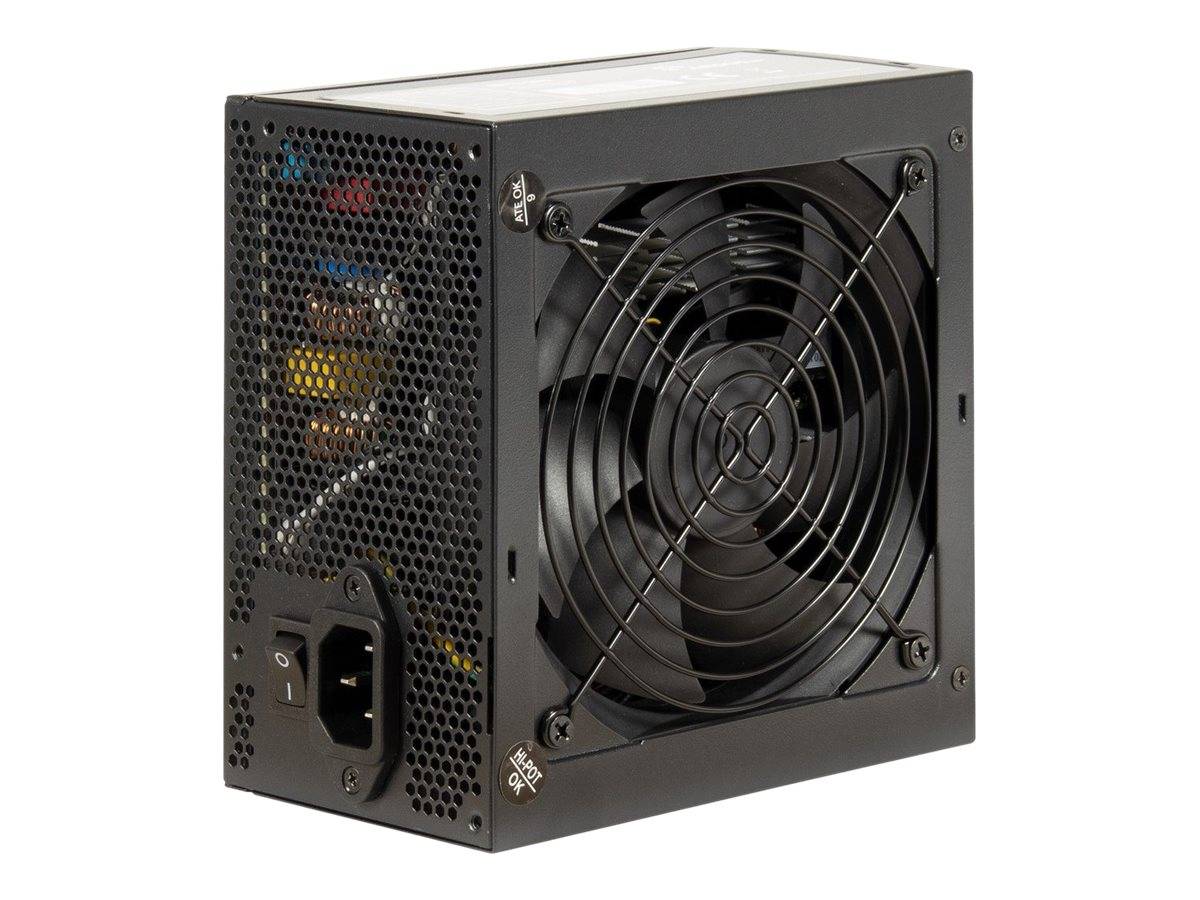

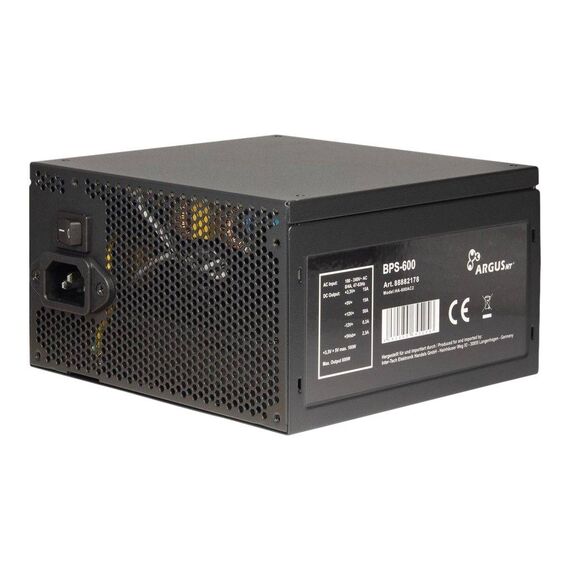

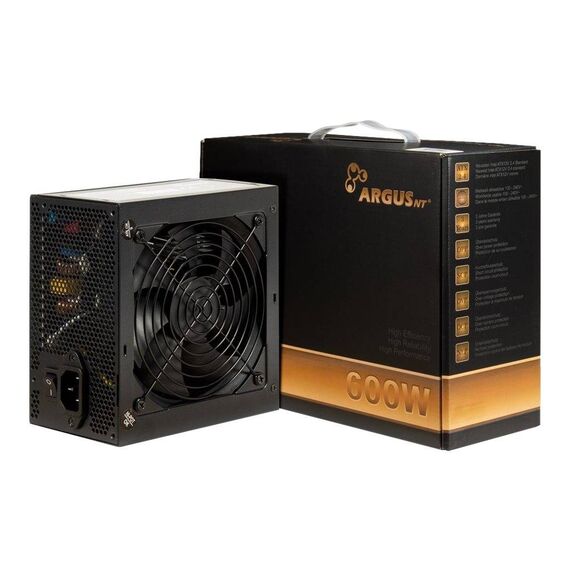

Argus BPS-600 / Power supply (internal) / ATX12V 2.4 / 80 PLUS Bronze / AC 100/240 V / 600 Watt / active PFC | 88882178
Please sign in so that we can notify you about a reply
Special Features
- 80PLUS Bronze 230V EU certification (up to 88.4% efficiency)
- 41A on the 12V line
- OPP, SCP, OVP, OCP and NLP
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4 |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100/240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 600 Watt |
| Output Current | +12V - 50 A ¦ +3.3V - 15 A ¦ +5V - 15 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 82.6% at 20% Load, 86.9% at 20% Load, 88.7% at 50% Load, 85.6% at 100% Load |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | Miscellaneous |
| Included Accessories | Screws, cable ties |
| Cooling System | 120 mm fan |
| Features | Over current protection, over voltage protection, short-circuit protection, thermal protection |
| Compliant Standards | FCC, RoHS, WEEE |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.77 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 2.13 kg |
Features - INTERTECH - 88882178
More Details
Product Code
04:378268
EAN Code
4260455645256
Manufacturer
INTERTECH
