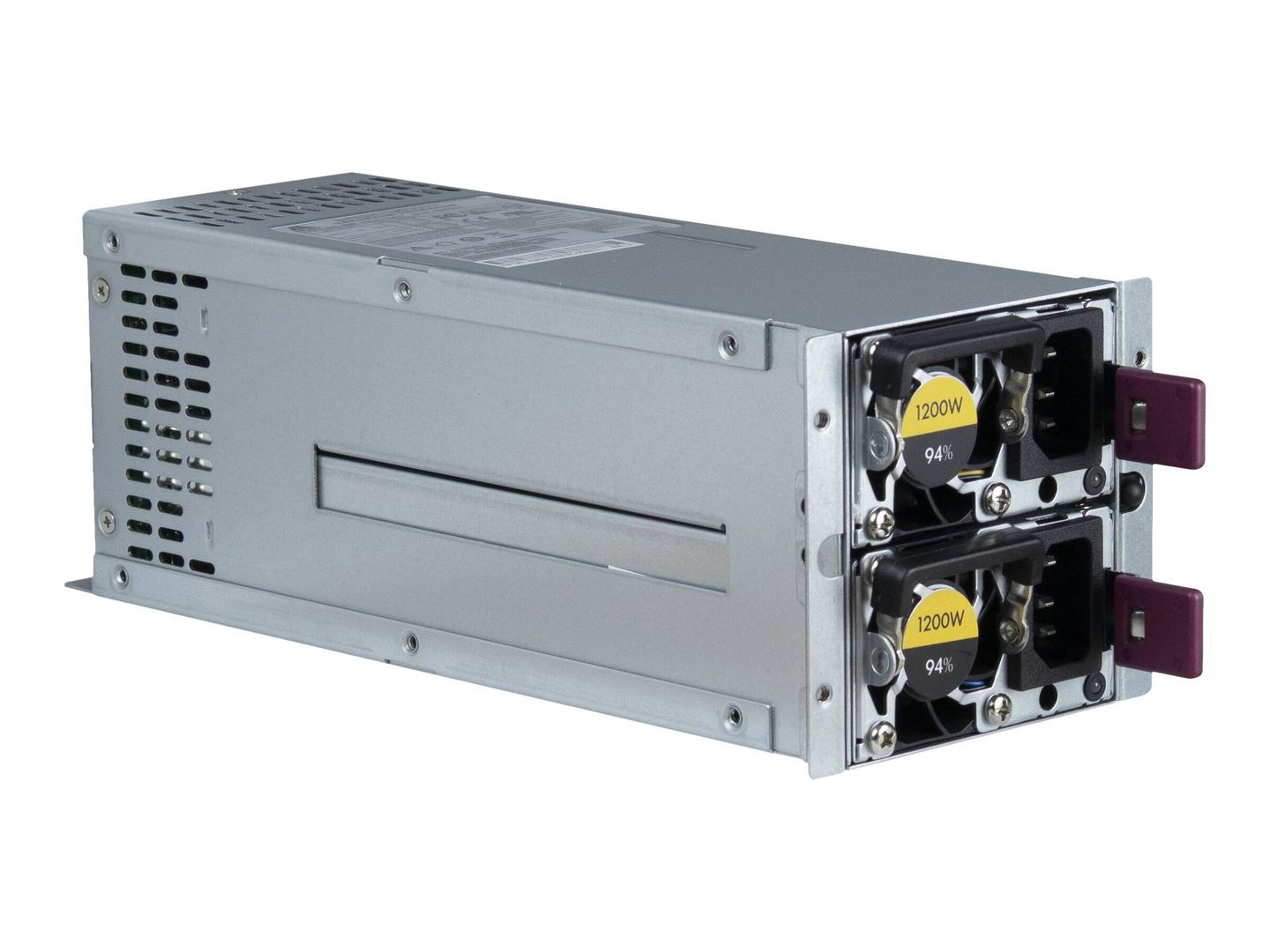

ASPOWER R2A-DV1200-N — 1200W Redundant 2U Server Power Supply, 80 PLUS Platinum
1200WRedundant 2U80 PLUS PlatinumPMBus
The ASPOWER R2A-DV1200-N is a complete 1200 W redundant power supply in 2U format with 80 PLUS Platinum certification, designed for rack servers, storage servers and appliances that need high wattage with no single point of power failure.
Its hot-swap modules share the load and protect each other; status LEDs, an audible alarm with mute switch and a PMBus/I²C cable report faults. Efficiency reaches 94.33% at 50% load, input is 100–240 V wide range, and the +12 V output delivers 97 A.
Before you order: This is the complete redundant PSU (cage with modules), 270 × 100 × 84 mm — it needs a 2U redundant PSU bay of that size. It has NO PCIe graphics connectors.
What's in the Box
- ASPOWER R2A-DV1200-N 1200 W redundant power supply (as listed by Inter-Tech)
- Power cords are not listed — tell us your PDU/socket type and we will add the right cords
What It Means in Practice
- Powers a 2U storage or compute server with many drives (8 Molex, 2 SATA, strong 3.3 V / 5 V rails) and redundant power.
- Connect each module to a different PDU or UPS so one power feed can fail without downtime.
- PMBus monitoring lets compatible boards read PSU status.
- Operates from 0 to 50 °C ambient.
What Will Not Work
- GPU servers needing PCIe power connectors — there are none.
- ATX desktop cases or 1U chassis.
- Silent office environments — this is a server PSU.
Key Features
1200 W redundant

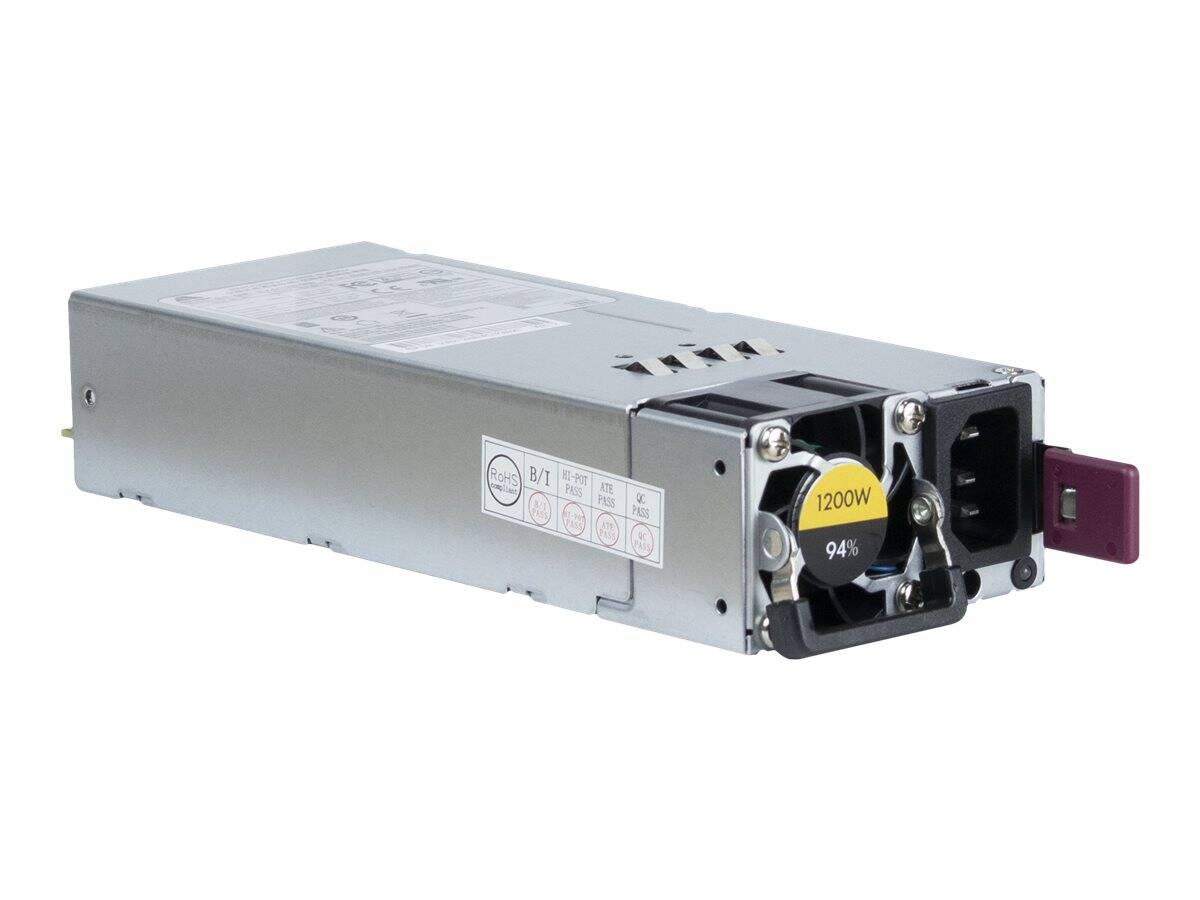

Load-sharing hot-swap modules in a 2U cage.
80 PLUS Platinum
90.46% / 90.96% / 94.33% / 91.75% at 10 / 20 / 50 / 100% load.
Monitoring
PMBus / I²C cable, LED codes and audible alarm with mute.
Server protections
Input OVP/UVP, output OVP/UVP, OCP, SCP, OTP (62 °C warning, 64 °C shutdown).
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The R2A-DV1200-N gives 2U servers a Platinum-efficient, redundant 1200 W supply with proper monitoring — check the 270 mm depth and the connector list against your board first. For desktop builds see our PC power supplies.
✓ Buy it if you need high-wattage redundant power for a 2U server or storage chassis.
✕ Skip it if you need PCIe GPU power or a standard ATX/1U unit.
→ Also consider ASPOWER R2A-MV0700 (700 W, PS/2 redundant, 80 PLUS Silver) for smaller systems.
Send us your chassis and motherboard model and we will confirm bay size and connectors before you order.
Features - Inter-Tech - 99997004
More Details
Product Code
04:424183
EAN Code
4260455648271
Manufacturer
Inter-Tech
