ASRock B860 Steel Legend WiFi LGA1851 ATX DDR5 Motherboard
A durable Intel B860 ATX motherboard for Core Ultra Series 2 builds, with DDR5 8666+ OC support, PCIe 5.0 graphics, PCIe 5.0 M.2 storage, Thunderbolt 4, Wi-Fi 6E and 2.5Gb Ethernet.
Intel B860LGA1851Thunderbolt 4Wi-Fi 6E

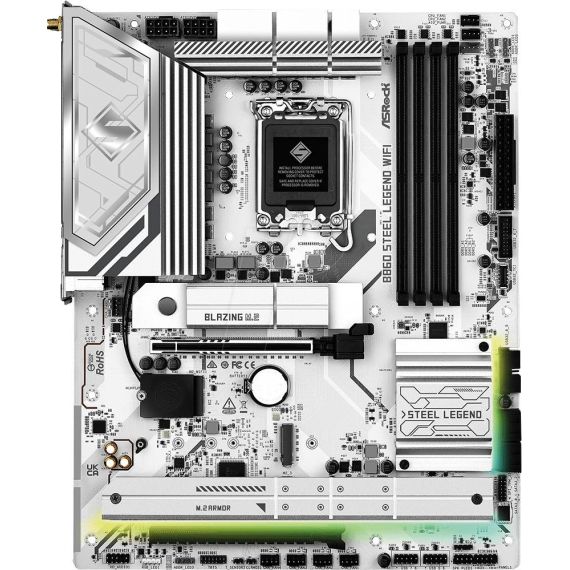

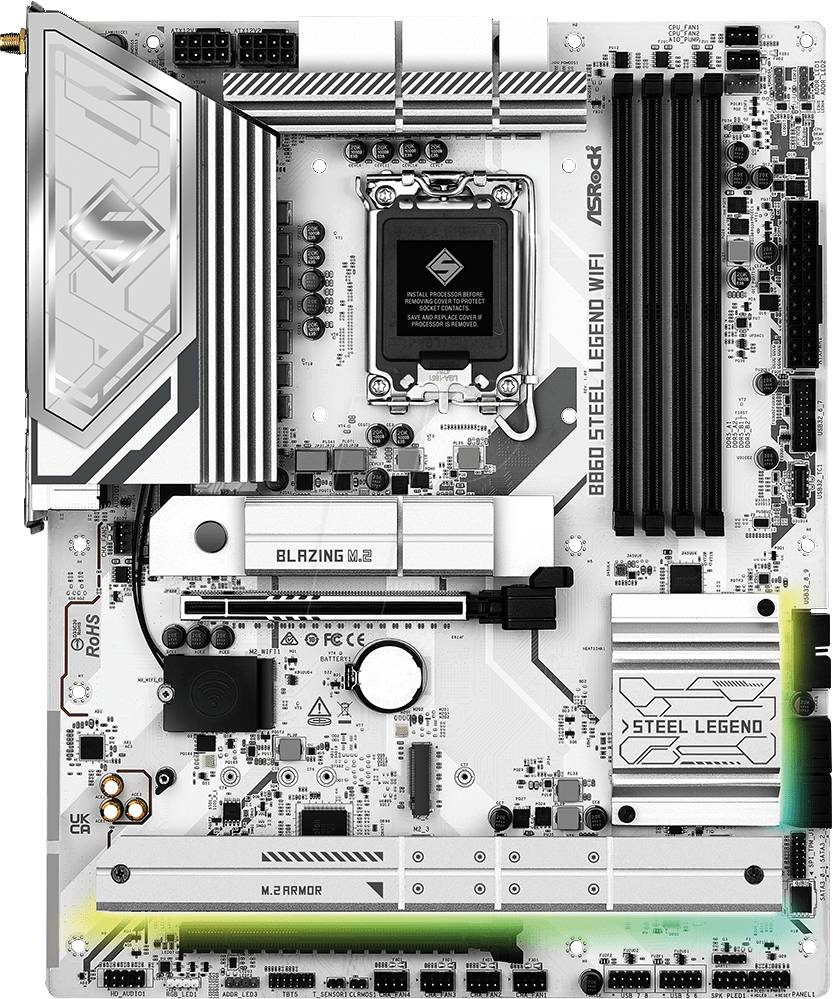

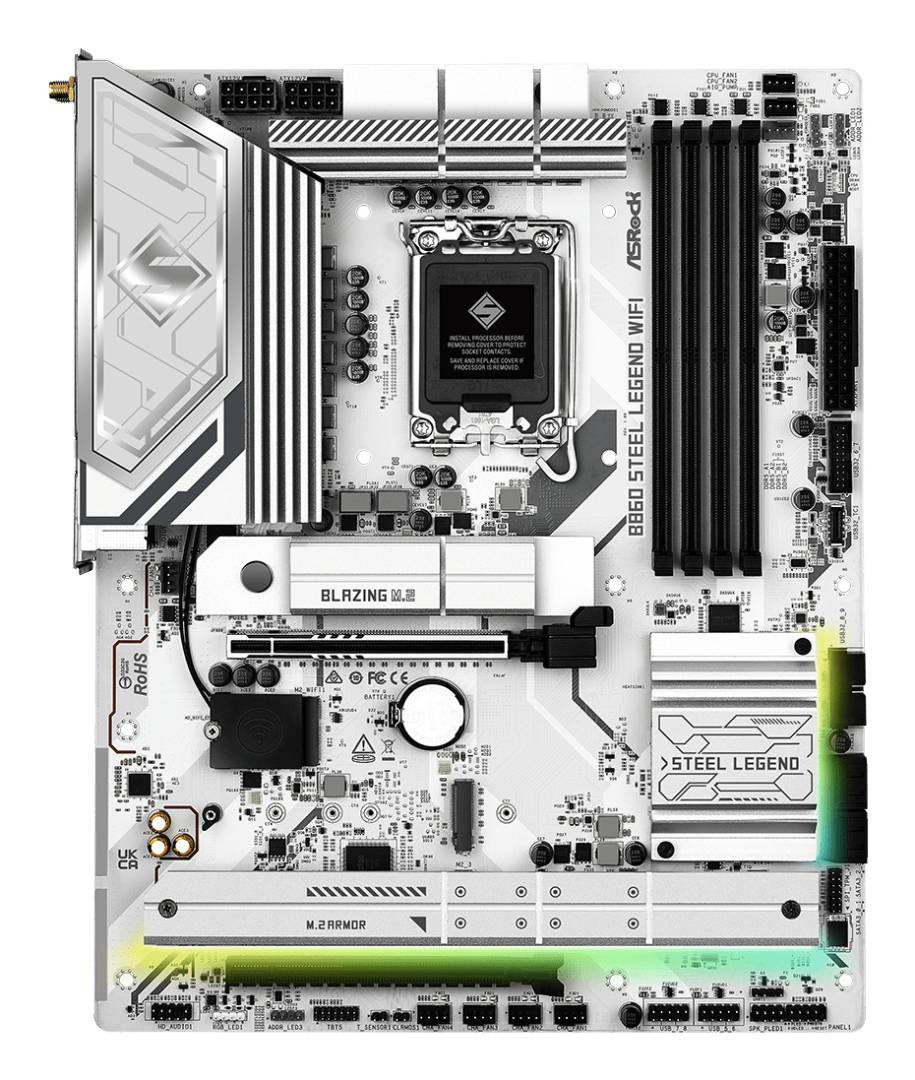

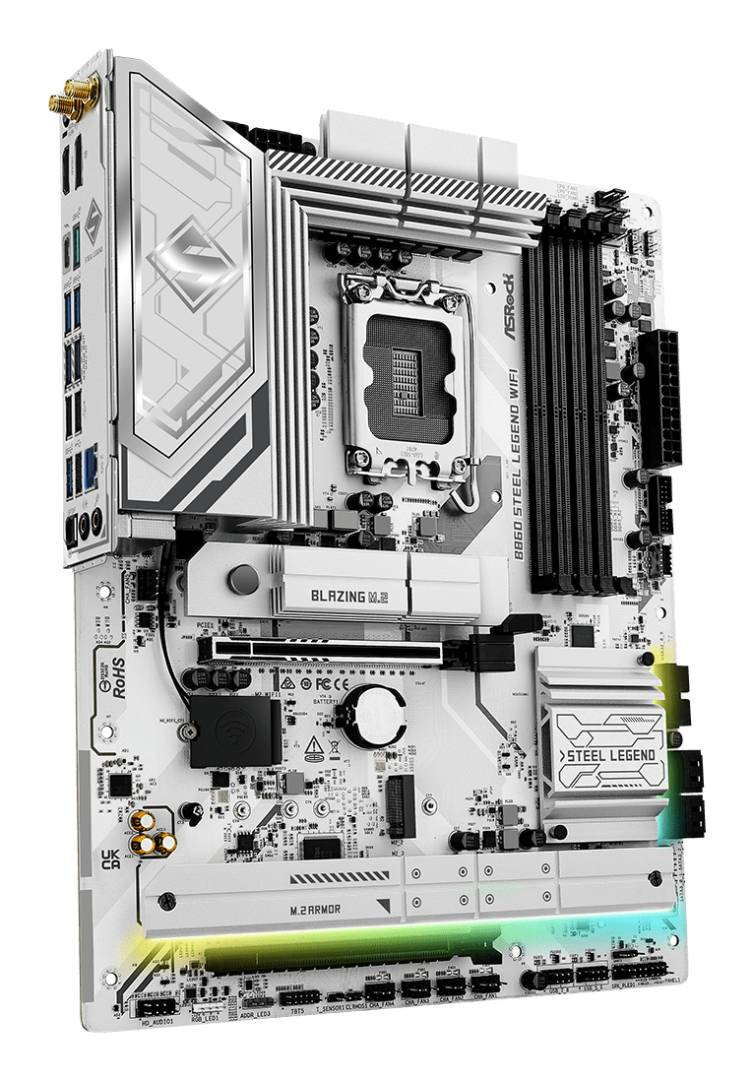

The ASRock B860 Steel Legend WiFi is an ATX motherboard for Intel LGA1851 desktop systems, designed for Intel Core Ultra Processors Series 2. It combines a 14+1+1+1+1 phase power design, DDR5 memory support up to 256GB, PCIe 5.0 x16 graphics, four M.2 slots including one PCIe Gen5 x4 slot, Thunderbolt 4 / USB4 Type-C, Wi-Fi 6E and Realtek 2.5GbE LAN.
Compatibility Note: Please confirm CPU, BIOS version, DDR5 memory compatibility, case size and cooler clearance before purchase. This motherboard uses Intel LGA1851 for Core Ultra Processors Series 2 and is not compatible with older LGA1700 CPUs.
Best For
✓ Intel Core Ultra desktop builds
✓ DDR5 performance systems
✓ PCIe 5.0 SSD setups
✓ Thunderbolt 4 workflows
Key Features
Intel B860 LGA1851 Platform
Supports Intel Core Ultra Processors Series 2 on the LGA1851 socket, making it a current platform for modern Intel gaming, creator and productivity desktops.
DDR5 and PCIe 5.0 Ready
Four DDR5 DIMM slots support up to 256GB and DDR5 8666+ OC, while the reinforced PCIe 5.0 x16 slot supports modern graphics cards.
Four M.2 Storage Slots
One Blazing M.2 PCIe Gen5 x4 slot, two PCIe Gen4 x4 slots and one PCIe Gen4 x2 slot provide excellent flexibility for fast NVMe storage.
Thunderbolt 4 and Wi-Fi 6E

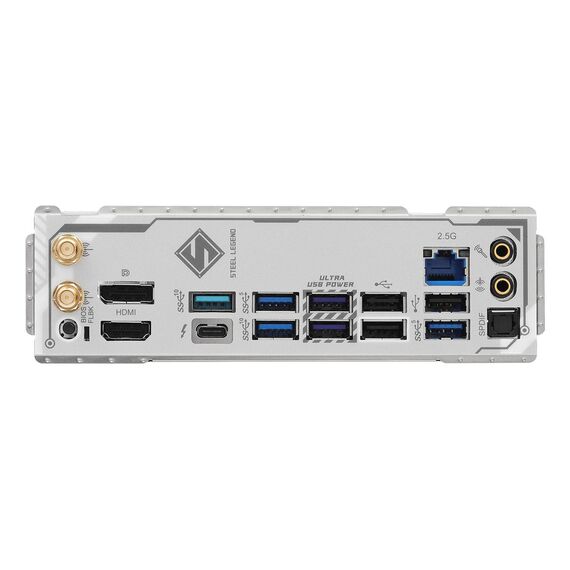

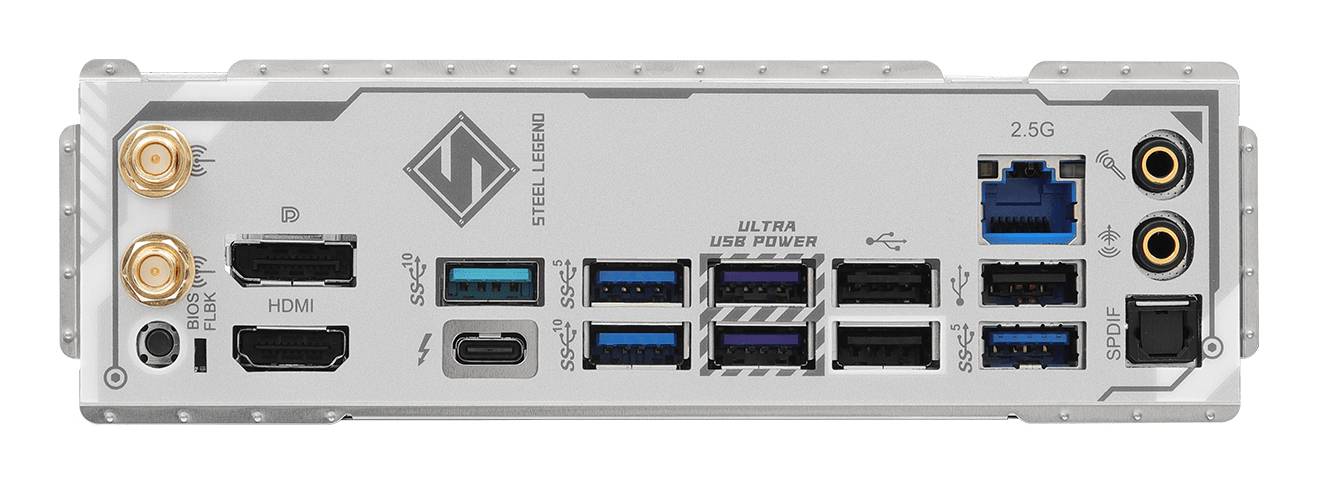

Rear Thunderbolt 4 / USB4 Type-C, front USB-C 20Gbps, Wi-Fi 6E, Bluetooth 5.3 and 2.5GbE LAN make it ready for modern peripherals and networks.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose this model if you want a balanced Intel Core Ultra ATX board with premium storage and connectivity features, including PCIe 5.0 graphics, PCIe 5.0 M.2, Thunderbolt 4, Wi-Fi 6E and 2.5GbE LAN. If you only need a simple office board, a lower-cost B860 model may be enough.
Buyer’s Guide
Buy it if
You are building an Intel Core Ultra Series 2 ATX system and want DDR5, PCIe 5.0 graphics, PCIe 5.0 M.2 storage, Thunderbolt 4, Wi-Fi 6E and 2.5GbE LAN.
Skip it if
You need compatibility with LGA1700 CPUs, DDR4 memory, AMD Ryzen processors, or a lower-cost motherboard without Thunderbolt 4 and Gen5 M.2 needs.
Also consider
Consider a Z890 motherboard if you need higher-end tuning features, or a simpler B860 board if Thunderbolt 4, PCIe 5.0 M.2 and extensive connectivity are not priorities.
Features - ASRock - 90-MXBR30-A0UAYZ
More Details
Product Code
04:519519
EAN Code
4711581490123
Manufacturer
ASRock
