ASRock A620AM-P AM5 Micro ATX Motherboard DDR5 PCIe 4.0 2x M.2 HDMI DisplayPort Gigabit LAN Black

Brand:
ASRock
ASRock A620AM-P AM5 Micro ATX DDR5 HDMI DP Motherboard
ASRock A620AM-P AM5 Micro ATX Motherboard DDR5 PCIe 4.0 2x M.2 HDMI DisplayPort Gigabit LAN Black
€100.94 inc. VAT
Buy
90-MXBVJ0-A0UAYZ
€84.82 €94.24
€100.94 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
CPU Type
AMD Ryzen
Product Code
04:599040
EAN Code
4711581495111
Manufacturer
ASRock

Quick Specs

Socket & Chipset
AM5 · AMD A620A
Memory
2x DDR5 · up to 128GB · 6800+ (OC)
Expansion & Storage
PCIe 4.0 x16 · 2x M.2 · 2x SATA
Connectivity
Gigabit LAN · HDMI + DP
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASRock A620AM-P

An entry-level AM5 Micro ATX board for Ryzen 9000/8000/7000 with DDR5, PCIe 4.0 graphics, two M.2 sockets and HDMI + DisplayPort outputs.
AMD A620A · AM52x DDR5 up to 128GBPCIe 4.0 x16 + Gen4 M.2HDMI 2.1 + DP 1.4

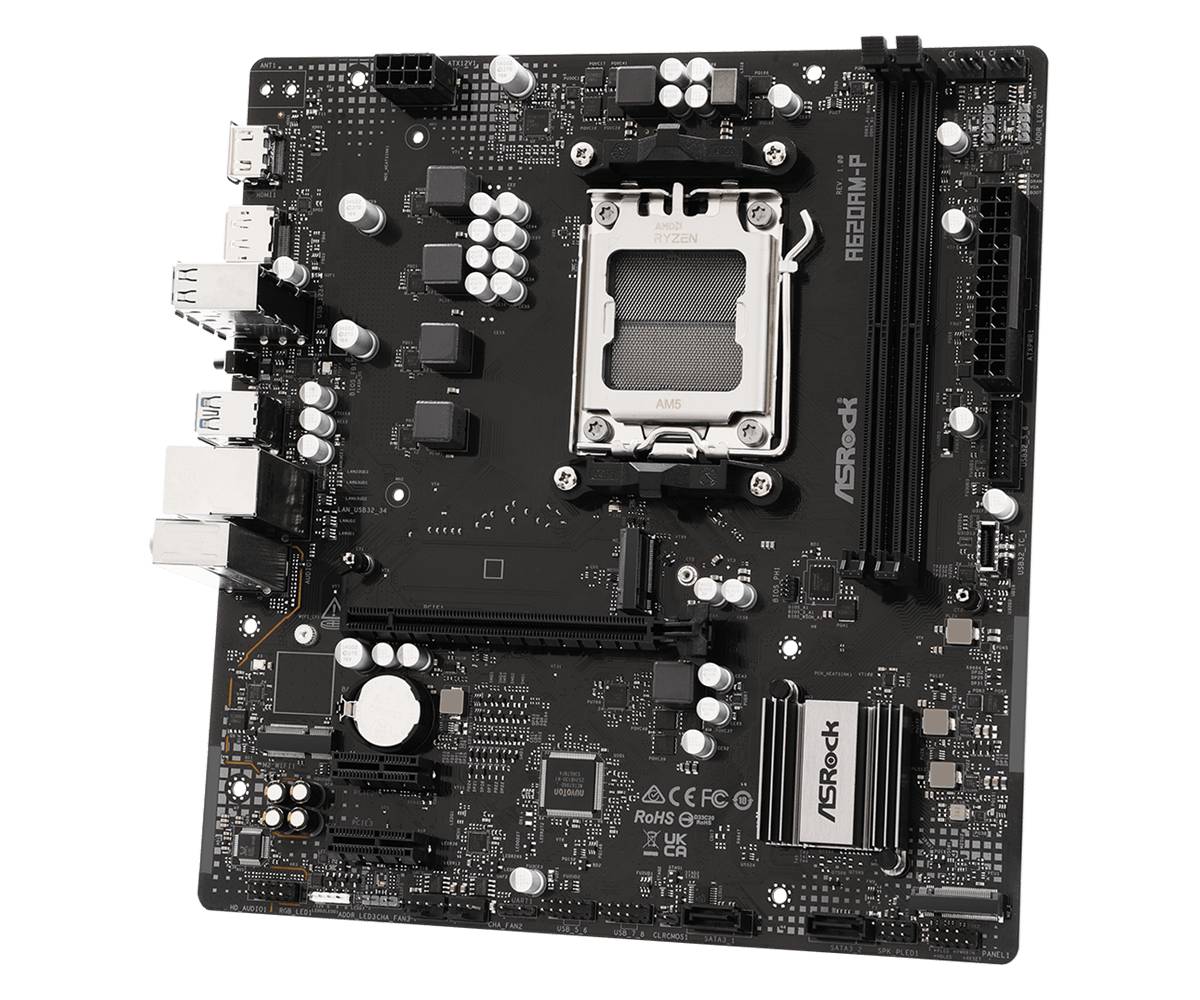

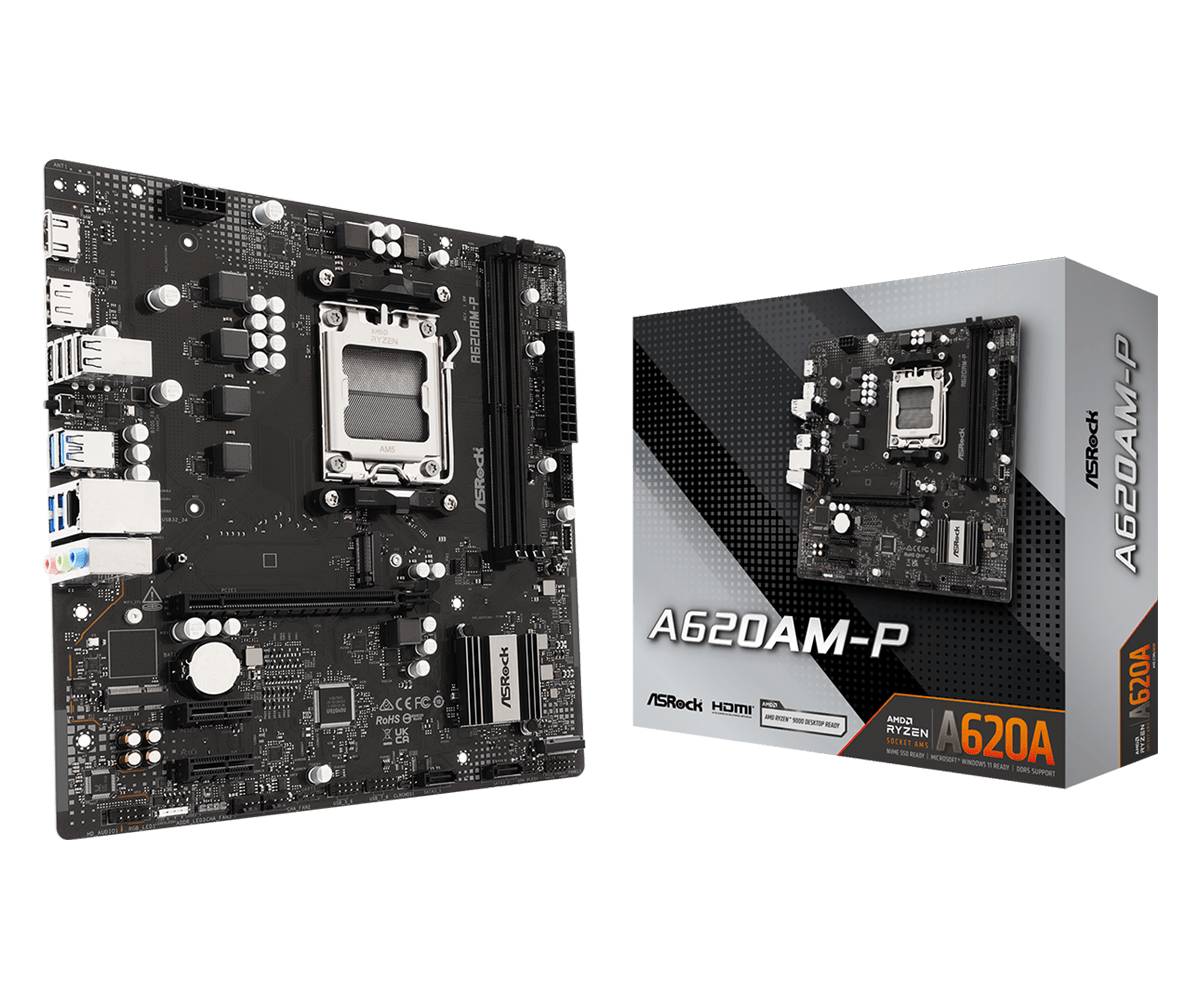

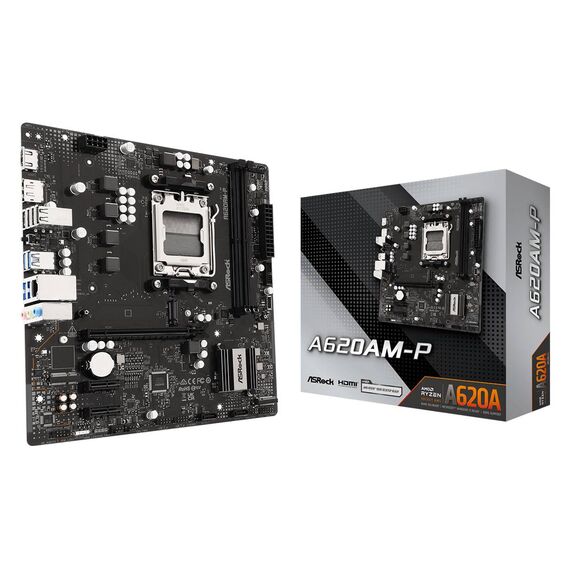

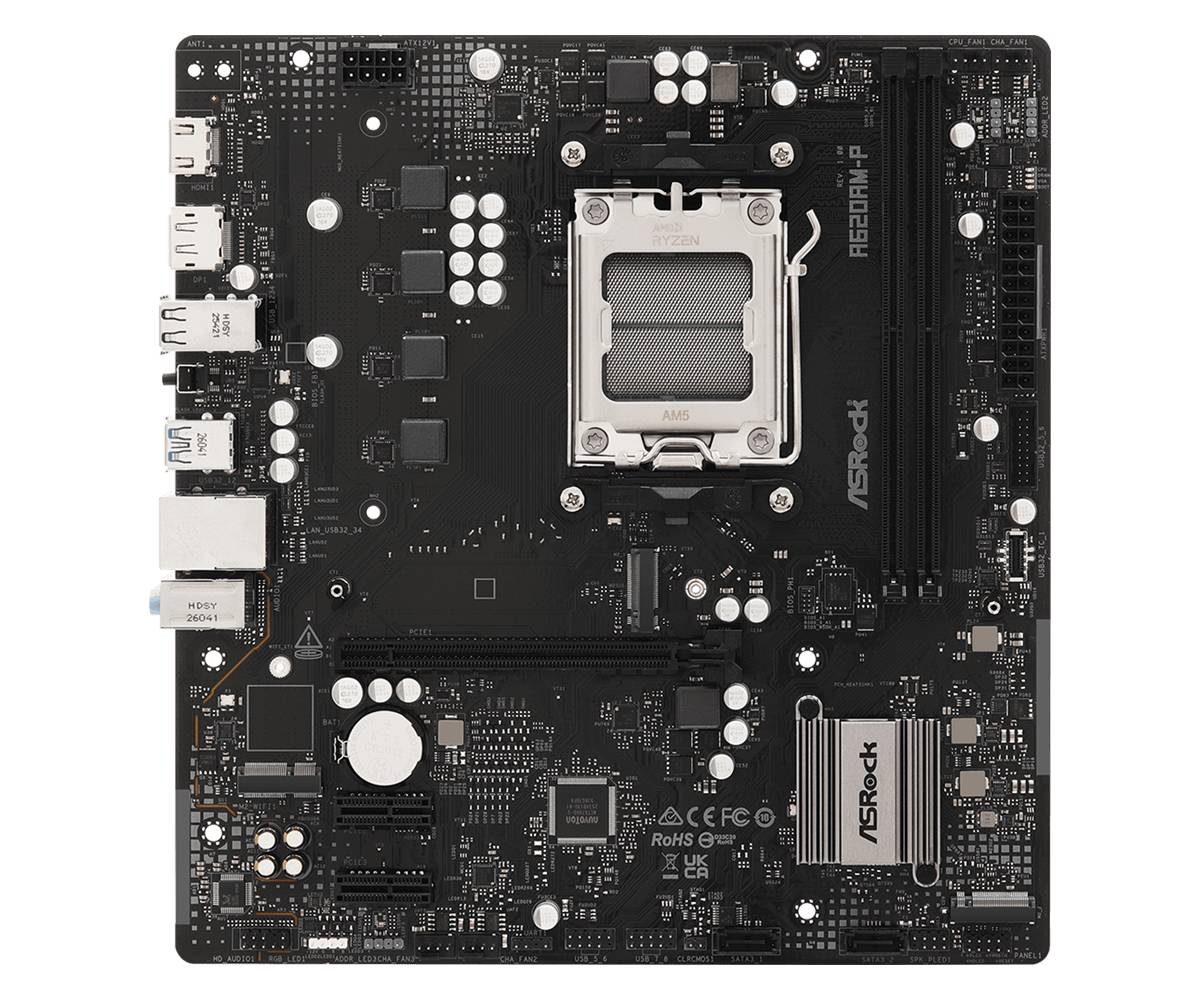

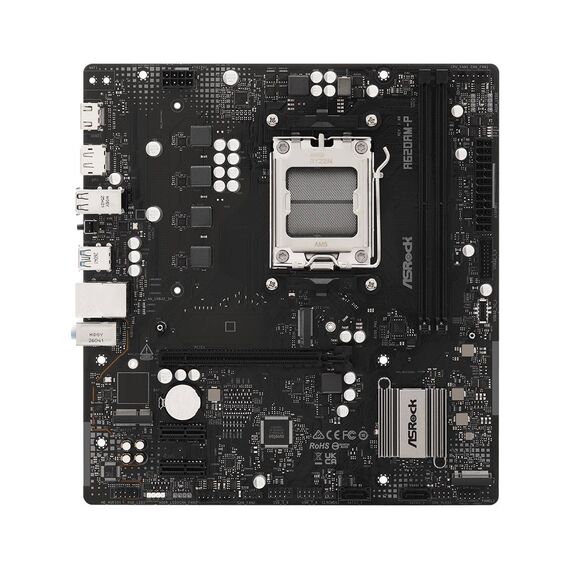

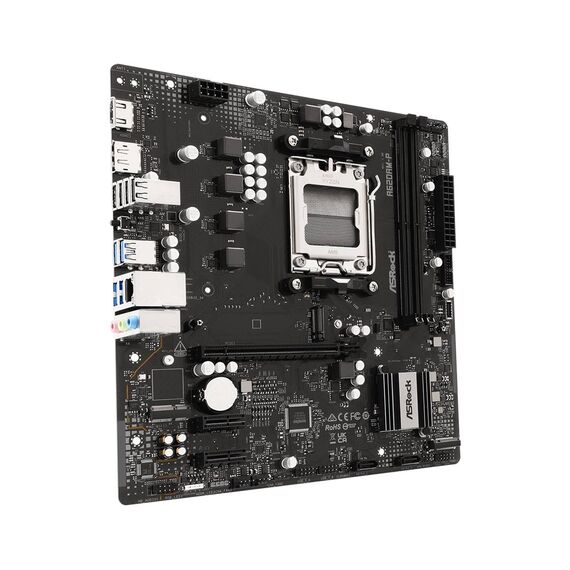

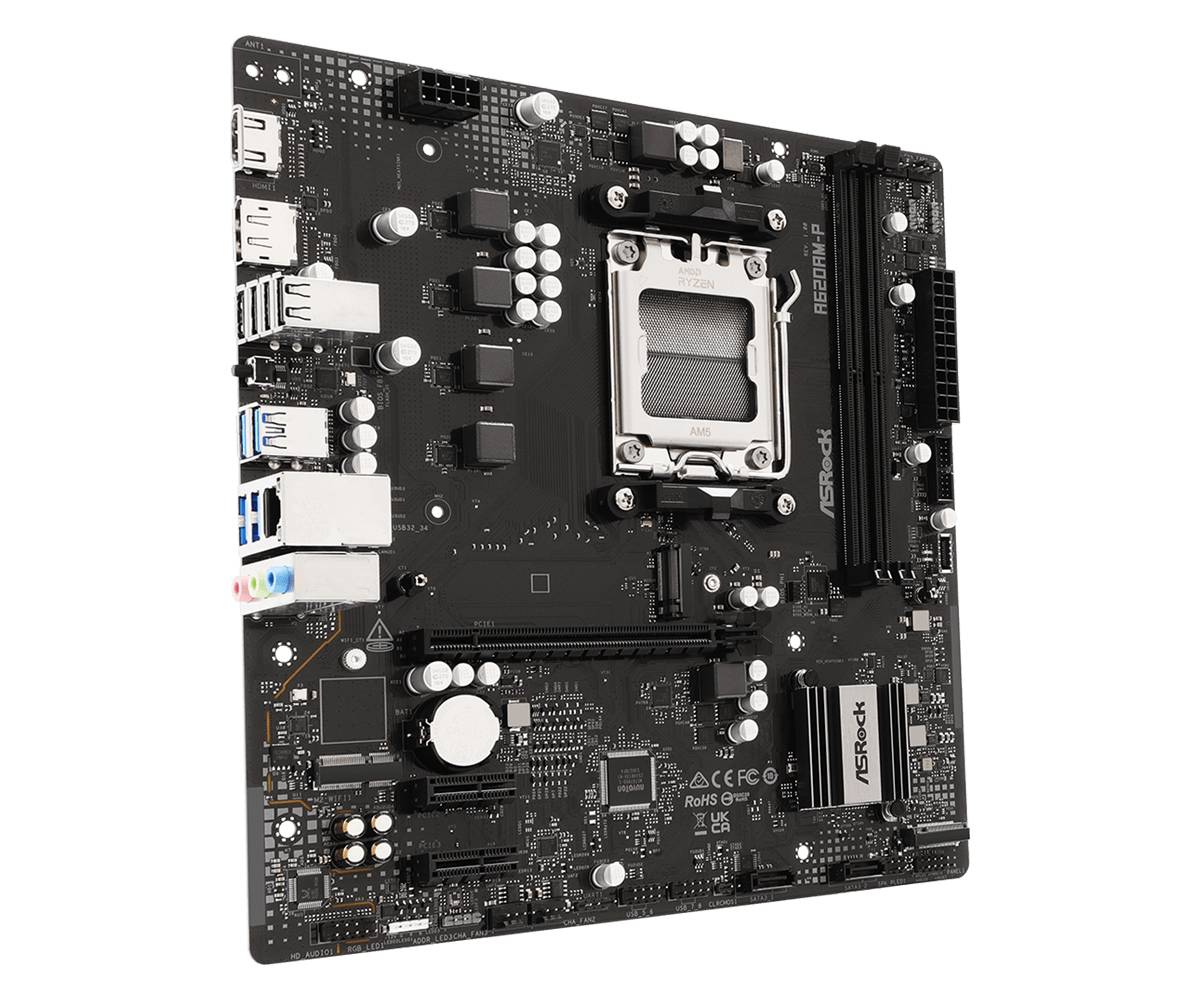

The ASRock A620AM-P (part number 90-MXBVJ0-A0UAYZ) is an AMD A620A Micro ATX motherboard for Socket AM5 Ryzen 9000, 8000 and 7000 processors, aimed at affordable office, school and entry gaming PCs. It offers two DDR5 slots for up to 128GB, a PCIe 4.0 x16 slot for a graphics card, a Gen4 x4 M.2 socket from the CPU plus a second M.2 from the chipset, and both HDMI 2.1 and DisplayPort 1.4 for CPUs with integrated graphics. A BIOS Flashback button allows BIOS updates without a CPU installed.

Compatibility Note: The board has two DIMM slots (max 128GB) and no Wi-Fi module; the M.2 Key E slot accepts an optional 2230 Wi-Fi/BT card. The A620 chipset does not support CPU overclocking, and the 4+1+1 phase design is best matched to 65W-class Ryzen processors.
Best For
✓ Office and school AM5 PCs
✓ Ryzen 5 8600G / 9600 builds
✓ Dual-monitor setups with CPU graphics
✓ Budget entry gaming PCs
✓ Small Micro ATX cases
✓ Upgrading from AM4 to DDR5

Key Features


AM5 with DDR5
Supports Ryzen 9000, 8000 and 7000 Series processors with two DDR5 slots up to 6800+ MHz (OC) and 128GB, plus XMP and EXPO memory profiles.

Dual Display from CPU Graphics
HDMI 2.1 and DisplayPort 1.4 with DSC, both up to 4K 120Hz and HDCP 2.3, so Ryzen processors with integrated RDNA graphics can drive two monitors without a graphics card.

PCIe 4.0 Graphics and Storage
A PCIe 4.0 x16 slot for the graphics card, a Hyper M.2 socket at Gen4 x4 (64 Gb/s) and an Ultra M.2 socket supporting SATA or PCIe Gen3 x4, plus two SATA3 ports.

Easy Maintenance
BIOS Flashback button, Post Status Checker, 3 ARGB + 1 RGB headers, four 4-pin fan connectors and ASRock Auto Driver Installer.

Technical Specifications

Identification
Part Number 90-MXBVJ0-A0UAYZ
EAN / GTIN 4711581495111
Brand / Model ASRock A620AM-P
Colour Black
Platform
CPU Support AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series
Chipset AMD A620A
Power Design 4+1+1 power phase, Dr.MOS for Vcore
BIOS 256Mb AMI UEFI with BIOS Flashback button
Memory
Slots 2x DDR5 DIMM, dual channel
Speed / Capacity Up to 6800+ MHz (OC) · max 128GB
Type DDR5 non-ECC un-buffered · XMP and EXPO
Expansion
PCIe Slots 1x PCIe 4.0 x16 (CPU) · 2x PCIe 3.0 x1 (chipset)
M.2 Key E 1x 2230 for optional Wi-Fi/BT module
Storage
M.2 M2_1: 2280 PCIe Gen4 x4 (CPU) · M2_2: 2280 SATA3 or PCIe Gen3 x4 (chipset)
SATA 2x SATA3 6 Gb/s
RAID RAID 0/1 SATA · RAID 0/1/10 NVMe (RAID 10 needs an M.2 expansion card)
Networking & Audio
LAN Gigabit LAN, Realtek RTL8111H
Audio 7.1 CH HD Audio, Realtek ALC897
Rear I/O

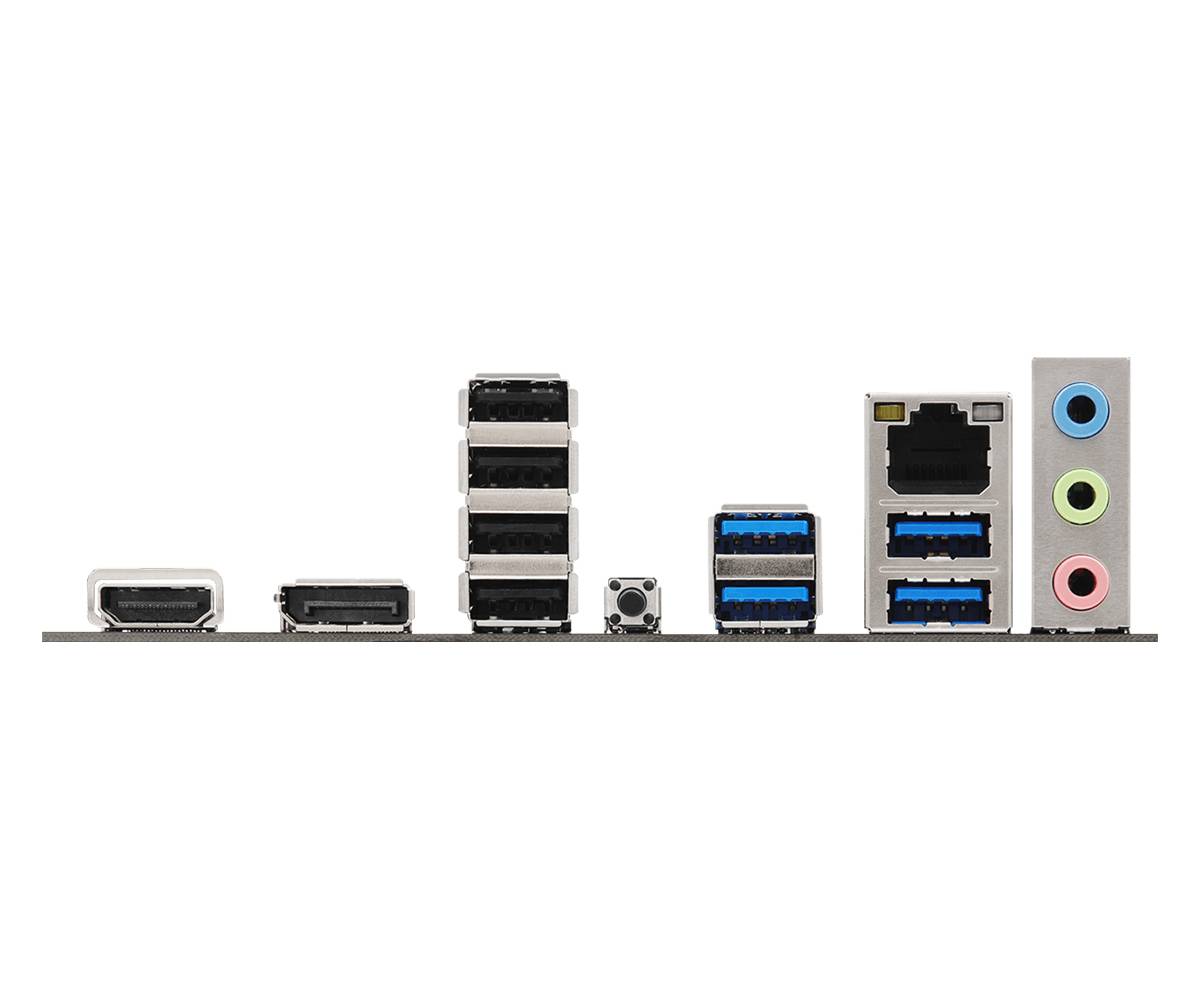

Ports 1x HDMI 2.1 (4K 120Hz) · 1x DisplayPort 1.4 (4K 120Hz) · 4x USB 3.2 Gen1 Type-A · 4x USB 2.0 · 1x RJ-45 · BIOS Flashback · 3x audio jacks · 2x antenna mounting points
Internal Headers 1x front USB 3.2 Gen1 Type-C · 1x USB 3.2 Gen1 · 2x USB 2.0 · 1x CPU fan · 3x chassis fan · 1x RGB + 3x ARGB
Physical
Form Factor Micro ATX, 24.4 x 22.9 cm, 2oz copper PCB
Power Connectors 1x 24-pin ATX + 1x 8-pin 12V

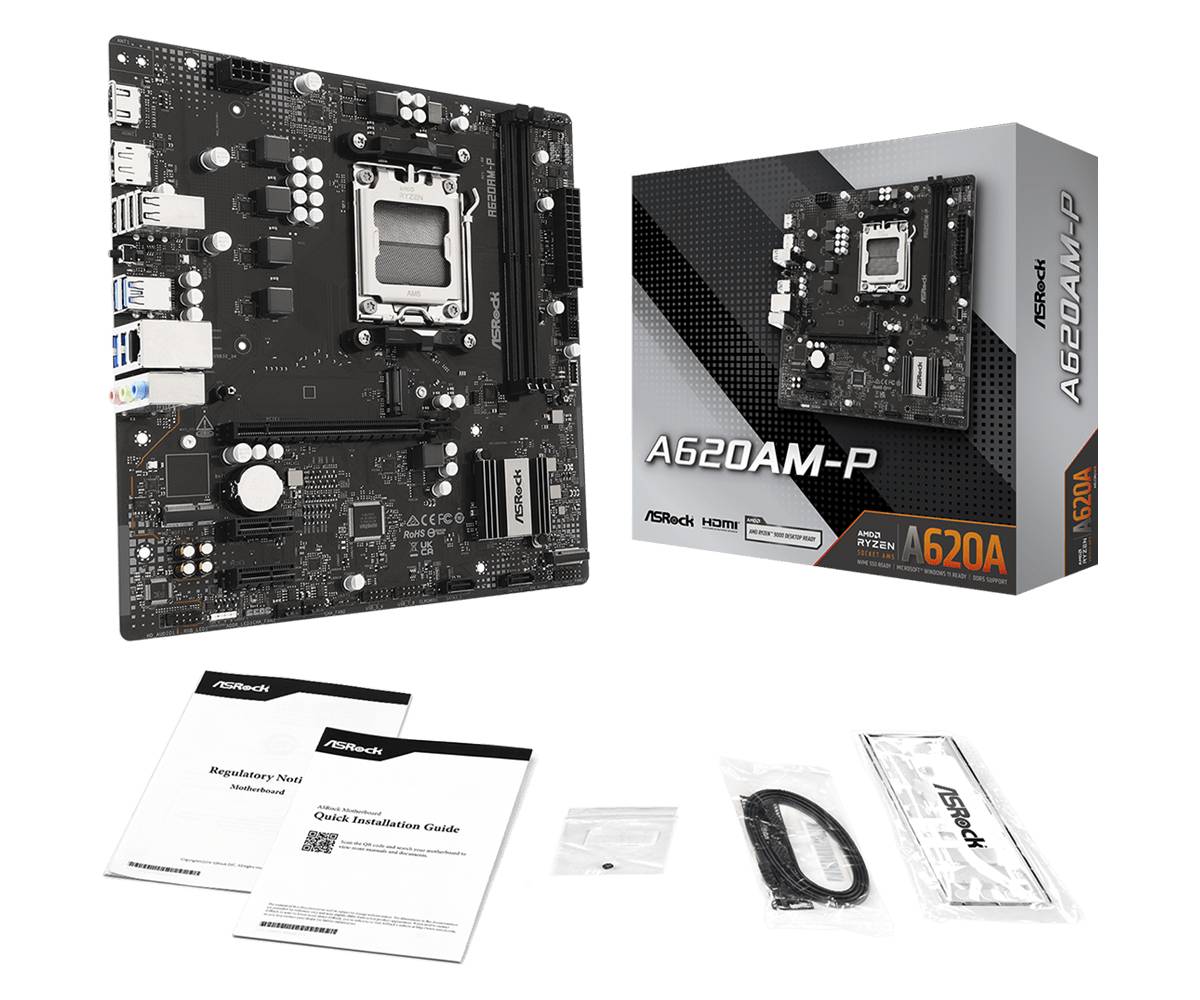

In the Box I/O shield, 2x SATA cables, M.2 screw
OS Windows 10 / 11 64-bit

Frequently Asked Questions

Does the A620AM-P have Wi-Fi?
No. It has Gigabit Ethernet only. An M.2 Key E 2230 slot and two antenna mounting points are provided, so a compatible Wi-Fi/Bluetooth module can be added later.
Can I use a Ryzen 7 9800X3D on this board?
ASRock lists Ryzen 9000 Series support, but the A620A chipset has no CPU overclocking and the board uses a modest 4+1+1 phase design. It is a better match for 65W-class CPUs such as the Ryzen 5 9600 or 8600G; for X3D or Ryzen 9 builds, a B650 or X870 board is the stronger choice.
Can I connect two monitors without a graphics card?
Yes, with a Ryzen processor that has integrated graphics: use the HDMI 2.1 and DisplayPort 1.4 outputs, each supporting up to 4K 120Hz.
What do I need to know before buying?
CPU, cooler, DDR5 memory and SSD are sold separately. With only two DIMM slots, choose a 2x16GB or 2x32GB kit at the start so you do not need to replace memory later.
Singular Expert Insight
The A620AM-P is a sensible base for a low-cost AM5 office or school PC: DDR5, a Gen4 SSD slot and two display outputs keep it useful for years, and the AM5 socket leaves room for a CPU upgrade. If you plan a Ryzen 9 or X3D gaming build, or need Wi-Fi out of the box, spend a little more on an X870 Challenger WiFi.
✓ Buy it if you want the lowest-cost route to AM5 and DDR5 for a 65W Ryzen with integrated graphics.
✕ Skip it if you need Wi-Fi, four DIMM slots or a board for a high-power Ryzen 9 / X3D CPU.
→ Also consider ASRock X870 Challenger WiFi for PCIe 5.0, USB4 and Wi-Fi 7, or B550M-P if you are reusing AM4 and DDR4.
