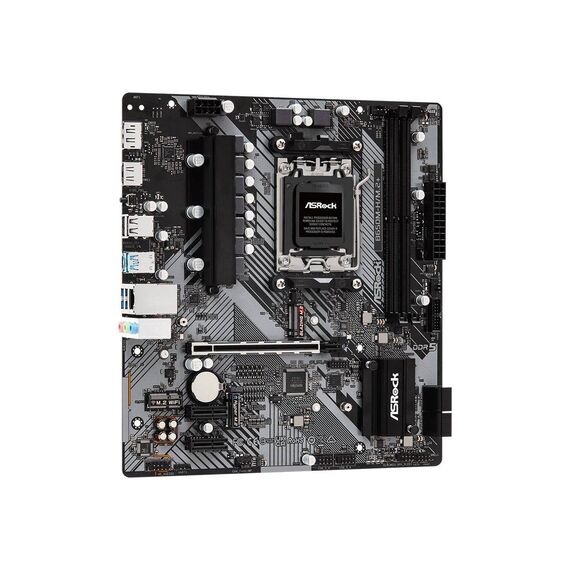

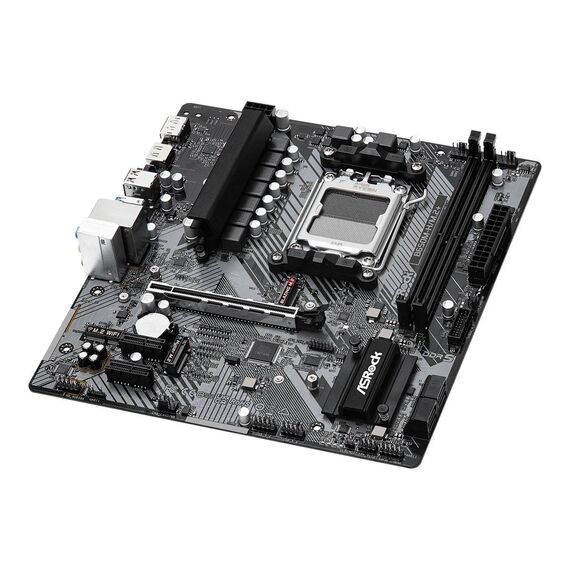

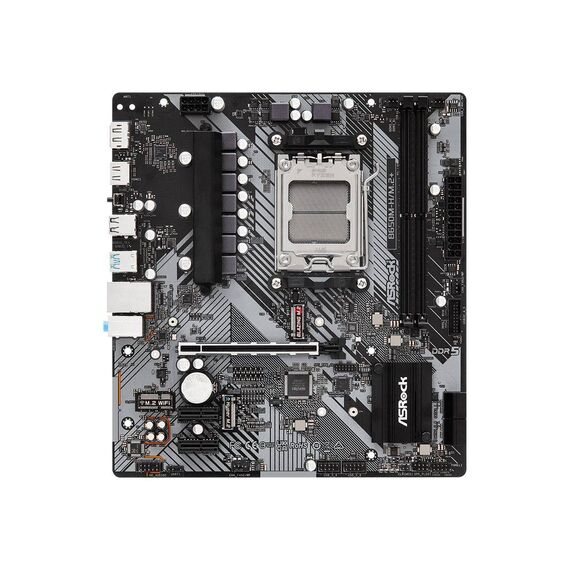

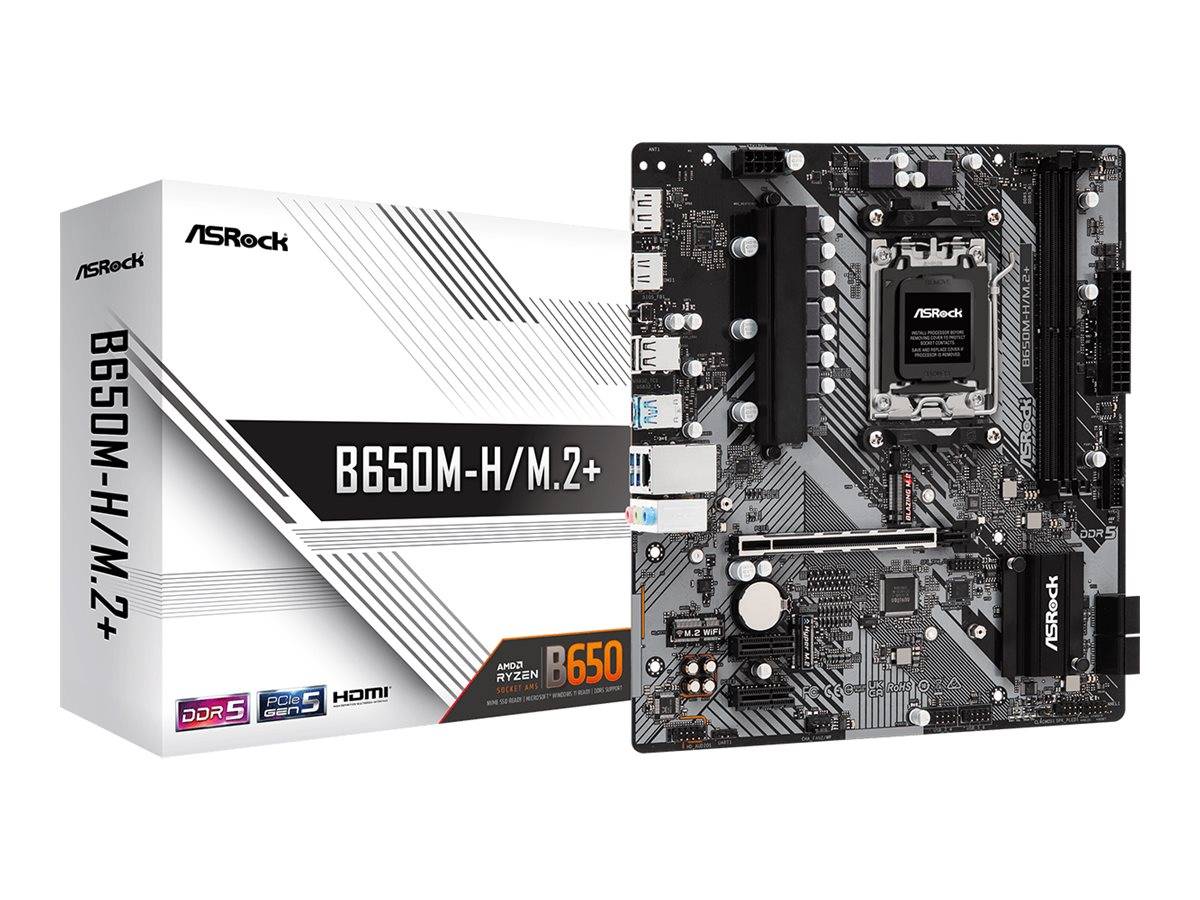

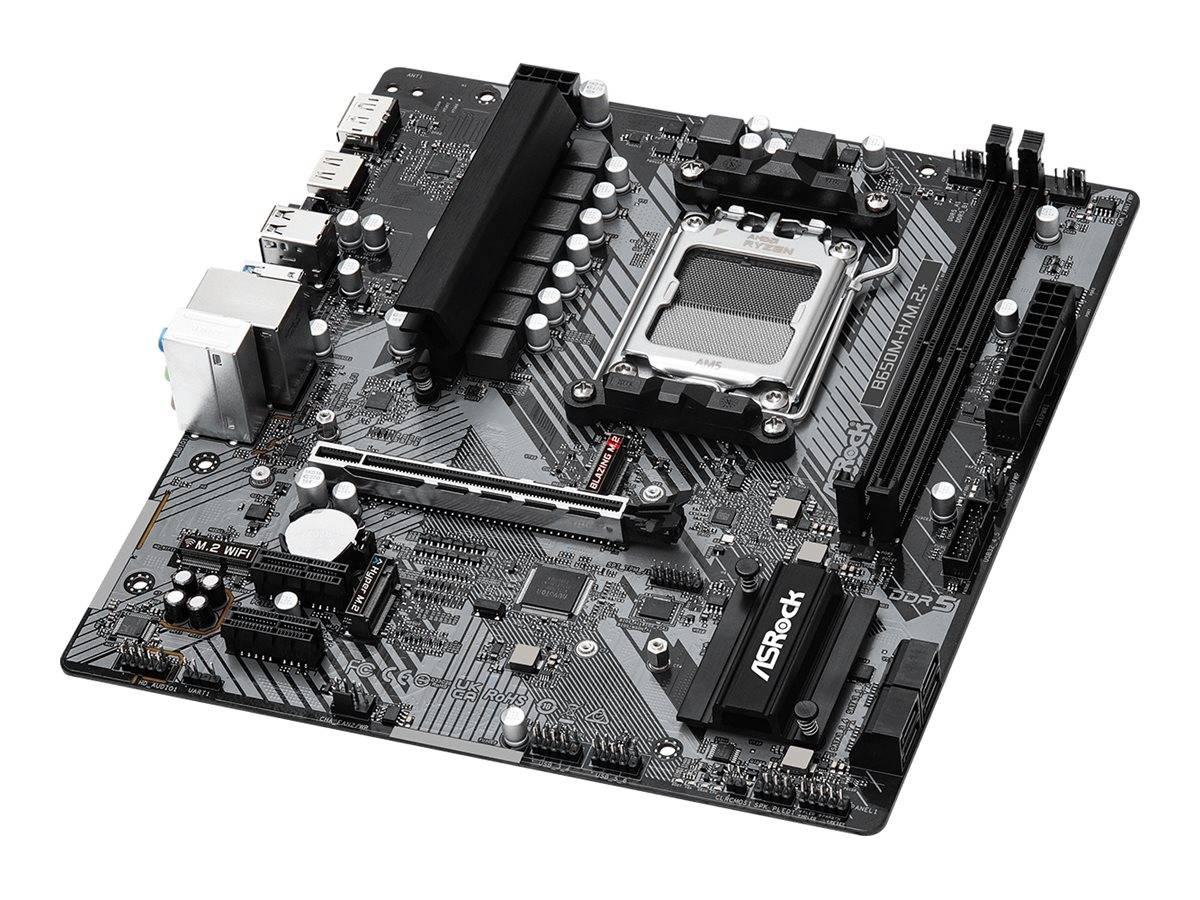

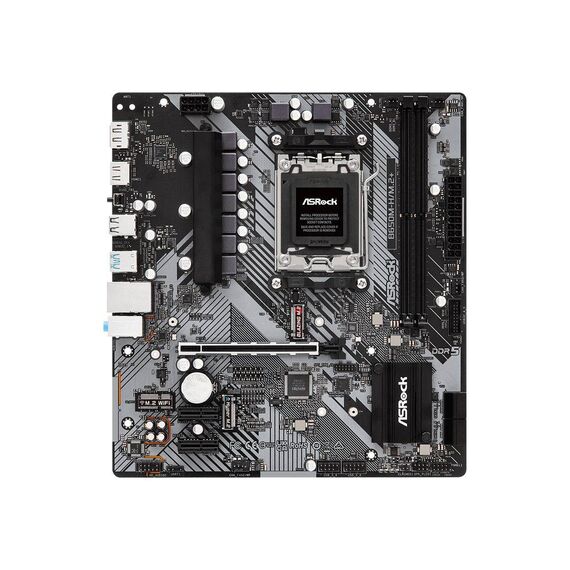

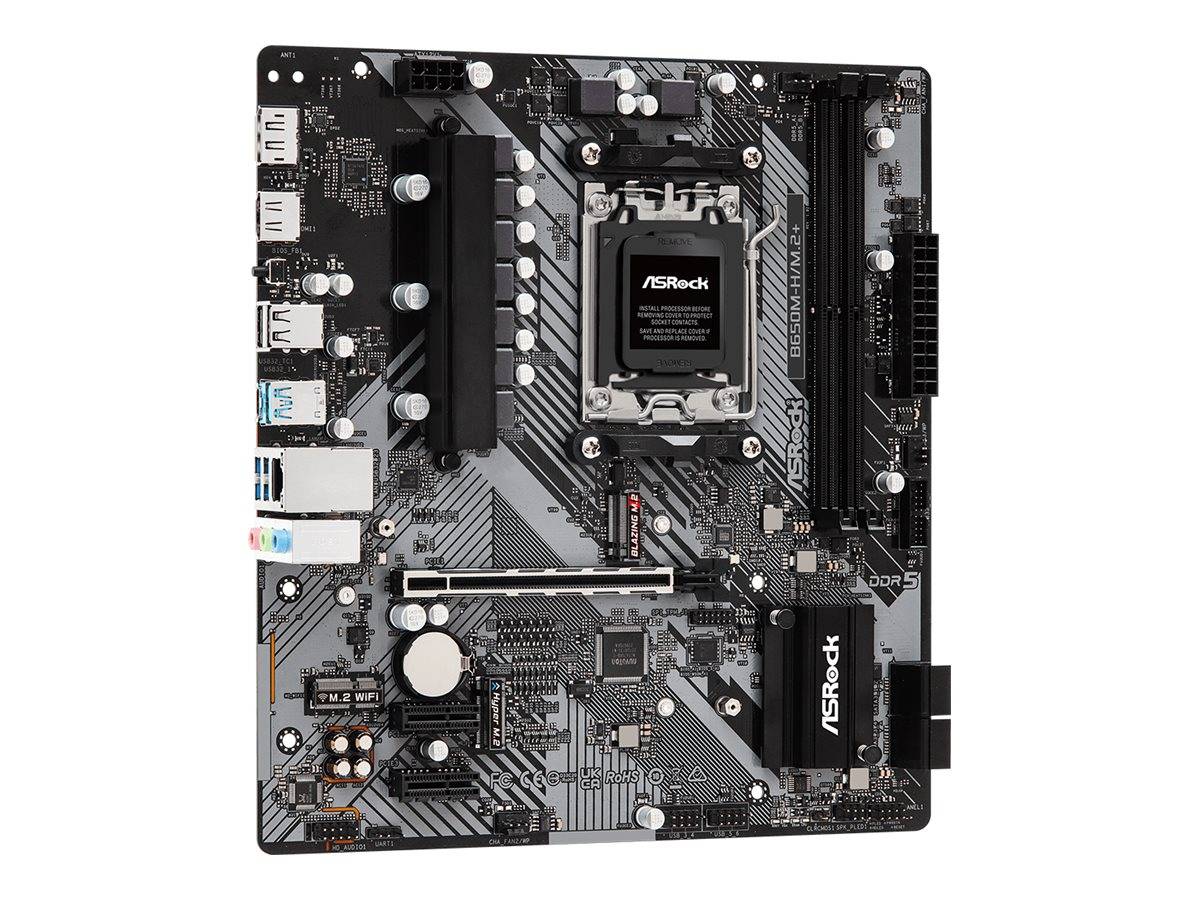

ASRock B650M-H/M.2+ AM5 B650 micro ATX Motherboard DDR5 Dual M.2 Gigabit LAN
Brand:
ASRock
90-MXBMS0-A0UAYZ
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 96 GB |
| Technology | DDR5 |
| Bus Clock | 6400 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (x16 mode) ¦ 2 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |

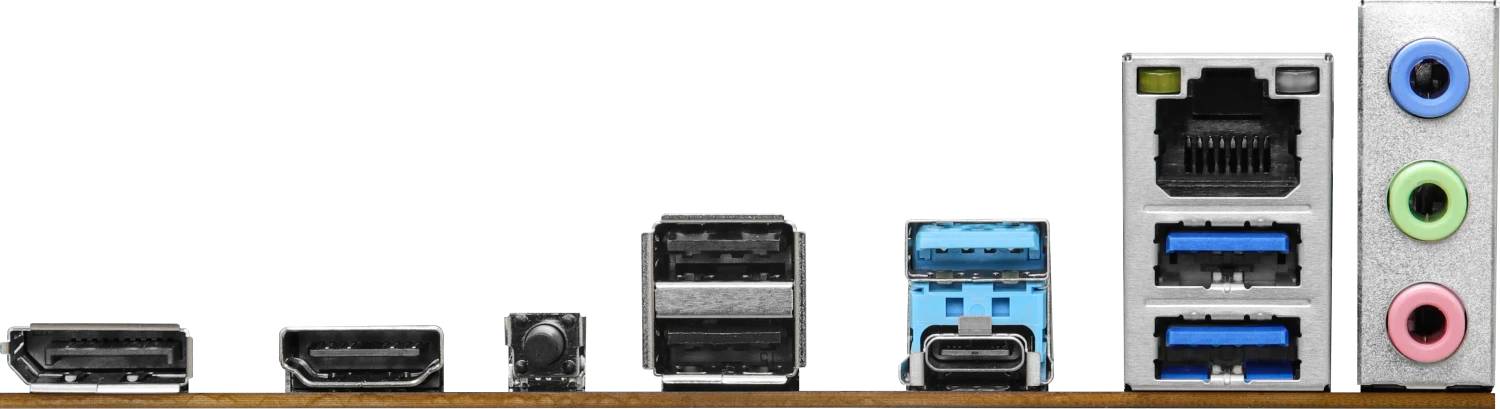

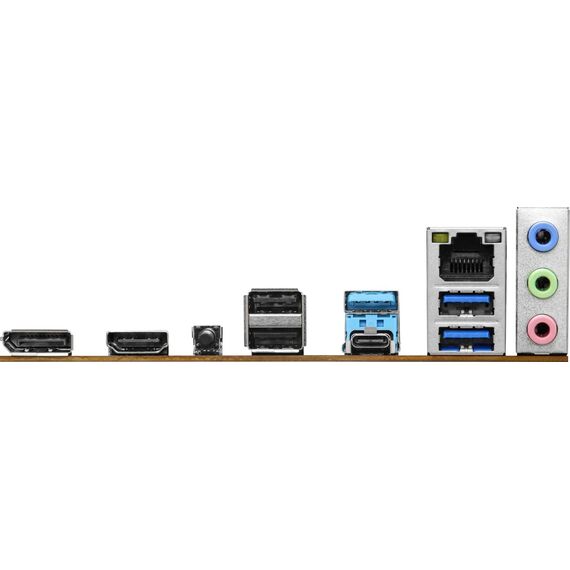

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x aerial ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | ASRock Instant Flash, 15µ Gold Contact, ASRock Full HD UEFI, 6 Layer PCB, Dr.MOS MOSFET, Water Pump Header, 6+1+1 DrMOS Power Stages, reinforced PCIe slots, ASRock Auto Driver Installer, BIOS FlashBack button |
| Miscellaneous | Miscellaneous |
| Included Accessories | 3 x M.2 screws, IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock XFast LAN |
| Compliant Standards | FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3 |
| Width | 22.6 cm |
| Depth | 24.4 cm |
Singular Selected

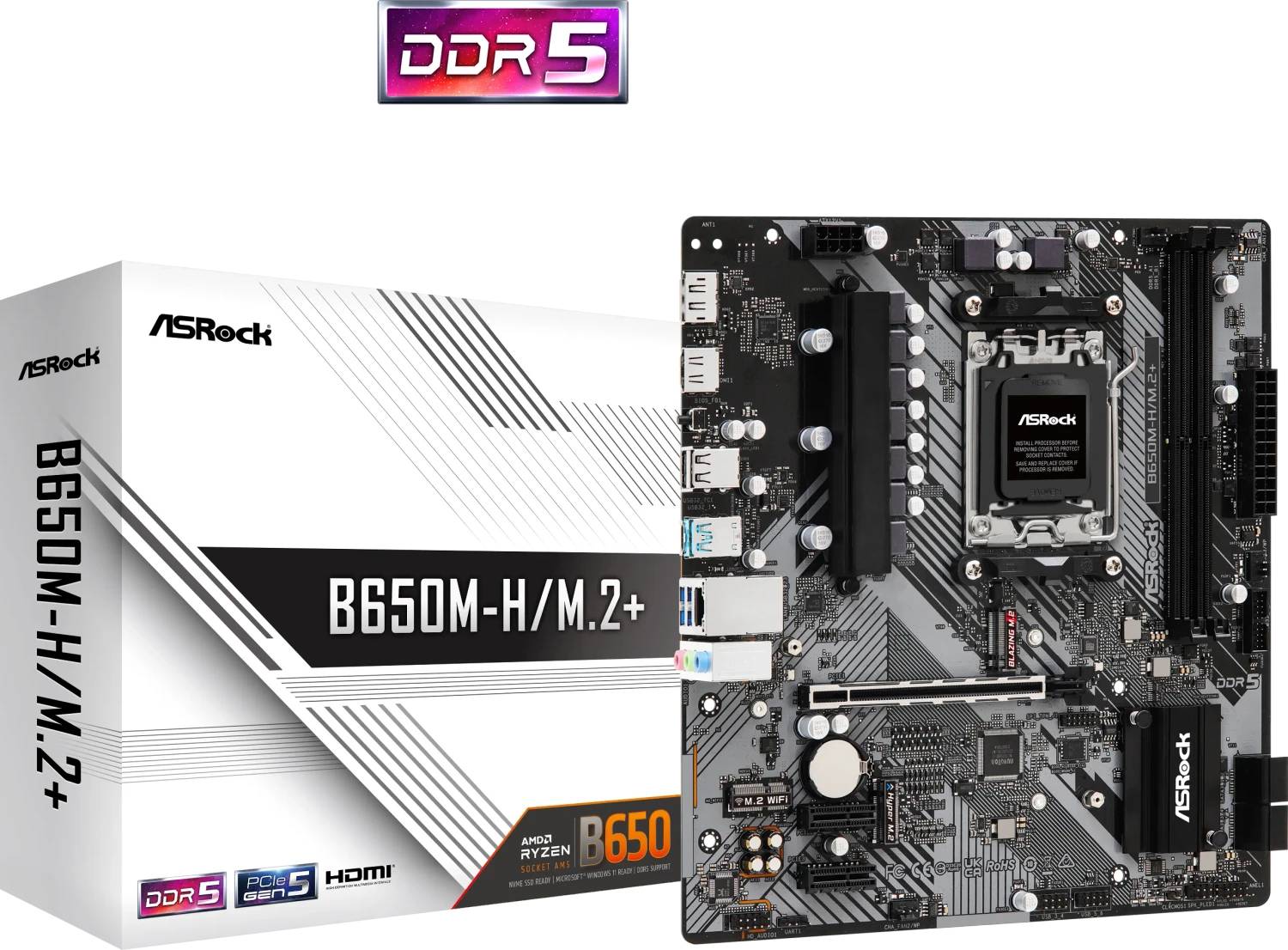

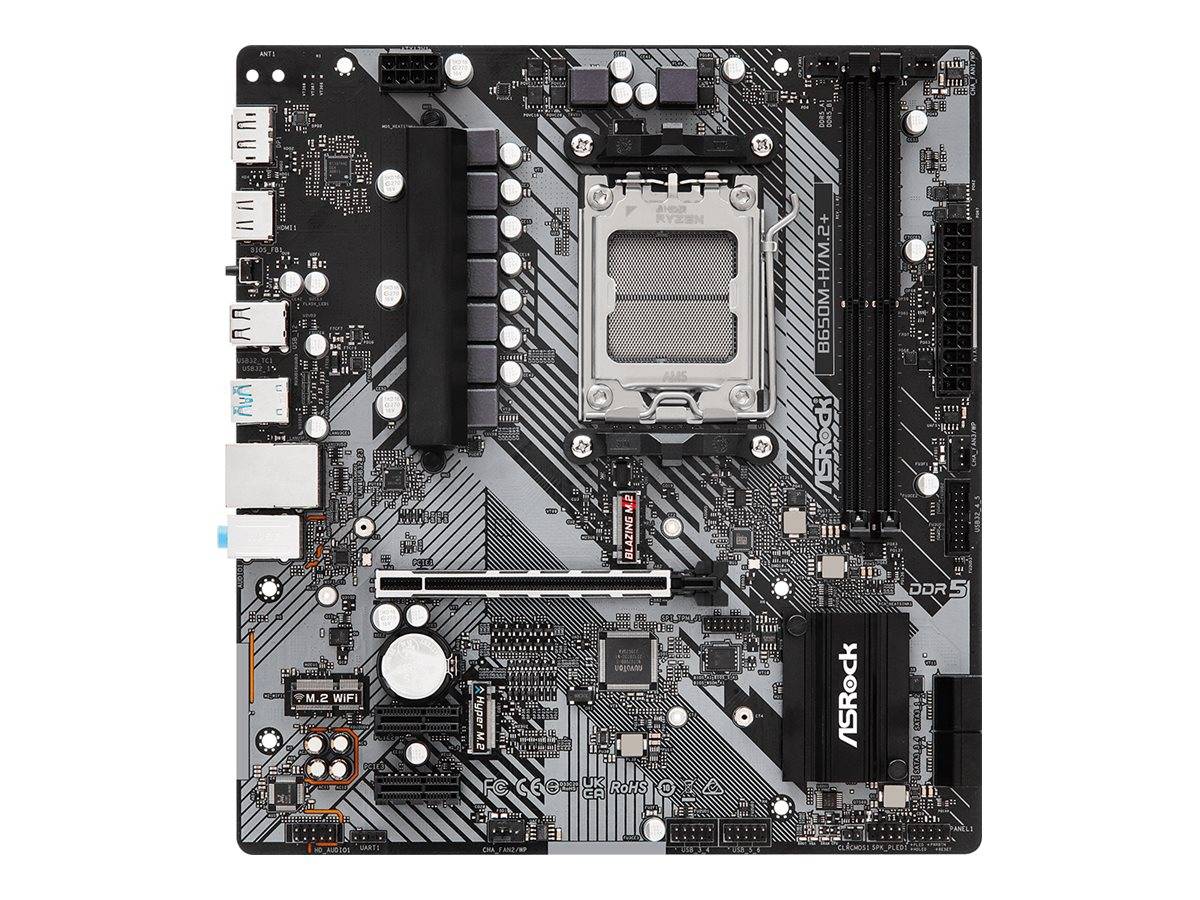

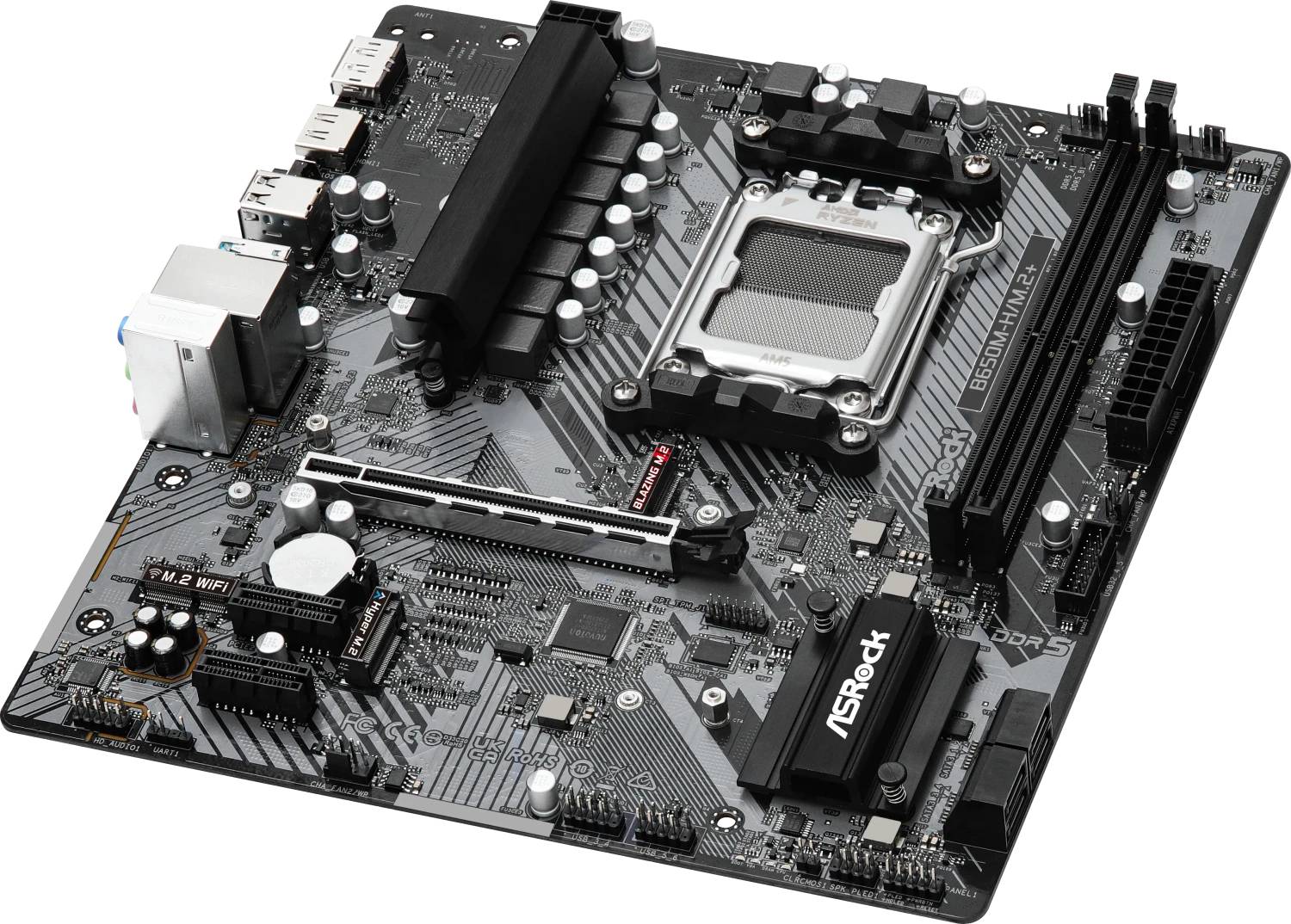

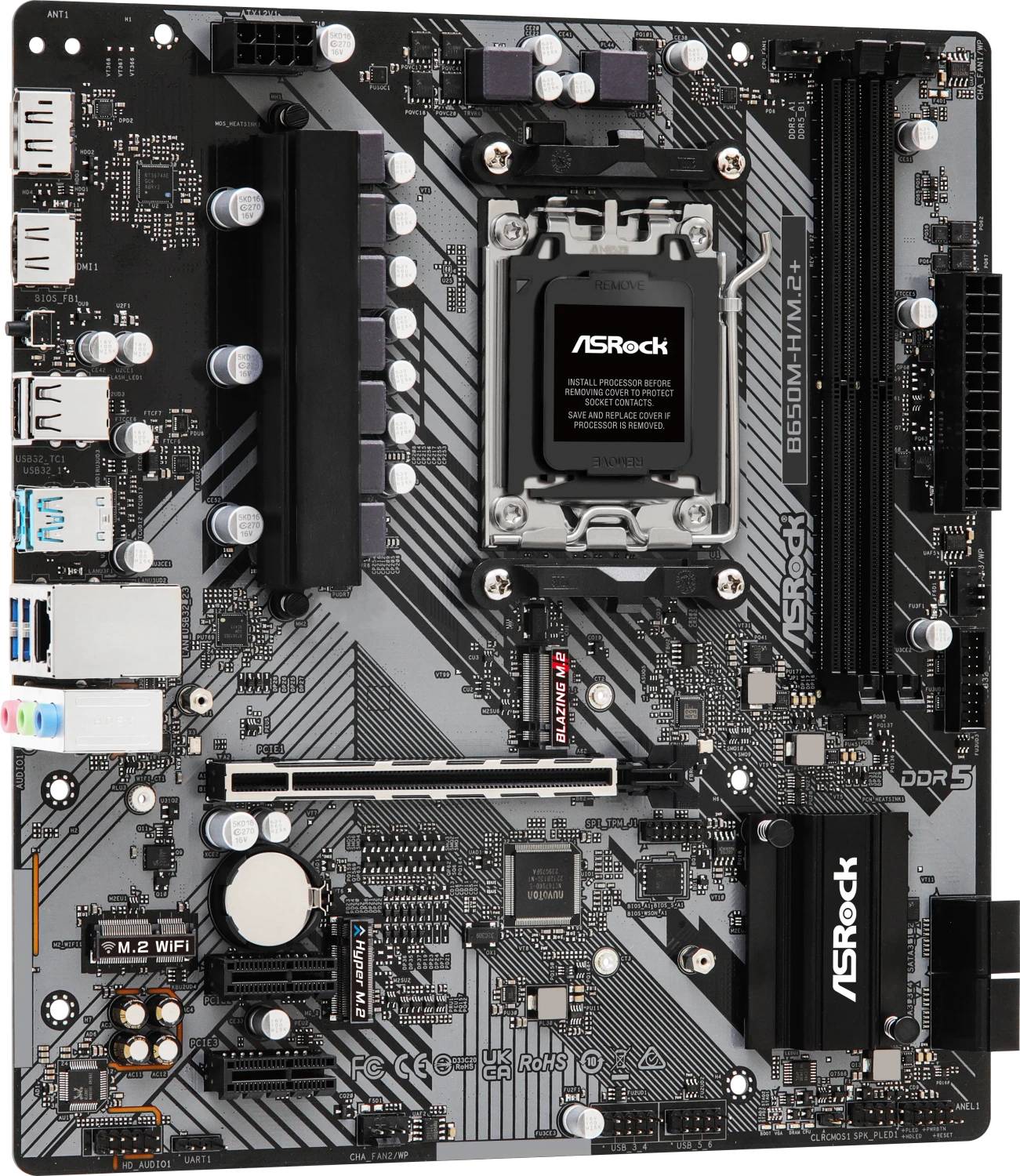

ASRock B650M-H/M.2+ AM5 B650 Motherboard
A value-focused AM5 B650 motherboard for modern AMD Ryzen desktop builds, with DDR5 memory, PCIe 5.0 M.2 storage, PCIe 4.0 graphics support and Gigabit LAN.
AMD AM5AMD B650DDR5 6400+ OCPCIe 5.0 M.2
The ASRock B650M-H/M.2+ is a micro ATX motherboard for AMD AM5 desktop systems, suitable for Ryzen 7000, 8000 and 9000 Series builds that need a modern DDR5 platform at a practical price point. It combines AMD B650 chipset support, two DDR5 memory slots, PCIe 4.0 x16 graphics expansion, one Blazing M.2 PCIe Gen5 x4 slot, one Hyper M.2 PCIe Gen4 x4 slot, four SATA3 ports, HDMI and DisplayPort outputs with compatible processors, USB 3.2 Gen1 including rear Type-C, and Realtek Gigabit LAN.
Compatibility Note: Please confirm CPU support and BIOS compatibility before purchase. HDMI and DisplayPort output require an AMD Ryzen processor with integrated graphics.
Best For
✓ Value AMD AM5 desktop builds
✓ Office, home and gaming PCs
✓ Compact micro ATX cases
✓ Systems needing PCIe 5.0 M.2 storage
Key Features
Modern AM5 B650 Platform
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series processors, giving you a current-generation AMD desktop platform with DDR5 memory support.
DDR5 Memory Support
Two DDR5 DIMM slots support dual-channel memory with speeds up to 6400+ OC, depending on the processor and memory kit used.
PCIe 5.0 and Gen4 Storage
A Blazing M.2 PCIe Gen5 x4 slot plus a Hyper M.2 PCIe Gen4 x4 slot provide strong NVMe SSD flexibility for responsive modern systems.
Practical Connectivity
HDMI, DisplayPort, USB 3.2 Gen1 including rear Type-C, Realtek Gigabit LAN and 7.1-channel HD audio cover the everyday needs of mainstream AM5 PCs.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose the ASRock B650M-H/M.2+ if you want an affordable AM5 B650 board with DDR5, PCIe 5.0 M.2 storage and practical USB-C connectivity. If you need 2.5G LAN, integrated Wi-Fi, four memory slots or stronger expansion, consider a higher B650 motherboard instead.
Buyer’s Guide
Buy it if
You need a value AM5 B650 micro ATX motherboard for a Ryzen 7000, 8000 or 9000 Series PC with DDR5, PCIe 5.0 M.2 and Gigabit LAN.
Skip it if
You need built-in Wi-Fi, 2.5G LAN, four RAM slots, more PCIe expansion or a more premium AM5 motherboard for advanced upgrades.
Also consider
Consider a higher ASRock B650 model if you want faster LAN, onboard Wi-Fi, more memory expansion or stronger overall connectivity.
Features - ASRock - 90-MXBMS0-A0UAYZ
More Details
Product Code
04:446092
EAN Code
4710483943768
Manufacturer
ASRock
