ASRock B760M-H/M.2 — Value DDR5 LGA 1700 Micro-ATX
LGA 1700 · Intel B7602× DDR5 up to 128GBPCIe 4.0 + Dual M.2USB-C · HDMI 2.1 · DP 1.4

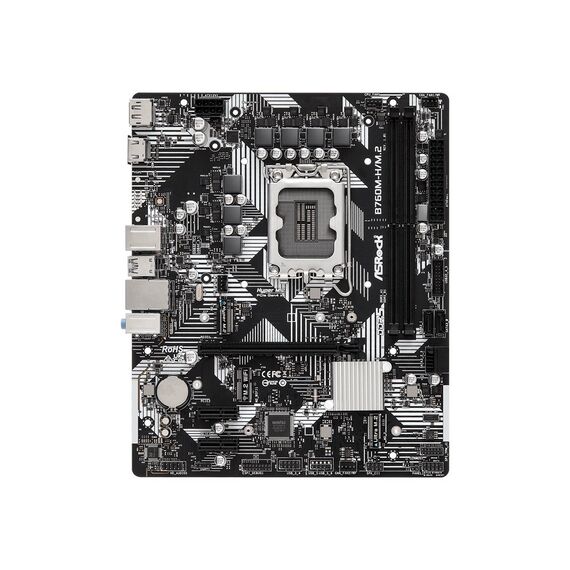

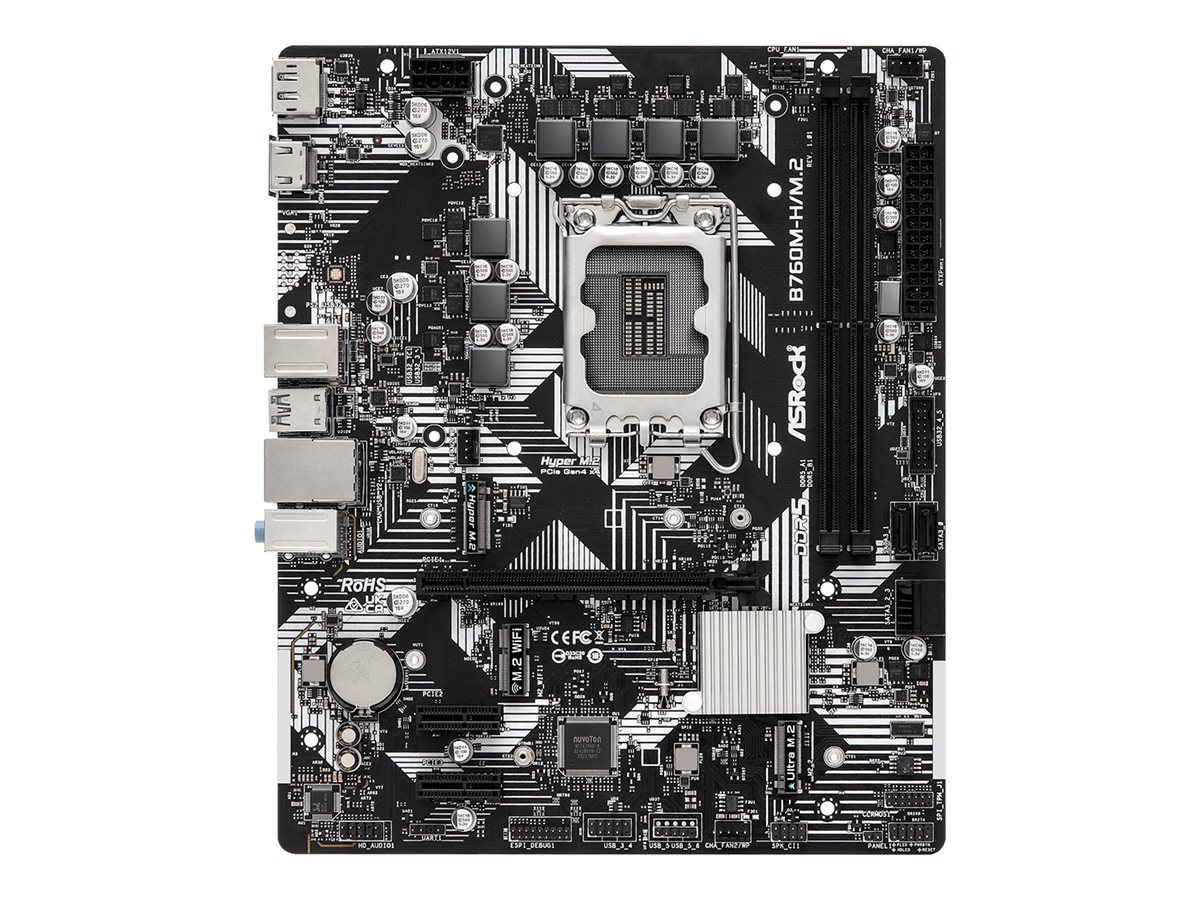

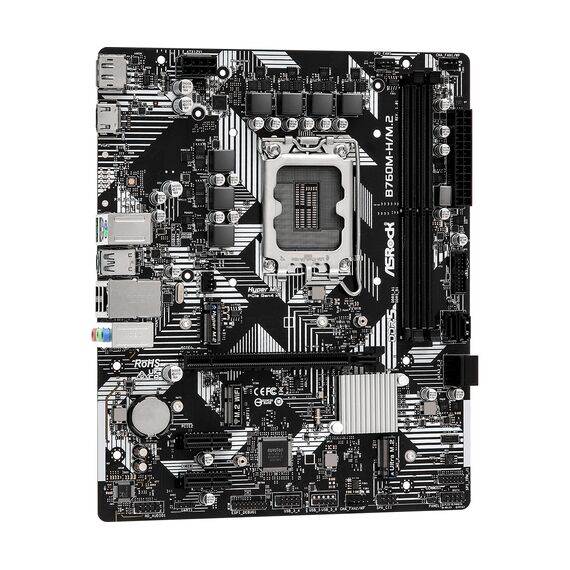

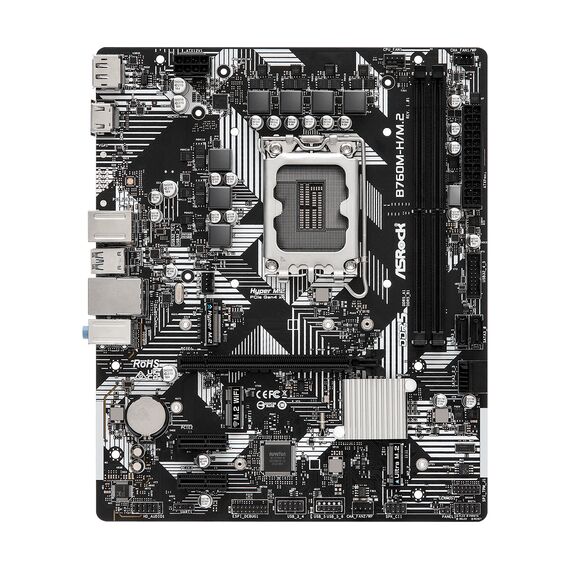

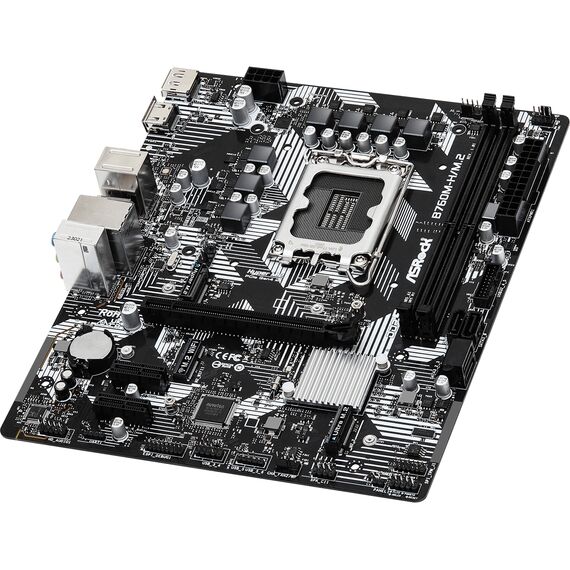

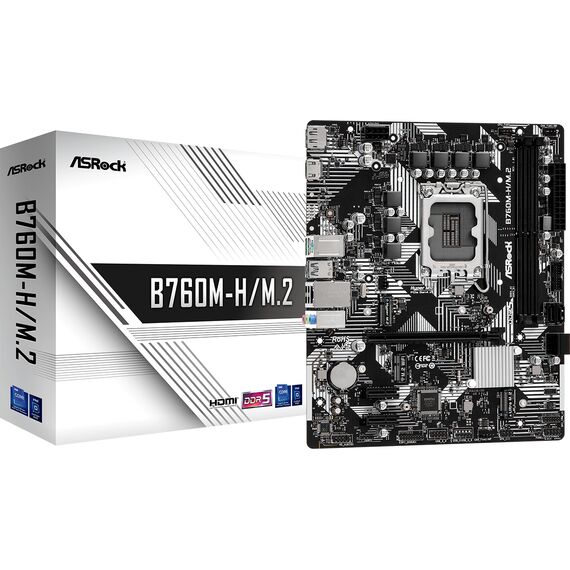

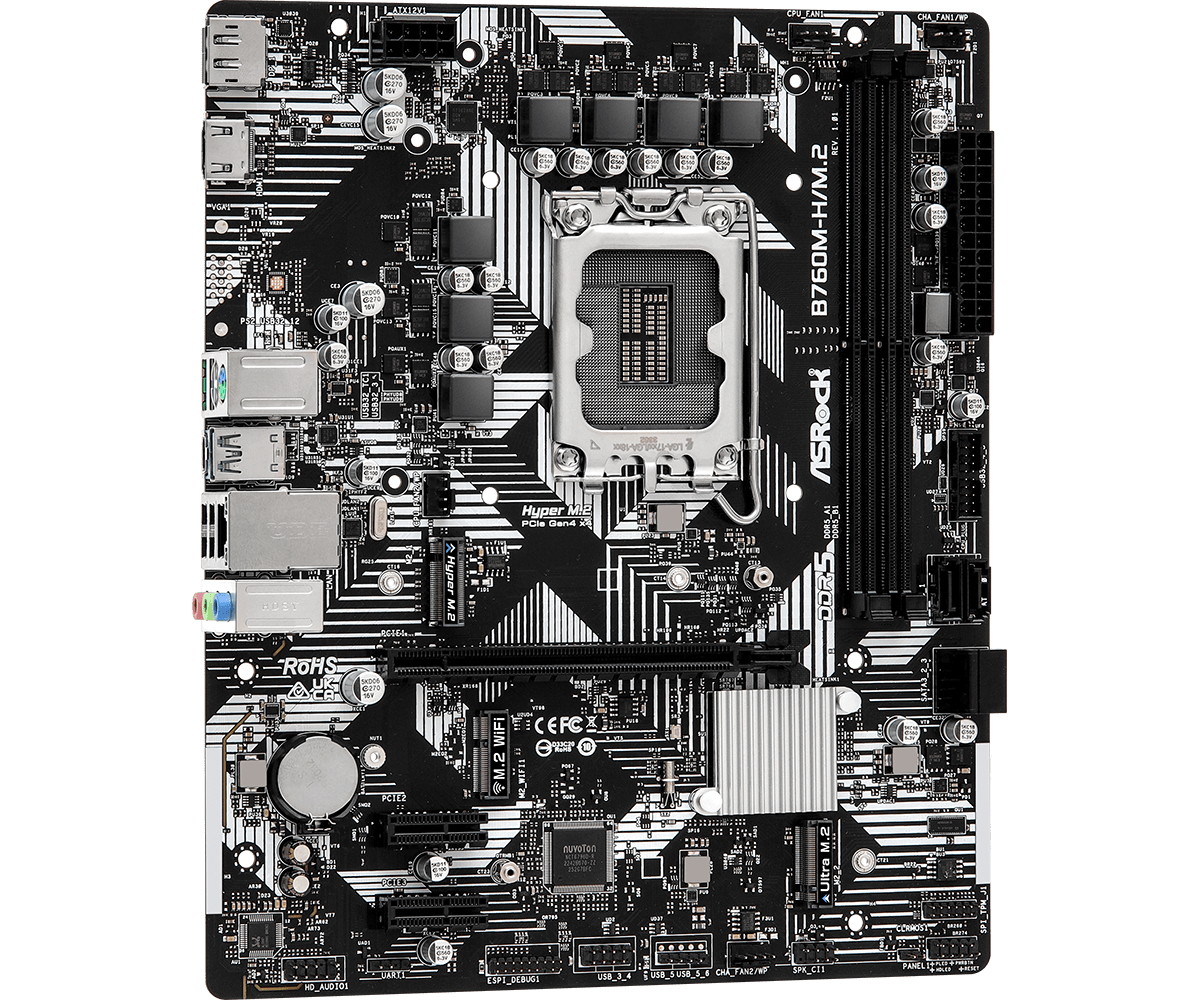

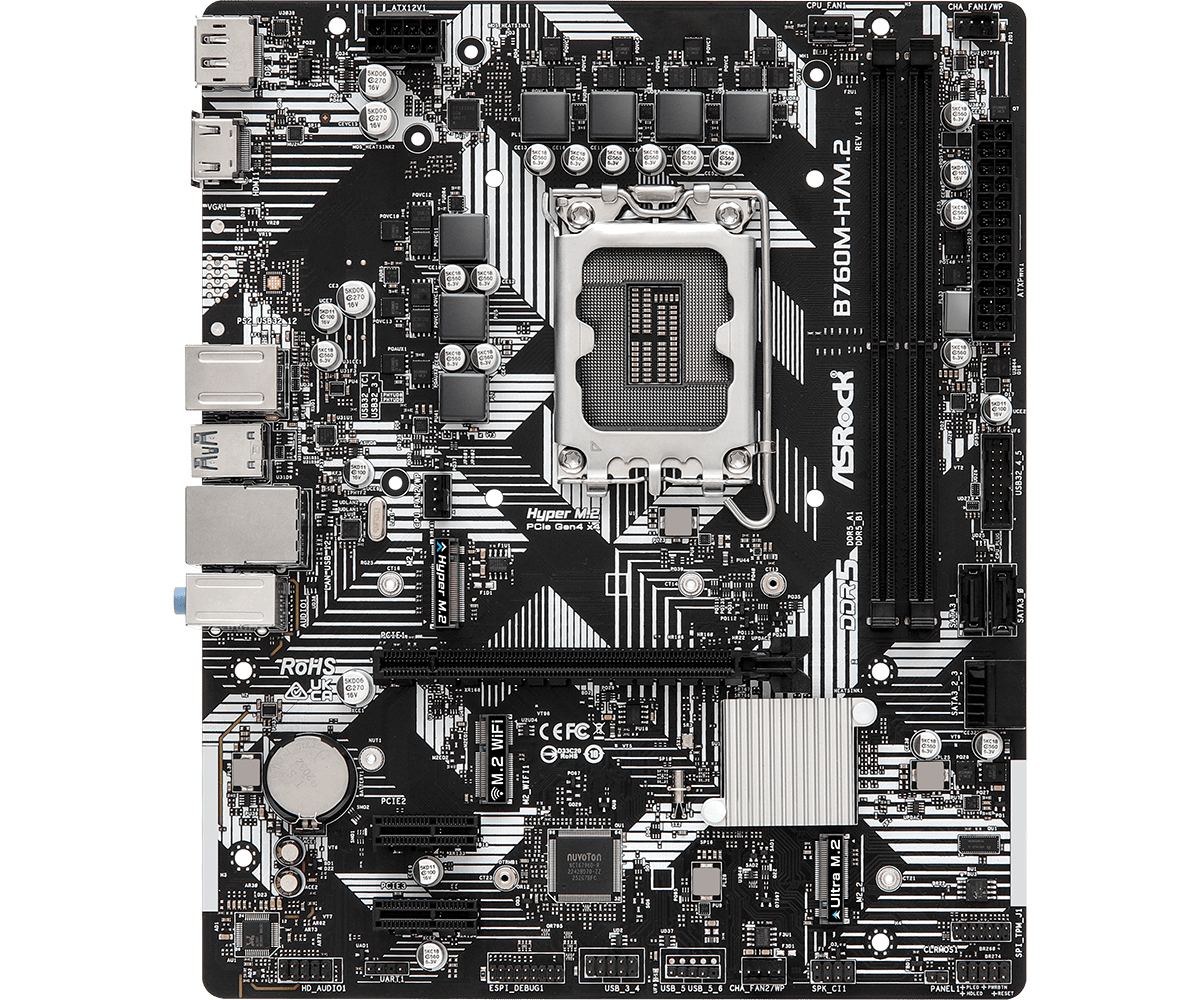

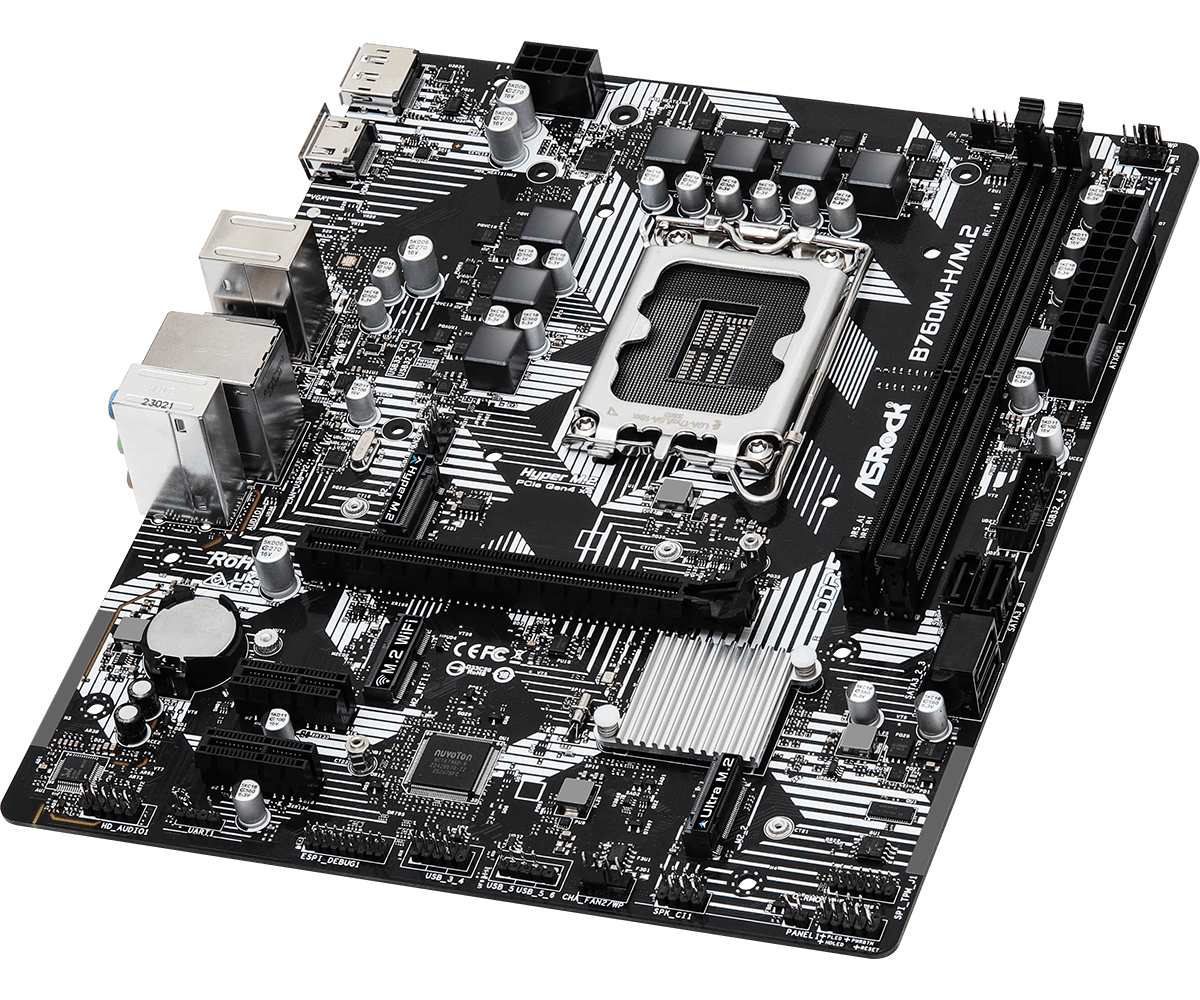

The ASRock B760M-H/M.2 is a value micro-ATX motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th Generation Intel Core processors. Sold under ASRock part number 90-MXBMJ0-A0UAYZ (EAN 4710483943485), it offers DDR5 memory, a PCIe 4.0 graphics slot, dual M.2 slots (one Gen4, one Gen3/SATA), four SATA ports, a USB-C port and HDMI 2.1 / DisplayPort 1.4 outputs — a dependable, affordable base for everyday and mainstream gaming builds. Typically in stock with fast delivery across Cyprus.
Compatibility — read before buying
This is an LGA 1700 board supporting 12th/13th/14th Gen Intel Core CPUs — it is not compatible with the newer LGA 1851 Core Ultra processors. This is the DDR5 version (no DDR4), with two DIMM slots (max 128GB). Graphics run at PCIe 4.0.
Best For
✓Everyday and mainstream LGA 1700 builds
✓Value DDR5 systems
✓Compact Micro-ATX cases
✓Builds using integrated graphics (HDMI 2.1/DP)
✓Dual NVMe + four SATA storage
✓Pairing with 12th–14th Gen Core i3/i5 CPUs
Key Features
Hyper + Ultra M.2 and 4× SATA
A Hyper M.2 (PCIe Gen4 x4) from the CPU plus an Ultra M.2 (PCIe Gen3 x4 / SATA) from the chipset, and four SATA 6Gb/s ports for flexible storage.
DDR5 memory
Two DDR5 DIMM slots support up to 128GB and overclocked speeds of 7200+ MHz for responsive everyday and gaming performance.
Modern display output
HDMI 2.1 (up to 4K@60) and DisplayPort 1.4 with DSC (up to 8K@60 / 5K@120) drive high-resolution monitors from integrated graphics.
Practical connectivity

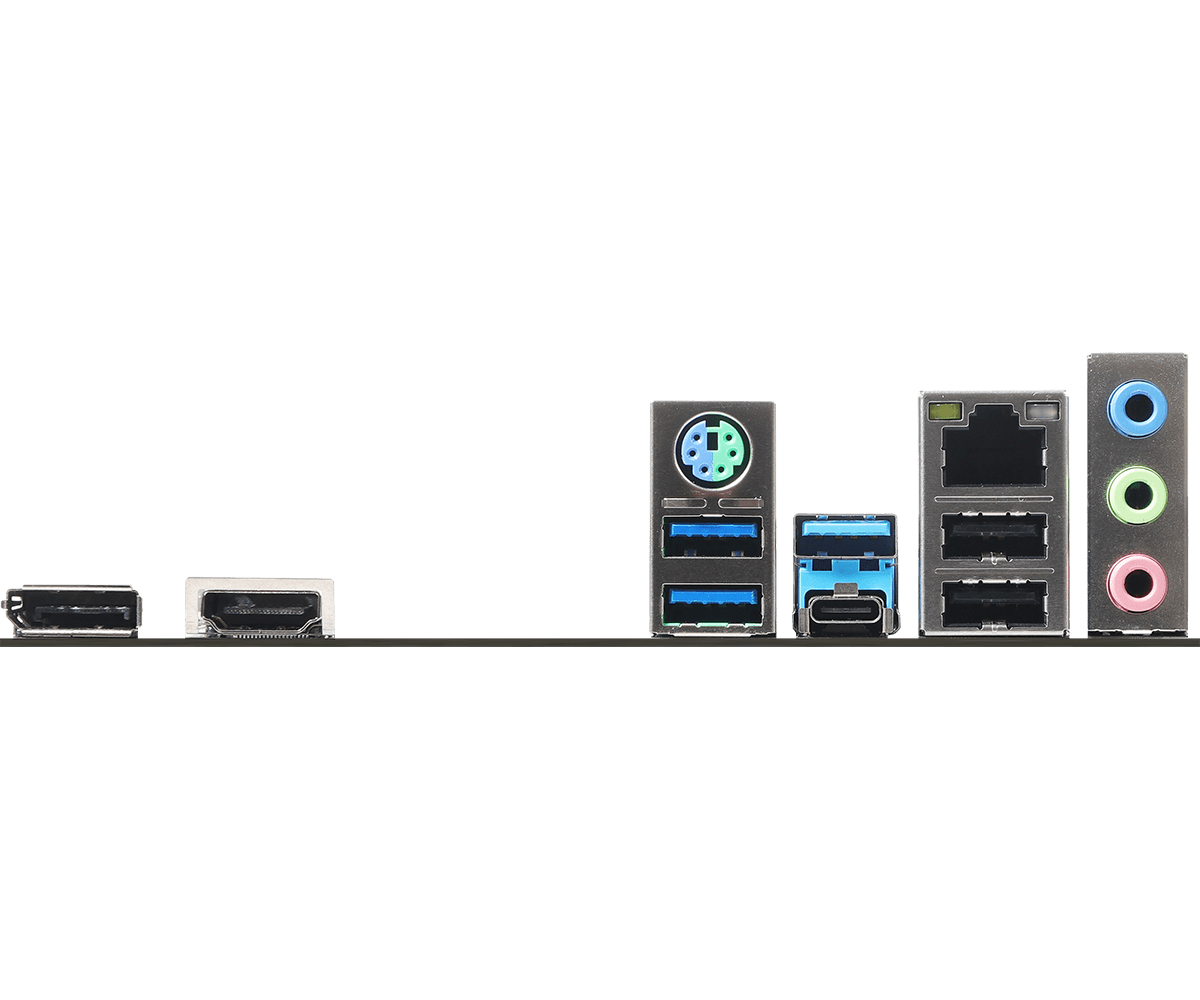

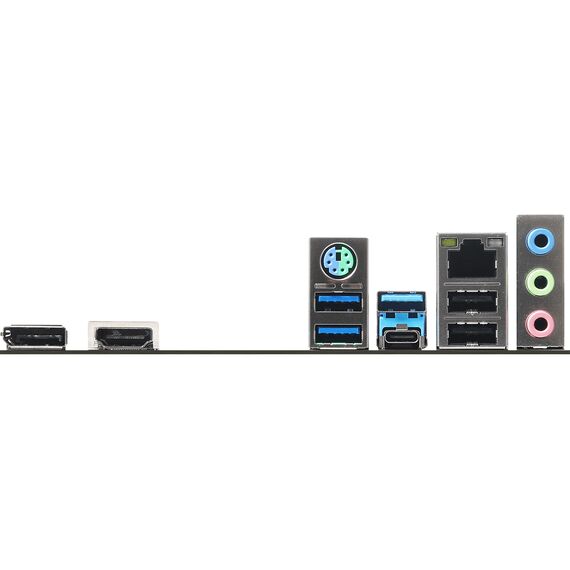

A rear USB 3.2 Gen 1 Type-C and multiple USB Type-A ports, Realtek ALC897 audio, GbE LAN and a 5+1+1 power phase cover everyday needs.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The B760M-H/M.2 is a clean value board — DDR5, dual M.2, USB-C and modern HDMI 2.1/DP 1.4 outputs at a low price, with PCIe 4.0 (not 5.0) graphics the main trade-off. If you want a PCIe 5.0 slot, triple M.2 or Wi-Fi, the B760M Steel Legend or a higher-tier B760 board steps up; for the latest Core Ultra platform, an LGA 1851 board is the move. Add a fast PCIe Gen4 internal SSD in the Hyper M.2 slot for best results.
Buyer's Guide
Buy it if
You want an affordable DDR5 LGA 1700 board with dual M.2, USB-C and modern display outputs for everyday or mainstream gaming use.
Skip it if
You want a PCIe 5.0 slot, triple M.2, Wi-Fi or the latest Core Ultra platform — choose a Steel Legend, higher-tier B760, or LGA 1851 board.
Also consider
The ASRock B760M Steel Legend WiFi (PCIe 5.0, Wi-Fi 6E) or an LGA 1851 B860 board.
Features - ASRock - 90-MXBMJ0-A0UAYZ
CPU Socket
- Socket 1700
Colour
black
Interface
- USB Type-C,
- USB3.0,
- M.2,
- Ethernet
More Details
Product Code
04:421754
EAN Code
4710483943485
Manufacturer
ASRock
