ASRock B850M Rock WiFi Micro ATX AMD AM5 DDR5 Motherboard

Brand:
ASRock
ASRock B850M Rock WiFi AM5 DDR5 Motherboard
ASRock B850M Rock WiFi Micro ATX AMD AM5 DDR5 Motherboard
€165.84 inc. VAT
Buy
90-MXBU70-A0UAYZ
€139.36 €154.85
€165.84 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
03:277919
EAN Code
4711581494169
Manufacturer
ASRock

Quick Specs

CPU Socket
AMD AM5, Ryzen 9000/8000/7000
Memory
2 x DDR5 DIMM, up to 128GB
Connectivity
Wi-Fi 6E + Bluetooth 5.3 + 2.5G LAN
Expansion
PCIe 5.0 x16 + Gen5 M.2
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASRock B850M Rock WiFi Micro ATX AMD AM5 DDR5 Motherboard

A compact AMD B850 motherboard for modern Ryzen AM5 systems with DDR5, PCIe 5.0, Wi-Fi 6E and 2.5G networking.
AMD B850AM5DDR5Wi-Fi 6E

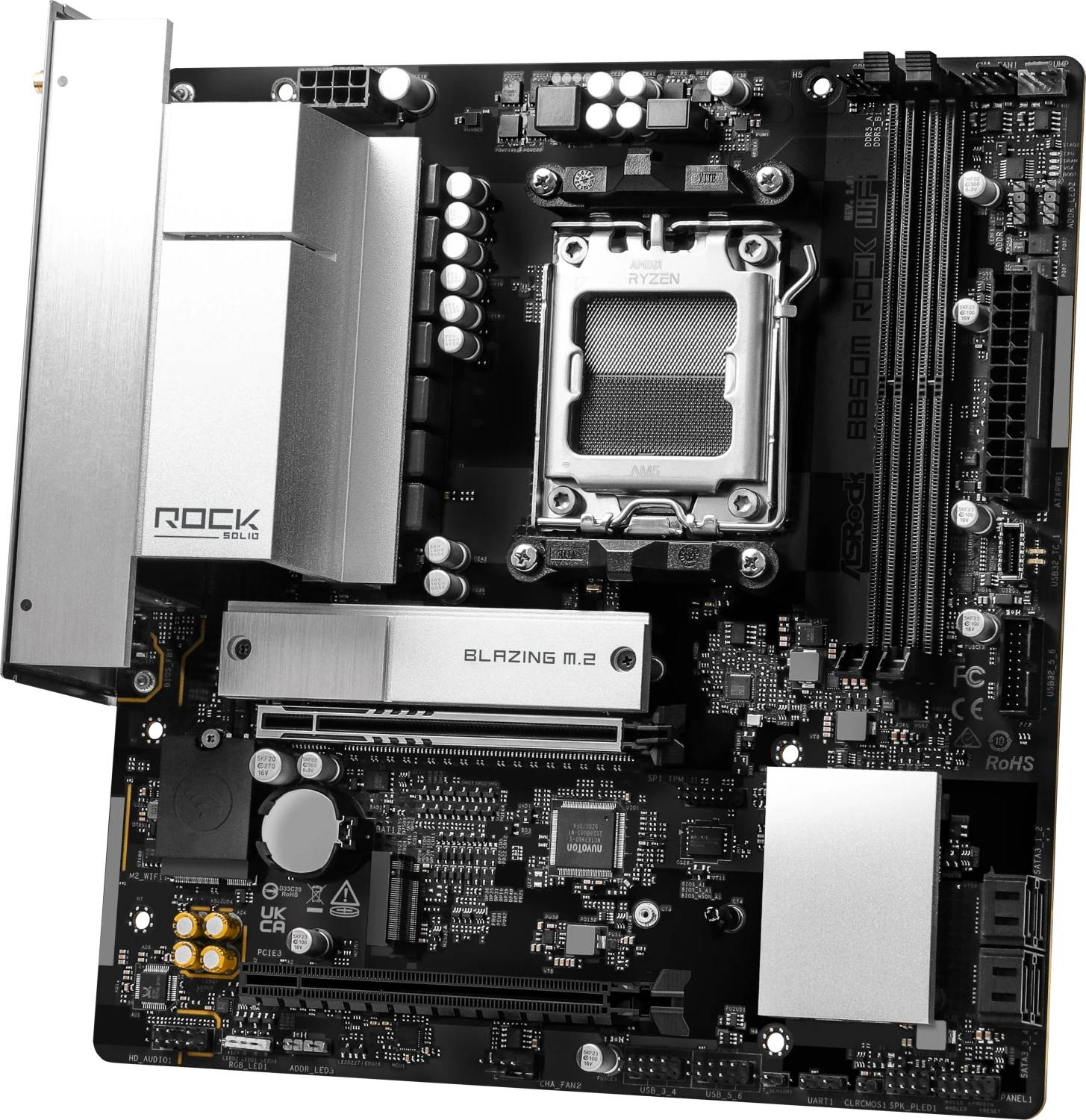

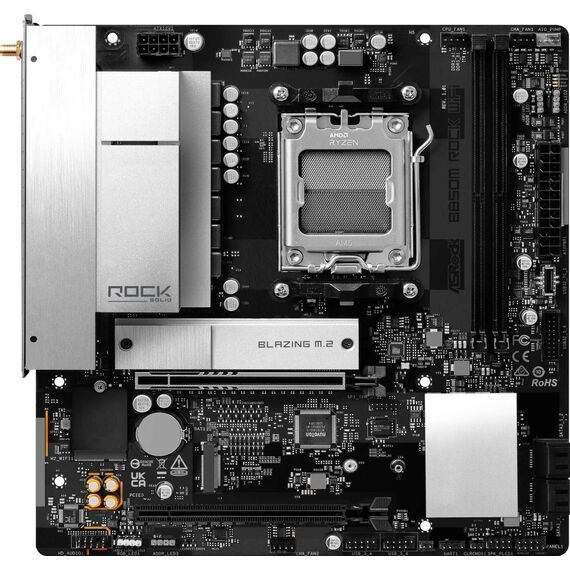

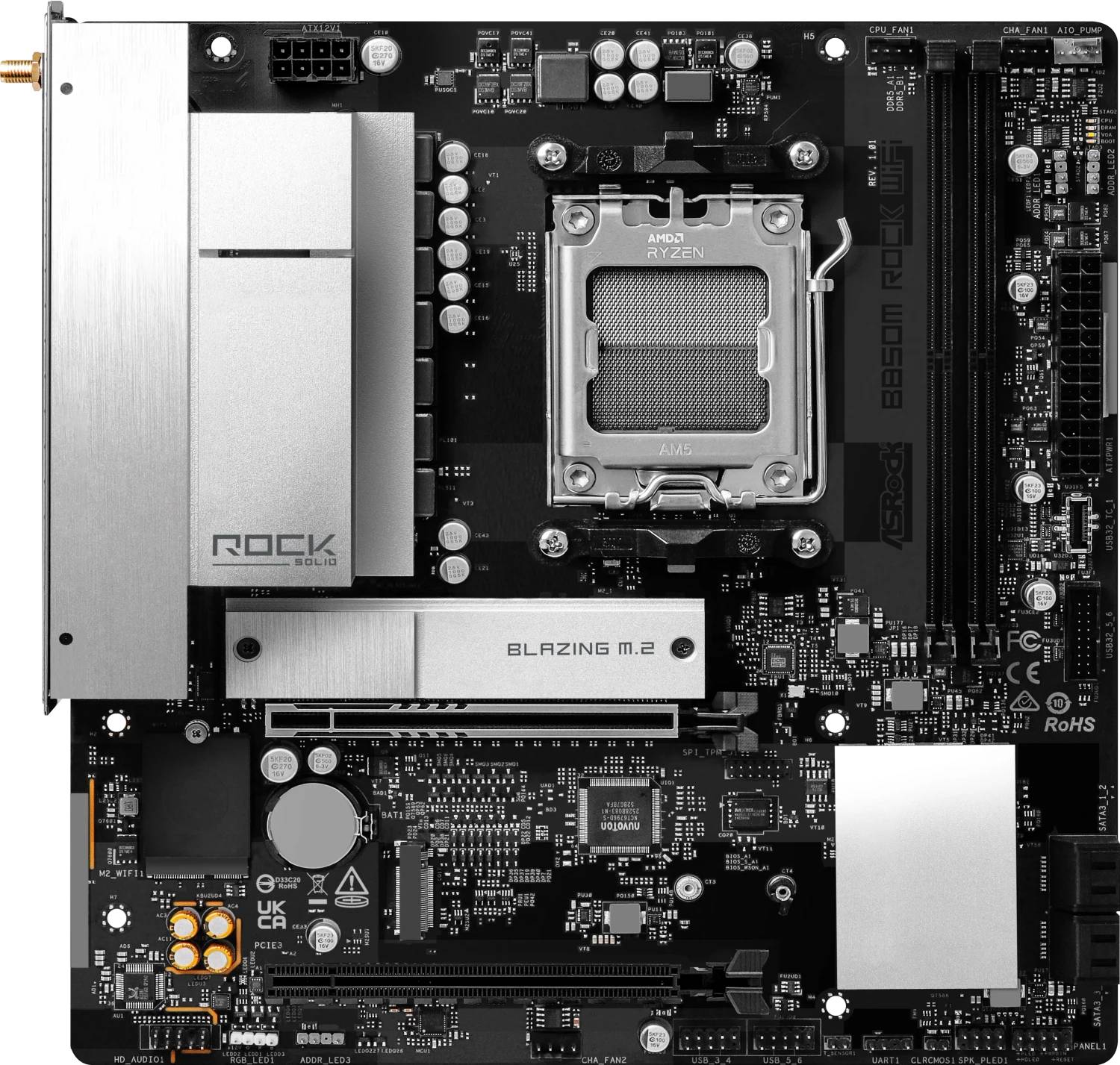

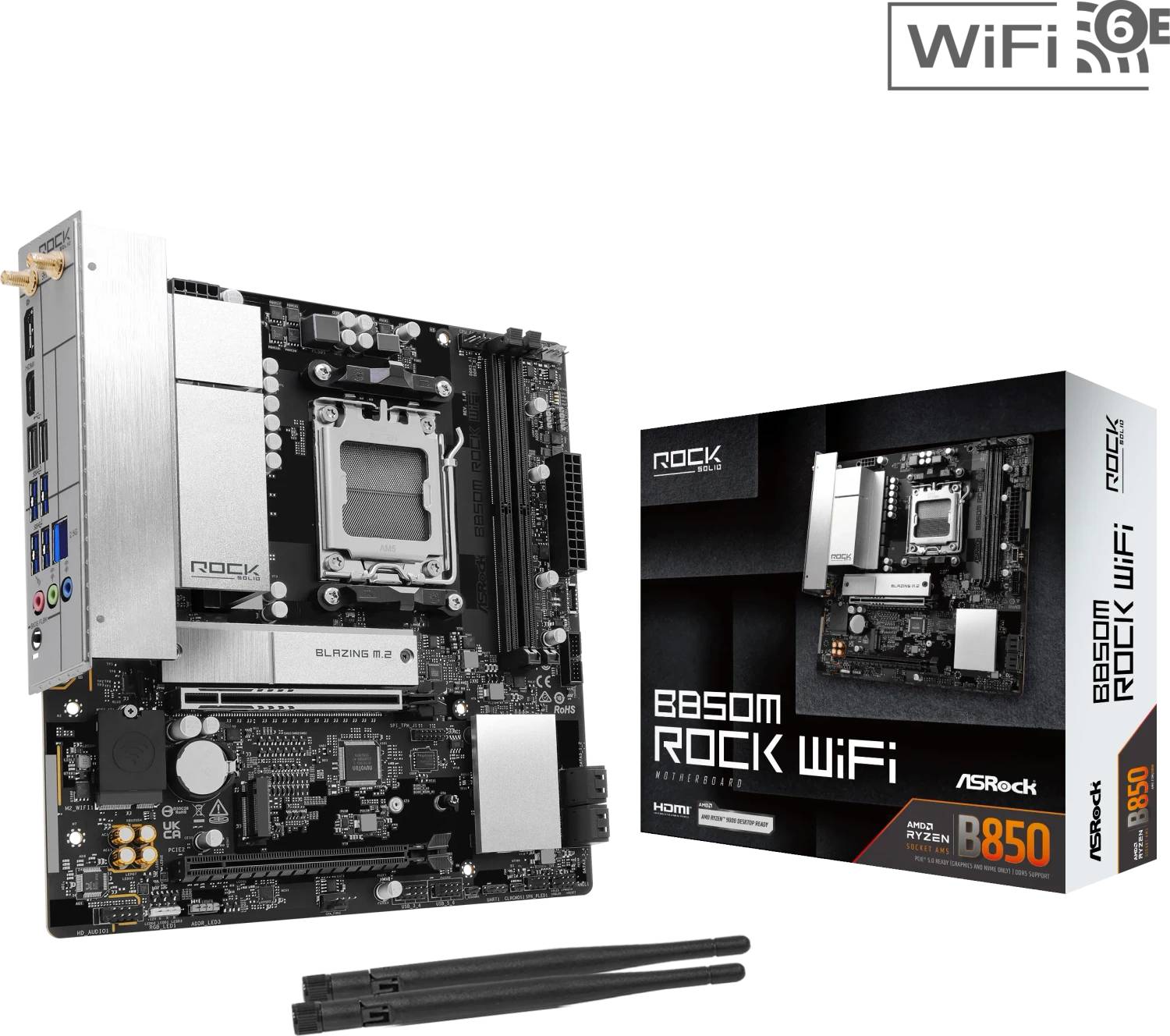

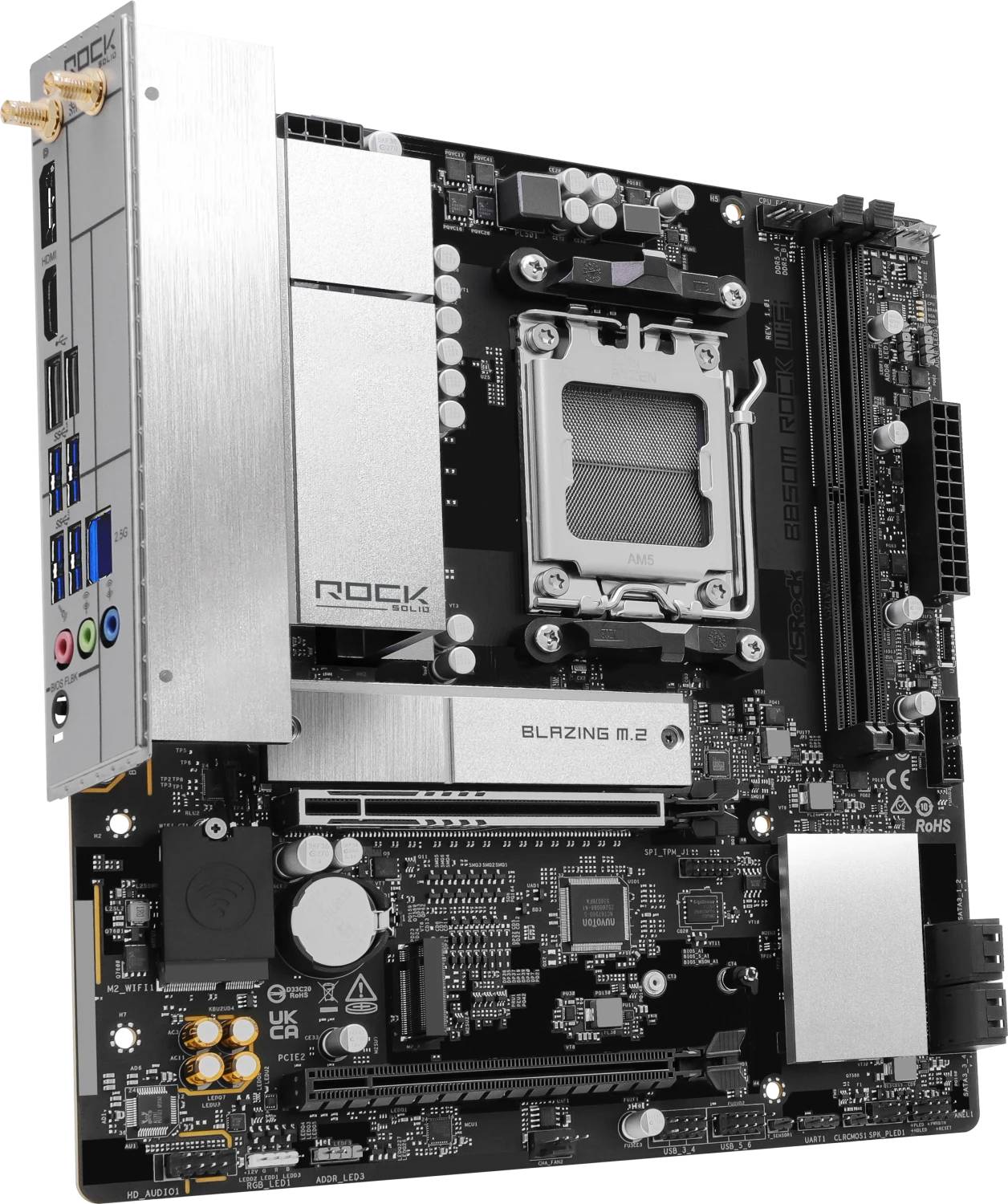

The ASRock B850M Rock WiFi is a Micro ATX motherboard for AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series processors. It combines DDR5 memory support, PCIe 5.0 graphics, Blazing M.2 Gen5 storage, Hyper M.2 Gen4 storage, Wi-Fi 6E, Bluetooth 5.3, Realtek 2.5G LAN, HDMI, DisplayPort and practical builder features such as BIOS Flashback and ASRock Auto Driver Installer.

Compatibility Note: Please confirm AMD AM5 CPU compatibility, DDR5 memory compatibility, Micro ATX case clearance, cooler fit and power supply connectors before purchase. Onboard display outputs require an AMD processor with integrated graphics.
Best For
✓ AMD Ryzen AM5 desktop builds
✓ DDR5 Micro ATX systems
✓ PCs needing Wi-Fi 6E and 2.5G LAN
✓ Gen5 GPU and Gen5 NVMe storage setups

Key Features


Ryzen AM5 Platform
Supports AMD Ryzen 9000, 8000 and 7000 Series processors on Socket AM5, giving builders a modern platform for performance desktop systems.

DDR5 and PCIe Gen5
Two DDR5 DIMM slots support up to 128GB memory, while PCIe 5.0 x16 and Blazing M.2 Gen5 storage provide a strong base for newer GPUs and SSDs.

Fast Wired and Wireless Networking
Wi-Fi 6E, Bluetooth 5.3 and Realtek 2.5G LAN give the system strong wired and wireless connectivity for work, gaming and fast local transfers.

Practical Builder Features
BIOS Flashback, pre-installed I/O shield, Post Status Checker and Auto Driver Installer make setup and troubleshooting easier for system builders.

Technical Specifications

Brand ASRock
Model B850M Rock WiFi
Manufacturer SKU 90-MXBU70-A0UAYZ
EAN 4711581494169
Motherboard Form Factor Micro ATX, 24.4 x 22.6 cm
CPU Socket AMD AM5
CPU Support AMD Ryzen 9000, 8000 and 7000 Series processors
Chipset AMD B850
Power Design 6+1+1 power phase design with Dr.MOS for VCore
Memory 2 x DDR5 DIMM slots, dual channel, up to 128GB, DDR5 8200+ OC support, XMP and EXPO support
Expansion Slots 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16
Storage 1 x Blazing M.2 PCIe Gen5x4, 1 x Hyper M.2 PCIe Gen4x4, 4 x SATA3 6.0 Gb/s connectors

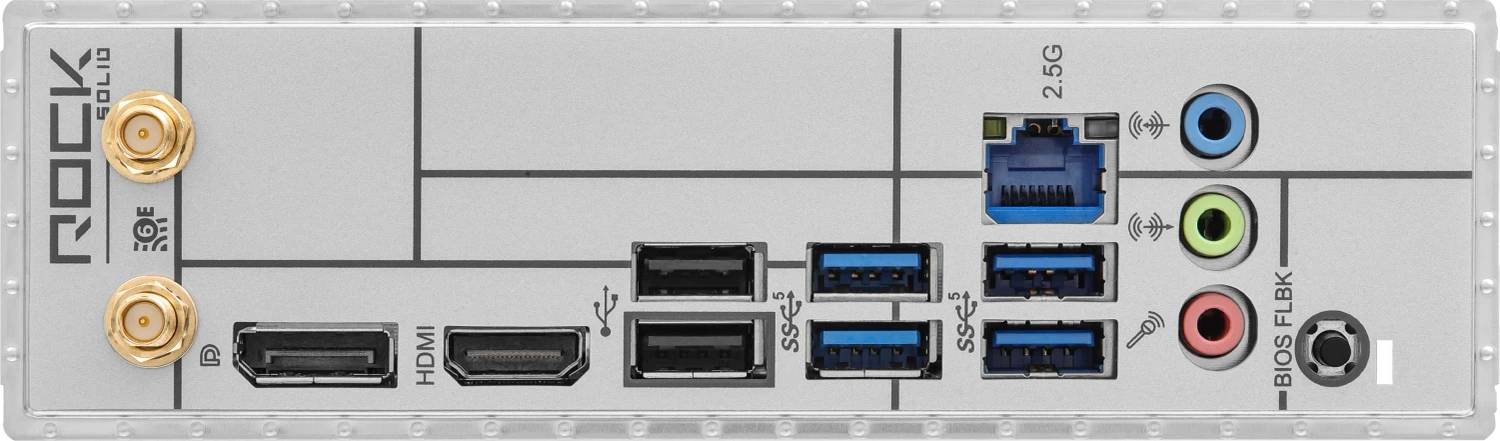

Graphics Outputs 1 x HDMI, 1 x DisplayPort
Audio Realtek ALC897 7.1 channel HD audio codec
LAN Realtek 2.5 Gigabit LAN
Wireless 802.11axe Wi-Fi 6E module with Bluetooth 5.3
USB 1 x front USB 3.2 Gen1 Type-C, 6 x USB 3.2 Gen1 ports, 6 x USB 2.0 ports
BIOS Features BIOS Flashback, ASRock Auto Driver Installer, ASRock Post Status Checker
Package Contents NEEDS VERIFY

Frequently Asked Questions

Does this motherboard support older AM4 CPUs?
No. The ASRock B850M Rock WiFi uses the AMD AM5 socket and supports Ryzen 9000, 8000 and 7000 Series processors, not older AM4 CPUs.
Does it support DDR4 memory?
No. This motherboard uses DDR5 memory only, with two DDR5 DIMM slots and support for up to 128GB system memory.
Can I use the HDMI and DisplayPort outputs with any CPU?
No. The onboard display outputs require an AMD processor with integrated graphics. CPUs without integrated graphics require a discrete graphics card for display output.
Singular Expert Insight
Choose the ASRock B850M Rock WiFi if you are building a compact AM5 Ryzen system and want DDR5, PCIe 5.0 graphics, Gen5 M.2 storage, Wi-Fi 6E and 2.5G LAN without moving to a larger ATX board. If you need four memory slots or more expansion room, consider a higher-tier B850 Micro ATX or ATX motherboard instead.

Buyer’s Guide

Buy it if
You need a Micro ATX AMD AM5 motherboard with DDR5, PCIe 5.0 x16, Gen5 M.2, Wi-Fi 6E, 2.5G LAN and practical builder features.
Skip it if
You need DDR4 memory support, an older AM4 CPU platform, four DIMM slots, premium audio or larger ATX expansion space.
Also consider
Consider ASRock B850M Pro RS WiFi if you need four DDR5 slots, or a B850 Steel Legend model if you want more premium features.
