ASRock B860I WiFi Motherboard Mini-ITX LGA1851 Intel B860 DDR5 PCIe 5.0 Wi-Fi 6E
Brand:
ASRock
ASRock B860I WiFi Motherboard Mini-ITX LGA1851 Intel B860 DDR5 PCIe 5.0 Wi-Fi 6E
€192.07 inc. VAT
90-MXBQQ0-A0UAYZ
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Singular Selected

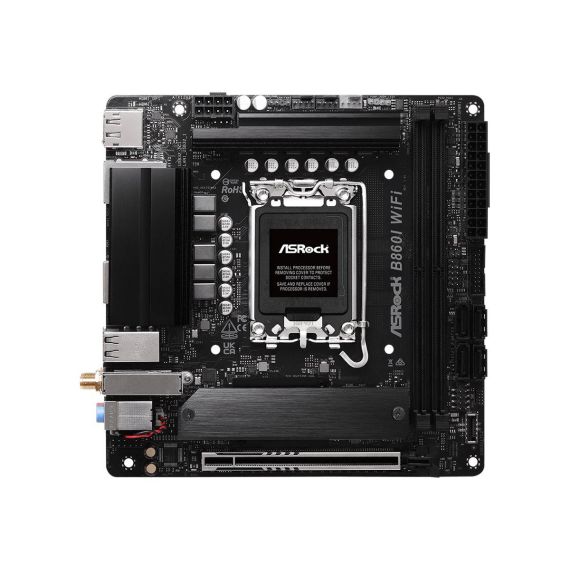

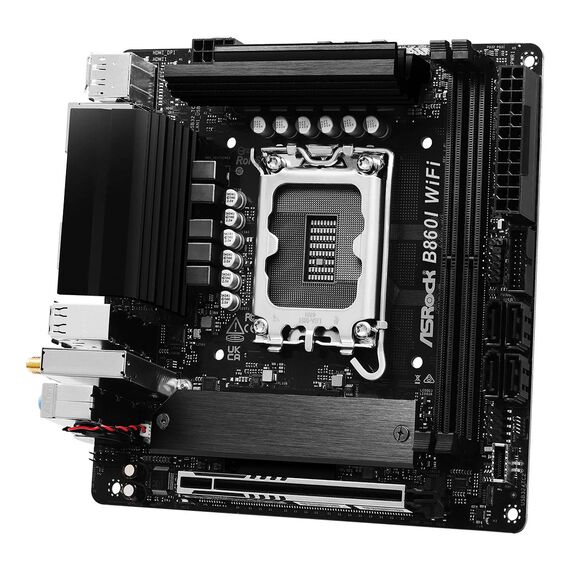

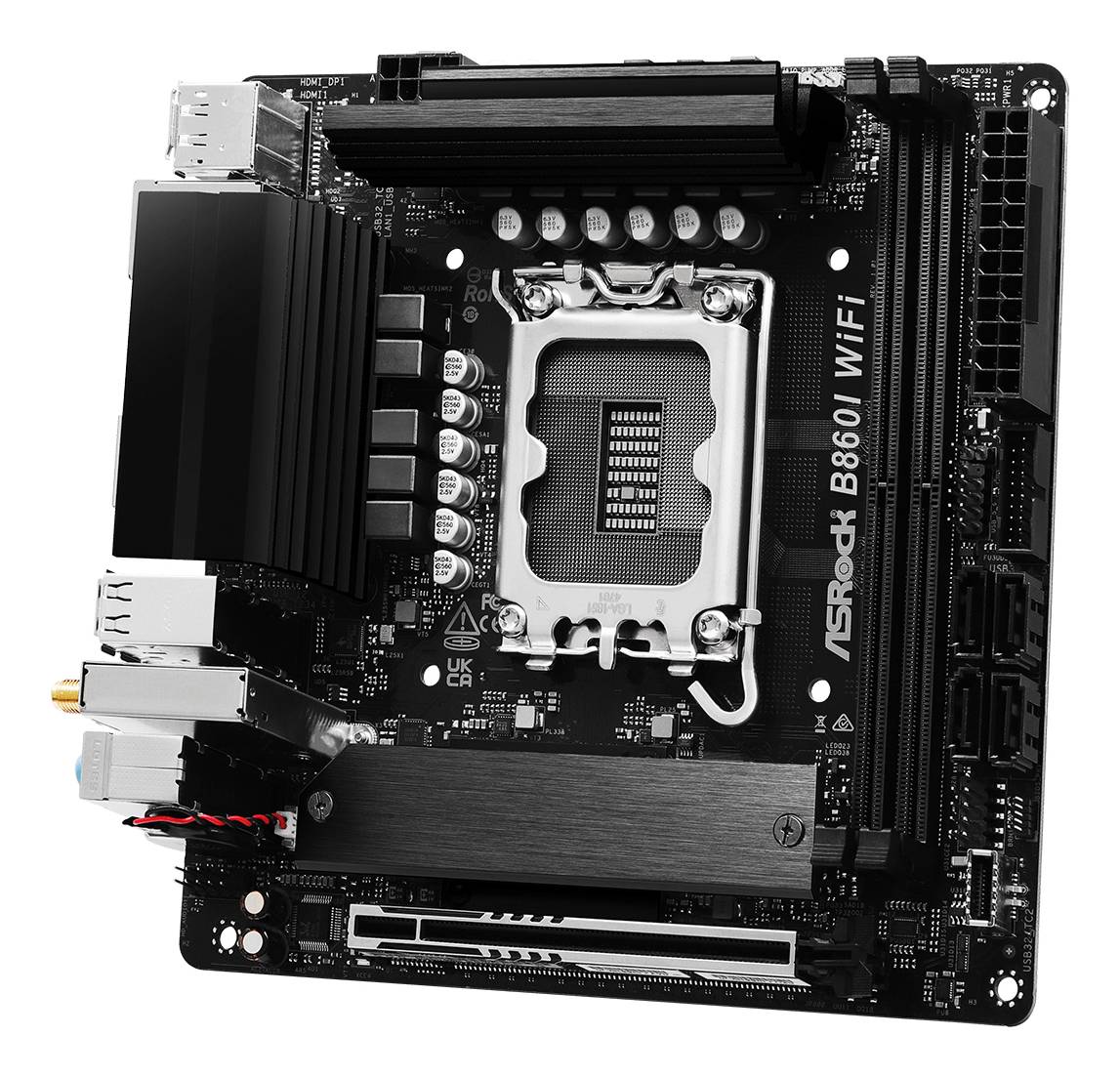

ASRock B860I WiFi Mini-ITX Motherboard
A compact LGA1851 Mini-ITX board for Intel Core Ultra Series 2 small-form-factor builds — with PCIe 5.0, DDR5 8933+ MHz, a Gen5 M.2 slot, dual LAN and Wi-Fi 6E.
LGA1851 · B860 DDR5 8933+ (OC) PCIe 5.0 + M.2 Gen5 Wi-Fi 6E + Dual LAN
The ASRock B860I WiFi is a Mini-ITX motherboard built on the Intel B860 chipset and the LGA1851 socket, designed for Intel Core Ultra Series 2 desktop processors in compact small-form-factor builds. It packs an 8+1+1+1+1 SPS power design, two DDR5 DIMM slots reaching 8933+ MHz (OC), a PCIe 5.0 x16 GPU slot, a Blazing M.2 Gen5 socket plus a Hyper M.2 Gen4 socket, dual wired LAN (Realtek 2.5G + Intel Gigabit) and Intel Wi-Fi 6E with Bluetooth — a remarkable amount of feature density for a 17 x 17 cm board.
Compatibility Note: Requires an LGA1851 Intel Core Ultra Series 2 CPU. Mini-ITX form factor (170 × 170 mm) — verify case compatibility before purchase. Only 2 x DDR5 DIMM slots (max 128GB total). CPU is required for graphics output (no graphics chips on the board itself).
Best For
✓ Mini-ITX gaming PC builds
✓ Compact desktops with discrete GPU
✓ Living-room HTPCs
✓ Network-heavy compact workstations
Key Features
PCIe 5.0 + Blazing M.2 Gen5
A PCIe 5.0 x16 GPU slot and a Gen5 x4 M.2 socket give a Mini-ITX build full next-gen bandwidth for the latest graphics cards and NVMe SSDs.
DDR5 up to 8933+ MHz (OC)
Two DDR5 DIMM slots in dual-channel, supporting up to 128GB. XMP/EXPO support delivers one-click memory tuning for stable high-frequency kits.
Dual LAN + Wi-Fi 6E
Realtek 2.5GbE plus Intel Gigabit wired LAN for redundancy or NAS/router roles, alongside Intel Wi-Fi 6E and Bluetooth for wireless flexibility.
Modern USB + 20Gbps Type-C
Rear USB 3.2 Gen 2x2 (20Gbps) Type-C, additional USB 3.2 Gen 2 Type-A and a front USB 3.2 Gen 2 Type-C header for fast peripherals and external storage.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose this board if you want a Mini-ITX LGA1851 platform with both PCIe 5.0 GPU and Gen5 M.2 — plus dual wired LAN, which is rare on ITX. If you need a Thunderbolt 4 port out of the box (for an external GPU dock or daisy-chained 4K displays), step up to the ASRock B860I Lightning WiFi instead. For aggressive overclocking of a flagship K-CPU in a compact case, a Z890 Mini-ITX board is the more sensible choice.
Buyer's Guide
Buy it if
You’re building a compact LGA1851 Mini-ITX system and want PCIe 5.0, Gen5 M.2, dual wired LAN and Wi-Fi 6E in 17 × 17 cm.
Skip it if
You need more than 2 DIMM slots, want native Thunderbolt 4, or plan to overclock a flagship K-CPU under sustained load.
Also consider
ASRock B860I Lightning WiFi for Thunderbolt 4 + ALC1220, or a Z890 Mini-ITX board for full overclocking and Wi-Fi 7 connectivity.
Features - ASRock - 90-MXBQQ0-A0UAYZ
Colour
black
More Details
Product Code
04:519467
EAN Code
4711581490321
Manufacturer
ASRock
