ASRock B860M Challenger WiFi White LGA1851 Micro ATX Motherboard DDR5 PCIe 5.0 3x M.2 2.5GbE Wi-Fi 7

Brand:
ASRock
ASRock B860M Challenger WiFi White LGA1851 mATX DDR5 Wi-Fi 7
ASRock B860M Challenger WiFi White LGA1851 Micro ATX Motherboard DDR5 PCIe 5.0 3x M.2 2.5GbE Wi-Fi 7
€192.55 inc. VAT
Buy
90-MXBUQ0-A0UAYZ
€161.81 €179.79
€192.55 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
CPU Type
Intel Ultra 5, Intel Ultra 7, Intel Ultra 9
Product Code
04:591063
EAN Code
4711581494619
Manufacturer
ASRock

Quick Specs

Socket & Chipset
LGA1851 · Intel B860
Memory
4x DDR5 · up to 256GB · 8666+ (OC)
Expansion & Storage
PCIe 5.0 x16 · 3x M.2 (1x Gen5)
Connectivity
2.5GbE · Wi-Fi 7 · BT 5.4
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

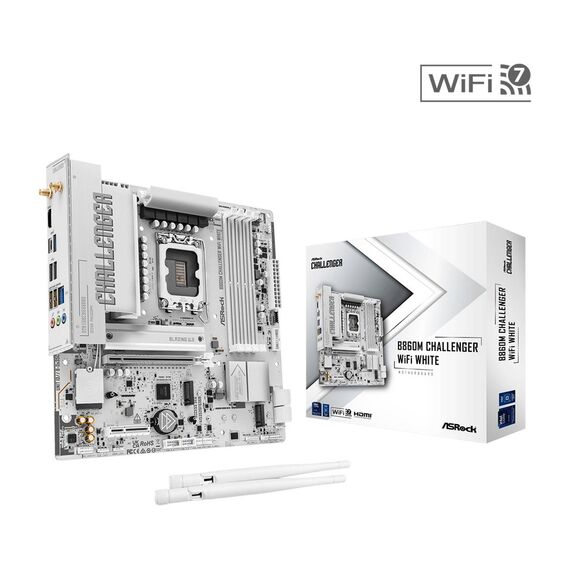

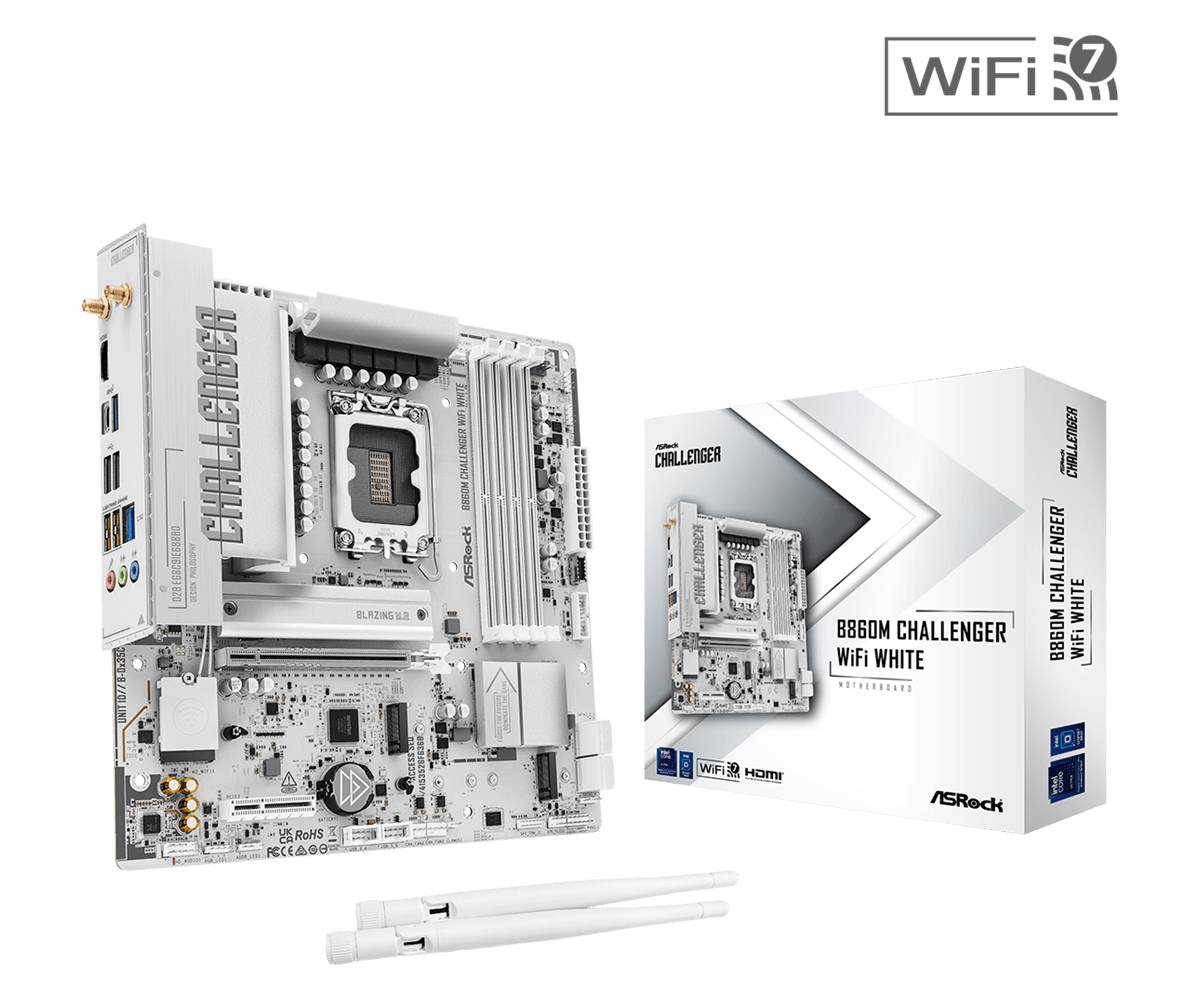

ASRock B860M Challenger WiFi White

A compact white Micro ATX board for Intel Core Ultra (Series 2) with PCIe 5.0 graphics and Gen5 M.2, four DDR5 slots, 2.5GbE and Wi-Fi 7.
Intel B860 · LGA1851PCIe 5.0 x16 + Gen5 M.24x DDR5 · CUDIMM2.5GbE + Wi-Fi 7

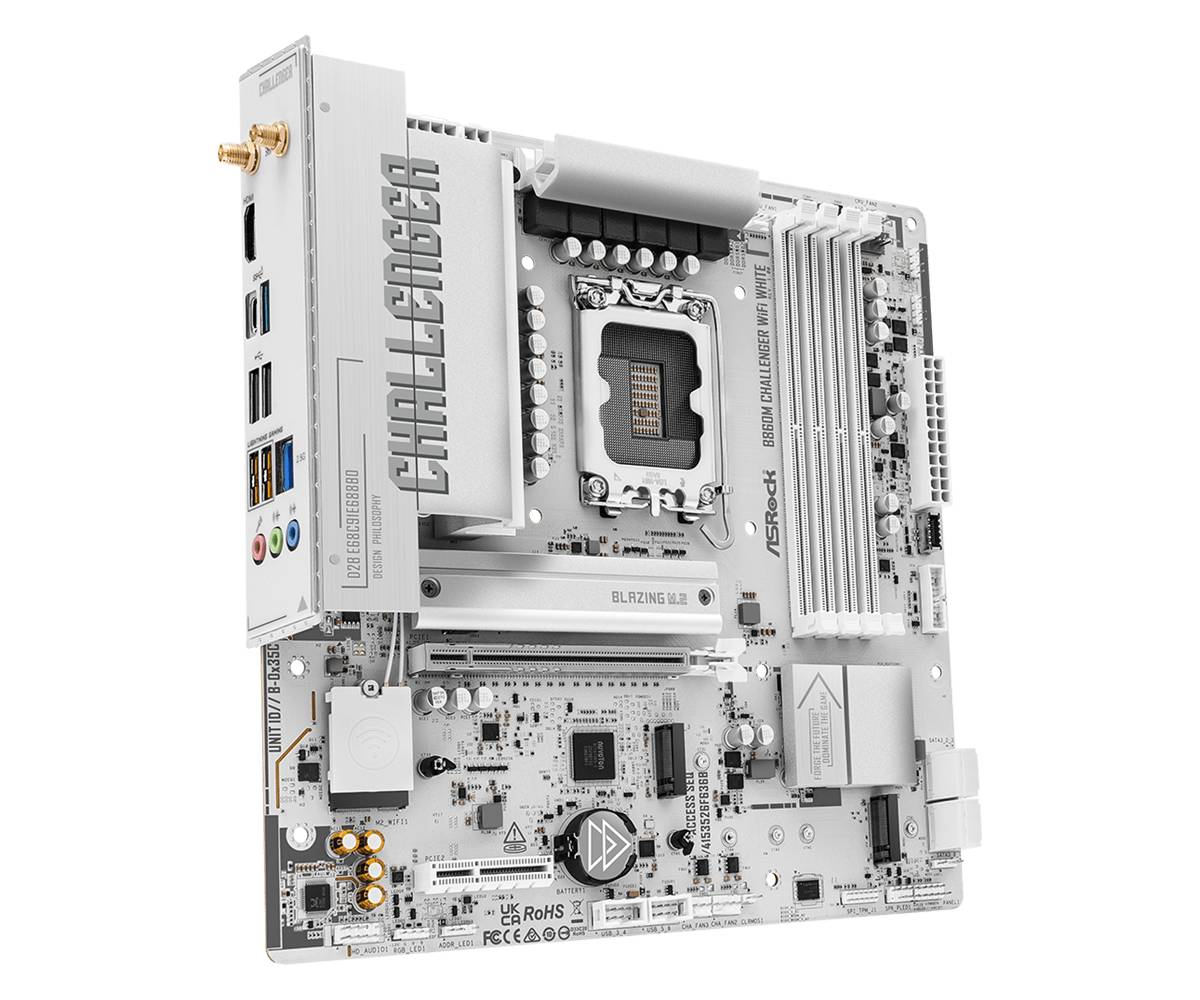

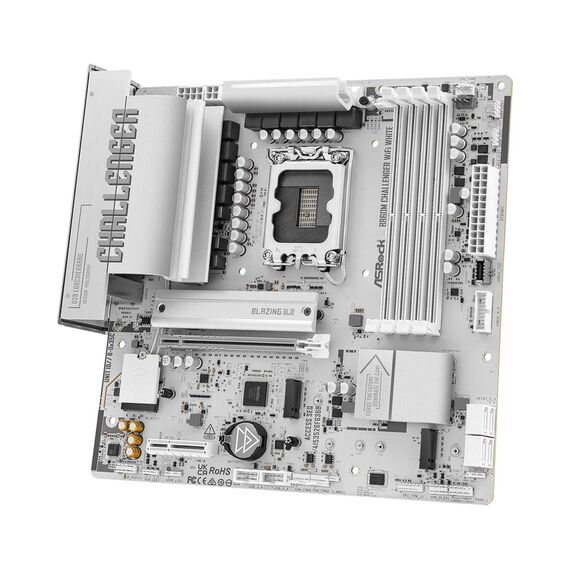

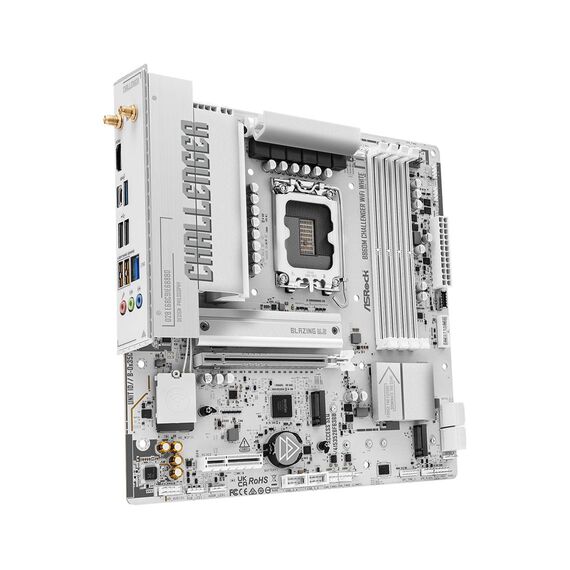

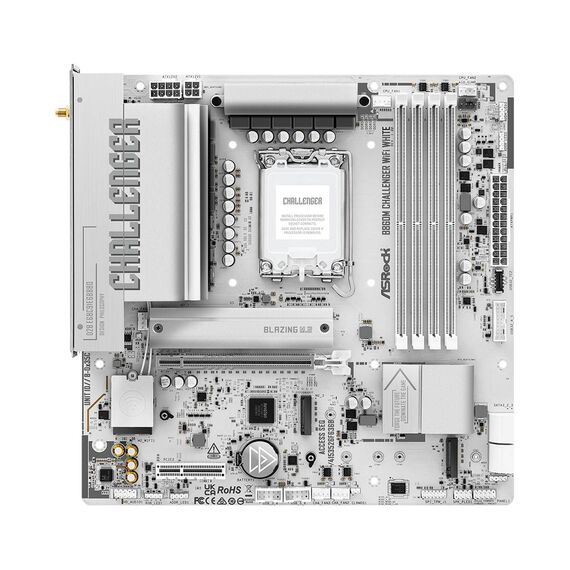

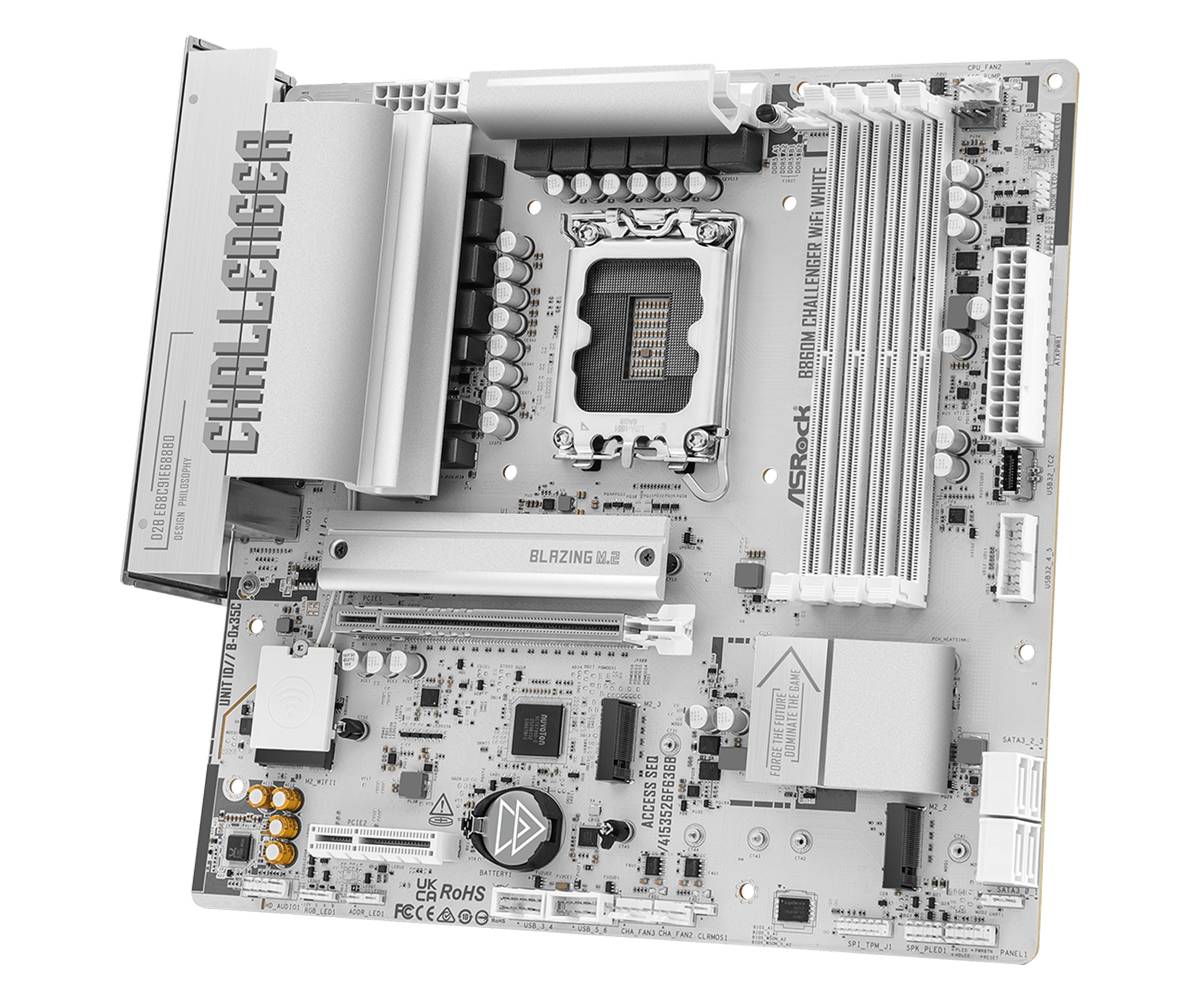

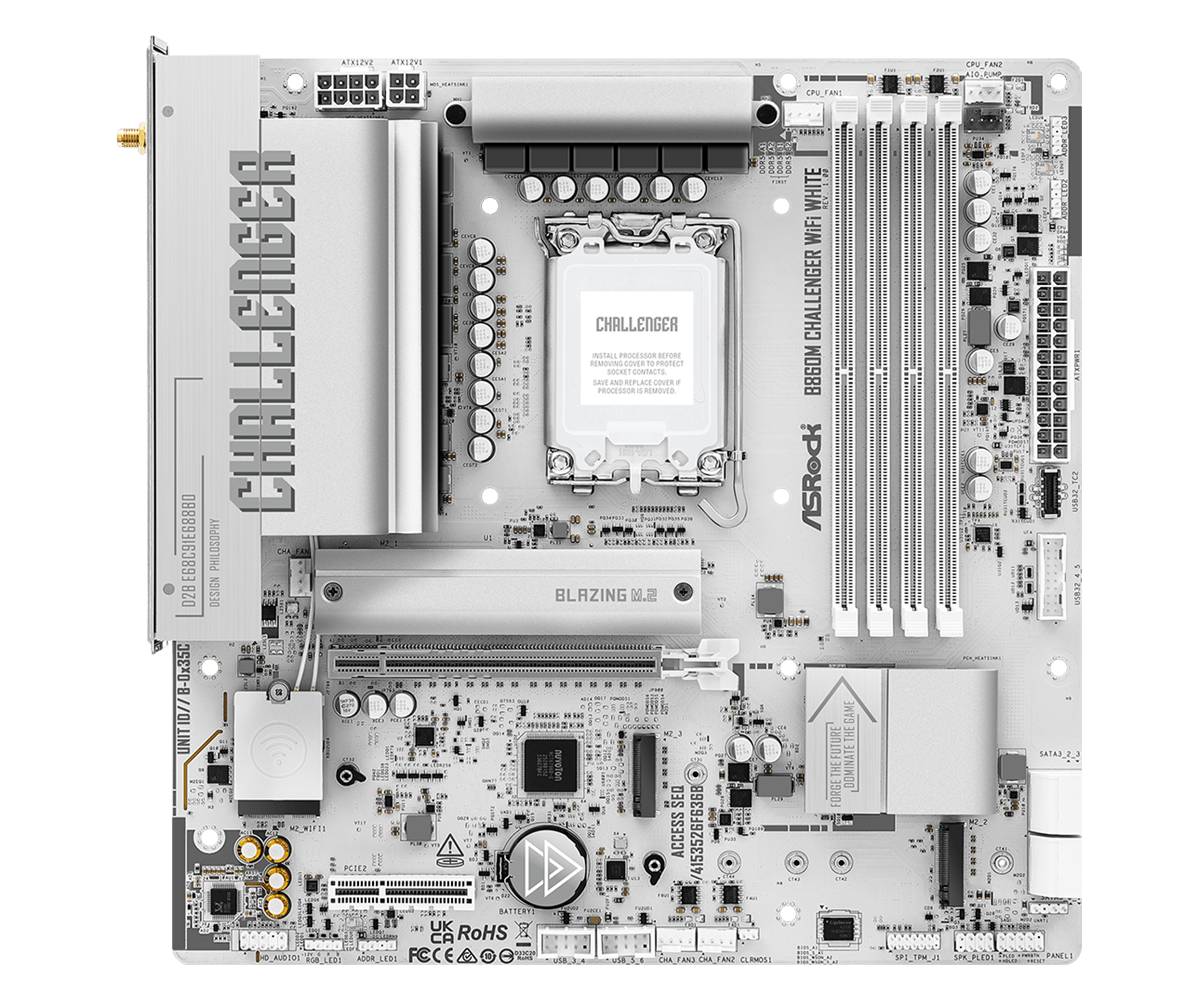

The ASRock B860M Challenger WiFi White (part number 90-MXBUQ0-A0UAYZ) is an Intel B860 Micro ATX motherboard for Core Ultra processors (Series 2) on Socket LGA1851, designed for compact gaming and productivity PCs with a white theme. A 10+1+1+1+1 phase design with Dr.MOS feeds the CPU, four DDR5 slots support up to 256GB and CUDIMM modules, and a pre-installed I/O shield simplifies the build. PCIe 5.0 is available for both the graphics card and the first M.2 SSD.

Compatibility Note: Supports Intel Core Ultra processors (Series 2, LGA1851) only — 12th to 14th Gen LGA1700 CPUs do not fit. The rear panel has a single HDMI 2.1 output for the CPU graphics. Wi-Fi 7 requires Windows 11.
Best For
✓ Compact Core Ultra 200S gaming PCs
✓ Micro ATX and small-tower builds
✓ PCIe 5.0 graphics and Gen5 SSD
✓ Home office and study PCs
✓ White-themed builds
✓ Wi-Fi 7 without add-in cards

Key Features


PCIe 5.0 in Micro ATX
A CPU-connected PCIe 5.0 x16 slot and a Blazing M.2 socket at Gen5 x4 (128 Gb/s), plus two Hyper M.2 Gen4 x4 sockets and four SATA ports with RAID 0/1/5/10.

DDR5 up to 8666+ MHz
Four DDR5 slots with CUDIMM support and XMP 3.0; 1DPC 1R modules reach 8666+ MHz (OC) and up to 256GB is supported with all four slots filled.

Wi-Fi 7 and 2.5GbE
A 2x2 802.11be module with Bluetooth 5.4 and two antennas, plus Realtek Dragon RTL8125BG 2.5 Gigabit LAN with traffic-priority software.

Easy Build Features
Pre-installed I/O shield, Post Status Checker LEDs, ASRock Auto Driver Installer, Lightning Gaming USB ports and headers for 2 CPU fans, 3 chassis fans and an AIO pump.

Technical Specifications

Identification
Part Number 90-MXBUQ0-A0UAYZ
EAN / GTIN 4711581494619
Brand / Model ASRock B860M Challenger WiFi White
Colour White
Platform
CPU Support Intel Core Ultra Processors (Series 2), Socket LGA1851
Chipset Intel B860
Power Design 10+1+1+1+1 power phase, Dr.MOS for VCore + GT + SA
BIOS 256Mb AMI UEFI
Memory
Slots 4x DDR5 DIMM, dual channel
Speed / Capacity Up to 8666+ MHz (OC), 5600 MHz native · max 256GB
Type DDR5 non-ECC un-buffered · CUDIMM · XMP 3.0
Expansion
PCIe Slots 1x PCIe 5.0 x16 (CPU) · 1x PCIe 4.0 x4 (chipset)
M.2 Key E 1x 2230 for Wi-Fi/BT module (PCIe + CNVio/CNVio2)
Storage
M.2 M2_1: 2280 PCIe Gen5 x4 (CPU) · M2_2: 2230-2280 PCIe Gen4 x4 · M2_3: 2280 PCIe Gen4 x4
SATA 4x SATA3 6 Gb/s
RAID RAID 0/1/5/10 SATA · Intel VMD
Networking & Audio
LAN 1x 2.5GbE Realtek Dragon RTL8125BG
Wireless 802.11be 2x2 Wi-Fi 7 (2.4/5/6 GHz) + Bluetooth 5.4
Audio 7.1 CH HD Audio, Realtek ALC897 · Nahimic
Rear I/O

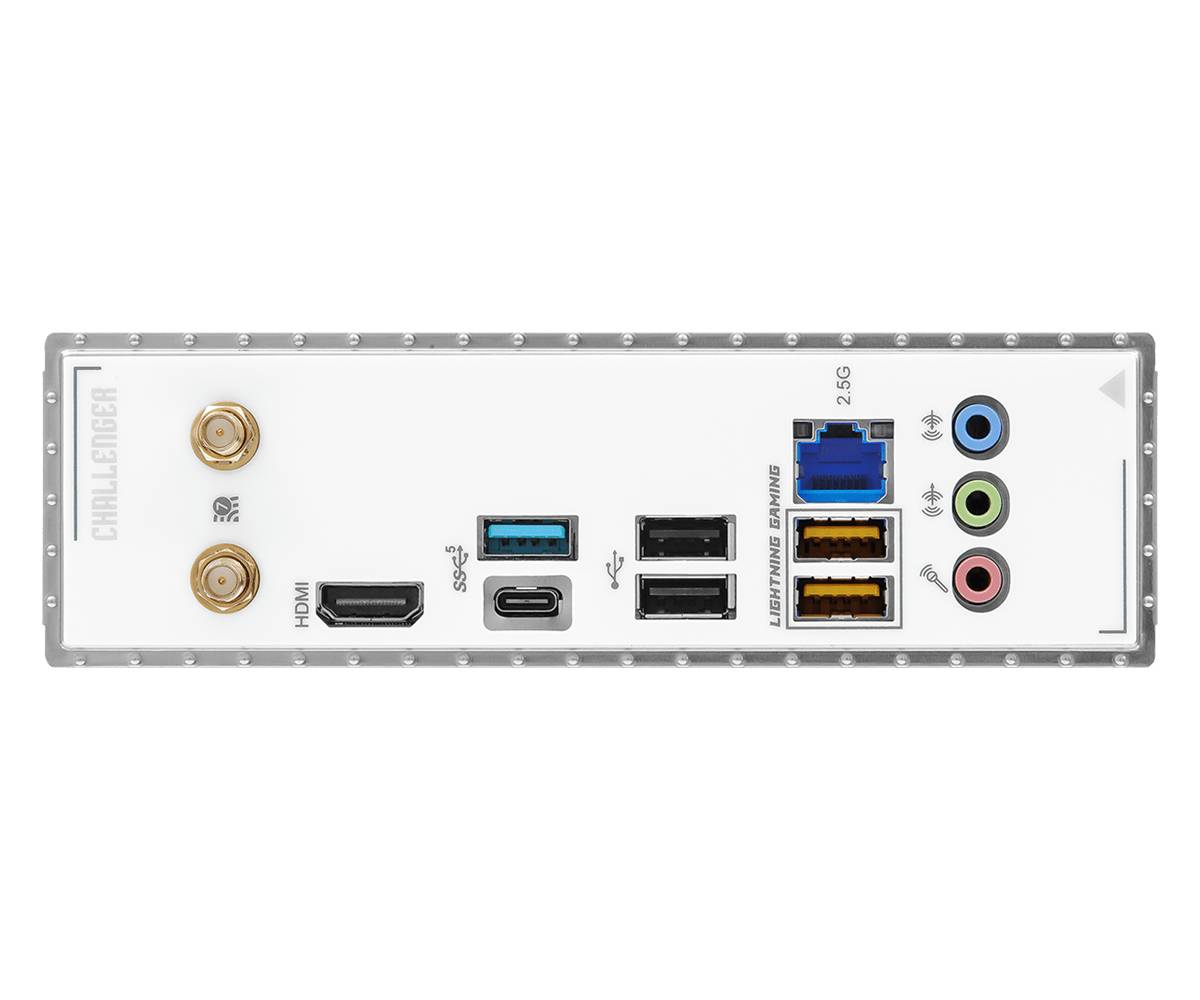

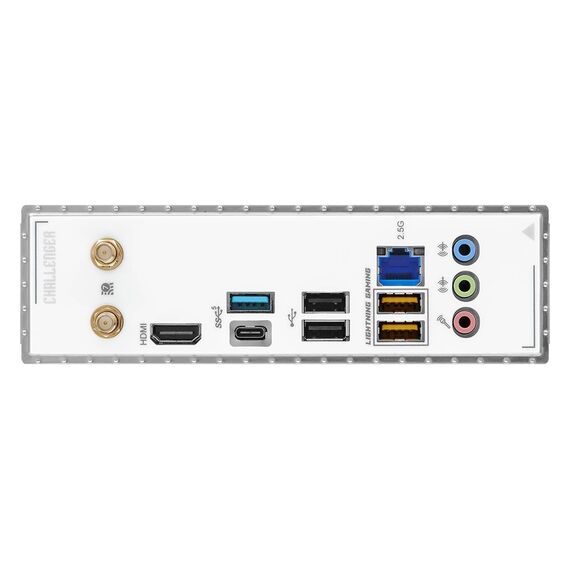

Ports 1x HDMI 2.1 (4K 120Hz) · 1x USB 3.2 Gen1 Type-C · 3x USB 3.2 Gen1 Type-A (2 Lightning Gaming Ports) · 2x USB 2.0 · 1x RJ-45 · 2x antenna · 3x audio jacks
Internal Headers 1x front USB 3.2 Gen1 Type-C · 1x USB 3.2 Gen1 · 2x USB 2.0 · 2x CPU fan · 3x chassis fan · AIO pump · 1x RGB + 3x ARGB · SPI TPM
Physical
Form Factor Micro ATX, 24.4 x 24.4 cm, pre-installed I/O shield
Power Connectors 1x 24-pin ATX + 1x 8-pin + 1x 4-pin 12V

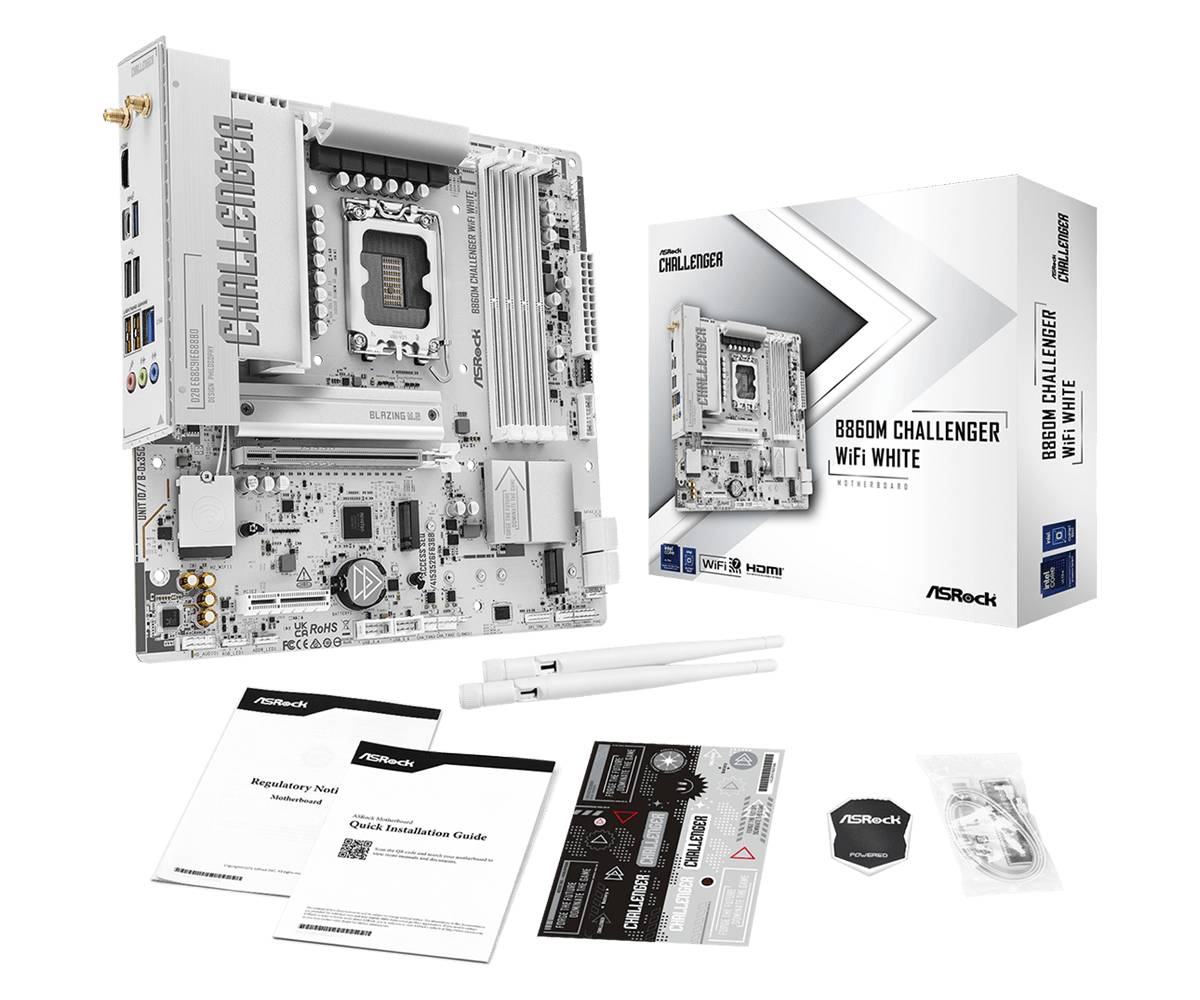

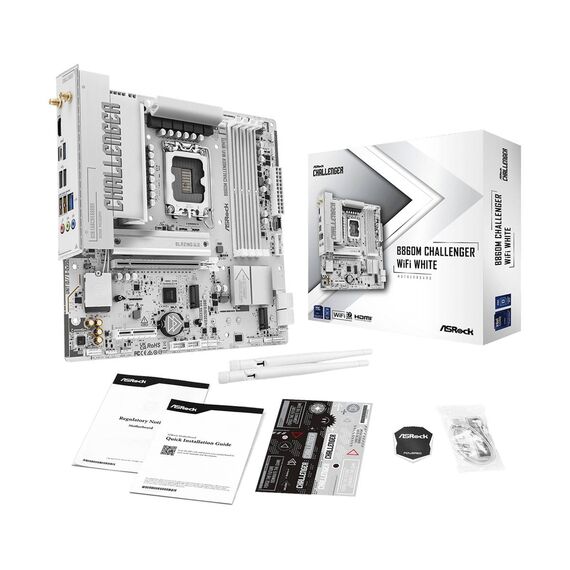

In the Box 2x SATA cables, 2x Wi-Fi antennas
OS Windows 11 64-bit (Wi-Fi 7: Windows 11 only)

Frequently Asked Questions

Which processors does the B860M Challenger WiFi White support?
Intel Core Ultra processors (Series 2) for Socket LGA1851, such as the Core Ultra 5 245K, Core Ultra 7 265K and Core Ultra 9 285K. Older 12th-14th Gen LGA1700 processors are not compatible.
Can I overclock the CPU on a B860 board?
B860 does not support CPU multiplier overclocking; memory overclocking via XMP 3.0 is supported, with DDR5 up to 8666+ MHz on one module per channel. For CPU overclocking, a Z890 board is required.
How many monitors can I connect without a graphics card?
The rear panel provides one HDMI 2.1 output (4K 120Hz) from the CPU graphics. For multiple displays, install a graphics card in the PCIe 5.0 x16 slot.
What do I need to know before buying?
CPU, cooler, DDR5 memory and SSDs are sold separately. The board is Micro ATX (24.4 x 24.4 cm), so check that your case supports mATX, and note that Wi-Fi 7 is supported under Windows 11 only.
Singular Expert Insight
The B860M Challenger WiFi White suits a compact Core Ultra 200S build that still wants current connectivity: PCIe 5.0 for the GPU and SSD, Wi-Fi 7 and four DDR5 slots in a Micro ATX footprint. It is not an overclocking board; if you want to tune a K-series CPU, choose a Z890 model instead.
✓ Buy it if you are building a Micro ATX Core Ultra 200S PC and want Wi-Fi 7 and a Gen5 SSD slot.
✕ Skip it if you want CPU overclocking (needs Z890) or several display outputs from the CPU graphics.
→ Also consider ASRock B860M Challenger WiFi for the black version, or an AM5 board such as the X870 Challenger WiFi for a Ryzen build.
