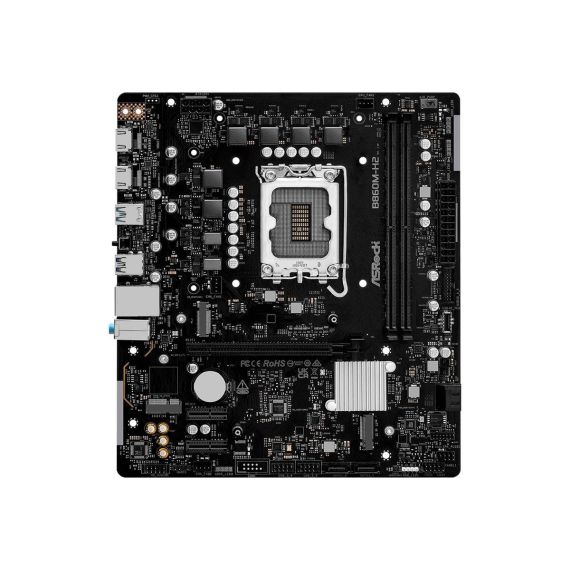

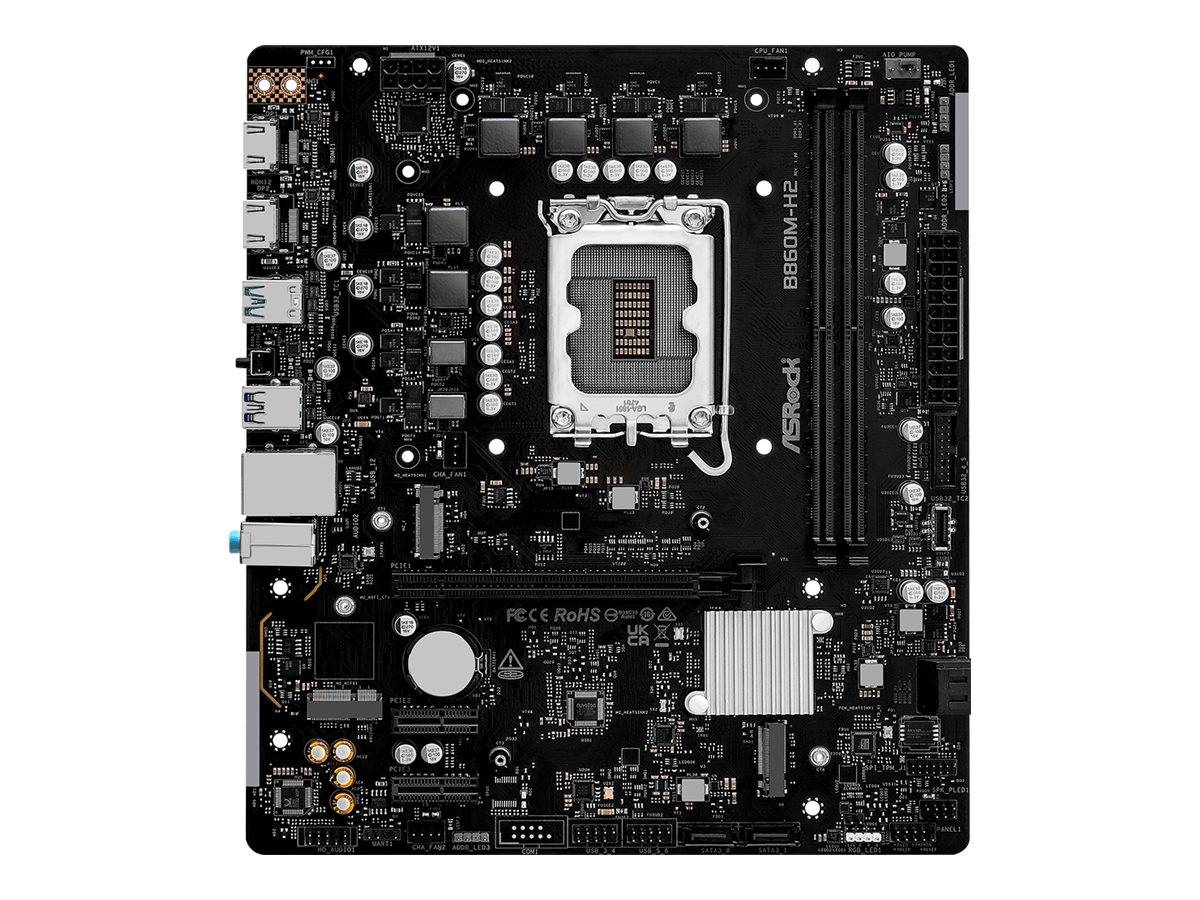

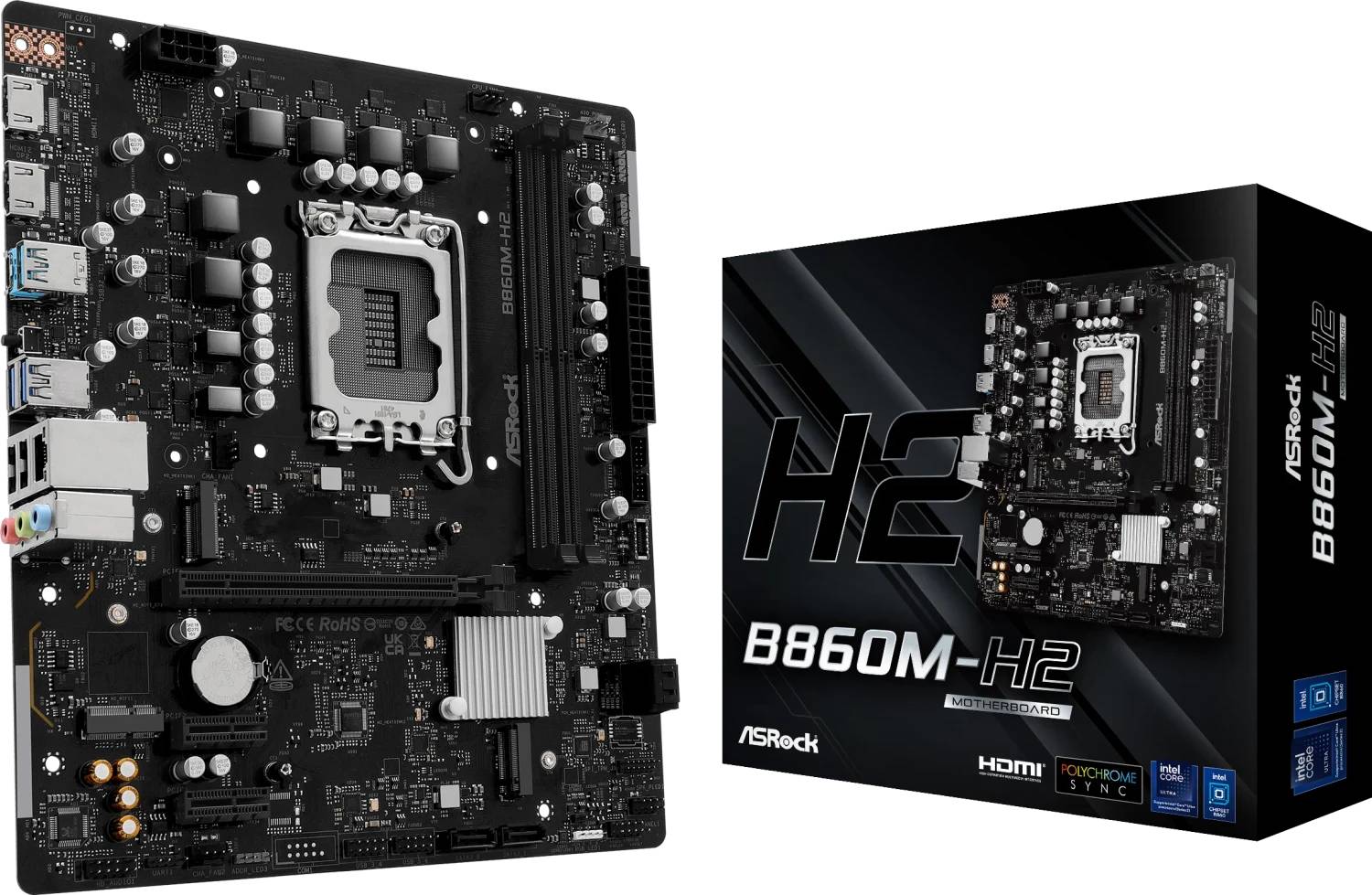

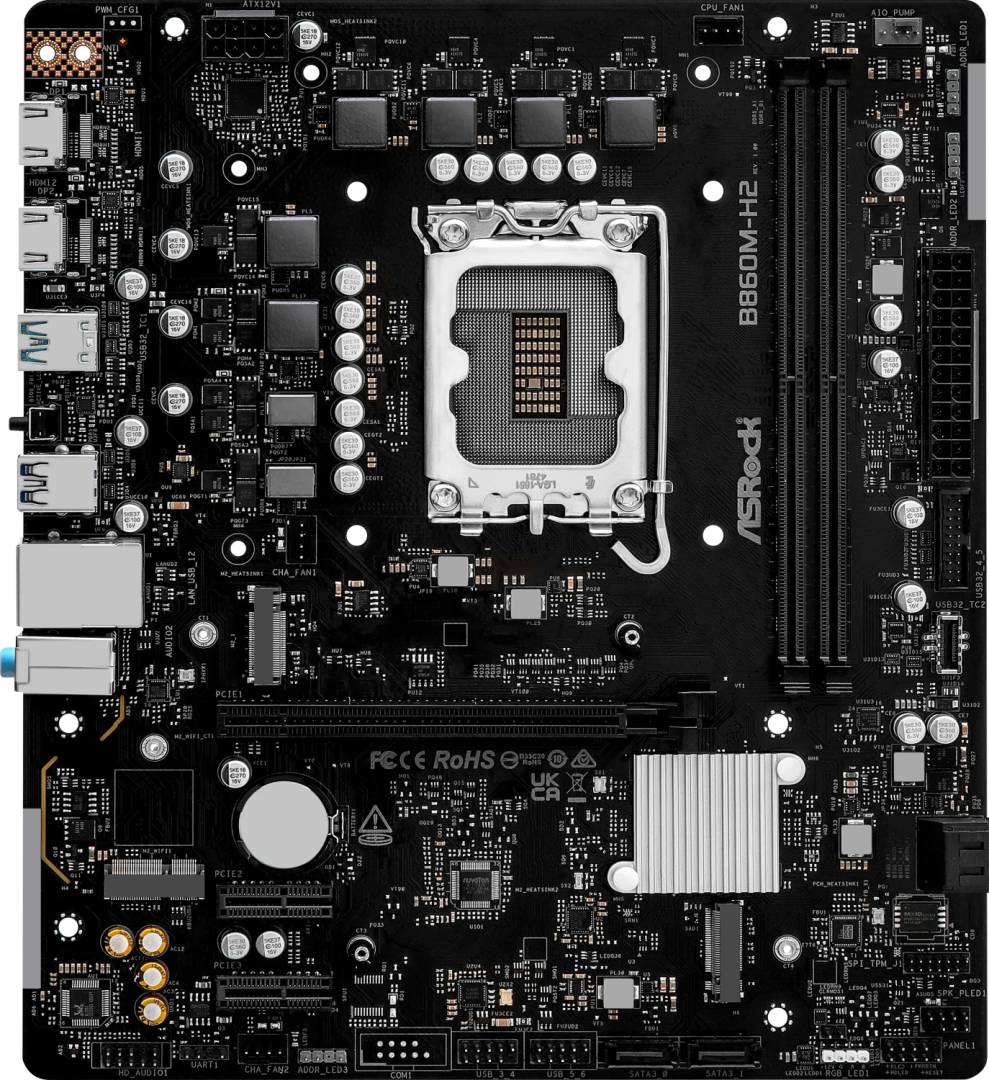

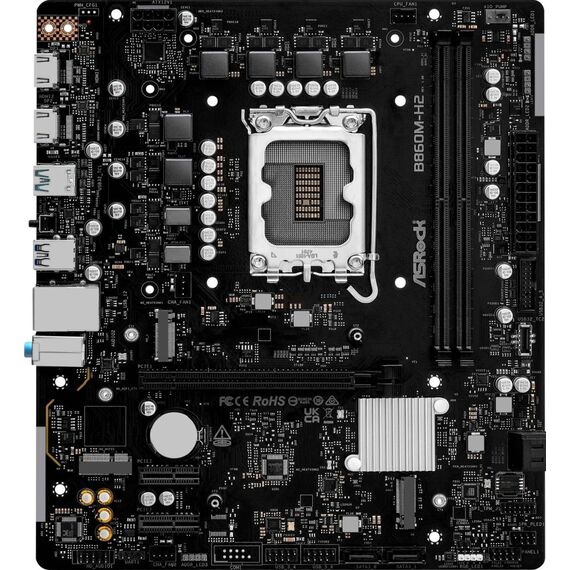

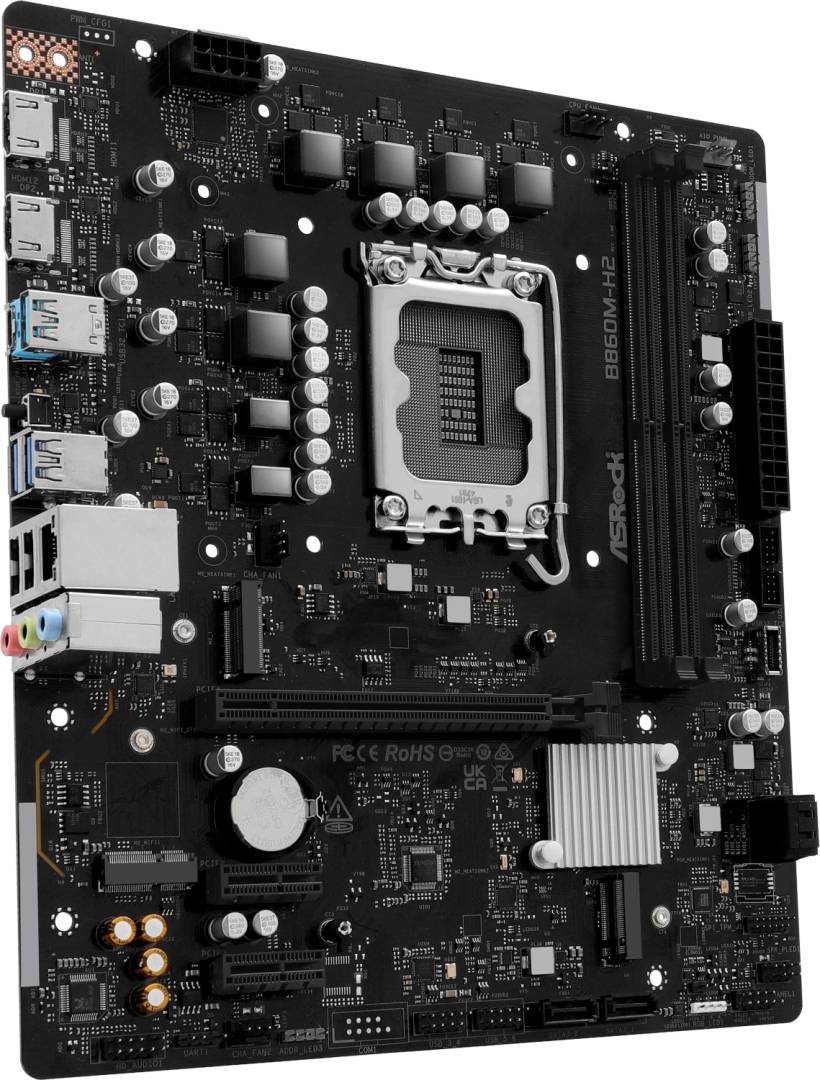

ASRock B860M-H2 / Motherboard / micro ATX / LGA1851 Socket / B860 Chipset / USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBS00-A0UAYZ
ASRock B860M-H2 / Motherboard / micro ATX / LGA1851 Socket / B860 Chipset / USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBS00-A0UAYZ
€138.83 inc. VAT
90-MXBS00-A0UAYZ
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust audio capabilities
This motherboard features high definition audio with an 8-channel output facilitated by the Realtek ALC897 codec, ensuring a premium sound experience suitable for gaming and multimedia. - Extensive expansion options
Equipped with multiple slots including PCIe 4.0 x16 and x1, as well as M.2 slots, this motherboard provides ample opportunities for upgrades and enhancements. - Advanced thermal management
Designed with a chipset heatsink and ASRock's Intel Thermal Velocity Boost technology, the B860M-H2 maintains optimal temperatures for reliable system performance. - Flexible storage solutions
Featuring support for RAID configurations and various storage interfaces such as Serial ATA-600 and PCIe 4.0, users can customize their storage setup for increased speed and redundancy. - User-friendly BIOS features
This motherboard includes an AMI UEFI BIOS with helpful features like ASRock EZ Mode and a BIOS FlashBack button, making it approachable for all users.
Special Features
- Support for Intel Core Ultra processors enhances performance
- Dual-channel DDR5 RAM technology for efficient multitasking
- Multiple expansion slots including M.2 for flexible storage options
- Comprehensive connectivity with USB-C and Gigabit Ethernet
- User-friendly features like ASRock Instant Flash for easy BIOS updates
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B860 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 8333 MHz (O.C.), 6400 MHz, 6200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered, clocked unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1 1 x M.2 socket (2230 M.2 Key E slot) 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x Blazing M.2 PCIe 4.0 -connectors: 1 x Hyper M.2 |

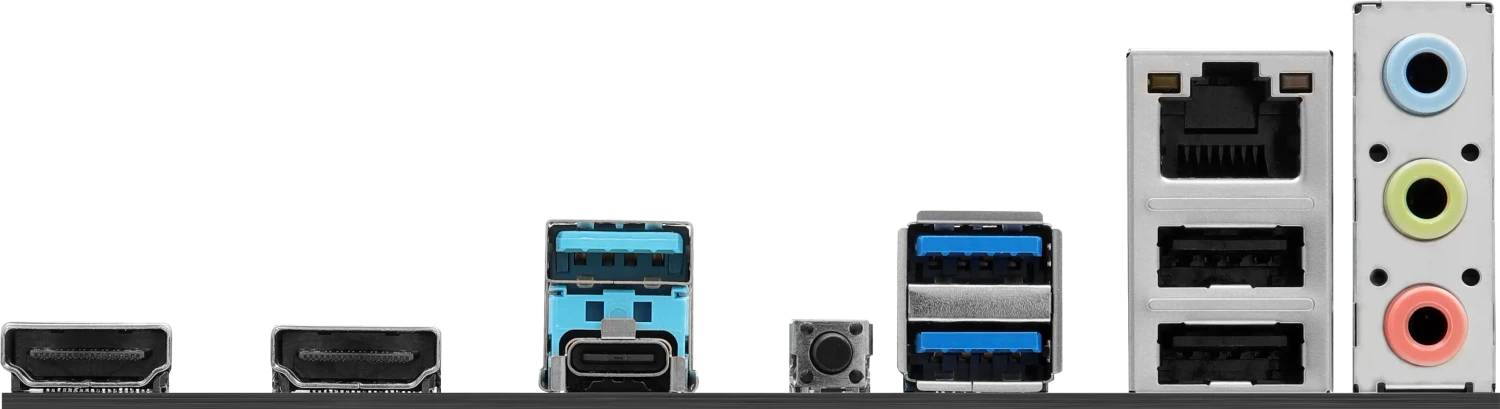

| Interfaces | 1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 1 2 x USB 2.0 2 x HDMI 1 x LAN (Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | 5+1+1+1+1 Phase Power Design, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, BIOS FlashBack button, ASRock Auto Driver Installer, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), CUDIMM support, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, 6 Layer PCB, ASRock Polychrome RGB, DIY Friendly Design, chipset heatsink |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, 1 x M.2 screw |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock Polychrome SYNC |
| Compliant Standards | HDCP 2.3, FCC, ErP Ready, EuP Ready |
| Width | 24.4 cm |
| Depth | 21.1 cm |
Features - Asrock - 90-MXBS00-A0UAYZ
More Details
Product Code
04:519475
EAN Code
4711581490437
Manufacturer
Asrock
