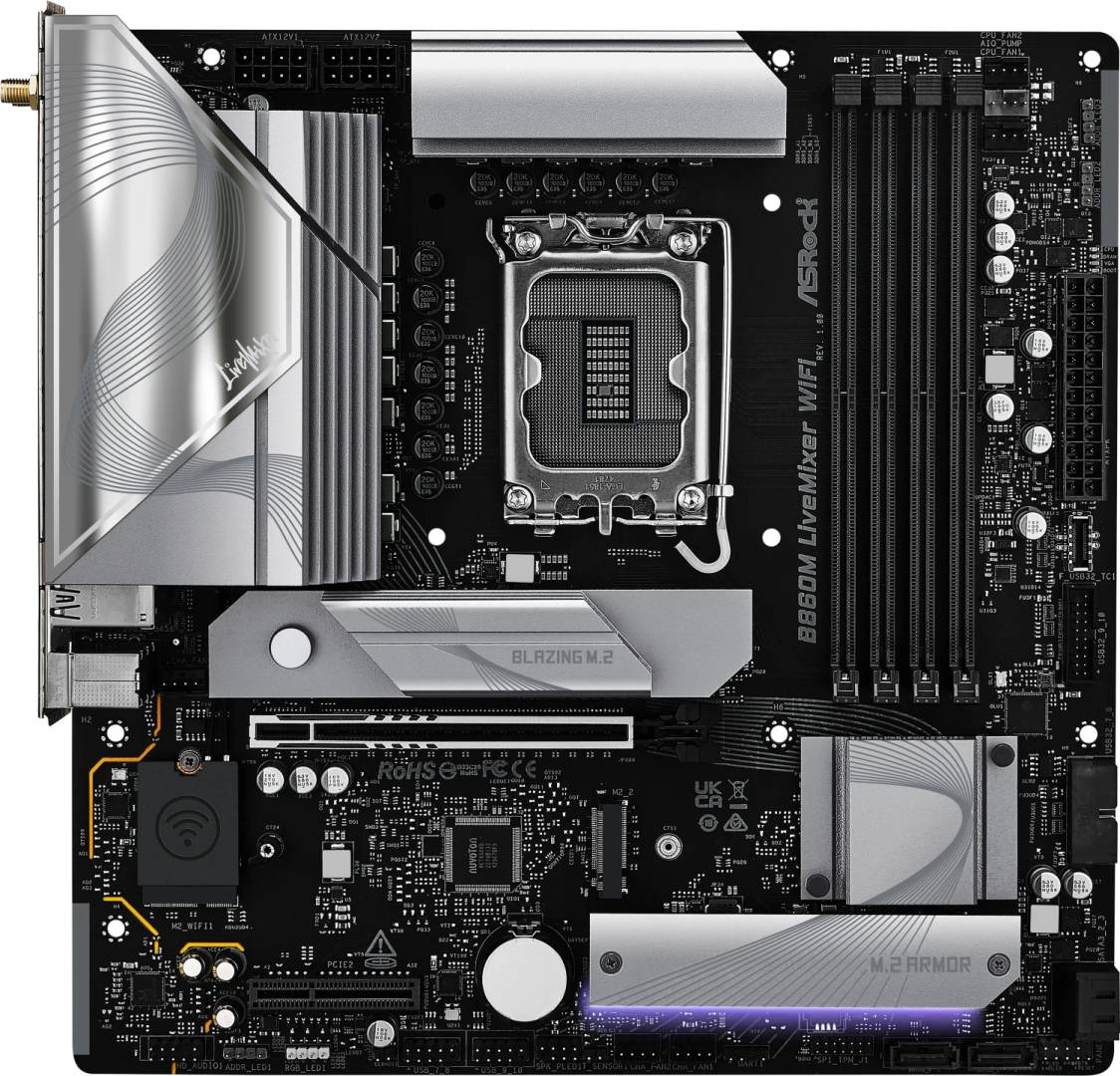

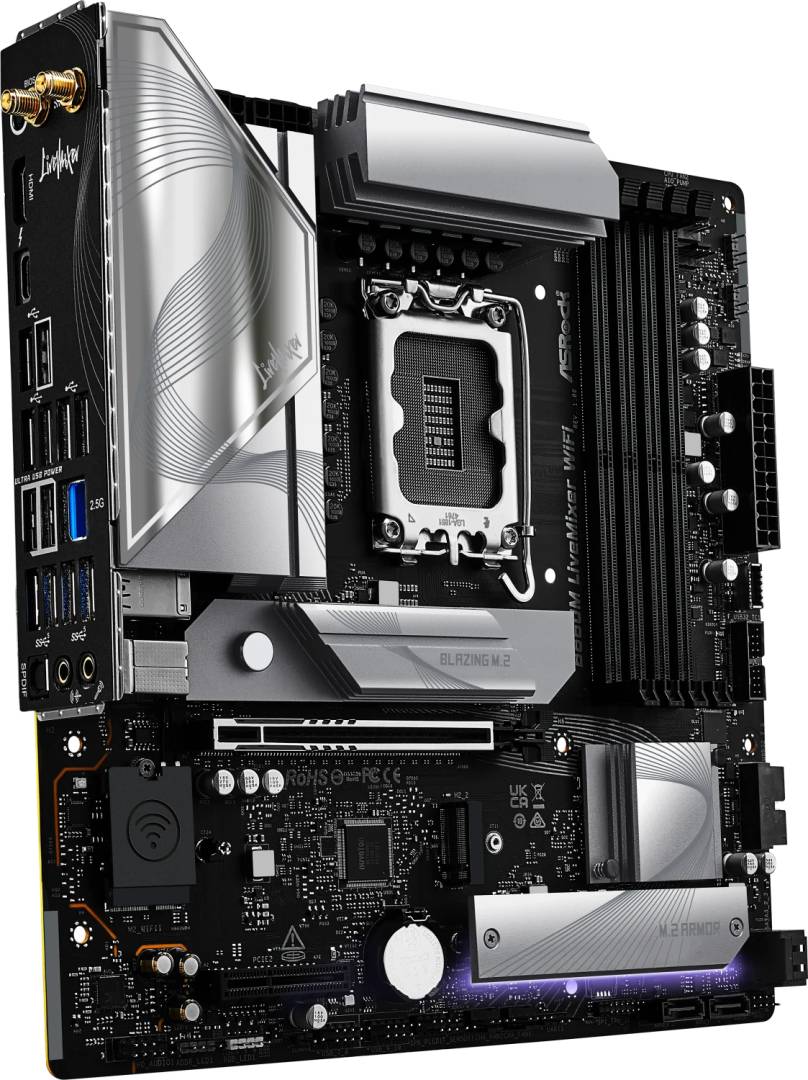

ASRock B860M LiveMixer WiFi / Motherboard / micro ATX / LGA1851 Socket / B860 Chipset / USB-C 3.2 Gen 1, USB 3.2 Gen 1, USB4 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBRT0-A0UAYZ
ASRock B860M LiveMixer WiFi / Motherboard / micro ATX / LGA1851 Socket / B860 Chipset / USB-C 3.2 Gen 1, USB 3.2 Gen 1, USB4 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBRT0-A0UAYZ
€242.22 inc. VAT
90-MXBRT0-A0UAYZ
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust audio capabilities
The ASRock B860M LiveMixer WiFi motherboard features high definition audio with 8-channel output via the Realtek ALC1220 codec, offering an enhanced listening experience for gamers and media enthusiasts. - Extensive connectivity options
With a diverse array of ports including USB 3.2 Gen 1, USB4, and dual 2.5 Gigabit Ethernet, this motherboard ensures seamless connections for all devices, maximizing data transfer speeds. - High-performance RAM support
Supporting DDR5 SDRAM across 4 DIMM slots, this motherboard accommodates speeds from 4800 MHz to 8666 MHz, providing flexibility for users to build high-performance systems. - Advanced cooling design
The motherboard incorporates a well-engineered cooling solution with a chipset heatsink and M.2 heatsink to maintain optimal temperatures during intense usage, enhancing the longevity of components. - User-friendly BIOS features
Equipped with UEFI BIOS and features such as ASRock Instant Flash and EZ Mode, this motherboard streamlines system customization and allows easy firmware updates for improved performance.
Special Features
- Supports Intel Core Ultra processors with LGA1851 Socket
- Offers DDR5 RAM support with speeds up to 8666 MHz
- Features advanced audio with Realtek ALC1220 codec for high definition audio
- Includes multiple high-speed USB ports and dual 2.5 Gigabit Ethernet
- Equipped with a user-friendly UEFI BIOS and customizable ASRock software
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B860 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 8666 MHz (O.C.), 5600 MHz, 6800 MHz (O.C.), 6533 MHz (O.C.), 4800 MHz, 5600 MHz (O.C.), 4400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered, clocked unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x M.2 socket (2230 M.2 Key E slot) 3 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x Blazing M.2 PCIe 4.0 -connectors: 2 x Hyper M.2 |

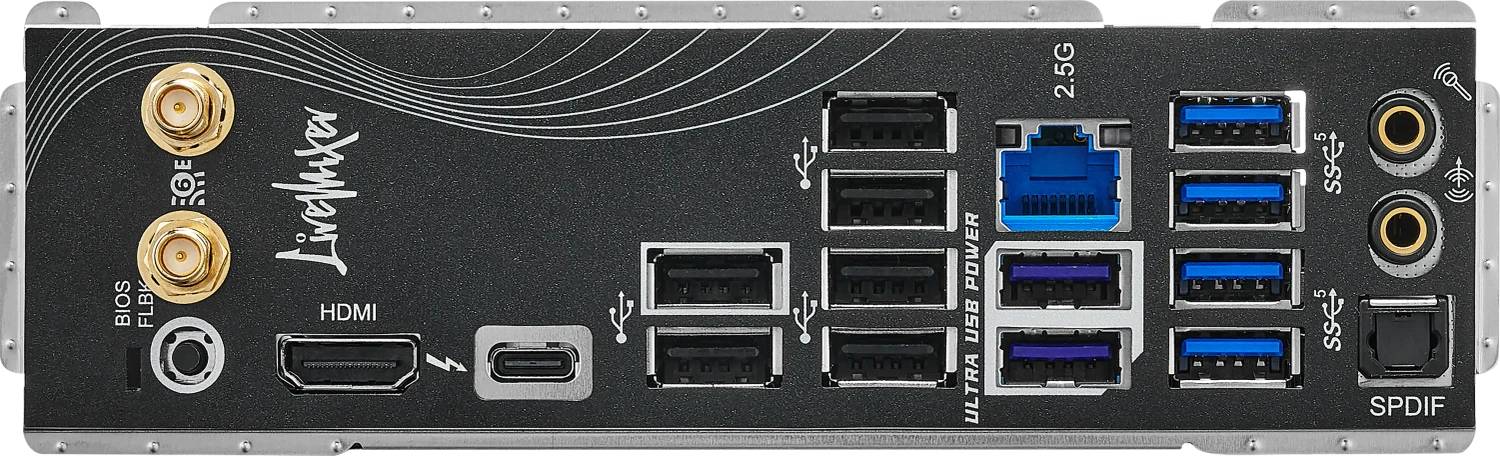

| Interfaces | 2 x aerial 1 x HDMI 1 x SPDIF out 1 x Thunderbolt 4/DisplayPort/USB4 6 x USB 3.2 Gen 1 6 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | CUDIMM support, BIOS FlashBack button, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Auto Driver Installer, 10+1+1+1+1 Power Phase Design, Dr.MOS MOSFET, Enlarged Heatsink Armor, pre-mounted I/O shield, 20K black capacitors, ASRock POST Status Checker (PSC), Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), M.2 heatsink, chipset heatsink, VRM heatsink design, DIY Friendly Design, aluminium heatsink design, Nahimic Audio Enhacer, ASRock Polychrome RGB, ASRock Steel Slots |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 x ASRock WiFi 2.4/5/6 GHz Antennas, thermistor cable |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Compliant Standards | FCC, ErP Ready, EuP Ready, HDCP 2.3 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - Asrock - 90-MXBRT0-A0UAYZ
More Details
Product Code
04:519500
EAN Code
4711581490314
Manufacturer
Asrock
