ASRock NUC BOX-325 Barebone Mini PC Intel Core Ultra 5 325 Wi-Fi 7 2x 2.5GbE No RAM No SSD No OS

Brand:
ASRock
ASRock NUC BOX-325 Barebone Mini PC Core Ultra 5 325
ASRock NUC BOX-325 Barebone Mini PC Intel Core Ultra 5 325 Wi-Fi 7 2x 2.5GbE No RAM No SSD No OS
€966.8 inc. VAT
Buy
90PXGG80-P0EAY100
€812.44
€966.80 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
CPU Type
Intel Ultra 5
Product Code
04:604349
EAN Code
4711420966284
Manufacturer
ASRock

Quick Specs

CPU
Intel Core Ultra 5 325 (8 cores: 4P + 4LPE)
RAM
Not included · 2x DDR5 SO-DIMM, up to 128GB
Storage
Not included · Gen5 2242/2280 + Gen4 2242
OS
Not included · Windows 10/11 supported
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASRock NUC BOX-325 Barebone Mini PC

A compact 49 mm barebone with the Core Ultra 5 325, Gen5 M.2, USB4, dual 2.5GbE and Wi-Fi 7 — add memory and SSD.
Intel Core Ultra 5 325Barebone · add RAM + SSD2x 2.5GbE · Wi-Fi 7USB4 · quad display

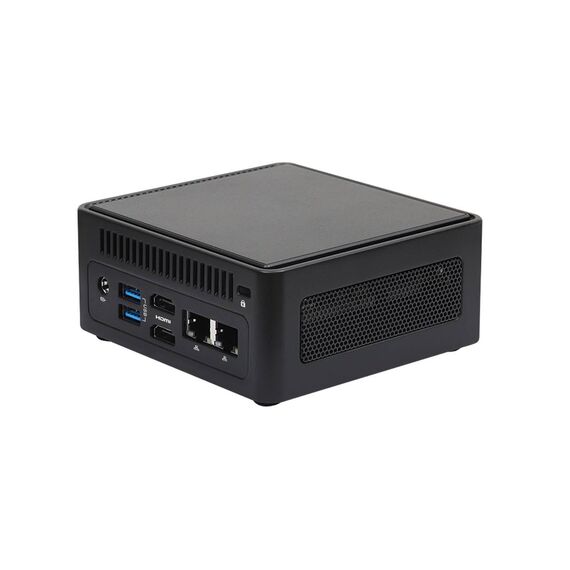

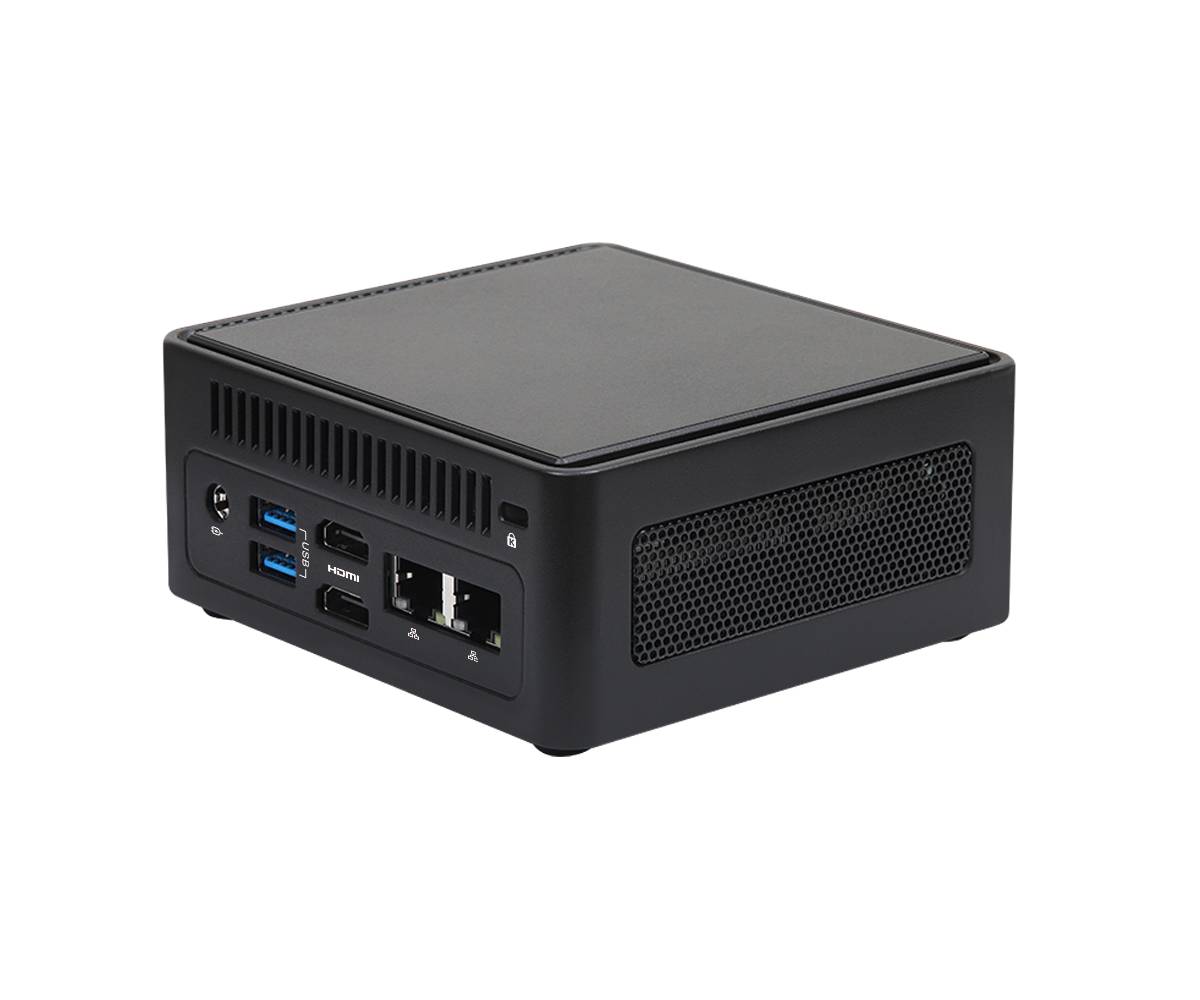

The ASRock NUC BOX-325 (part number 90PXGG80-P0EAY100) is a barebone mini PC from ASRock Industrial built around the Intel Core Ultra 5 325 processor (Core Ultra Series 3, Panther Lake-H, 8 cores: 4P + 4LPE). It ships without memory, storage or operating system, so you add two DDR5 SO-DIMMs (up to 128GB), an M.2 NVMe SSD and Windows or Linux to suit the role. The 8-core Ultra 5 325 is an efficient choice for office, kiosk, signage and light edge workloads, with two Intel 2.5GbE ports (I226LM + I226V), Wi-Fi 7 and four display outputs. The 117.5 x 110 x 49 mm chassis mounts behind a monitor using the included VESA bracket.

Compatibility Note: Barebone: RAM, SSD and operating system are not included. Use DDR5 SO-DIMM (laptop-type, 262-pin) memory and M.2 Key M NVMe SSDs (Gen5 2242/2280 + Gen4 2242). For Thunderbolt device support, check ASRock Industrial's support list.
Best For
✓ Office and front-desk PCs
✓ Kiosks and POS back-ends
✓ Digital signage (up to 4 screens)
✓ Thin-client replacement
✓ Meeting-room PCs
✓ VESA-mounted desk setups

Key Features


Core Ultra 5 325
Panther Lake-H with 4 performance and 4 low-power efficient cores, supporting dual-channel DDR5-6400 — efficient, quiet performance for everyday business work.

Gen5 NVMe + Second M.2
Two M.2 Key M sockets: 2242/2280 at PCIe Gen5 x4 and 2242 at PCIe Gen4 x4, with Intel VMD RAID 0/1 for mirrored or striped storage.

Quad Display and USB4
Two HDMI 2.1 ports (up to 8K 60Hz), DisplayPort 2.1 over USB4/Thunderbolt 4 and DisplayPort 1.4a over USB-C drive up to four screens from one small box.

Industrial-Grade Details
2x Intel 2.5GbE, 12-24V wide DC input, AT/ATX auto power-on, watchdog timer, Intel PTT, TAA compliance and an included VESA bracket.

Technical Specifications

Identification
Part Number 90PXGG80-P0EAY100
EAN / GTIN 4711420966284
Brand / Model ASRock Industrial NUC BOX-325
Type fanned barebone mini PC (no RAM, no storage, no OS)
Processor & Graphics
CPU Intel Core Ultra 5 325 (Core Ultra Series 3, Panther Lake-H, 8 cores: 4P + 4LPE)
Graphics Intel Graphics (integrated)
Display Outputs Quad display: 2x HDMI 2.1 (up to 7680x4320 @ 60Hz) + DisplayPort 2.1 via USB4 + DisplayPort 1.4a via USB-C (up to 4096x2160 @ 60Hz)
Memory & Storage
Memory 2x 262-pin DDR5 SO-DIMM, dual channel, DDR5-6400, max 128GB (not included)
M.2 Storage 1x M.2 Key M 2242/2280 PCIe Gen5 x4 + 1x M.2 Key M 2242 PCIe Gen4 x4
RAID Intel VMD RAID 0/1 (identical PCIe drives)
Connectivity
LAN 2x 2.5GbE: LAN1 Intel I226LM + LAN2 Intel I226V
Wireless Wi-Fi 7 + Bluetooth 6.0 module (M.2 Key E 2230, CNVi) per ASRock Industrial spec

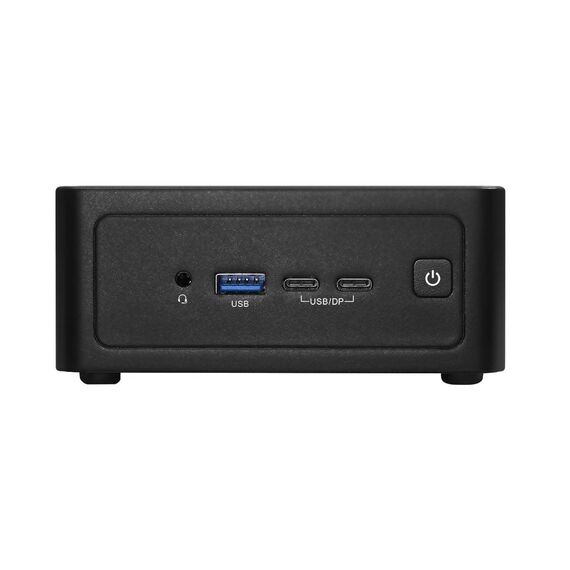

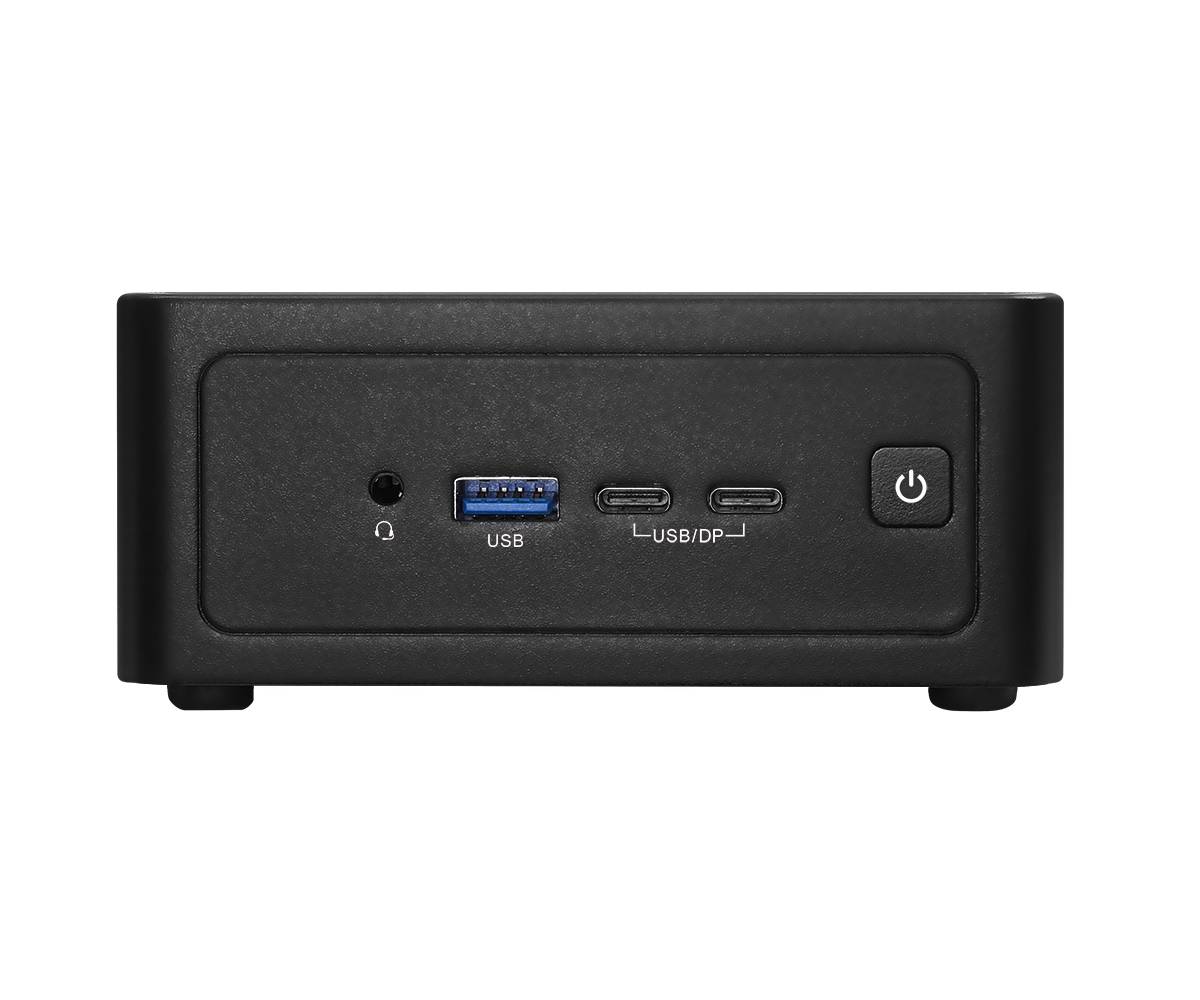

Front I/O 1x USB 3.2 Gen2 Type-A · 1x USB4 / Thunderbolt 4 (DP 2.1) · 1x USB 3.2 Gen2x2 Type-C (DP 1.4a) · headphone/mic jack

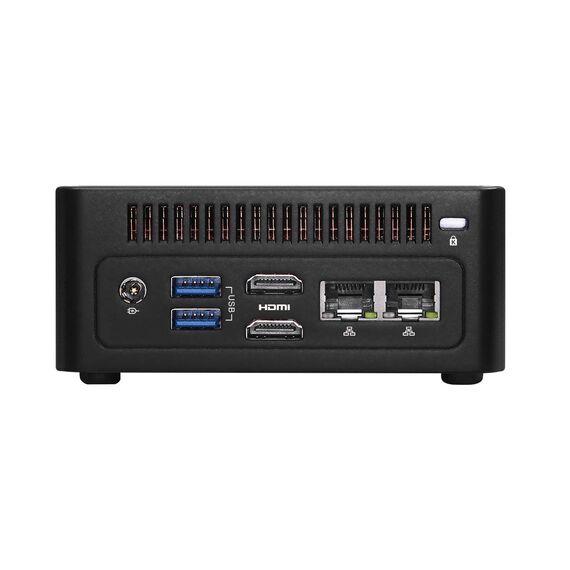

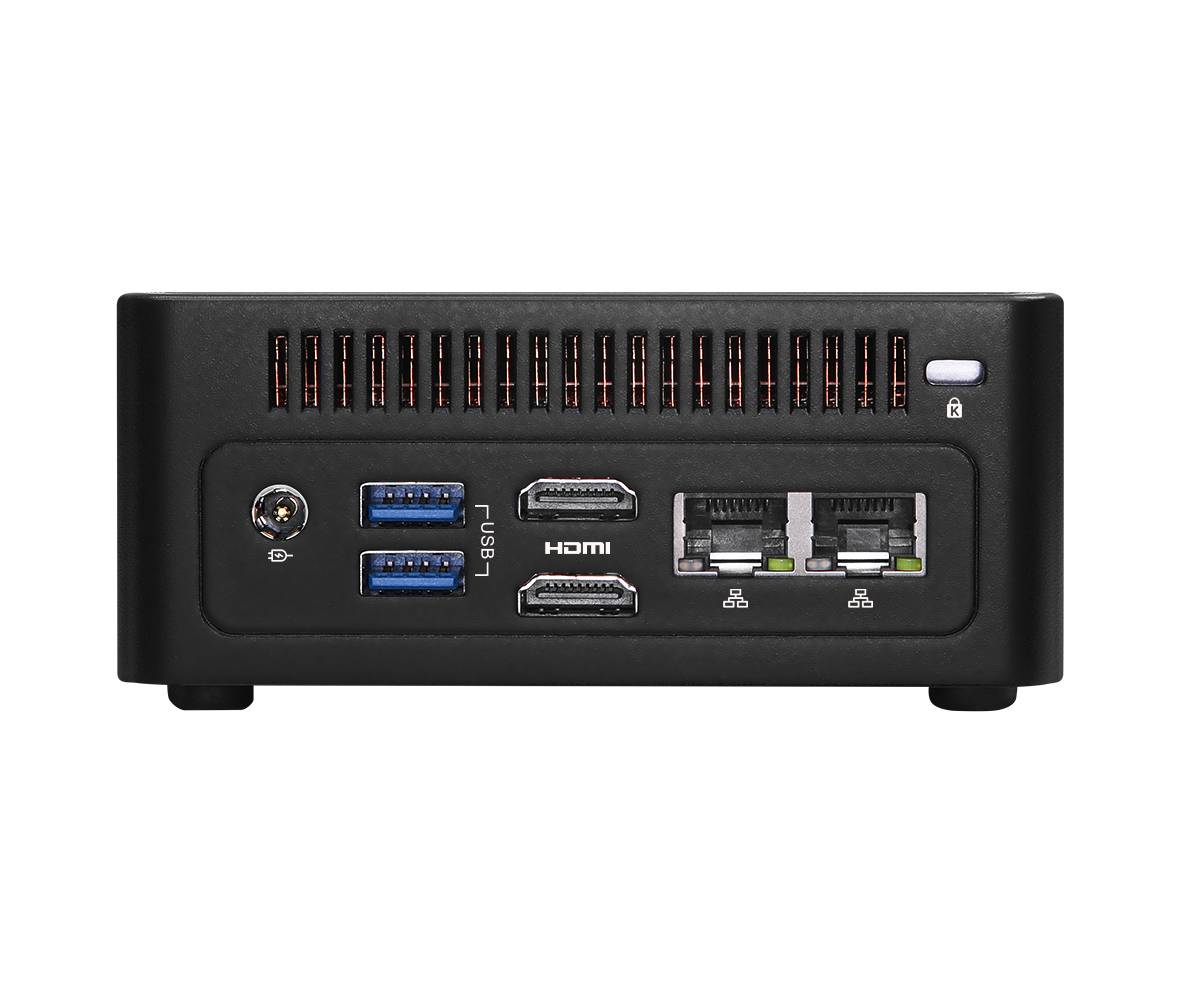

Rear I/O 2x HDMI 2.1 · 2x RJ-45 2.5GbE · 2x USB 3.2 Gen2 Type-A · DC-in jack
Audio Realtek ALC256 HD Audio, headphone/mic combo jack
Security & Management
TPM Intel PTT
Watchdog 256 segments, 0-255 s
Power & Physical
Power Input 12-24V DC-in jack · 19V/120W adapter included · AT/ATX power-on modes
Dimensions 117.5 x 110.0 x 49 mm
Weight 1.0 kg (per ASRock Industrial)
Operating Temperature 0 °C to 40 °C, 5-90% RH non-condensing
Mounting VESA mount (bracket included)
In the Box Power adapter, VESA mount bracket
OS Support Windows 10 / 11 (not included)
Certifications CE, FCC · TAA compliant

Frequently Asked Questions

What do I need to add to the NUC BOX-325?
Two DDR5 SO-DIMM modules (262-pin, up to 64GB each, 128GB total), at least one M.2 Key M NVMe SSD and an operating system. The power adapter and VESA bracket are included.
What is the difference between NUC BOX and NUCS BOX?
The NUCS BOX is the slim 38 mm version with one 2.5GbE port and two front USB-A ports; the NUC BOX is 49 mm tall with two 2.5GbE ports (I226LM + I226V) and one front USB-A port. Both use the same processor options.
Can it run four monitors?
Yes. Use the two HDMI 2.1 outputs plus DisplayPort over the USB4 port and the USB 3.2 Gen2x2 Type-C port for up to four displays.
Is it suitable for 24/7 or AT power-on use?
It supports AT mode (powers on as soon as DC power is applied) and has a watchdog timer, which suit kiosks and signage. The operating temperature range is 0-40 °C, so ensure ventilation in enclosed installations.
Singular Expert Insight
The NUC BOX-325 is a sensible, efficient barebone for office desks, kiosks and signage: USB4, Wi-Fi 7 and quad display in a VESA-mountable box, with RAM and SSD chosen to match your budget. If users run heavy multitasking or engineering tools, step up to the Core Ultra X7 358H version.
✓ Buy it if you want an efficient, configurable mini PC for office, kiosk or signage use.
✕ Skip it if you need a discrete graphics card or a ready-to-use PC with Windows preinstalled.
→ Also consider ASRock NUC BOX-358H for 16-core performance, or the NUCS BOX-325 for a slimmer chassis with vPro Essentials.
