ASRock CB-12V2X6L600W/W 12V-2x6 600W 90° L-Type GPU Power Cable 0.7 m White

Brand:
ASRock
ASRock CB-12V2X6L600W/W 12V-2x6 90° GPU Cable 600W White
ASRock CB-12V2X6L600W/W 12V-2x6 600W 90° L-Type GPU Power Cable 0.7 m White
€52.69 inc. VAT
Buy
90-UCX060-71XCBB
€44.28
€52.69 inc. VAT
Ships from EU stock: 45 item(s)
+ −
Add to wish list Ask a question
Product Code
04:597077
EAN Code
4711581494428
Manufacturer
ASRock

Quick Specs

Type
Modular PSU cable · 12V-2x6
Connectors
12+4-pin (PSU) to 90° 12+4-pin (GPU)
Rating
600W · 16 AWG · 700 mm
Compatibility
ASRock modular PSUs, 750W+
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASRock CB-12V2X6L600W/W 12V-2x6 L-Type Cable

A white 700 mm 12V-2x6 cable with a right-angled GPU connector for tidier graphics card installs.
600W · PCIe 5.190° L-type GPU plug16 AWG · 700 mm

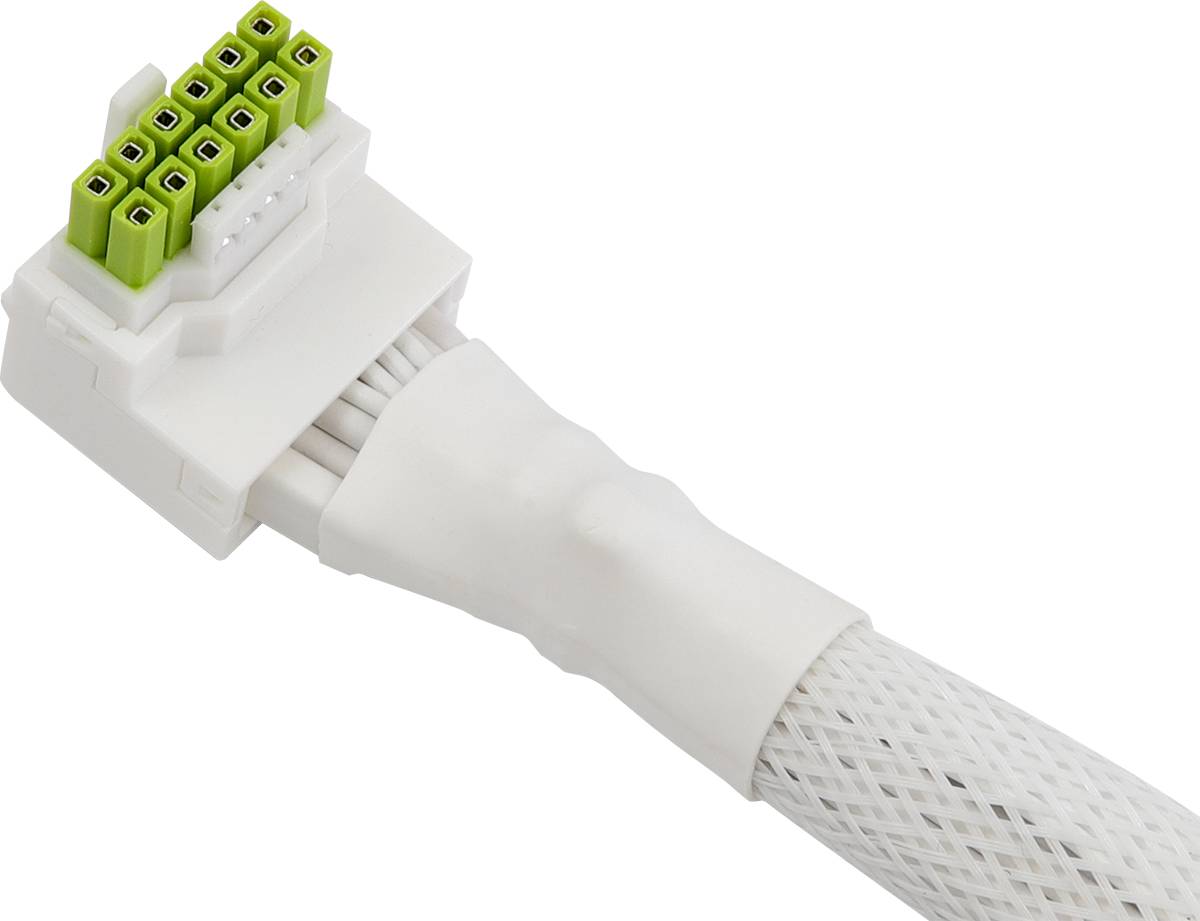

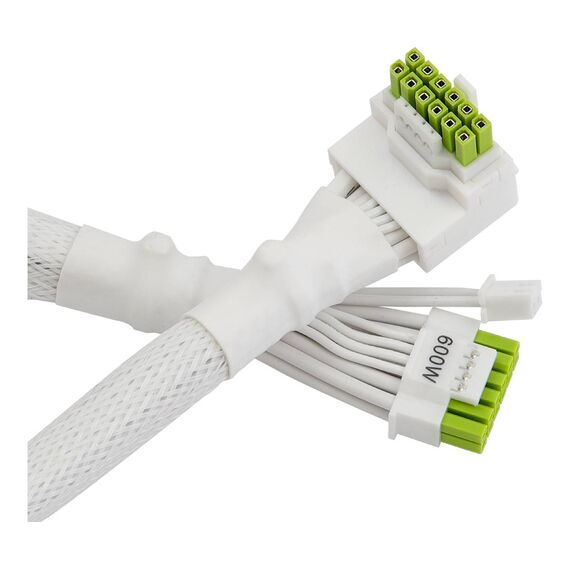

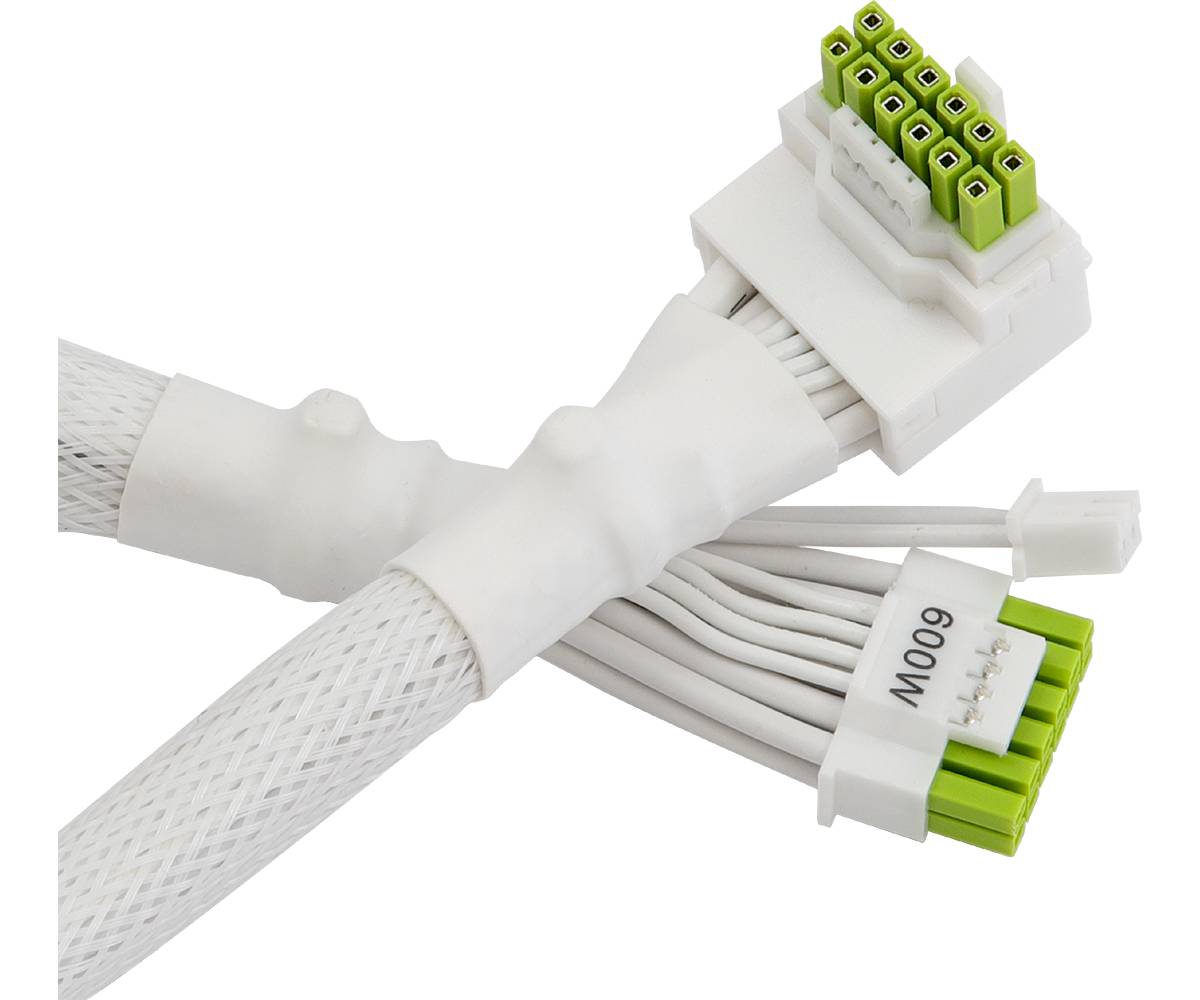

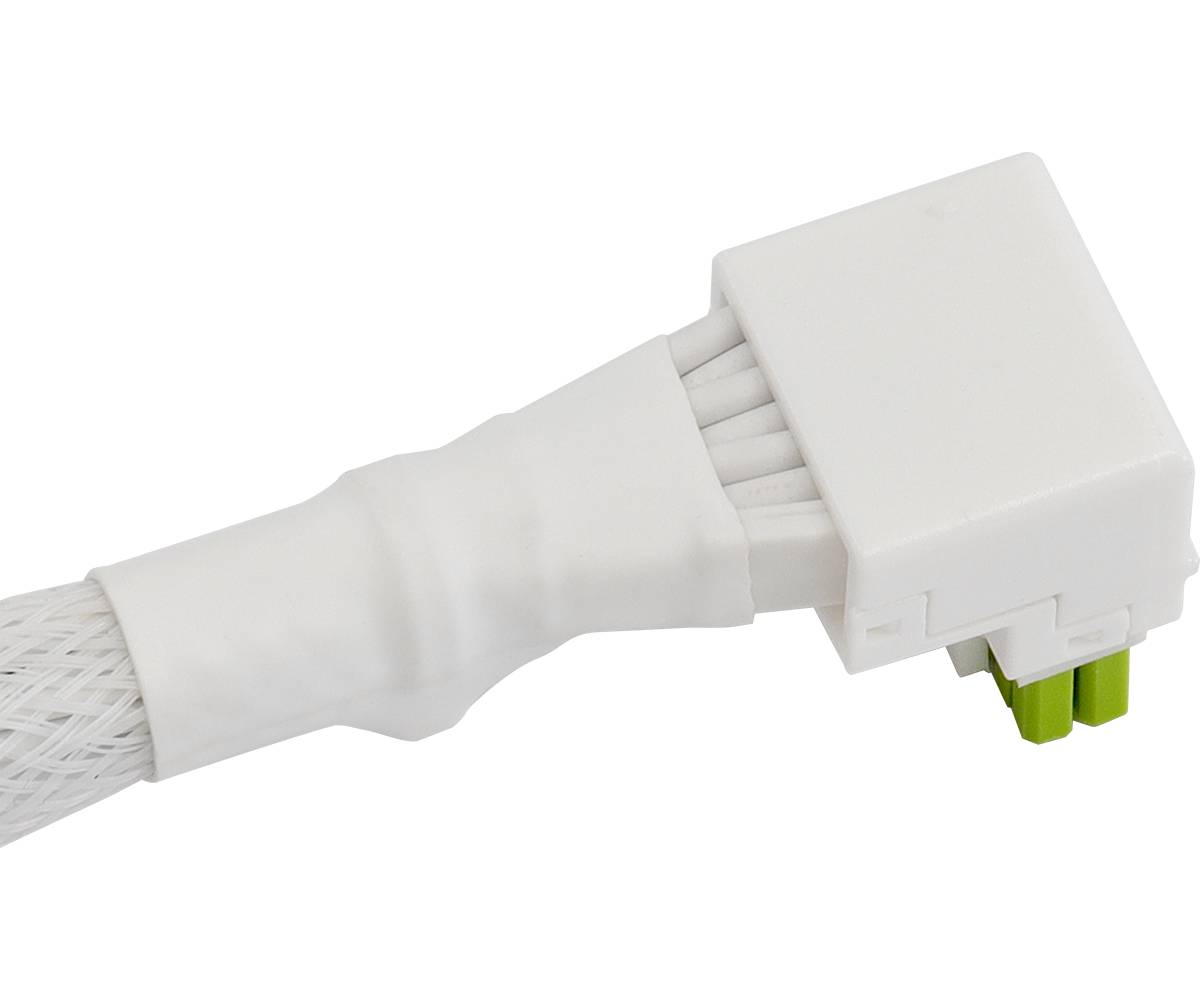

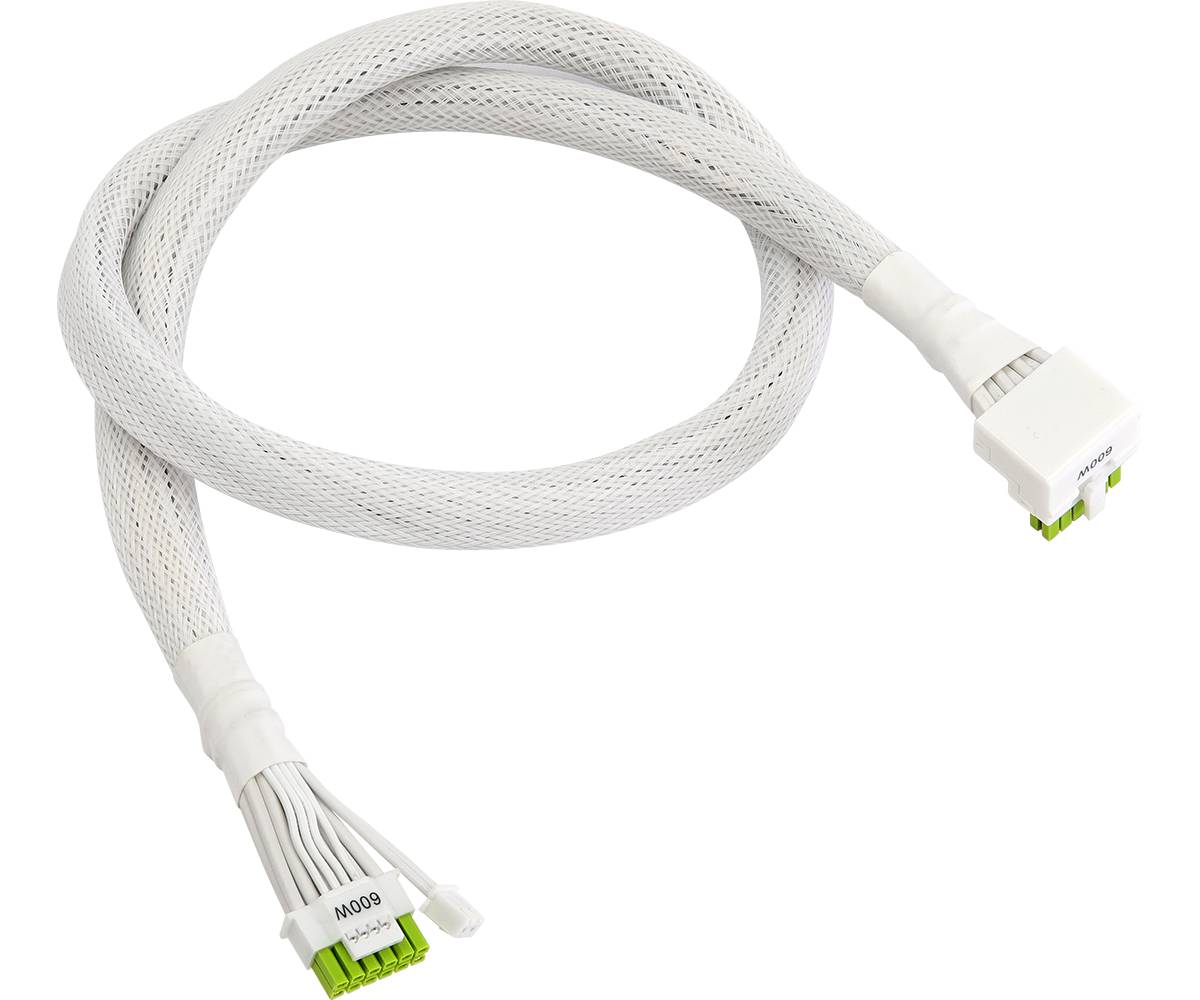

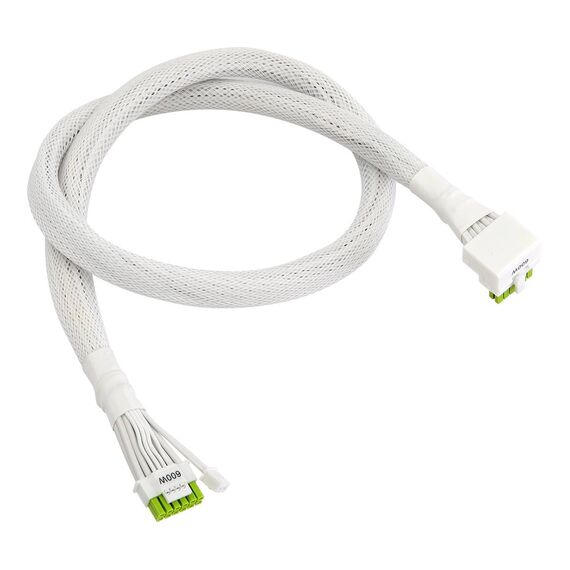

The ASRock CB-12V2X6L600W/W (part number 90-UCX060-71XCBB) is a white 700 mm modular power cable that connects a 12V-2x6 port on an ASRock power supply to a graphics card through a 90° L-type 12V-2x6 plug, rated for 600W. The right-angled connector removes the tight bend next to the GPU, improving clearance against the side panel, and the 12V-2x6 plug is backward compatible with 12VHPWR graphics cards.

Compatibility Note: This is a modular cable for ASRock power supplies with a native 12V-2x6 PSU-side port (power supply 750W or above). Modular pinouts differ between brands — do not use it with other PSU makes. Cable over-temperature protection works only with ASRock Taichi, Phantom Gaming and Steel Legend Platinum PSUs. Compatibility of the 90° plug may vary by graphics card.

Technical Specifications

Identification
Part Number 90-UCX060-71XCBB
EAN / GTIN 4711581494428
Model ASRock CB-12V2X6L600W/W
Cable
Connectors 12V-2x6 (12+4-pin) PSU side to 90° L-type 12V-2x6 (12+4-pin) GPU side
Length 700 mm
Rated Power 600W maximum
Wire Gauge 16 AWG
Terminals HCS (High-Current System) terminals, 94V-0 connector housing
Standard ATX 3.1 and PCIe 5.1 compliant · backward compatible with 12VHPWR GPUs
Colour White, dual-colour connector design
Requirements
PSU ASRock modular PSU with 12V-2x6 port, 750W or above
Warranty 2 years (manufacturer)

Frequently Asked Questions

Will this cable work with a Corsair, Seasonic or other brand PSU?
No. It is designed for ASRock power supplies with a native 12V-2x6 PSU-side connector. Modular cable pinouts are not standardised across brands, and using a cable from another brand can damage components.
Why choose a 90° L-type connector?
The plug exits parallel to the graphics card, so the cable does not need to be bent sharply near the connector. This helps in narrow cases and reduces stress on the plug — keep it fully inserted and clicked in place.
Singular Expert Insight
Choose the CB-12V2X6L600W/W if you have an ASRock 12V-2x6 power supply and a white or tight-clearance build where the standard straight cable bends hard against the side panel. If your PSU is from another brand, use that manufacturer's own 12V-2x6 cable instead.
✓ Buy it if you own an ASRock 12V-2x6 PSU and want a white right-angle GPU cable.
✕ Skip it if your PSU is not an ASRock model with a native 12V-2x6 port.
→ Also consider the straight 12V-2x6 cable supplied with your ASRock PSU if clearance is not an issue.
