ASRock H610M Combo II LGA1700 Micro ATX Motherboard DDR5 or DDR4 PCIe 5.0 HDMI DP VGA Gigabit LAN

Brand:
ASRock
ASRock H610M Combo II LGA1700 mATX DDR5/DDR4 Motherboard
ASRock H610M Combo II LGA1700 Micro ATX Motherboard DDR5 or DDR4 PCIe 5.0 HDMI DP VGA Gigabit LAN
€91.13 inc. VAT
Buy
90-MXBUN0-A0UAYZ
€76.58 €85.09
€91.13 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
CPU Type
Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Product Code
04:597056
EAN Code
4711581494671
Manufacturer
ASRock

Quick Specs

Socket & Chipset
LGA1700 · Intel H610
Memory
2x DDR5 (96GB) or 1x DDR4 (32GB)
Expansion & Storage
PCIe 5.0 x16 · 1x M.2 Gen3 · 4x SATA
Connectivity
Gigabit LAN · HDMI + DP + VGA
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

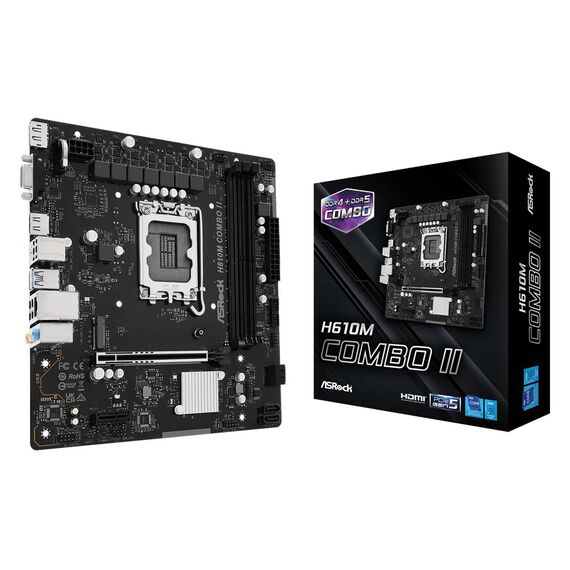

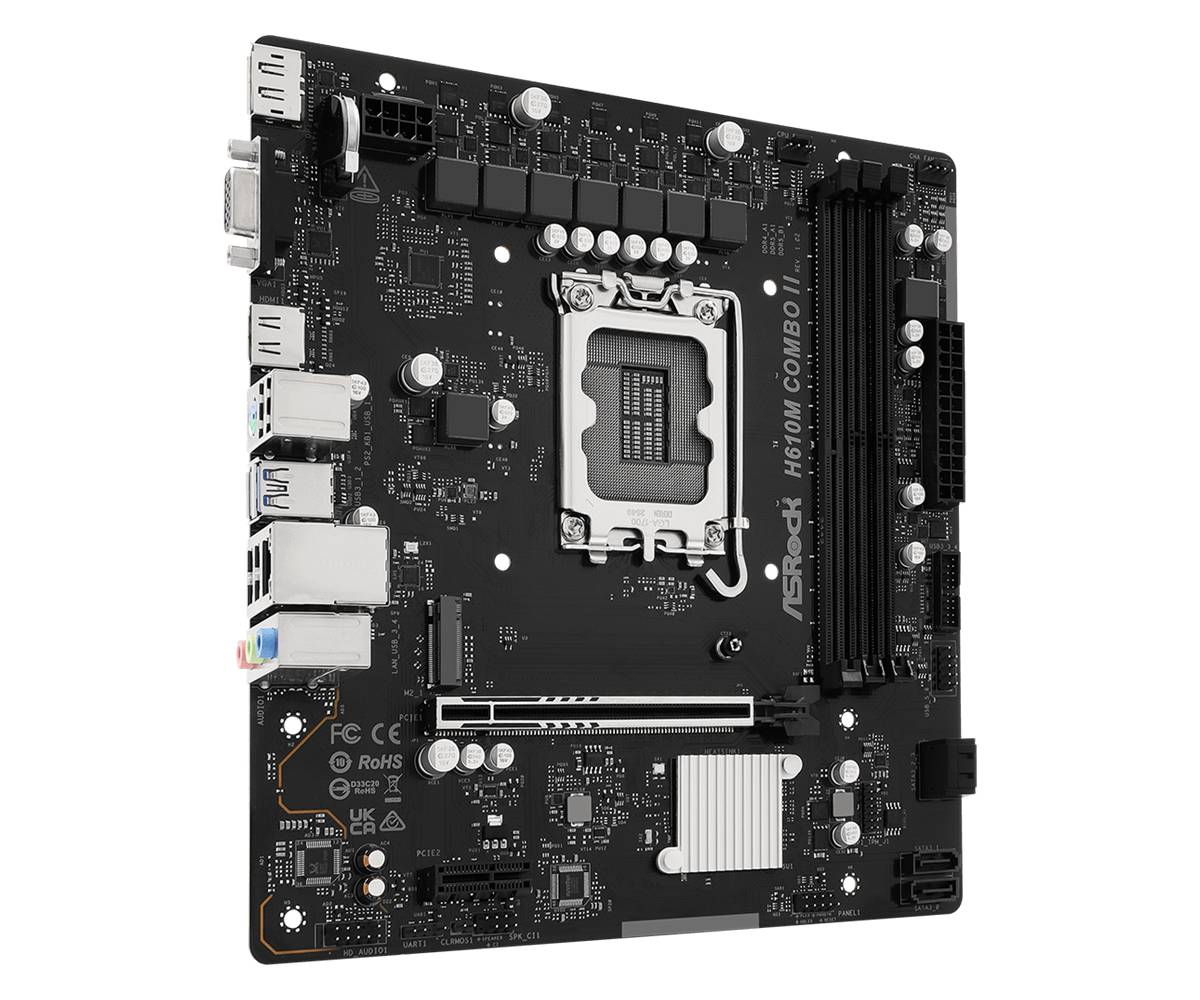

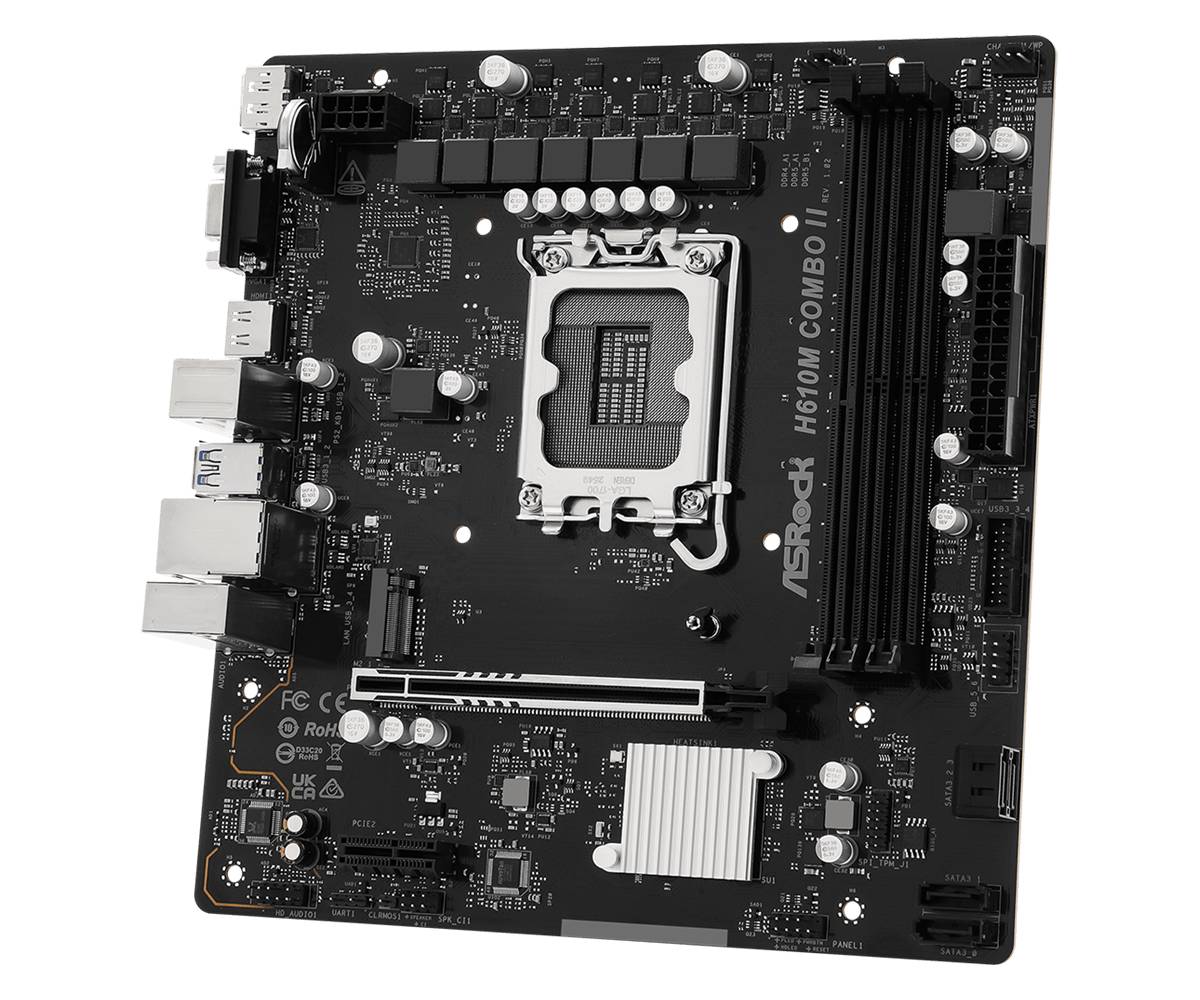

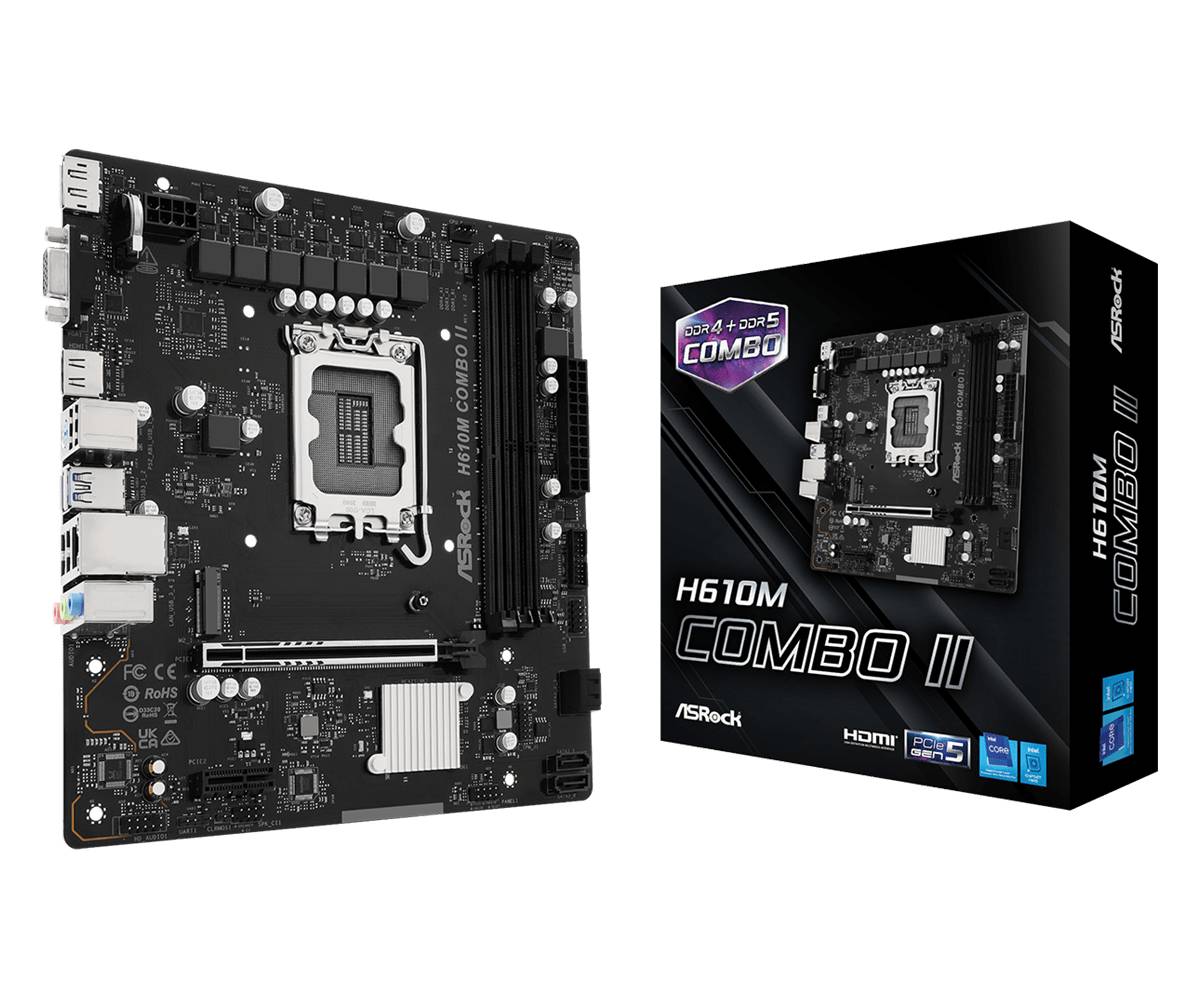

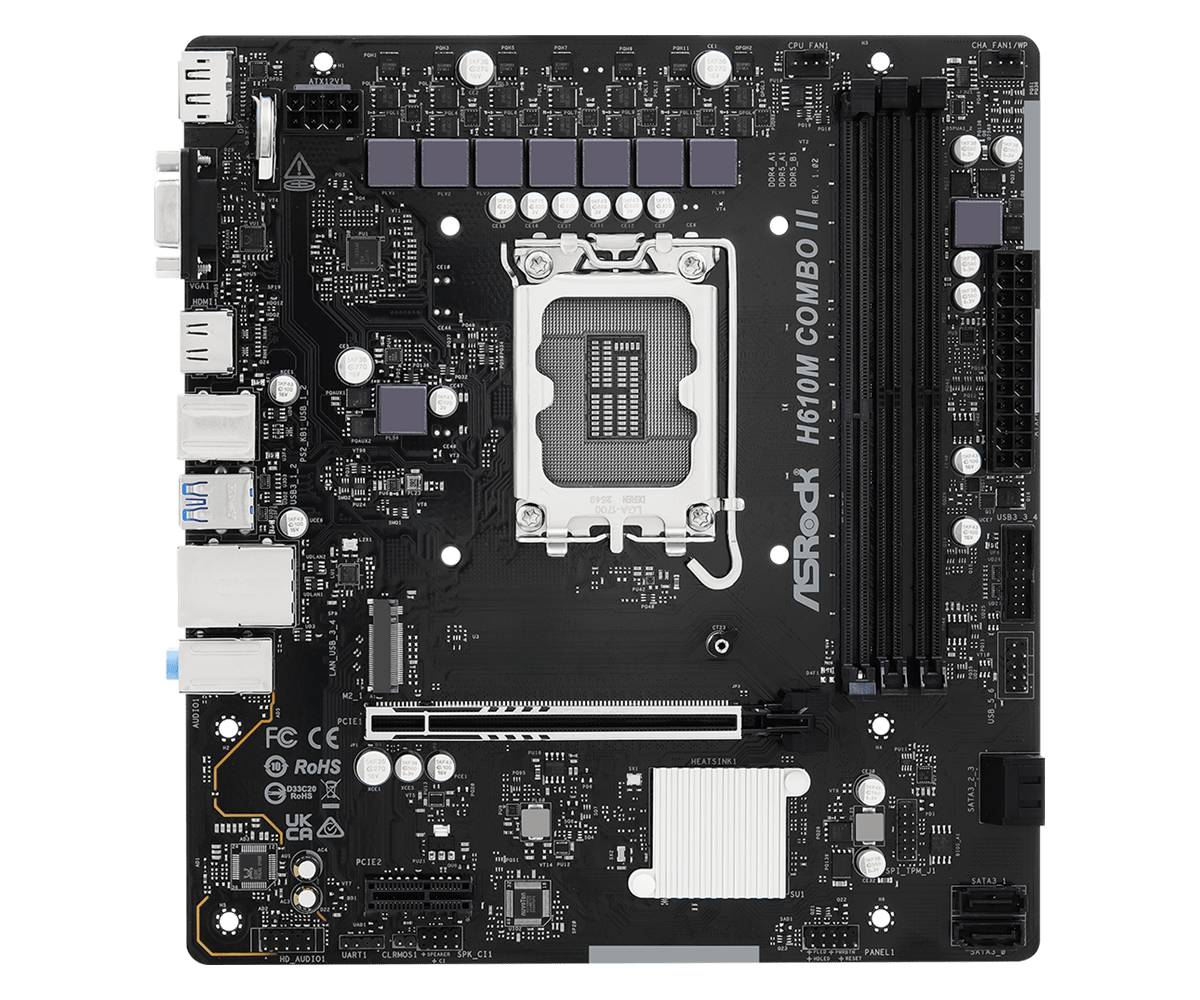

ASRock H610M Combo II

A flexible LGA1700 Micro ATX board for Intel 12th-14th Gen Core that accepts DDR5 or DDR4 memory, with PCIe 5.0 graphics and three display outputs.
Intel H610 · LGA1700DDR5 or DDR4 (combo)PCIe 5.0 x16HDMI + DP + VGA

The ASRock H610M Combo II (part number 90-MXBUN0-A0UAYZ) is an Intel H610 Micro ATX motherboard for 12th, 13th and 14th Gen Intel Core processors on Socket LGA1700. Its main advantage is memory flexibility: two DDR5 slots (up to 96GB) plus one DDR4 slot (up to 32GB) let you build with new DDR5 or reuse existing DDR4. A PCIe 5.0 x16 slot, an M.2 Gen3 x4 socket, four SATA ports and HDMI, DisplayPort and D-Sub outputs make it a practical base for office, business and entry gaming PCs.

Compatibility Note: Use either the DDR5 slots or the DDR4 slot — the two memory types are not used together. With DDR4 the single slot limits memory to one module (max 32GB, single channel). Video outputs require an Intel CPU with integrated graphics (non-F models).
Best For
✓ Office and business desktops
✓ Reusing existing DDR4 memory
✓ Core i3 / i5 12th-14th Gen builds
✓ Three-monitor setups including VGA
✓ Entry gaming with a PCIe 5.0 GPU
✓ Compact Micro ATX cases

Key Features


DDR5 or DDR4 Combo
Two DDR5 DIMM slots (up to 5600 with 14th Gen, 4800 with 12th/13th Gen, max 96GB, XMP 3.0) and one DDR4 slot (up to 3200, max 32GB, XMP 2.0) on the same board.

PCIe 5.0 x16 Slot
The CPU-connected graphics slot supports PCIe 5.0 x16, with an extra PCIe 3.0 x1 slot for a network, sound or capture card.

Three Display Outputs
HDMI 2.1 TMDS (4K 60Hz), DisplayPort 1.4 with DSC (up to 8K 60Hz / 5K 120Hz) and D-Sub VGA (Full HD 60Hz) for Intel UHD Graphics.

Business-Friendly I/O
PS/2 port for legacy keyboards/mice, SPI TPM header, chassis intrusion header, four SATA3 ports and an M.2 Gen3 x4 NVMe socket.

Technical Specifications

Identification
Part Number 90-MXBUN0-A0UAYZ
EAN / GTIN 4711581494671
Brand / Model ASRock H610M Combo II
Colour Black
Platform
CPU Support Intel Core 12th, 13th and 14th Gen, Socket LGA1700
Chipset Intel H610
Power Design 6+1+1 power phase
BIOS 128Mb AMI UEFI
Memory
DDR5 2x DIMM, dual channel · up to 5600 (14th Gen) / 4800 (12th/13th Gen) · max 96GB · XMP 3.0
DDR4 1x DIMM · up to 3200 · max 32GB · XMP 2.0 · ECC UDIMM in non-ECC mode
Expansion
PCIe Slots 1x PCIe 5.0 x16 (CPU) · 1x PCIe 3.0 x1 (chipset)
Storage
M.2 1x 2280 PCIe Gen3 x4 (32 Gb/s)
SATA 4x SATA3 6 Gb/s
Networking & Audio
LAN Gigabit LAN, Realtek 8111H
Audio 7.1 CH HD Audio, Realtek ALC897
Rear I/O

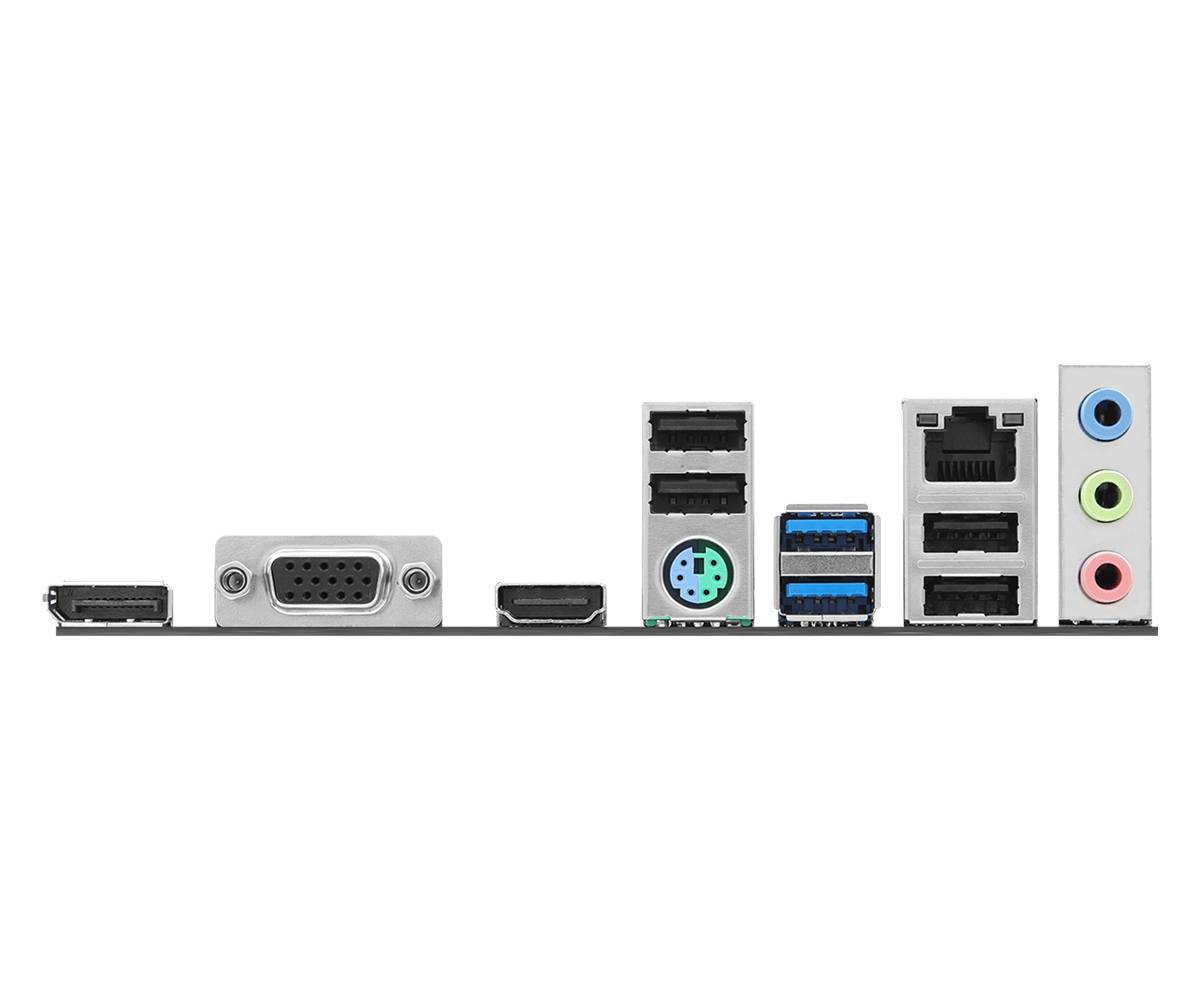

Ports 1x PS/2 · 1x D-Sub (FHD 60Hz) · 1x HDMI (4K 60Hz) · 1x DisplayPort 1.4 (8K 60Hz / 5K 120Hz) · 2x USB 3.2 Gen1 · 4x USB 2.0 · 1x RJ-45 · 3x audio jacks
Internal Headers 1x USB 3.2 Gen1 (2 ports) · 1x USB 2.0 (2 ports) · SPI TPM · chassis intrusion · 1x CPU fan · 1x chassis/water pump fan
Physical
Form Factor Micro ATX, 22 x 20.3 cm, solid capacitors
Power Connectors 1x 24-pin ATX + 1x 8-pin 12V
In the Box I/O shield, 2x SATA cables
OS Windows 10 / 11 64-bit

Frequently Asked Questions

Can I use DDR4 and DDR5 at the same time?
No. Install either DDR5 modules in the two DDR5 slots or a single DDR4 module in the DDR4 slot. DDR5 gives dual-channel performance and up to 96GB; the DDR4 slot is mainly for reusing an existing module.
Does it support 14th Gen Core i5 and i7 processors?
Yes. It supports 12th, 13th and 14th Gen Intel Core LGA1700 processors. As an H610 board it has no CPU or memory overclocking beyond XMP profiles, and a modest 6+1+1 phase design suits Core i3/i5 CPUs best.
Can I connect three monitors?
With a CPU that has integrated graphics, yes: HDMI, DisplayPort and VGA are all on the rear panel. F-series CPUs without graphics need a discrete graphics card.
What do I need to know before buying?
There is only one M.2 socket (PCIe Gen3 x4) and no Wi-Fi. CPU, cooler, memory and storage are sold separately.
Singular Expert Insight
The H610M Combo II is a practical business board: it lets you reuse DDR4 today and move to DDR5 later, and the VGA plus PS/2 ports keep older monitors and peripherals working. For gaming or heavier multitasking, a B760 or Core Ultra B860 platform with more M.2 slots and USB is the better investment.
✓ Buy it if you are deploying LGA1700 office PCs and want flexibility between DDR4 and DDR5.
✕ Skip it if you need Wi-Fi, more than one M.2 SSD or high-end Core i7/i9 performance.
→ Also consider ASRock B860M Challenger WiFi for Intel Core Ultra 200S with Wi-Fi 7 and Gen5 M.2.
