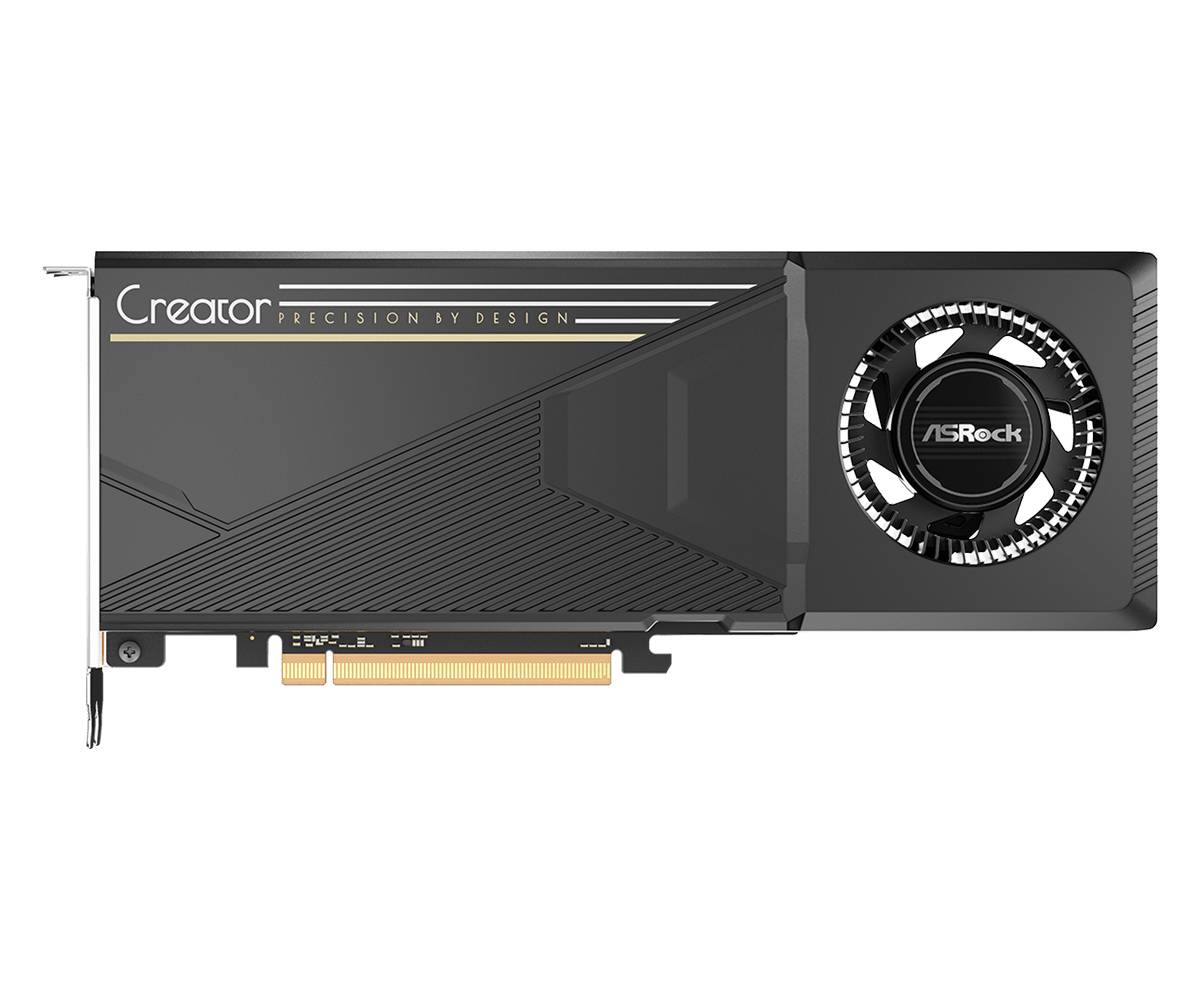

ASRock Intel Arc Pro B60 Creator 24GB GDDR6 Workstation Graphics Card PCIe 5.0 4x DisplayPort 2.1 Blower

Brand:
ASRock

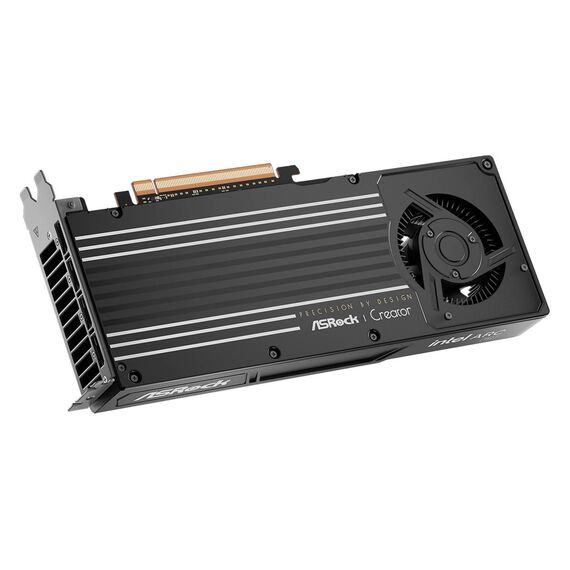

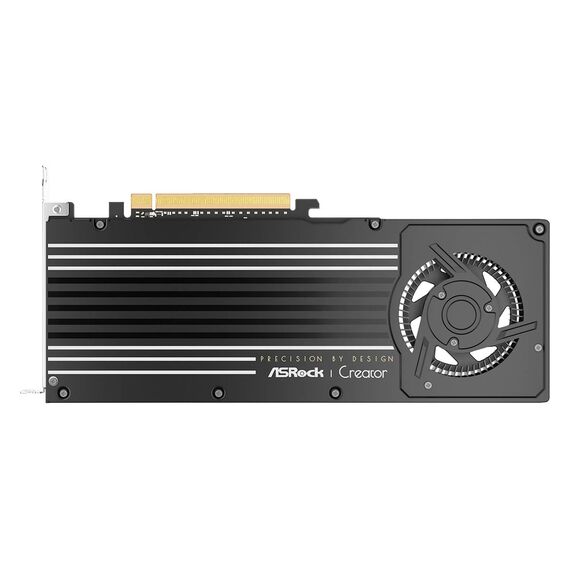

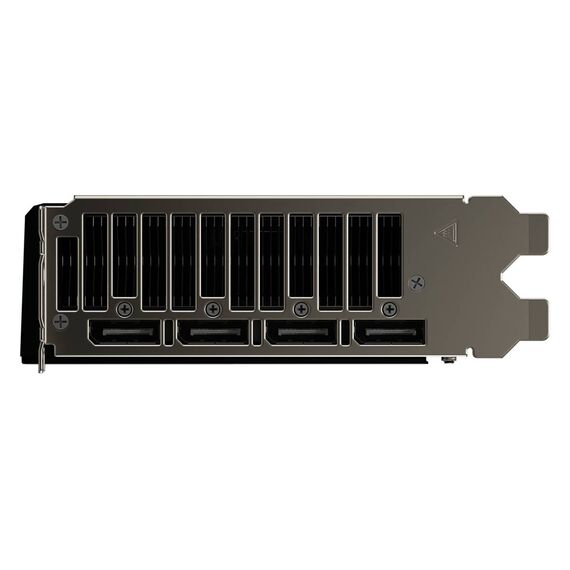

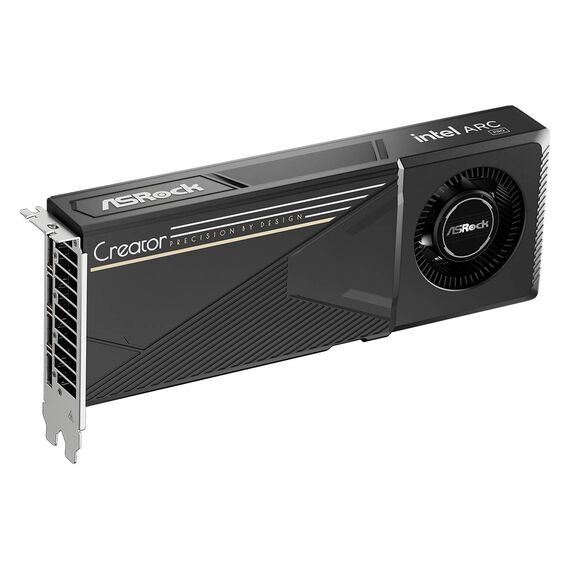

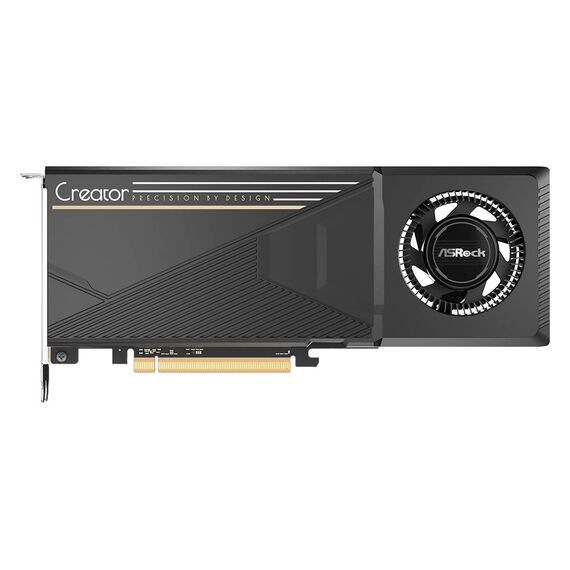

ASRock Intel Arc Pro B60 Creator 24GB Pro Graphics Card
ASRock Intel Arc Pro B60 Creator 24GB GDDR6 Workstation Graphics Card PCIe 5.0 4x DisplayPort 2.1 Blower
€1563.72 inc. VAT
Buy
90-GA60ZZ-00UBNF
€1,314.05
€1,563.72 inc. VAT
Ships from EU stock: 109 item(s)
+ −
Add to wish list Ask a question
Product Code
04:595680
EAN Code
4711140876542
Manufacturer
ASRock
Quick Specs
GPU
Intel Arc Pro B60 · Xe2-HPG
Memory
24GB GDDR6 · 192-bit
Interface
PCIe 5.0 x8
Outputs
4× DisplayPort 2.1
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

ASRock Intel Arc Pro B60 Creator 24GB Workstation Graphics Card

A 2-slot blower card with 24GB of GDDR6 for local AI inference, CAD, rendering and multi-GPU workstations.
24GB GDDR6160 XMX AI engines4× DisplayPort 2.12-slot blower

The ASRock Intel Arc Pro B60 Creator 24GB (part number 90-GA60ZZ-00UBNF) is a professional graphics card built on Intel's Xe2-HPG architecture, pairing the Arc Pro B60 GPU with 24GB of GDDR6 memory on a 192-bit bus for AI inference, 3D design and content-creation workstations.

With 20 Xe cores, 160 Intel XMX matrix engines and up to 456 GB/s of memory bandwidth, it is designed to hold large AI models and complex scenes in video memory. The card runs at 2400 MHz, supports DirectX 12 Ultimate and OpenGL 4.6, and connects over PCIe 5.0 x8 (x16 physical slot).

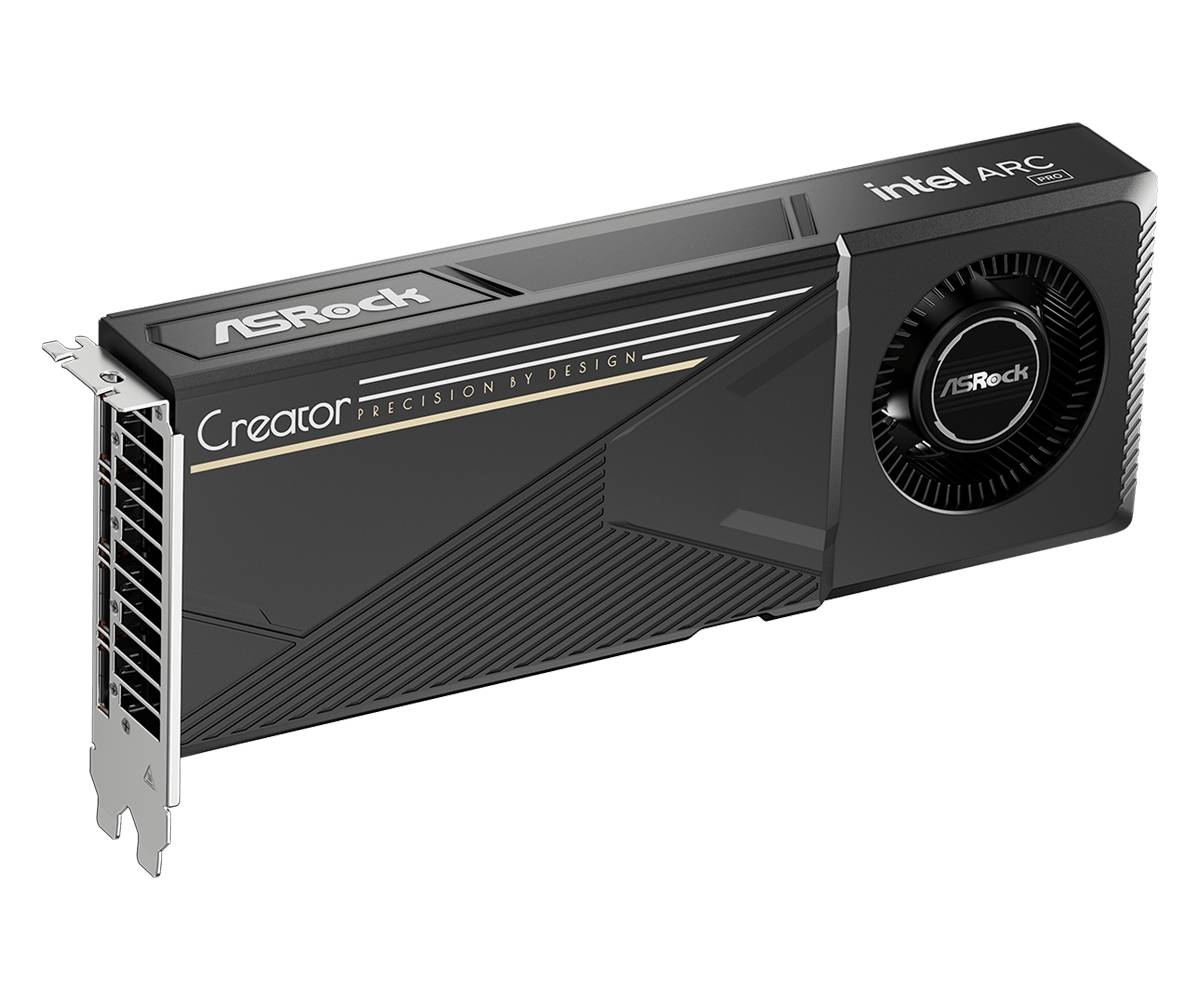

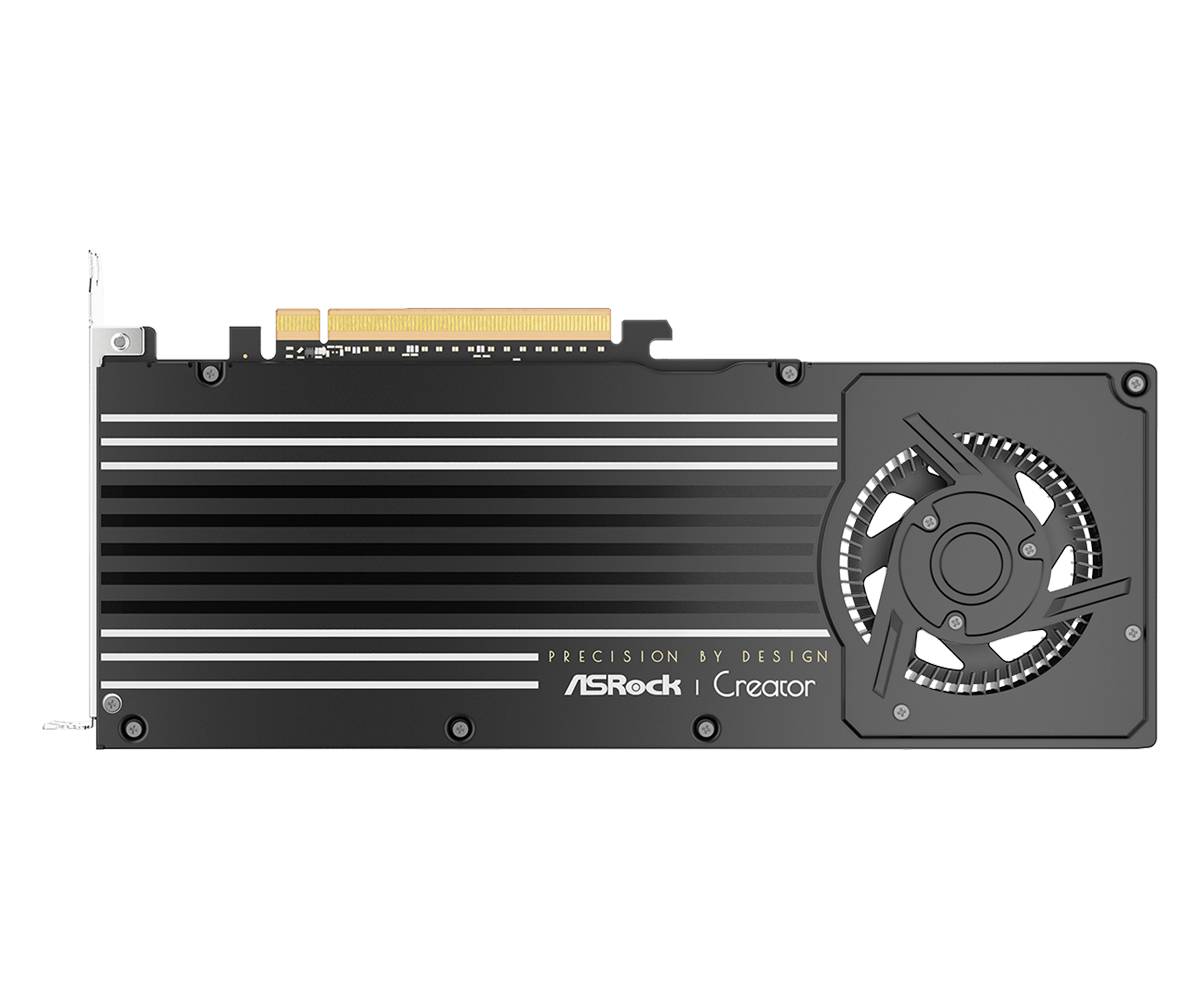

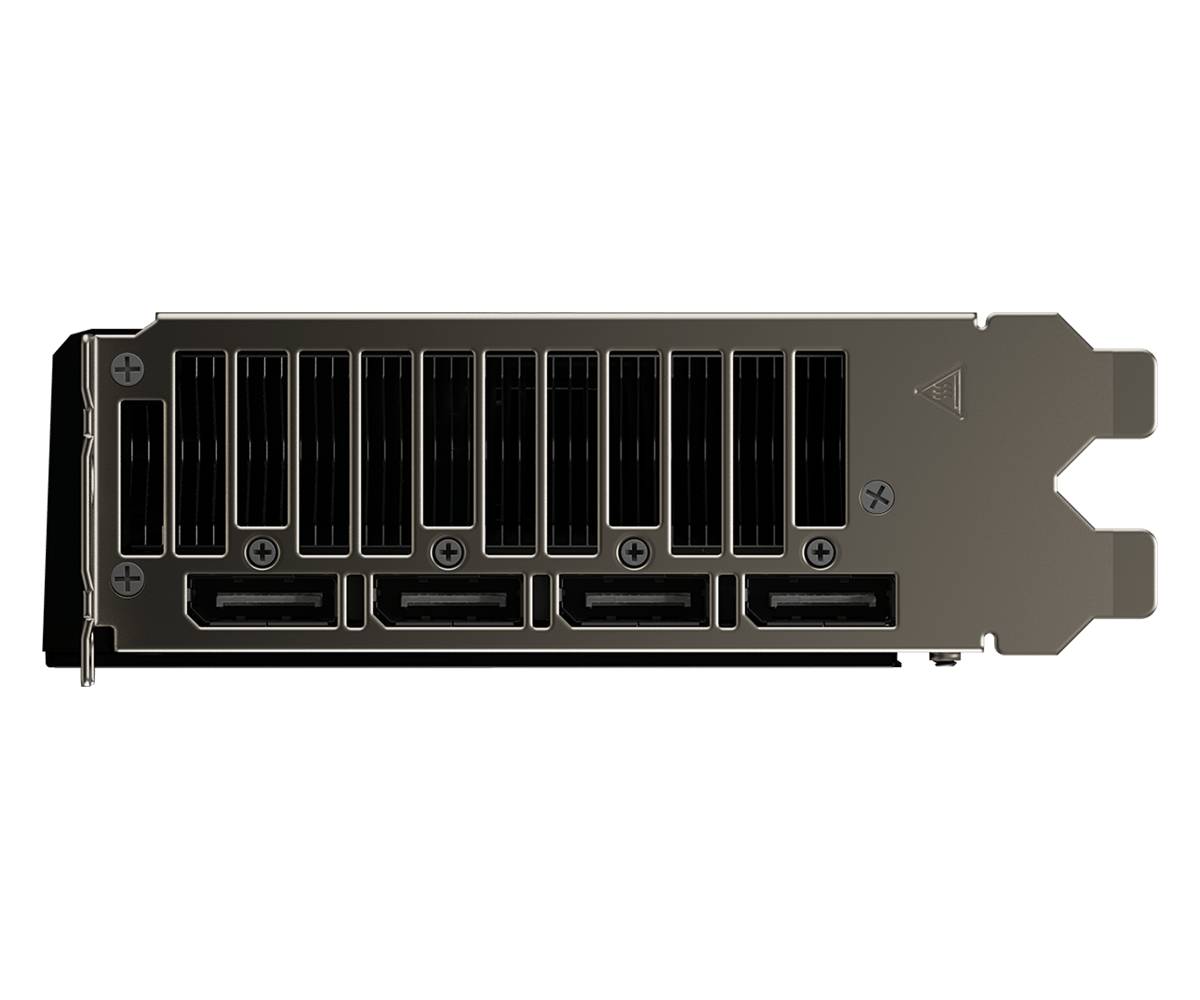

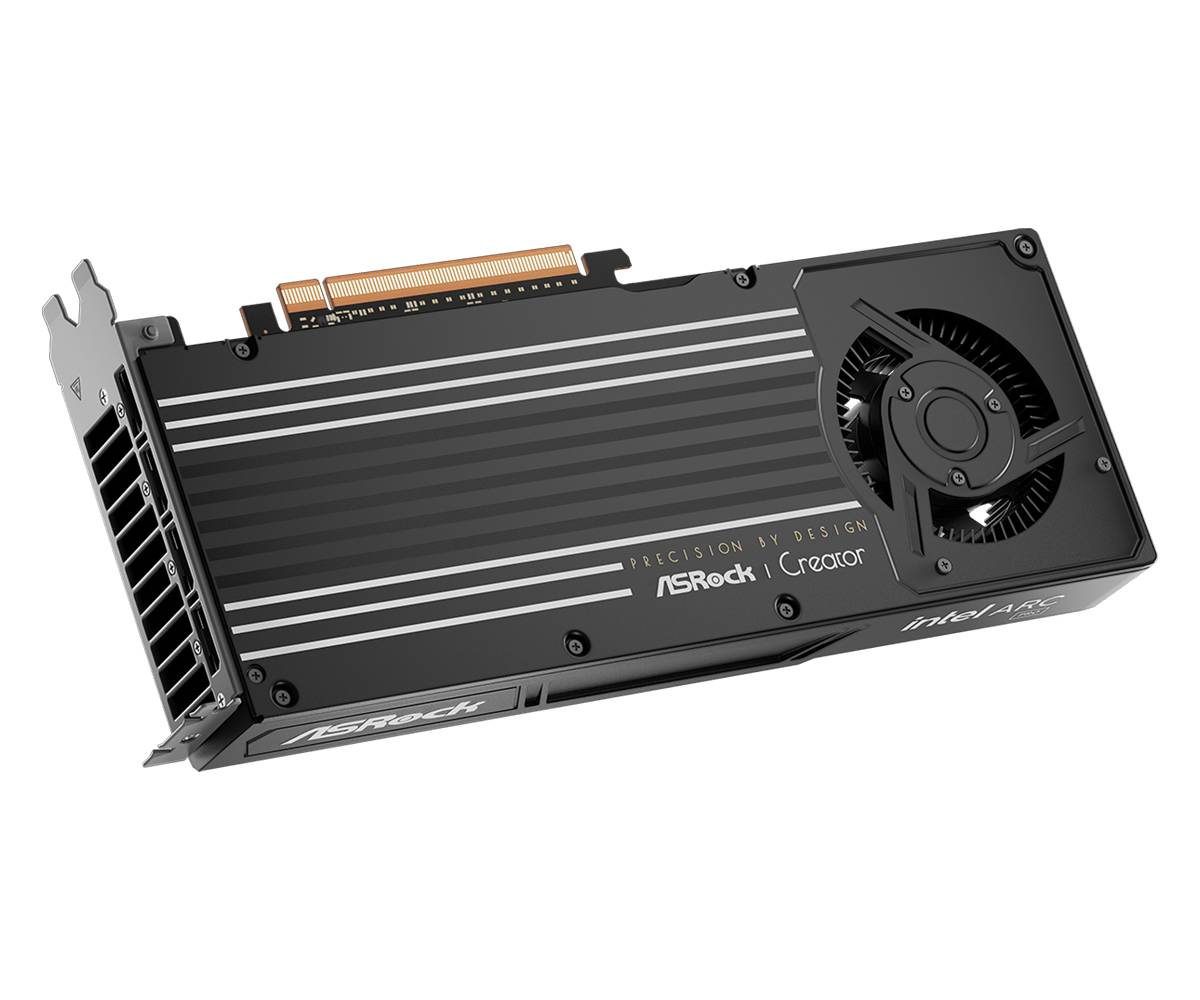

ASRock's Creator design uses a blower fan with a die-cast metal shroud and metal backplate in a dual-slot, 271 mm form factor, exhausting heat out of the case — ideal when several cards sit side by side. Four DisplayPort 2.1 outputs (one up to UHBR13.5, three up to UHBR10) drive up to four displays and resolutions up to 8K.

Compatibility note: There is no HDMI output — all four outputs are DisplayPort 2.1, so use DP-to-HDMI adapters for HDMI displays. Power is 1× 8-pin PCIe. ASRock recommends leaving about 30 mm of extra space beyond the 271 mm card length for the power cable. Professional workloads rely on Intel's Arc Pro drivers; check your application's certification list before deploying.

Best For

✓ Local LLM and AI inference
✓ CAD, BIM and 3D design
✓ Multi-GPU workstations (blower exhaust)
✓ Video editing and encoding
✓ Multi-monitor trading or control rooms
✓ Compact 2-slot professional builds

Key Features


24GB GDDR6 memory
Large VRAM on a 192-bit interface (456 GB/s) lets you load bigger AI models, datasets and 3D scenes without swapping to system memory.

Xe2 with XMX AI engines
160 Intel XMX engines accelerate matrix math for AI inference, with 20 Xe cores and hardware ray tracing for visualisation.

Blower cooling for dense builds
Nickel-plated copper base, heatpipes and 0 dB silent cooling with a blower fan that exhausts hot air through the bracket — well suited to multi-card systems.

4× DisplayPort 2.1
One UHBR13.5 and three UHBR10 DisplayPort 2.1 outputs support up to four displays and 7680 × 4320 resolution.

Technical Specifications

Identification
Part Number 90-GA60ZZ-00UBNF
Model Arc Pro B60 Creator 24GB
EAN / GTIN 4711140876542
Brand ASRock (Creator series)
GPU
Graphics engine Intel Arc Pro B60
Architecture Intel Xe2-HPG
Xe cores 20
Intel XMX engines 160 — matrix engines for AI acceleration
GPU clock 2400 MHz
API support DirectX 12 Ultimate · OpenGL 4.6
Memory
Capacity 24GB GDDR6
Interface 192-bit
Memory speed 19 Gbps
Bandwidth 456 GB/s (calculated)
Display & Interface
Bus interface PCIe 5.0 x8 (x16 physical slot)
Outputs 1× DisplayPort 2.1 (UHBR13.5) · 3× DisplayPort 2.1 (UHBR10)
HDMI None
Max resolution 7680 × 4320
Multi-view 4 displays
HDCP Yes
Power & Cooling
Power connector 1× 8-pin PCIe
Cooling Blower fan · nickel-plated copper base · heatpipes · 0 dB silent cooling · die-cast metal shroud · metal backplate
Physical
Dimensions 271 × 112 × 39 mm (+30 mm recommended for power cable)
Slot width 2-slot
Net weight 1118 g

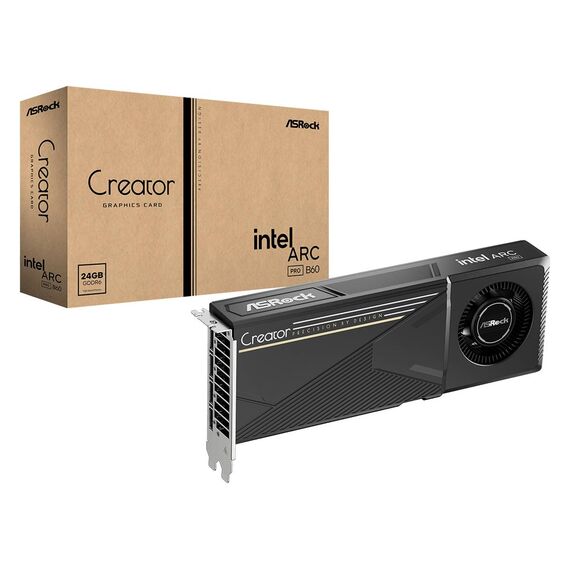

In the Box
Included Quick installation guide

Frequently Asked Questions

Is the ASRock Arc Pro B60 Creator 24GB good for running local AI models?
Yes — that is a key target. 24GB of VRAM and 160 XMX engines let it run mid-sized LLMs and image-generation models locally, and the blower design allows multiple cards in one workstation to pool capacity.
Does it have HDMI?
No. The card has four DisplayPort 2.1 outputs only (the distributor listing mentioning HDMI is incorrect). Use an active DP-to-HDMI adapter if needed.
What is the difference between the Arc Pro B60 Creator 24GB and the Arc Pro B65 Creator 32GB (90-GA6MZZ-00UANF)?
The B60 has 24GB on a 192-bit bus with PCIe 5.0 x8 and one 8-pin connector; the B65 steps up to 32GB on a 256-bit bus (608 GB/s) with PCIe 5.0 x16 and a 12V-2x6 connector.
Can I use it for gaming?
It supports DirectX 12 Ultimate and will run games, but it is tuned and priced for professional workloads. For a gaming PC, a consumer Radeon RX 9070 series or Arc B-series card is better value.
Singular Expert Insight
The Arc Pro B60 Creator 24GB is about memory per euro: 24GB of VRAM in a slim 2-slot blower lets workstation builders run local AI and heavy 3D scenes without stepping up to far pricier pro cards. Accept DisplayPort-only outputs and Intel's pro driver ecosystem, and it is excellent value. Browse our Intel graphics cards for the full Arc range.
✓ Buy it if you need lots of VRAM for AI inference, CAD or rendering, especially in multi-GPU or compact workstations.
✕ Skip it if you mainly game, need HDMI outputs, or rely on software certified only for NVIDIA RTX Pro.
→ Also consider the ASRock Arc Pro B65 Creator 32GB (90-GA6MZZ-00UANF); or an NVIDIA RTX Pro card if your software requires CUDA.
