ASRock H610M-HVS/M.2 D5 Gen5 — Budget LGA 1700 with PCIe 5.0
LGA 1700 · Intel H6102× DDR5 up to 5600 MHzPCIe 5.0 x16 + Ultra M.2HDMI · VGA · GbE

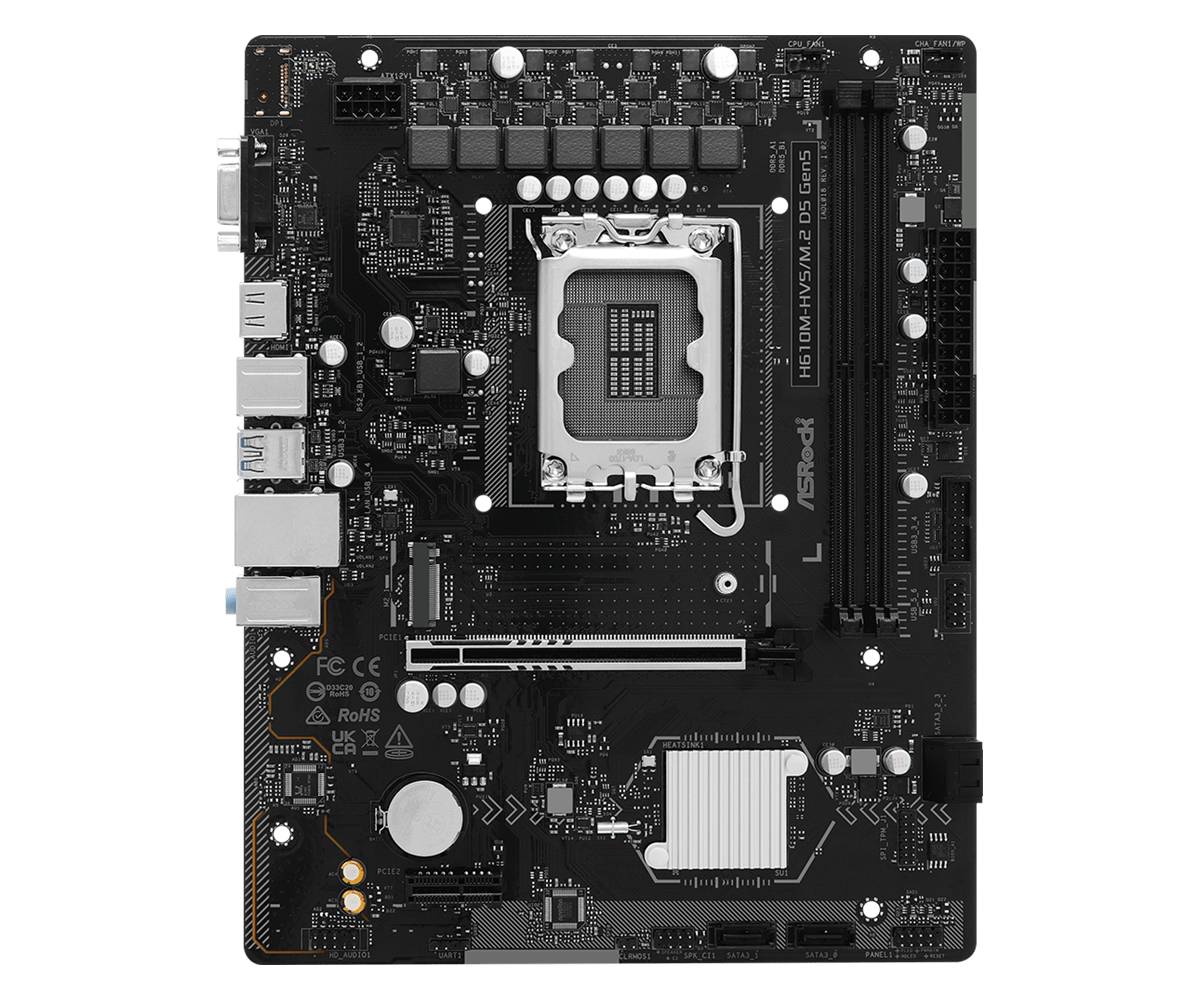

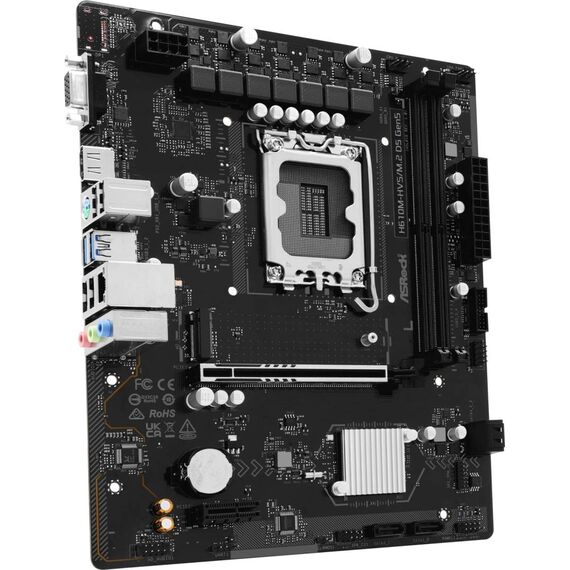

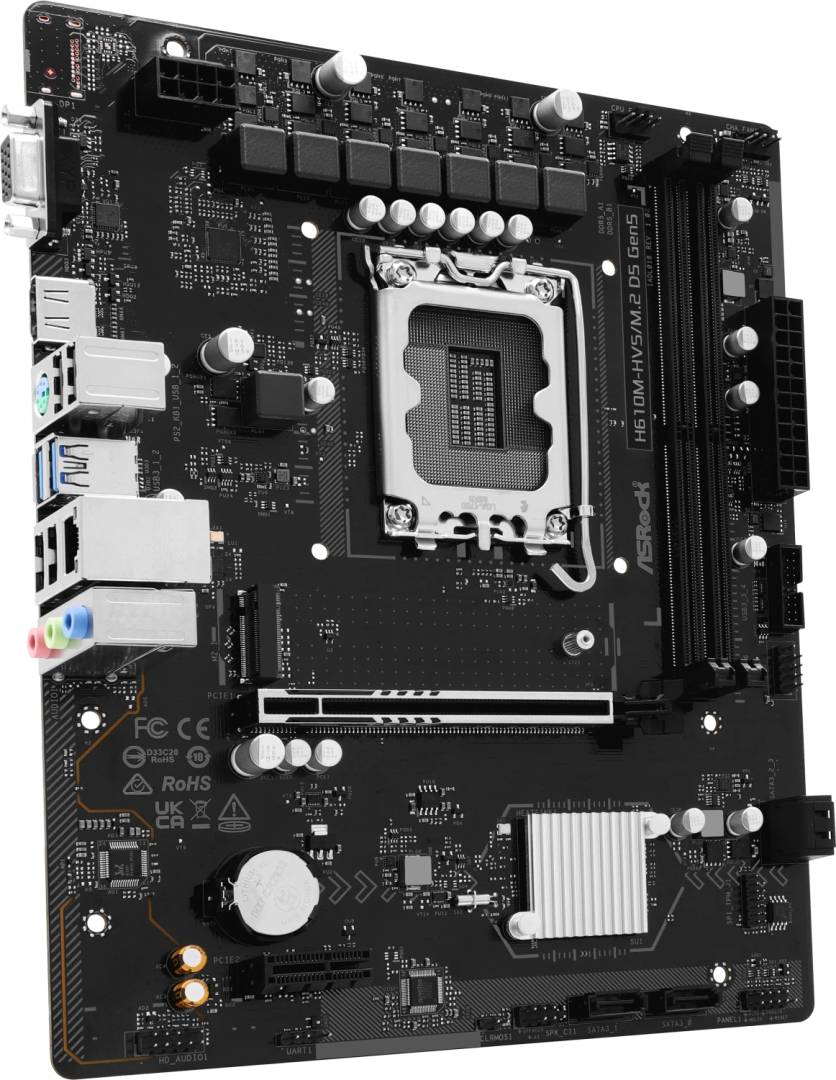

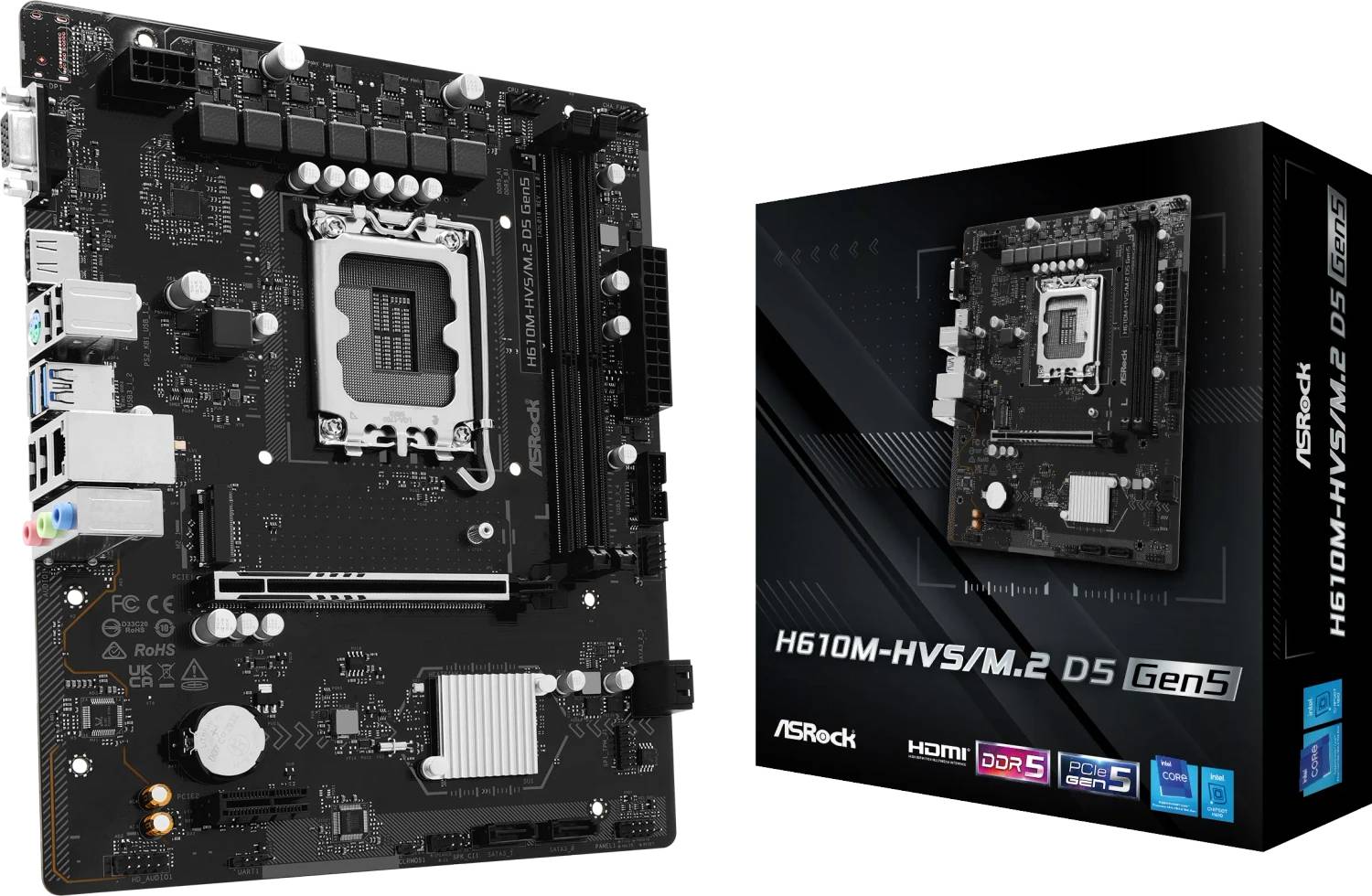

The ASRock H610M-HVS/M.2 D5 Gen5 is an entry-level micro-ATX motherboard built on the Intel H610 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th Generation Intel Core processors. Sold under ASRock part number 90-MXBTV0-A0UAYZ (EAN 4711581492448), it stands out by offering a PCIe 5.0 x16 graphics slot on a budget board, along with DDR5 memory, an Ultra M.2 slot and four SATA ports — an affordable base for everyday and office systems that still want a PCIe 5.0 GPU path. Typically in stock with fast delivery across Cyprus.
Compatibility — read before buying
This is an LGA 1700 board supporting 12th/13th/14th Gen Intel Core CPUs — it is not compatible with the newer LGA 1851 Core Ultra processors. This is the DDR5 version (no DDR4), with two DIMM slots. Note the PCIe 5.0 bandwidth applies to the x16 graphics slot; the M.2 slot runs at PCIe Gen3.
Best For
✓Home and office LGA 1700 builds
✓Budget systems that still want a PCIe 5.0 GPU slot
✓Compact Micro-ATX cases
✓Builds using integrated graphics (HDMI/VGA)
✓Single NVMe + four SATA storage
✓Pairing with 12th–14th Gen Core i3/i5 CPUs
Key Features
PCIe 5.0 x16 on a budget
Unusually for an H610 board, the primary x16 slot runs at PCIe 5.0, giving an affordable system a path to next-generation graphics bandwidth.
DDR5 memory
Two DDR5 DIMM slots run in dual channel at up to 5600 MHz for smooth, modern everyday performance.
Ultra M.2 + 4× SATA
An Ultra M.2 slot (PCIe Gen3 x4) for a fast boot SSD, plus four SATA 6Gb/s ports — generous storage for a budget board.
Flexible display & audio

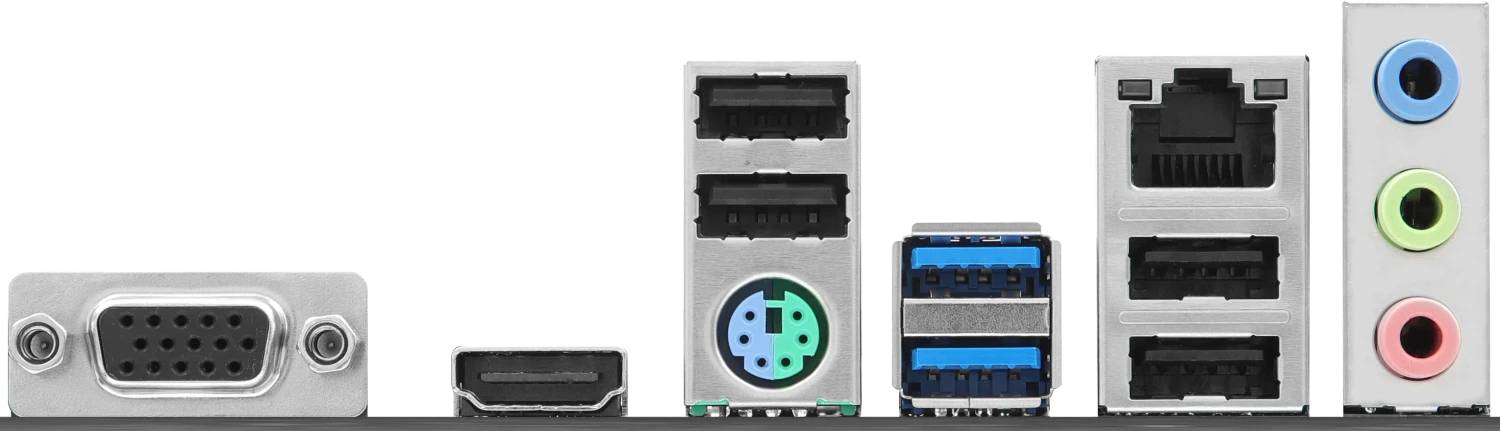

HDMI and D-Sub (VGA) outputs support modern and legacy monitors via integrated graphics, with Realtek ALC897 7.1-channel HD audio and Gigabit LAN.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The H610M-HVS/M.2 D5 Gen5 is a budget LGA 1700 board with one standout trick — a PCIe 5.0 x16 slot rarely seen at this price — making it a smart pick if you want a cheap base now with a path to a Gen5 GPU later. Just note the single M.2 is Gen3, not Gen5. If you need the latest platform with Gen5 storage and faster networking, the LGA 1851 Gigabyte B860M D3HP or ASUS Prime B860M-K are the upgrades. Add an affordable internal NVMe SSD for a responsive everyday system.
Buyer's Guide
Buy it if
You want the cheapest way into a 12th–14th Gen DDR5 build that still includes a PCIe 5.0 x16 graphics slot and four SATA ports.
Skip it if
You want Gen5 M.2 storage, more DIMM slots, 2.5GbE or the latest Core Ultra platform — choose an LGA 1851 B860 board.
Also consider
The Gigabyte B860M D3HP or ASUS Prime B860M-K for the newer LGA 1851 platform with Gen5 storage.
Features - ASRock - 90-MXBTV0-A0UAYZ
CPU Socket
- Socket 1700
Colour
black
Interface
- USB3.0,
- M.2,
- Ethernet
More Details
Product Code
03:278261
EAN Code
4711581492448
Manufacturer
ASRock
