ASRock DeskMini WiFi Kit M.2 2230 Dual-Band Wi-Fi 5 Bluetooth 4.2 with 2 External Antennas

Brand:
ASRock
ASRock Network adapter M.2 Card Bluetooth 90BXG2T0A0XCR7Z
ASRock DeskMini WiFi Kit M.2 2230 Dual-Band Wi-Fi 5 Bluetooth 4.2 with 2 External Antennas
€25.74 inc. VAT
Buy
90-BXG2T0-A0XCR7Z
€21.63 €24.03
€25.74 inc. VAT
Ships from EU stock: 43 item(s)
+ −
Add to wish list Ask a question
Product Code
04:305178
EAN Code
4717677333688
Manufacturer
ASRock

Quick Specs

Wireless
Wi-Fi 5 Dual Band
Bluetooth
Bluetooth 4.2
Interface
M.2 2230
Antennas
2x External
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

ASRock DeskMini WiFi Kit — M.2 Wireless Upgrade

Wi-Fi 5Dual BandBluetooth 4.22 external antennas

The ASRock DeskMini WiFi Kit, manufacturer part number 90-BXG2T0-A0XCR7Z, adds wireless networking and Bluetooth connectivity to compatible ASRock DeskMini systems. The kit uses an internal M.2 2230 wireless module and includes two external antennas for the DeskMini chassis.

Compatibility — check before buying:
This kit is intended for ASRock DeskMini systems with the appropriate M.2 Wi-Fi slot and antenna mounting points. ASRock documentation for supported DeskMini generations identifies the optional wireless kit as an 802.11ac Wi-Fi kit. Do not confuse this EAN with newer Wi-Fi 6 upgrade kits that may use different wireless modules.

Best For

✓ Adding Wi-Fi to compatible ASRock DeskMini systems
✓ Adding Bluetooth connectivity
✓ 2.4 GHz and 5 GHz wireless networks
✓ Internal installation with external antennas

Key Features


Wi-Fi 5 dual-band connectivity
The exact kit is associated with an 802.11ac dual-band wireless module, allowing compatible DeskMini systems to connect to both 2.4 GHz and 5 GHz Wi-Fi networks.

Bluetooth 4.2
Bluetooth support provides wireless connectivity for compatible peripherals such as keyboards, mice, headsets and other Bluetooth devices.

M.2 2230 internal module
The wireless card installs internally in the DeskMini's supported M.2 wireless slot, keeping the USB ports free for other peripherals.

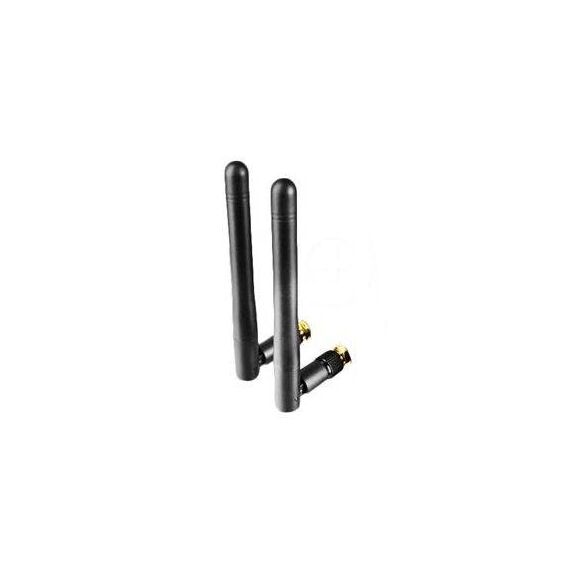

Two external antennas included
ASRock describes the DeskMini WiFi Kit as including an Intel M.2 Wi-Fi module together with two antennas, providing the components required for the wireless upgrade.

Technical Specifications

Identification
Brand ASRock
Product DeskMini WiFi Kit
MPN 90-BXG2T0-A0XCR7Z
EAN / GTIN 4717677333688
Wireless
Wi-Fi Standard Wi-Fi 5 (IEEE 802.11ac)
Frequency Bands 2.4 GHz and 5 GHz
Bluetooth Bluetooth 4.2
Interface & Design
Host Interface M.2
Module Format M.2 2230
Installation Internal
Antenna Design External
Compatibility & Package
Compatible Product Family ASRock DeskMini

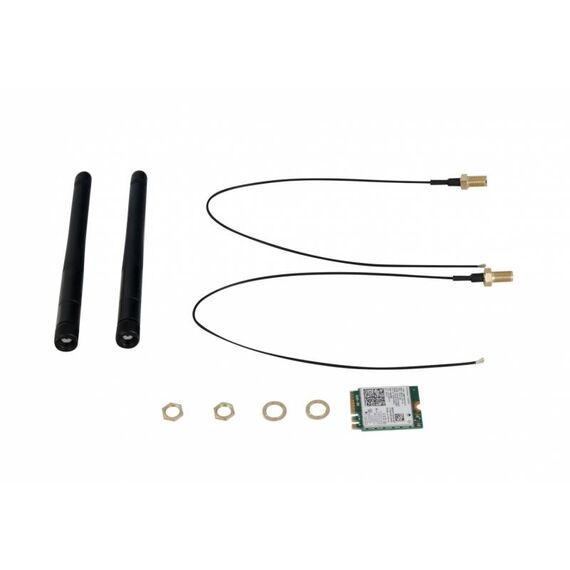

Included Intel M.2 Wi-Fi module and 2 external antennas

Frequently Asked Questions

Is this a Wi-Fi 6 kit?
No. The exact EAN and original DeskMini kit are associated with the 802.11ac generation, commonly identified as Wi-Fi 5. Newer ASRock-compatible wireless modules may offer Wi-Fi 6, but they should not be treated as the same product variant.
Does it also add Bluetooth?
Yes. This DeskMini WiFi Kit provides both WLAN and Bluetooth connectivity, with the exact variant identified as Bluetooth 4.2.
Are antennas included?
Yes. ASRock describes the kit as including the Intel M.2 Wi-Fi module and two antennas.
Will it fit every PC with an M.2 slot?
It is sold specifically as a DeskMini WiFi Kit. Compatibility should therefore be confirmed against the exact ASRock DeskMini model rather than assuming that any M.2-equipped PC is supported.
Singular Expert Insight
The important detail with this kit is the exact part number and EAN. Some current retailer listings incorrectly associate 90-BXG2T0-A0XCR7Z / 4717677333688 with newer Wi-Fi 6 specifications. ASRock's DeskMini documentation for the generations associated with this accessory identifies the optional kit as 802.11ac, while exact-EAN distributor data identifies the module as the older Wi-Fi 5 / Bluetooth 4.2 version. For that reason, this listing deliberately does not apply Wi-Fi 6 or Bluetooth 5.x specifications to this SKU.

Buyer’s Guide

Buy it if

You have a compatible ASRock DeskMini without wireless connectivity and need an internal Wi-Fi 5 and Bluetooth upgrade with external antennas.

Check first

Confirm that your exact DeskMini model supports the optional M.2 Wi-Fi kit and has the required antenna mounting positions before installation.

Good to know

This exact SKU belongs to the Wi-Fi 5 generation. If you specifically need Wi-Fi 6 or newer Bluetooth, choose a separately verified newer module instead.
