ASRock Industrial NUCS BOX-225H Slim Barebone

A slim industrial Arrow Lake-H AI barebone with Intel Arc graphics and quad-display output — add memory, an SSD and an OS.
Core Ultra 5 225HIntel Arc 130TThunderbolt 4 · Quad 4KvPro · TAA

The ASRock Industrial NUCS BOX-225H is a slim, fanned industrial barebone mini PC built around the Intel Core Ultra 5 225H (Arrow Lake-H) processor with Intel Arc 130T graphics and an on-chip NPU, designed for edge AI, digital signage and managed business deployments that need performance in a thin 38mm chassis. Supplied under part number 90PXGE80-P0EAY100 (EAN 4711420964259), it ships without memory, storage or an operating system — the CPU, Wi-Fi 6E module, 90W adapter and VESA bracket are included, while you add the DDR5 memory, M.2 NVMe SSD and OS. Typically in stock with fast delivery across Cyprus.

Barebone — what you need to add
To complete the build you will need: DDR5-6400 CSO-DIMM memory (2 slots, up to 96GB total / 48GB per module); one or two M.2 SSDs — an M.2 2280 slot on PCIe Gen4 x4 plus an M.2 2242 slot on PCIe Gen4 x1, with Intel VMD RAID 0/1; and an operating system (Windows 10 or 11). The Wi-Fi 6E + Bluetooth module, 90W AC adapter and VESA mounting bracket are already included.

Best For

✓Edge AI & computer vision
✓Digital signage & kiosks
✓Quad-display workstations
✓24/7 industrial deployments
✓Managed business fleets (vPro)
✓Slim space-constrained installs

Key Features


Arrow Lake-H with Arc 130T & NPU
The Intel Core Ultra 5 225H pairs 14 cores with Intel Arc 130T graphics and a dedicated NPU for modern AI, vision and analytics workloads at the edge.

Slim 38mm fanned chassis
At 117.5 x 110 x 38 mm and 1.0kg, the NUCS slim chassis fits tight installs and mounts cleanly behind a display via VESA, rated for 0–40°C use.

Quad-display + Thunderbolt 4
Two HDMI 2.1 ports plus DisplayPort 2.1 and 1.4a over USB-C drive up to four 4K displays, with a USB4 / Thunderbolt 4 port for fast peripherals.

Managed & TAA-compliant
Intel vPro Essentials, firmware TPM (Intel PTT), VMD RAID 0/1 and TAA compliance fit regulated and centrally-managed environments.

Technical Specifications

Identification
Part Number 90PXGE80-P0EAY100
EAN / GTIN 4711420964259
MPN NUCS BOX-225H
Series ASRock Industrial NUCS BOX (Arrow Lake-H, Slim Fanned)
Processor, Graphics & AI
Processor Intel Core Ultra 5 225H — Arrow Lake-H, 14 cores (4 P-cores + 8 E-cores + 2 LP E-cores), 14 threads
Graphics Intel Arc 130T Graphics
AI acceleration On-chip Intel NPU — an AI PC, not a Copilot+ device
Memory & Storage (not included)
Memory 2 x DDR5-6400 CSO-DIMM, up to 96GB total / 48GB per DIMM, dual channel (user-supplied)
Storage 1 x M.2 Key M 2280 (PCIe Gen4 x4) + 1 x M.2 Key M 2242 (PCIe Gen4 x1), Intel VMD RAID 0/1 (user-supplied)
Connectivity
Wireless Wi-Fi 6E (802.11ax) + Bluetooth 5.3 — M.2 module included
Wired LAN 1 x Intel I226LM 2.5 Gigabit Ethernet (vPro)

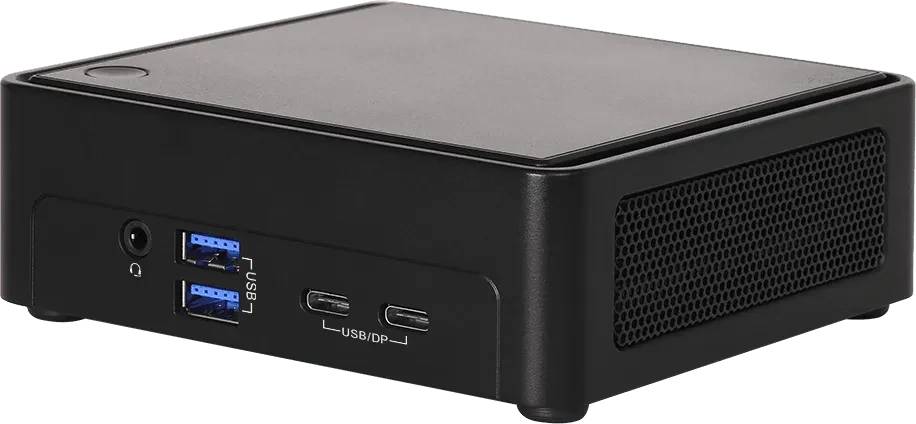

Front ports 1 x USB4 / Thunderbolt 4 (DP 2.1), 1 x USB-C 3.2 Gen2x2 (DP 1.4a), 2 x USB-A 3.2 Gen2, audio jack

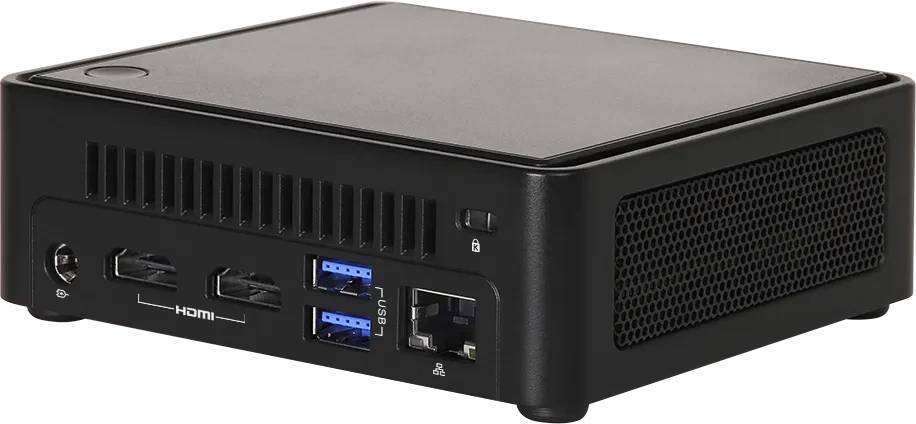

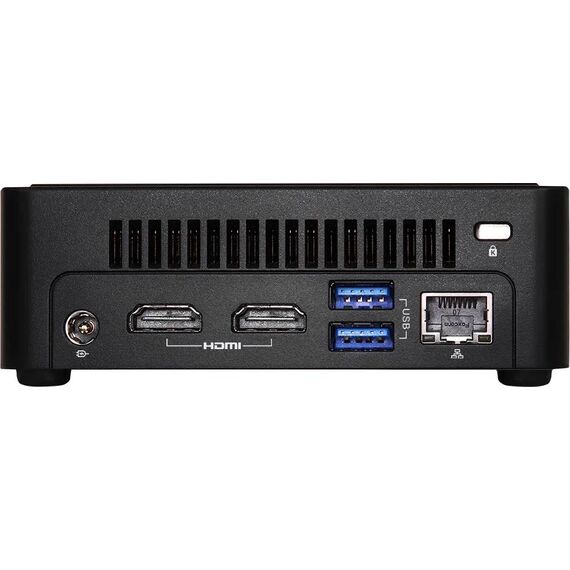

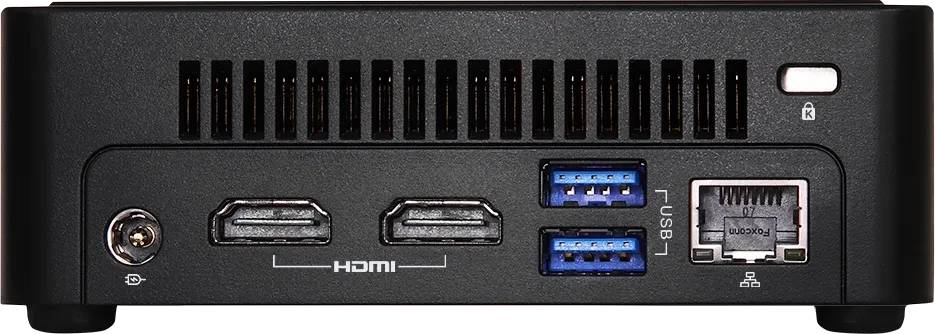

Rear ports 2 x HDMI 2.1, 2 x USB-A 3.2 Gen2, 1 x 2.5G LAN, DC-in
Display support Quad-display — 2 x HDMI 2.1 + DisplayPort 2.1 + DisplayPort 1.4a (via Type-C), up to 4K@60Hz
Security, Power & Chassis
Security & management Intel PTT (firmware TPM), Intel vPro Essentials, Intel VMD RAID 0/1; TAA compliant
Power 12–24V DC-in; 19V / 90W external adapter (Core Ultra 5) — included
Operating temperature 0°C ~ 40°C — industrial continuous-use rating
Dimensions / Weight 117.5 x 110.0 x 38 mm, 1.0kg — VESA-mountable, slim fanned
In the box 19V/90W AC adapter, VESA mount bracket
Operating system Not included (barebone) — supports Windows 10 / 11
Colour / Condition Black / New

Frequently Asked Questions

What do I need to add to the NUCS BOX-225H before using it?
As a barebone it includes the Core Ultra 5 225H processor, cooling, Wi-Fi 6E module, 90W adapter and VESA bracket. You add DDR5-6400 CSO-DIMM memory (up to 96GB), one or two M.2 SSDs, and an operating system such as Windows 10 or 11.
How many displays can it drive at once?
Up to four. Two come from the rear HDMI 2.1 ports and two more from the USB-C outputs (DisplayPort 2.1 and 1.4a), all up to 4K at 60Hz.
What is the difference between the NUCS BOX-225H and the NUC BOX-225H?
Both use the Core Ultra 5 225H and Arc 130T. The NUCS model is the slim 38mm chassis with a single 2.5G LAN and two M.2 slots; the standard NUC BOX-225H is a taller 49mm chassis that adds a second 2.5G LAN and a SATA3 port.
Does it support business management and secure procurement?
Yes. It offers Intel vPro Essentials for remote management, firmware TPM (Intel PTT) and TAA compliance for government and enterprise procurement, plus an on-chip NPU for local AI workloads.
Singular Expert Insight
The NUCS BOX-225H is the slim sibling of ASRock’s 225H industrial mini: the same Arrow Lake-H performance, Arc 130T graphics, AI NPU, vPro Essentials and TAA compliance in a thinner 38mm body, ideal where space is tight. If you need dual LAN or a SATA bay, choose the taller NUC BOX-225H; for more compute, the NUCS BOX-255H steps up to a Core Ultra 7. Because it is a barebone, you fit only the DDR5 memory and NVMe SSD your project needs.

Buyer’s Guide

Buy it if
You need a slim industrial edge-AI or signage mini with Arc graphics, quad 4K and vPro / TAA, and want to choose your own DDR5, SSD and OS.
Skip it if
You need dual LAN, a SATA bay or a certified Copilot+ PC (40+ TOPS NPU) — choose the NUC BOX-225H or a higher tier.
Also consider
The NUC BOX-225H (taller, dual LAN + SATA) or the NUCS BOX-255H (Core Ultra 7 255H) for more performance.
