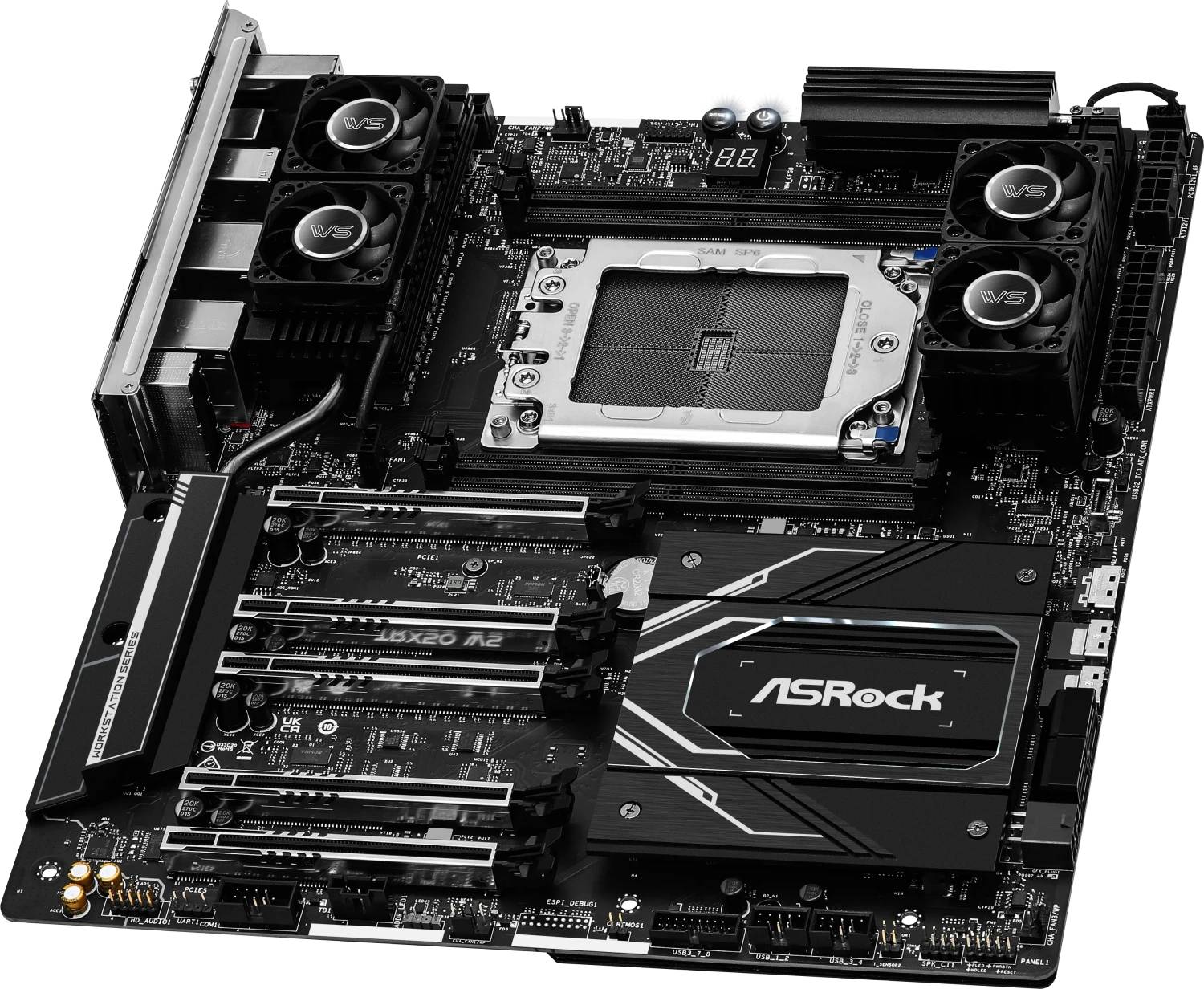

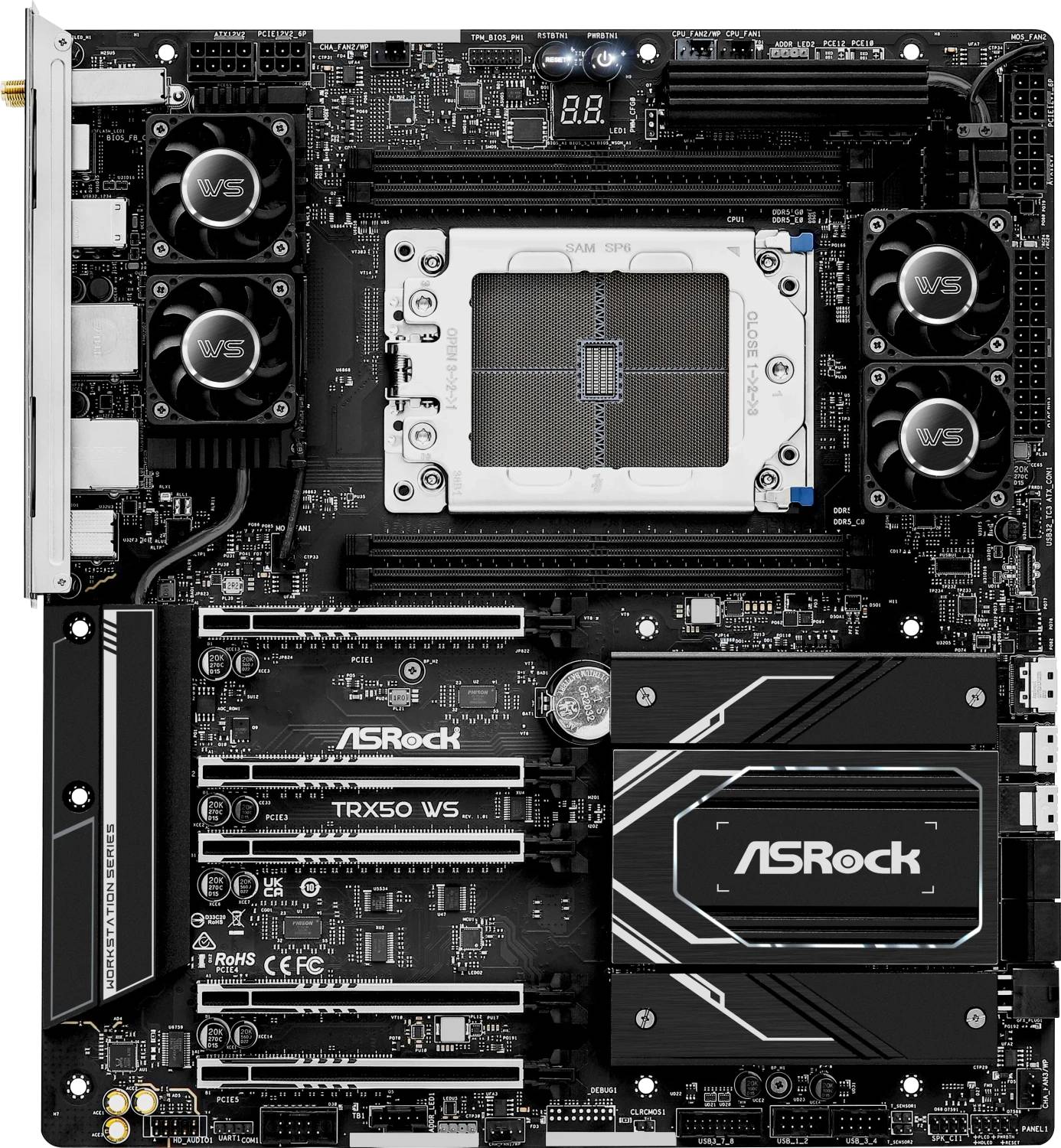

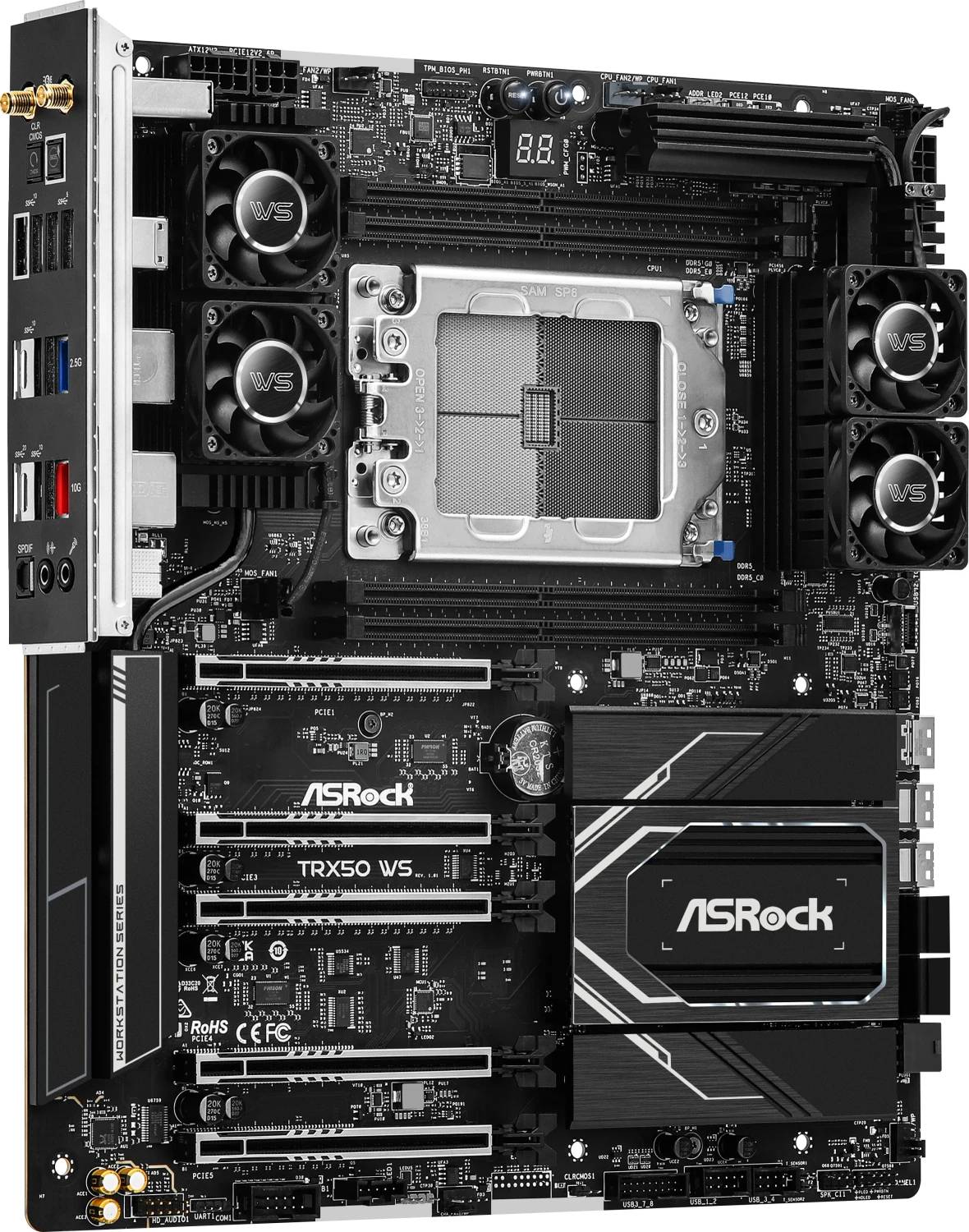

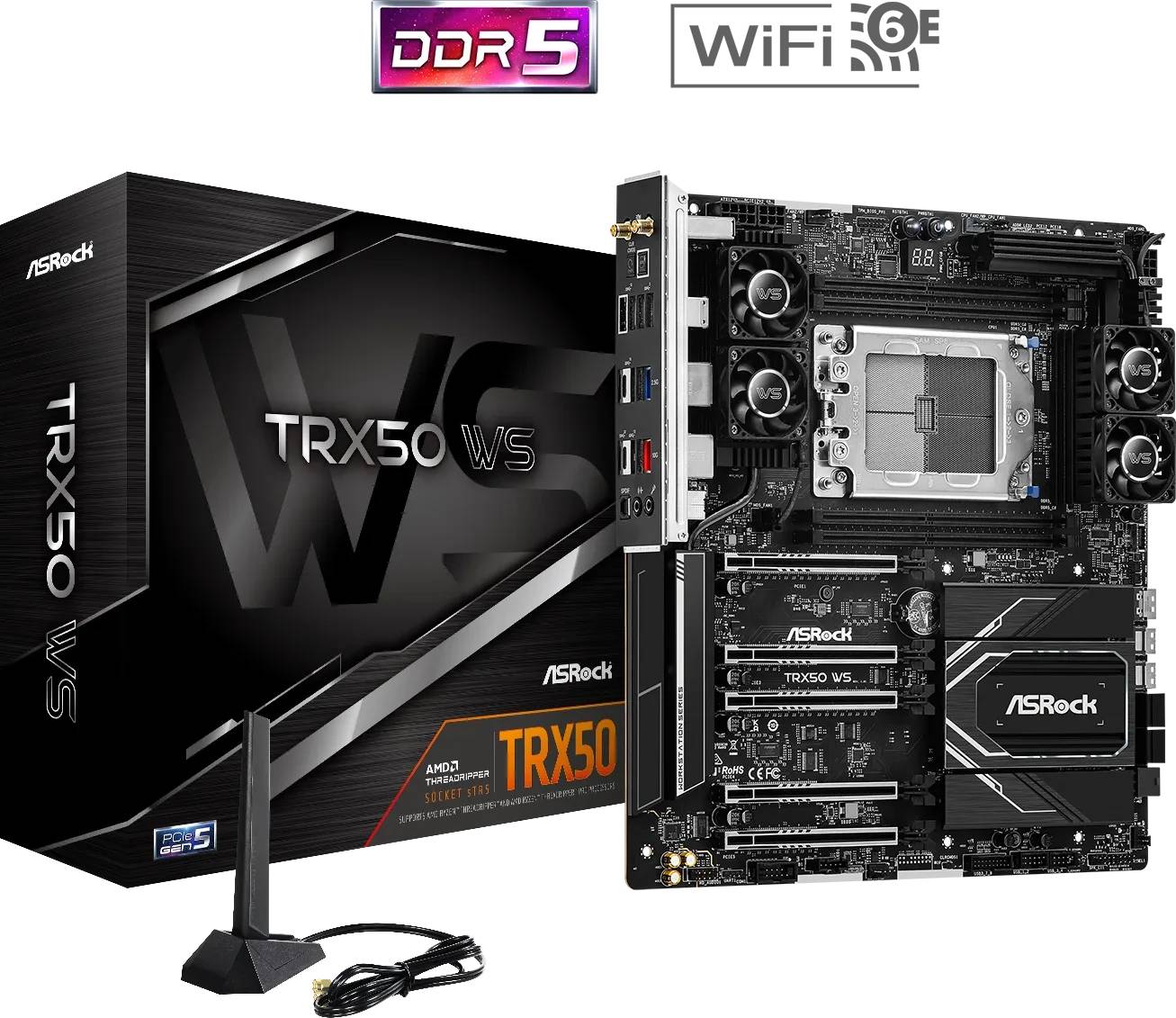

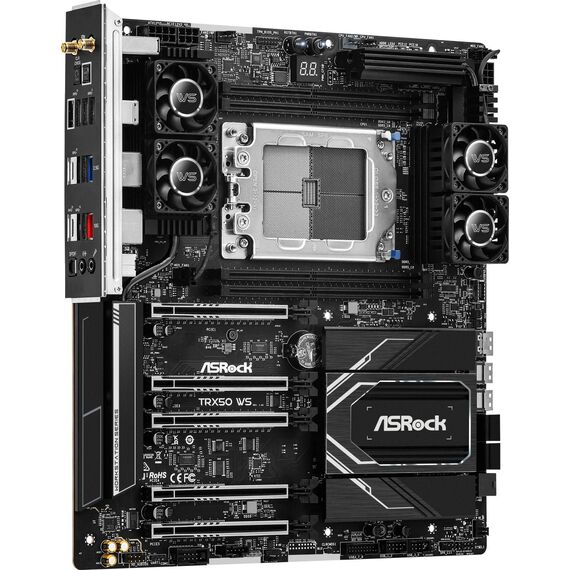

ASRock TRX50 WS - Motherboard - extended ATX - Socket sTR5 - AMD TRX50 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2 - 10 Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel) | 90-MXBN40
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - extended ATX |
| Chipset Type | AMD TRX50 |
| Processor Socket | Socket sTR5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen Threadripper PRO 7000 Series / 7000 Series) |
| Supported RAM | |
| Max Size | 1 TB |
| Technology | DDR5 |
| Bus Clock | 7600 MHz (O.C.) |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, buffered, 3DS-RDIMM |
| Features | Quad channel memory architecture |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Controller | Dragon RTL8125BG / Marvell AQC113 |
| Network Interfaces | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x16 (x8 mode) ¦ 1 x PCIe 5.0 x16 (x8 mode) ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 2 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x SlimSAS |
| Interfaces | 2 x aerial ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x SPDIF out ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x speaker - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors, 2 x 6-pin PCI Express power connectors |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | ASRock Instant Flash, ASRock A-Tuning, ASRock Full HD UEFI, 2oz Copper PCB, Water Pump Header, pre-mounted I/O shield, 12 Layer PCB, reinforced PCIe slots, Surface Mount Technology (SMT), ASRock Auto Driver Installer, Smart Power Stage (SPS) technology, BIOS FlashBack button, Enlarged Heatsink Armor, 110A Power Stage, Server-Grade Ultra-Low-Loss PCB, 20K black capacitors, ASRock Polychrome RGB, chipset heatsink, aluminium heatsink design, 18+3+3 Phase Power Design |
| Miscellaneous | |
| Included Accessories | 2 x M.2 screws, 2 thermistor cables, 2 x standoff for M.2 socket, ASRock WiFi 2.4/5/6 GHz aerial |
| Cables Included | 4 x Serial ATA cable ¦ 1 x Multi PSU adapter cable |
| Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 30.5 cm |
| Depth | 27.7 cm |
Features - Asrock - 90-MXBN40-A0UAYZ
CPU Socket
- Socket sTR5
More Details
Product Code
04:457203
EAN Code
4710483944529
Manufacturer
Asrock
