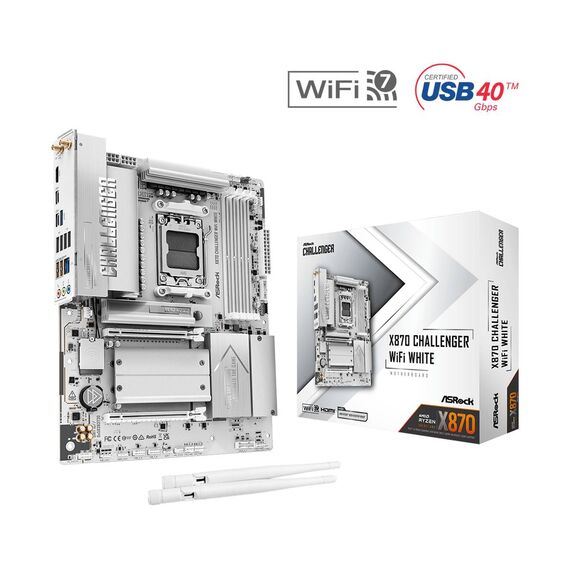

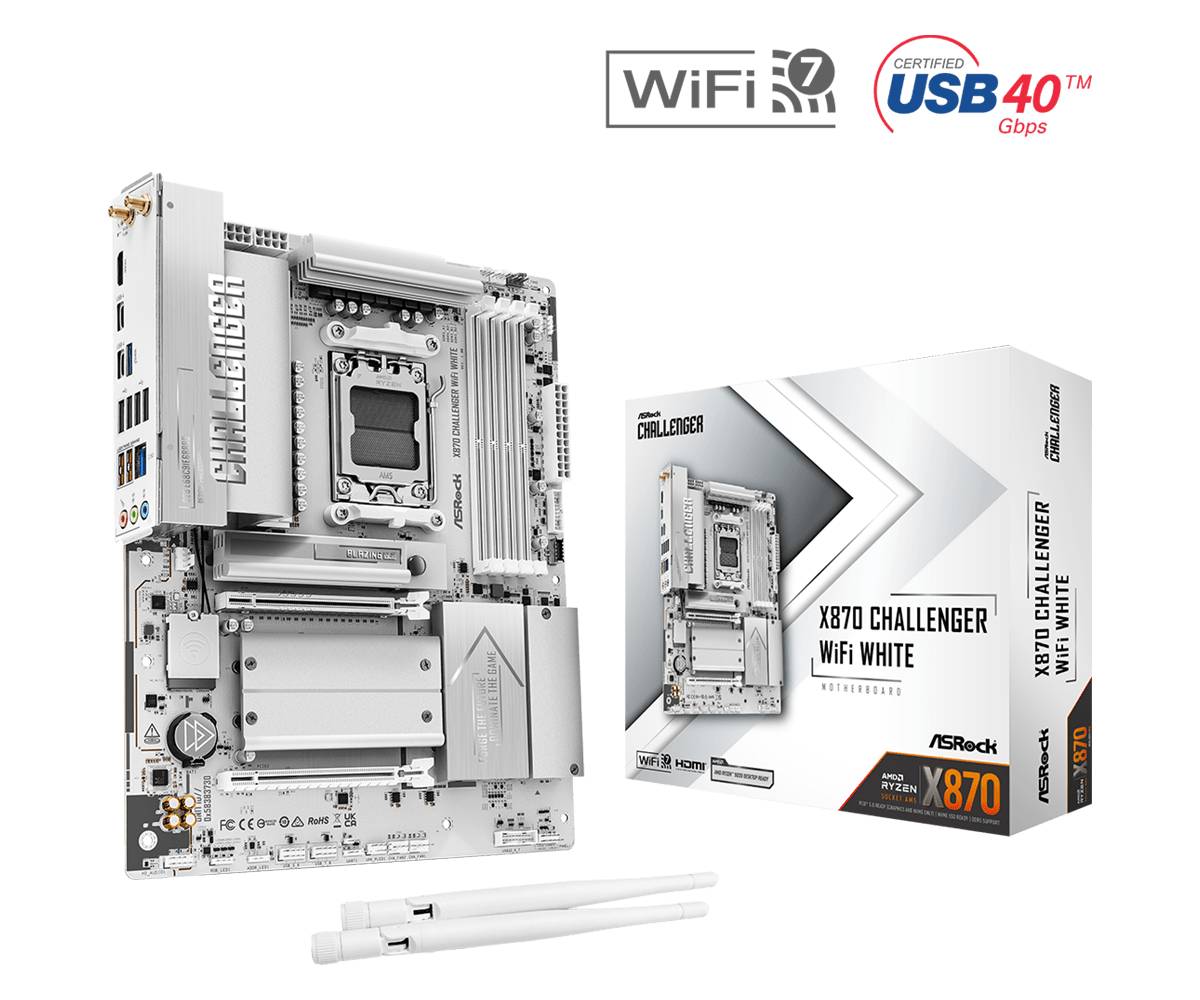

ASRock X870 Challenger WiFi White AM5 ATX Motherboard DDR5 PCIe 5.0 4x M.2 USB4 2.5GbE Wi-Fi 7

Brand:
ASRock

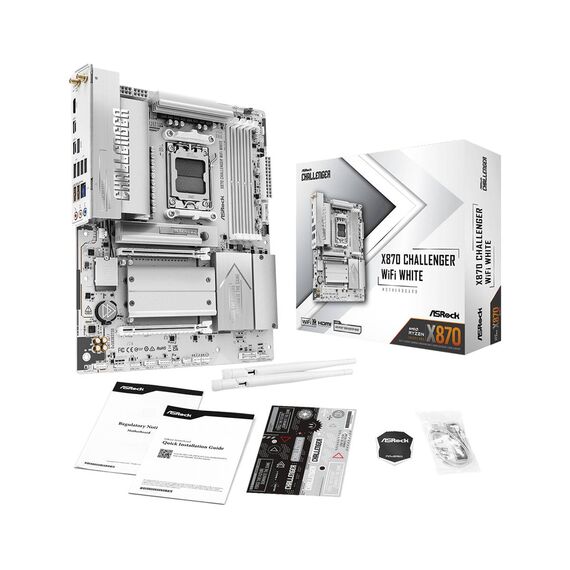

ASRock X870 Challenger WiFi White AM5 ATX DDR5 USB4 Wi-Fi 7
ASRock X870 Challenger WiFi White AM5 ATX Motherboard DDR5 PCIe 5.0 4x M.2 USB4 2.5GbE Wi-Fi 7
€296.1 inc. VAT
Buy
90-MXBUL0-A0UAYZ
€248.82 €276.47
€296.10 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
CPU Type
AMD Ryzen
Product Code
04:591059
EAN Code
4711581493865
Manufacturer
ASRock

Quick Specs

Socket & Chipset
AM5 · AMD X870
Memory
4x DDR5 · up to 256GB · 8000+ (OC)
Expansion & Storage
PCIe 5.0 x16 · 4x M.2 (1x Gen5)
Connectivity
2.5GbE · Wi-Fi 7 · 2x USB4
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASRock X870 Challenger WiFi White

A white-themed value AM5 ATX board with PCIe 5.0 graphics and Gen5 M.2, dual USB4, 2.5GbE and Wi-Fi 7 for Ryzen 9000/8000/7000.
AMD X870 · AM5PCIe 5.0 x16 + Gen5 M.22x USB4 40 Gb/s2.5GbE + Wi-Fi 7

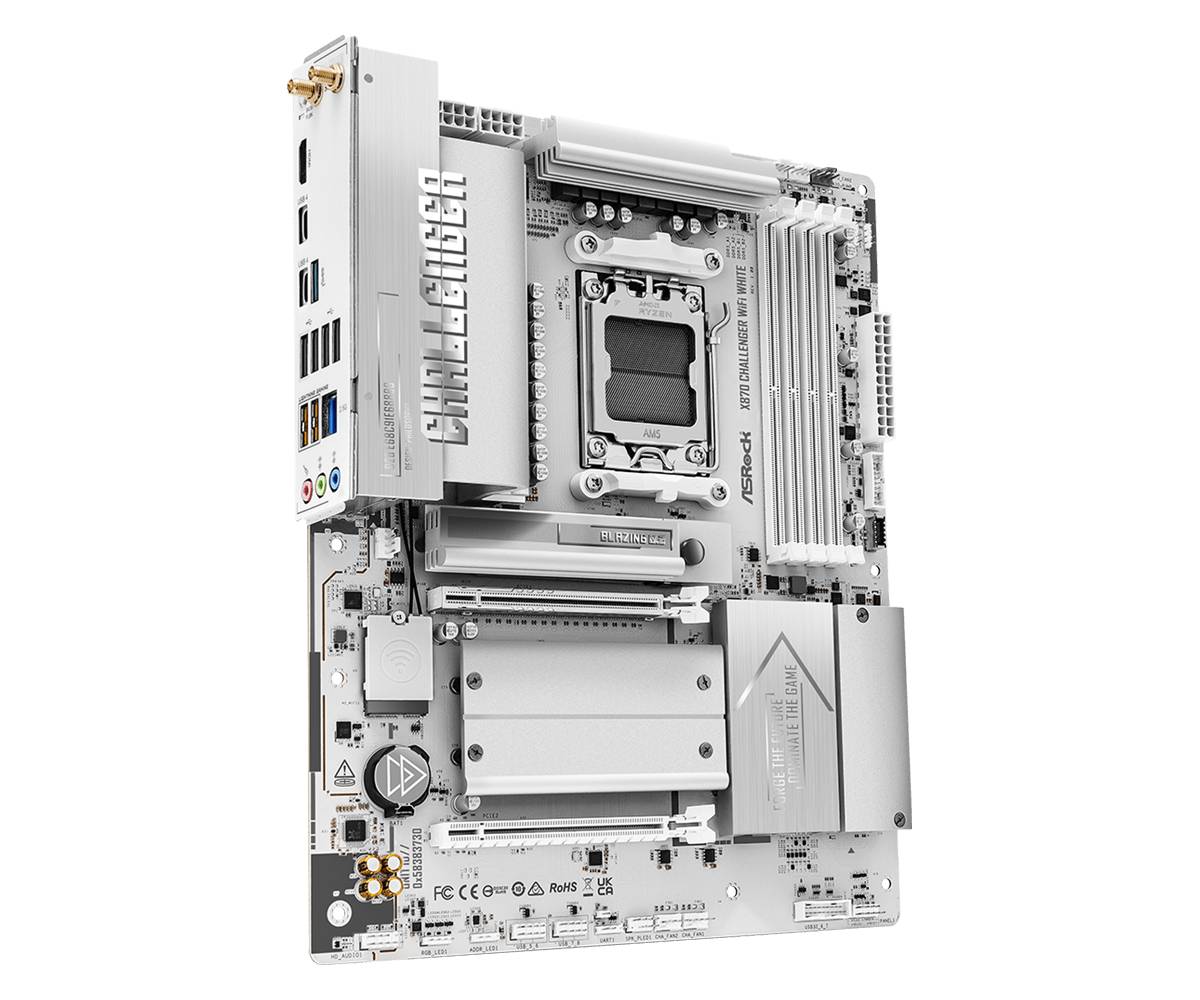

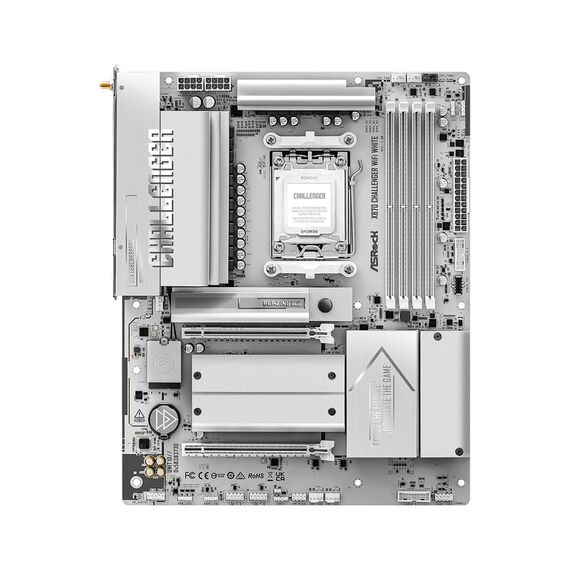

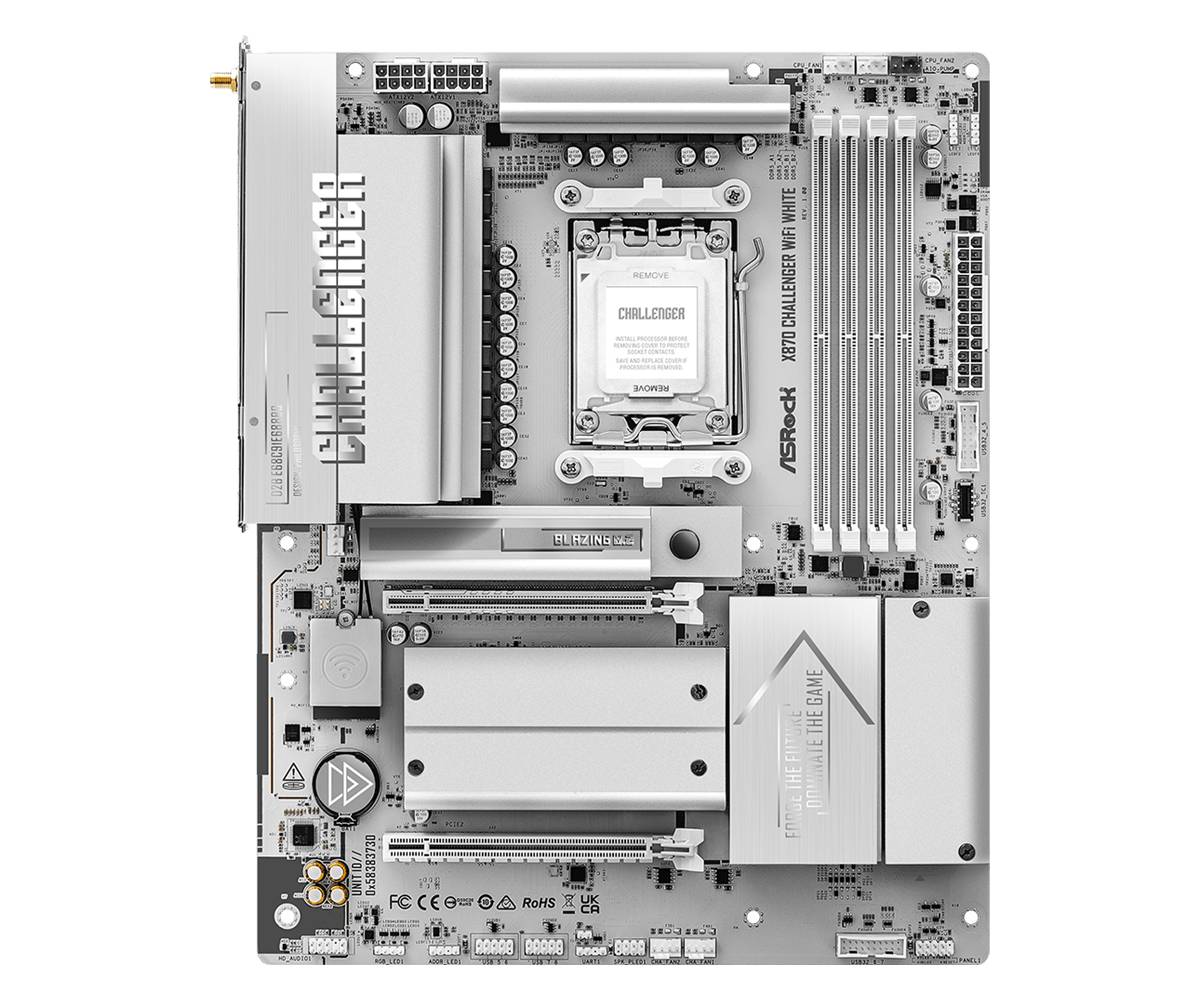

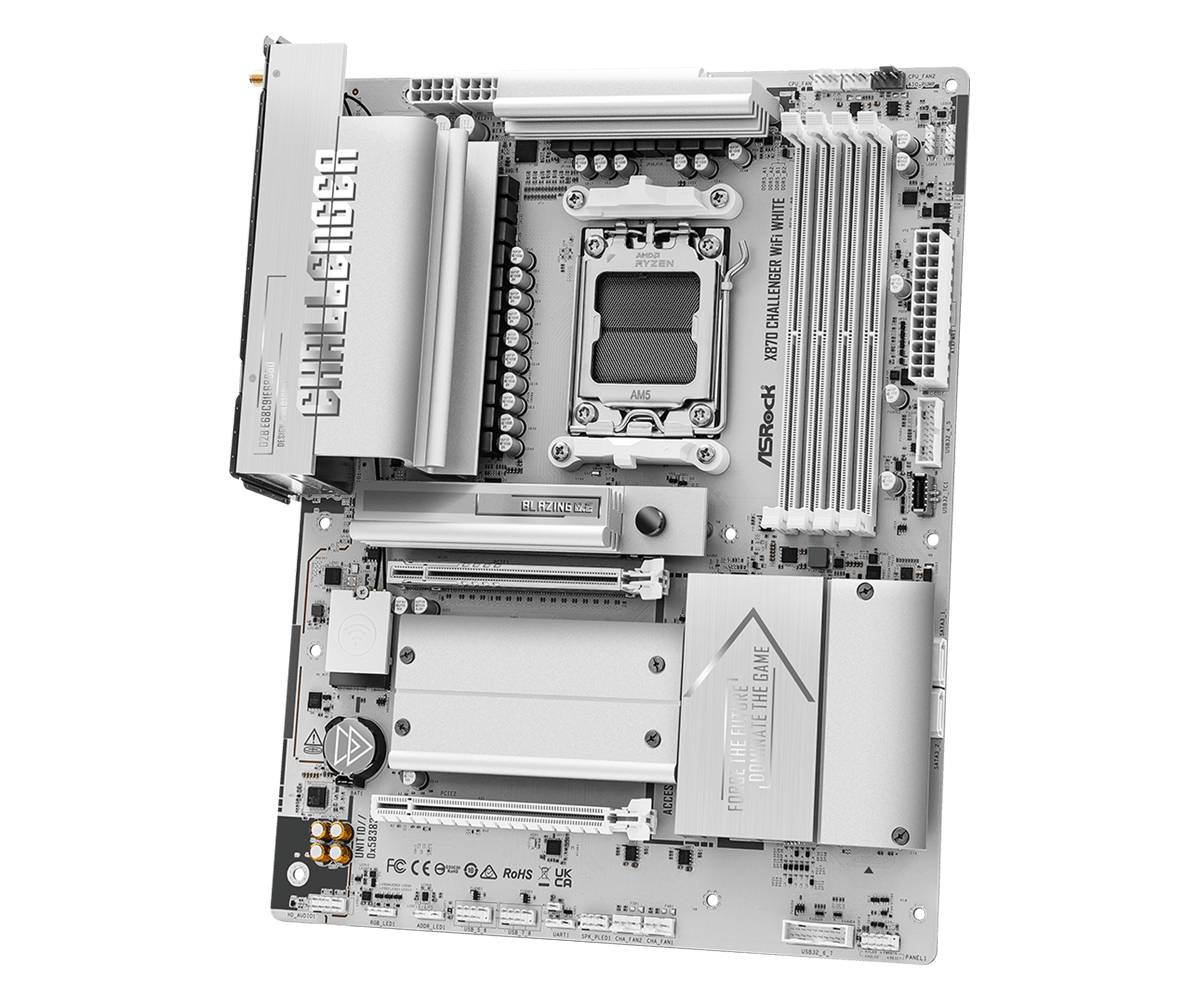

The ASRock X870 Challenger WiFi White (part number 90-MXBUL0-A0UAYZ) is an AMD X870 ATX motherboard for Socket AM5 Ryzen 9000, 8000 and 7000 processors, built for mainstream gaming and everyday high-performance PCs in an all-white finish. It pairs a 16+2+1 phase design with 80A Dr.MOS and an 8-layer PCB with the core X870 features: PCIe 5.0 for the graphics card and first M.2 SSD, two USB4 Type-C ports, Wi-Fi 7 and 2.5 Gigabit LAN.

Compatibility Note: M2_2 shares PCIe Gen4 x4 with the rear USB4 ports: with M2_2 populated both run at x2, or M2_2 can be set to x4 in BIOS, which disables USB4. M2_4 runs at Gen4 x2. Ryzen 8000 (Phoenix) processors run PCIE1 at Gen4 x8/x4 and M2_1 at Gen4. Wi-Fi 7 requires Windows 11.
Best For
✓ Mainstream AM5 gaming PCs
✓ Ryzen 7 9700X / 9800X3D builds
✓ PCIe 5.0 graphics and Gen5 SSD
✓ Home office and streaming PCs
✓ White-themed builds
✓ USB4 external drives and docks

Key Features


PCIe 5.0 Graphics and Storage
A CPU-connected PCIe 5.0 x16 slot for the graphics card and a Blazing M.2 socket at PCIe Gen5 x4 (128 Gb/s), plus three more M.2 sockets for a total of four NVMe drives.

16+2+1 Phase, 80A Dr.MOS
Power stages for VCore, SOC and MISC under an enlarged heatsink armour, on an 8-layer PCB with a 512Mb BIOS and BIOS Flashback button.

Dual USB4 Type-C
Two rear USB4 ports at 40 Gb/s support external NVMe enclosures, docks and displays from the CPU graphics (up to 8K 30Hz), with 15W USB PD charging.

2.5GbE and Wi-Fi 7
Realtek Dragon RTL8125BG 2.5 Gigabit LAN with traffic-priority software, plus a 2x2 Wi-Fi 7 module (2.4/5/6 GHz, 160 MHz) with Bluetooth 5.4.

Technical Specifications

Identification
Part Number 90-MXBUL0-A0UAYZ
EAN / GTIN 4711581493865
Brand / Model ASRock X870 Challenger WiFi White
Colour White
Platform
CPU Support AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series
Chipset AMD X870
Power Design 16+2+1 power phase, 80A Dr.MOS for VCore + SOC + MISC
BIOS 512Mb AMI UEFI with BIOS Flashback button
Memory
Slots 4x DDR5 DIMM, dual channel
Speed / Capacity Up to 8000+ MHz (OC) · max 256GB
Type DDR5 ECC / non-ECC un-buffered · XMP and EXPO
Expansion
PCIe Slots 1x PCIe 5.0 x16 (CPU) · 1x PCIe 3.0 x16 (chipset, x2 mode)
M.2 Key E 1x 2230 for Wi-Fi/BT module
Storage
M.2 M2_1: 2280 PCIe Gen5 x4 (CPU) · M2_2: Gen4 x4 (CPU, shared with USB4) · M2_3: Gen4 x4 · M2_4: Gen4 x2
SATA 2x SATA3 6 Gb/s
RAID RAID 0/1 SATA · RAID 0/1/10 M.2 NVMe
Networking & Audio
LAN 1x 2.5GbE Realtek Dragon RTL8125BG
Wireless 802.11be 2x2 Wi-Fi 7 (2.4/5/6 GHz) + Bluetooth 5.4
Audio 7.1 CH HD Audio, Realtek ALC897 · Nahimic
Rear I/O

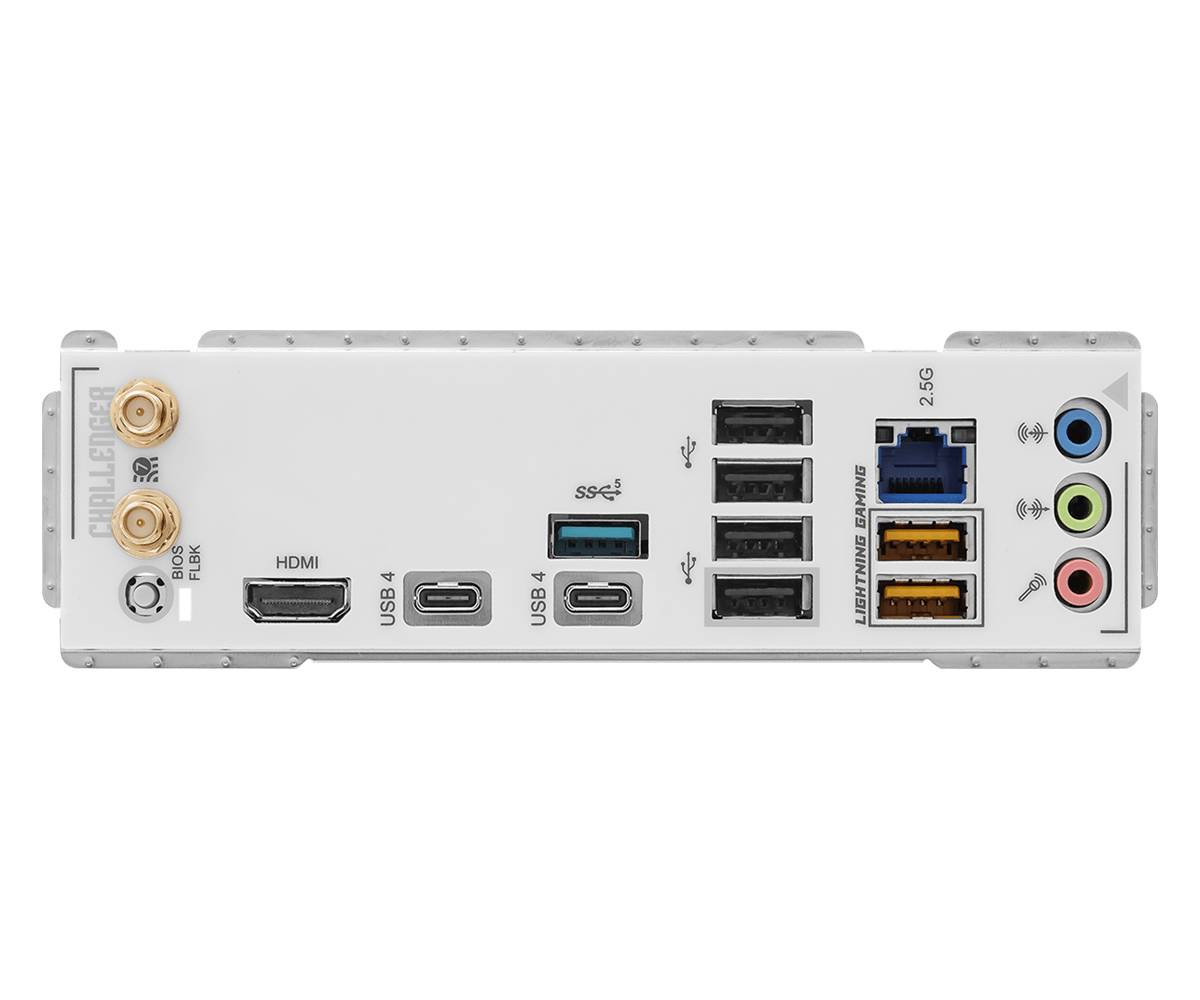

Ports 1x HDMI (4K 120Hz) · 2x USB4 Type-C 40 Gb/s (PD 15W) · 2x USB 3.2 Gen2 Type-A (Lightning Gaming Ports) · 1x USB 3.2 Gen1 Type-A · 4x USB 2.0 · 1x RJ-45 · 2x antenna · BIOS Flashback · 3x audio jacks
Internal Headers 1x front USB 3.2 Gen1 Type-C · 2x USB 3.2 Gen1 · 2x USB 2.0 · 2x CPU fan · 3x chassis fan · AIO pump · 1x RGB + 3x ARGB · SPI TPM
Physical
Form Factor ATX, 30.5 x 24.4 cm, 8-layer PCB
Power Connectors 1x 24-pin ATX + 2x 8-pin 12V

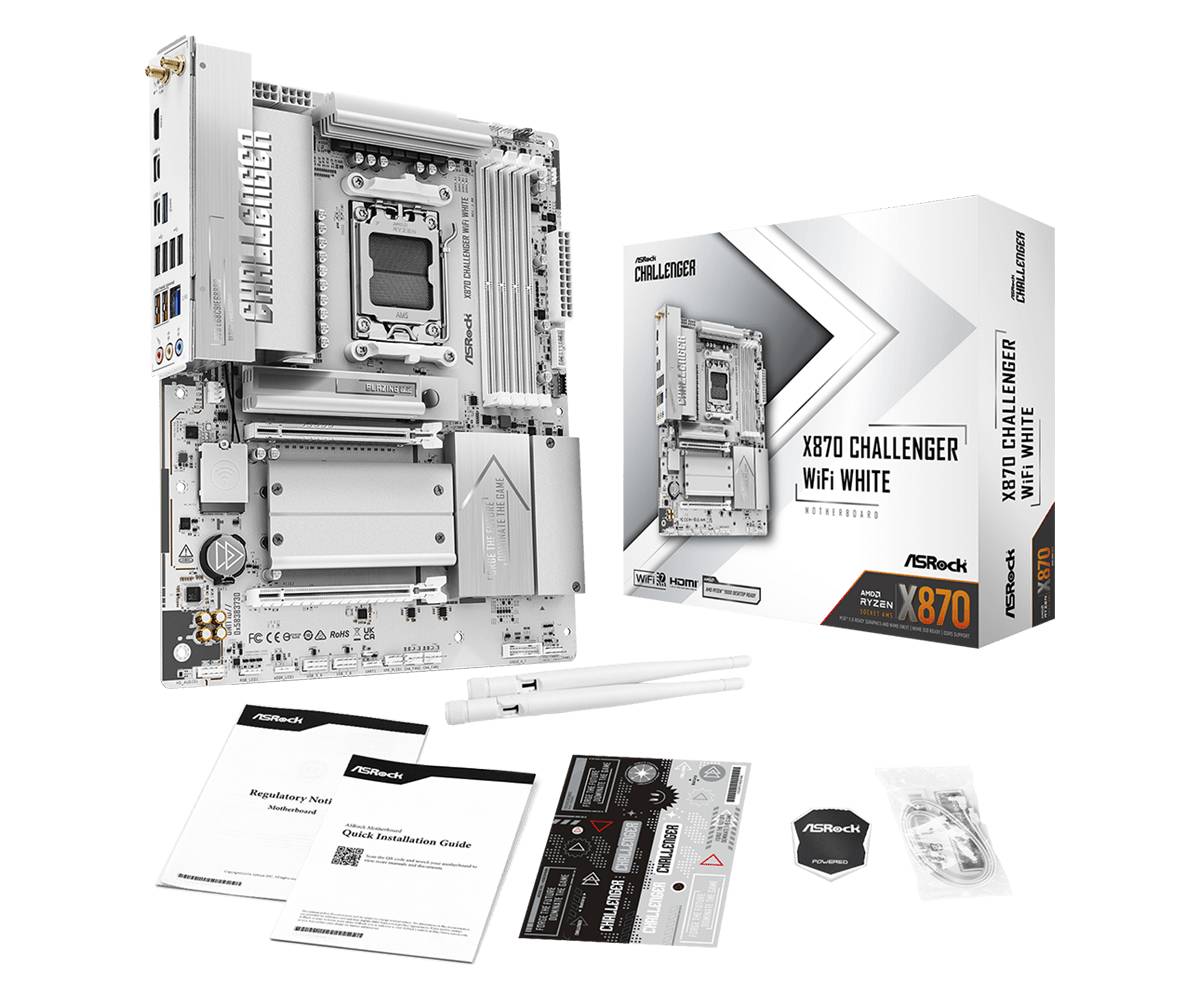

In the Box 2x SATA cables, 2x Wi-Fi antennas
OS Windows 10 / 11 64-bit (Wi-Fi 7: Windows 11 only)

Frequently Asked Questions

What is the difference between the X870 and X870E Challenger WiFi?
The X870E model has a second chipset so all four M.2 sockets run at full x4 without sharing with USB4, plus 20+2+1 phases with 110A SPS, 5GbE, ALC4082 audio and more rear USB. The X870 Challenger WiFi keeps PCIe 5.0, USB4 and Wi-Fi 7 at a lower price.
Can I use four NVMe SSDs?
Yes, but M2_4 runs at Gen4 x2, and using M2_2 halves the USB4 bandwidth unless you switch M2_2 to x4 in BIOS and give up USB4. For three drives or fewer, use M2_1, M2_3 and M2_2 as needed.
Is it suitable for a Ryzen 9800X3D gaming PC?
Yes. The board supports all Socket AM5 Ryzen 9000 processors, including X3D models, with PCIe 5.0 x16 for the graphics card and DDR5 up to 8000+ MHz with EXPO.
What do I need to know before buying?
CPU, cooler, DDR5 memory and SSDs are sold separately. The on-board audio is Realtek ALC897 without optical out, and Wi-Fi 7 has no Windows 10 driver.
Singular Expert Insight
The X870 Challenger WiFi White is the practical AM5 choice for a single-GPU gaming or work PC: it keeps the features that matter most in 2026 — PCIe 5.0, Gen5 M.2, USB4 and Wi-Fi 7 — without paying for extra lanes you may never use. If you plan four fast SSDs or want 5GbE, the X870E Challenger WiFi is worth the upgrade.
✓ Buy it if you want PCIe 5.0, USB4 and Wi-Fi 7 on an AM5 build at a sensible price.
✕ Skip it if you need four full-speed M.2 drives alongside USB4, or optical audio out.
→ Also consider ASRock X870E Challenger WiFi White for four full-speed M.2 and 5GbE, or X870 Taichi Creator for dual PCIe 5.0 x8/x8 and 10GbE.
