ASRock X870E Challenger WiFi AM5 ATX Motherboard DDR5 PCIe 5.0 4x M.2 USB4 5GbE Wi-Fi 7 Black

Brand:
ASRock

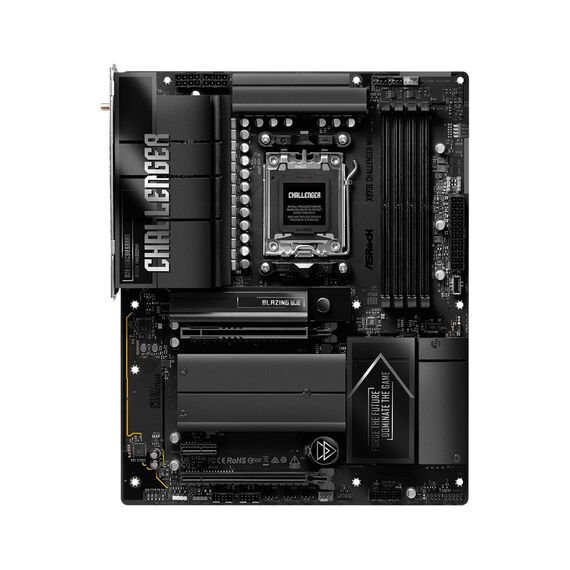

ASRock X870E Challenger WiFi AM5 ATX DDR5 USB4 Wi-Fi 7
ASRock X870E Challenger WiFi AM5 ATX Motherboard DDR5 PCIe 5.0 4x M.2 USB4 5GbE Wi-Fi 7 Black
€384.73 inc. VAT
Buy
90-MXBUG0-A0UAYZ
€323.30 €359.22
€384.73 inc. VAT
Ships from EU stock: 18 item(s)
+ −
Add to wish list Ask a question
CPU Type
AMD Ryzen
Product Code
04:591058
EAN Code
4711581493872
Manufacturer
ASRock

Quick Specs

Socket & Chipset
AM5 · AMD X870E
Memory
4x DDR5 · up to 256GB · 8200+ (OC)
Expansion & Storage
PCIe 5.0 x16 · 4x M.2 (1x Gen5, 3x Gen4)
Connectivity
5GbE · Wi-Fi 7 · 2x USB4
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASRock X870E Challenger WiFi

A X870E ATX board for Ryzen 9000/8000/7000 with PCIe 5.0 graphics, four M.2 sockets, dual USB4 and 5GbE + Wi-Fi 7.
AMD X870E · AM5PCIe 5.0 x16 + Gen5 M.24x M.2 · 2x USB45GbE + Wi-Fi 7

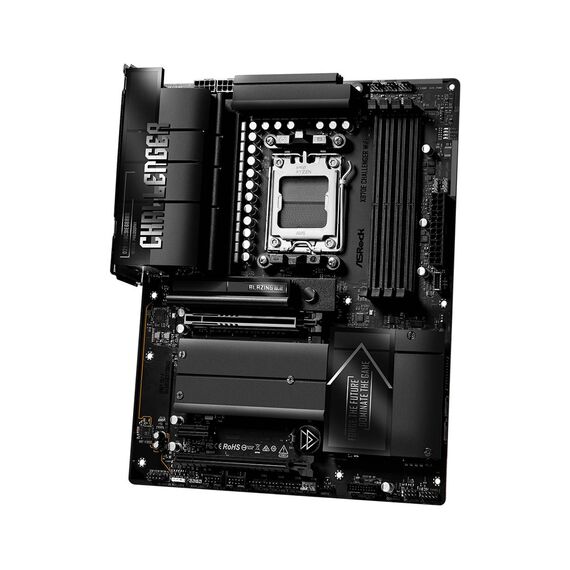

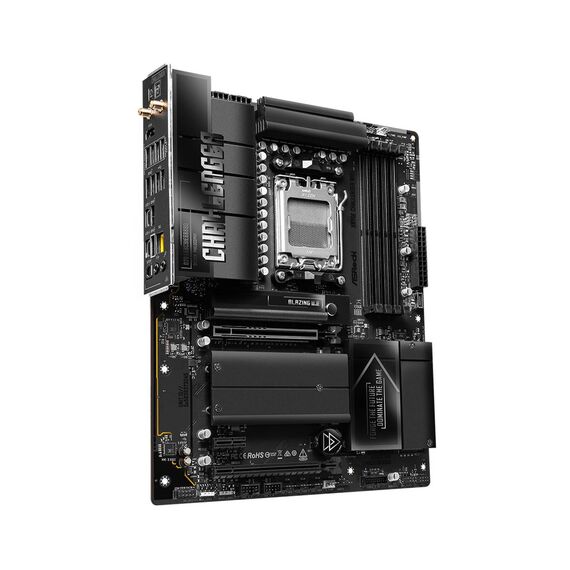

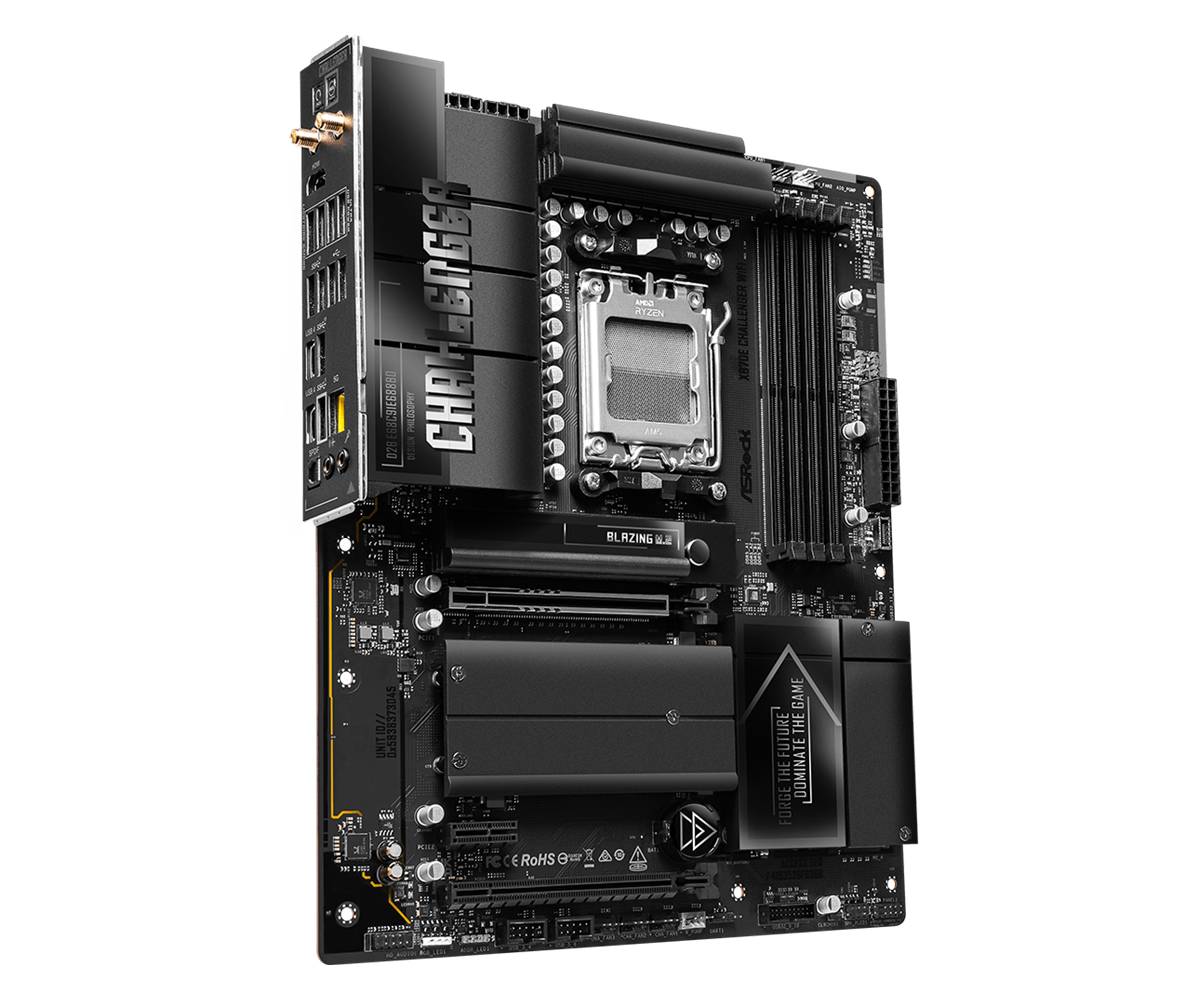

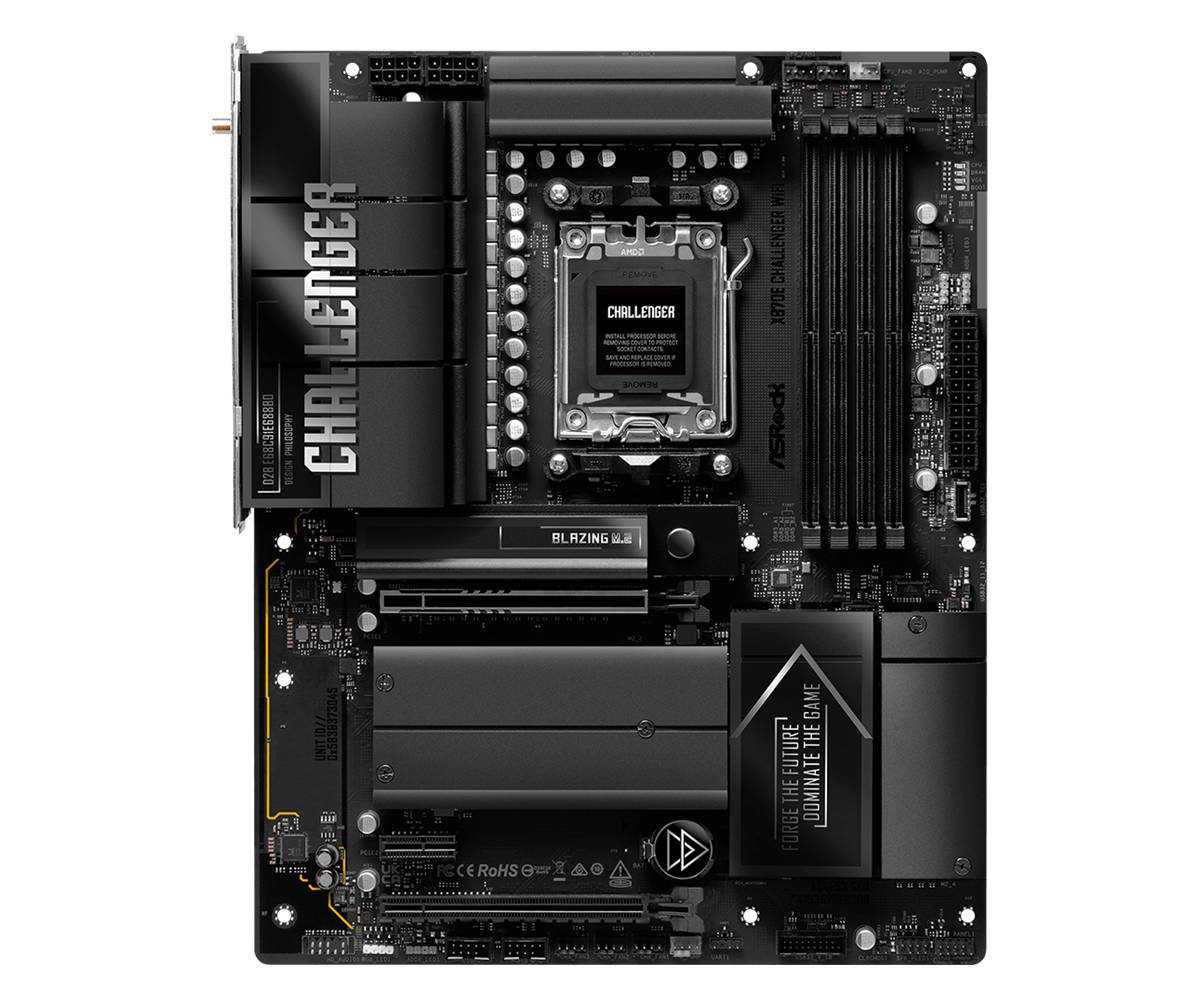

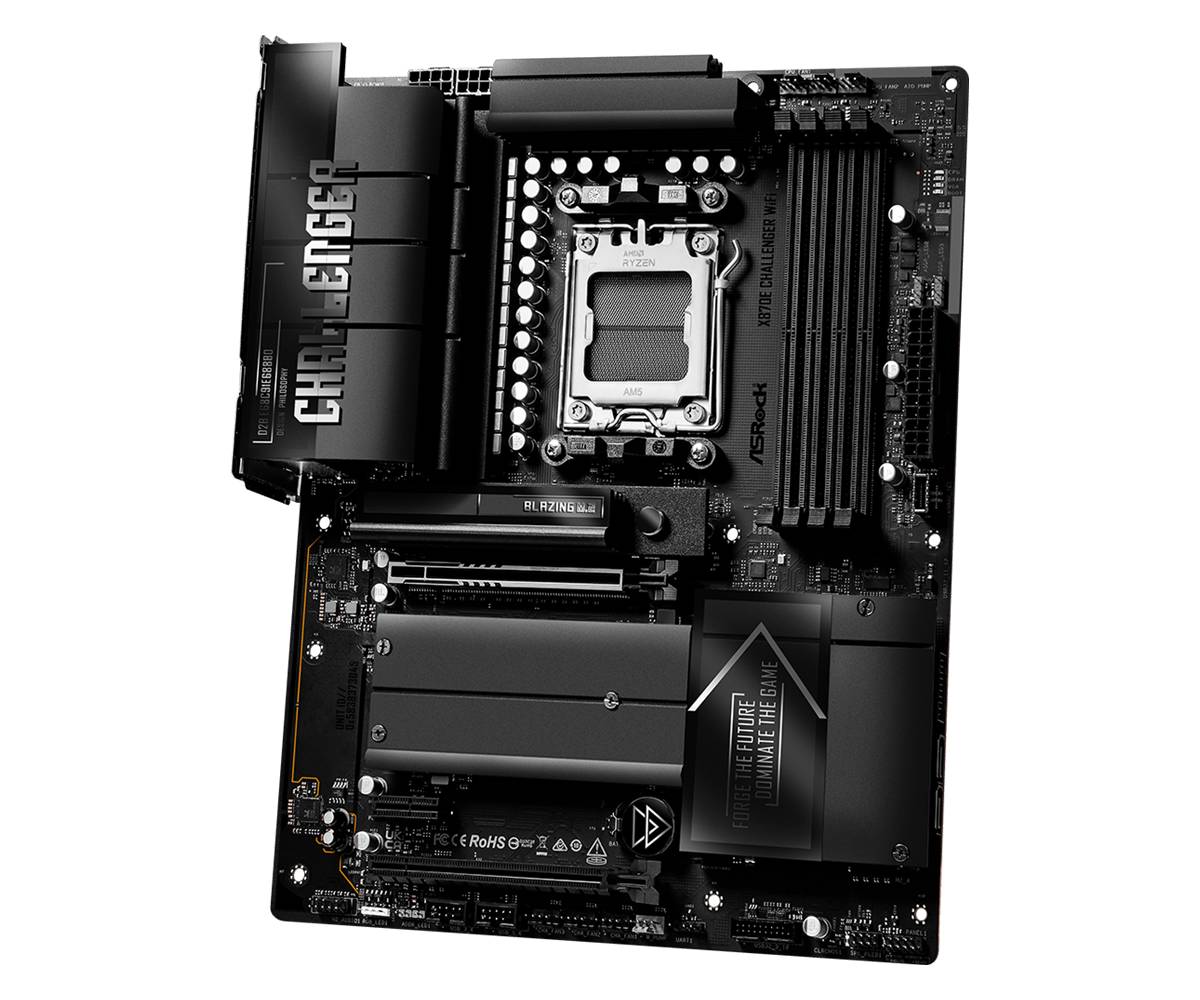

The ASRock X870E Challenger WiFi (part number 90-MXBUG0-A0UAYZ) is an AMD X870E ATX motherboard for Socket AM5 Ryzen 9000, 8000 and 7000 processors, aimed at high-end gaming and enthusiast builds. A 20+2+1 power phase with 110A SPS, server-grade low-loss PCB and 512Mb BIOS with Flashback support demanding CPUs, while the X870E chipset provides four full-speed M.2 sockets and more USB than X870. Networking combines a Realtek 5GbE port with an 802.11be Wi-Fi 7 module and Bluetooth 5.4.

Compatibility Note: Ryzen 8000 (Phoenix) processors run PCIE1 at Gen4 x8/x4 and M2_1 at Gen4. The USB4 ports only output video from the CPU integrated graphics. Wi-Fi 7 is supported under Windows 11 only.
Best For
✓ High-end AM5 gaming PCs
✓ Ryzen 9 9950X3D / 9800X3D builds
✓ Multi-SSD game and project libraries
✓ 5GbE home and small-office networks
✓ Black-themed gaming builds
✓ USB4 docks and external storage

Key Features


X870E with Four M.2 Sockets
M2_1 supports PCIe Gen5 x4 (128 Gb/s) from the CPU, and M2_2, M2_3 and M2_4 each run PCIe Gen4 x4 (64 Gb/s) from the chipset, with NVMe RAID 0/1/10 and two SATA3 ports.

20+2+1 Phase Power
110A SPS stages with an enlarged heatsink armour, server-grade low-loss PCB, 8 layers and 2oz copper keep Ryzen 9 processors stable under sustained load.

5GbE and Wi-Fi 7
A Realtek RTL8126 5 Gigabit LAN port plus a 2x2 Wi-Fi 7 module (2.4/5/6 GHz, 160 MHz) with Bluetooth 5.4 and two antennas in the box.

Rich USB Layout
Two rear USB4 Type-C (40 Gb/s, 15W PD), five USB 3.2 Gen2 Type-A (two Lightning Gaming Ports), three Gen1 Type-A and a front USB 3.2 Gen2x2 20 Gb/s header.

Technical Specifications

Identification
Part Number 90-MXBUG0-A0UAYZ
EAN / GTIN 4711581493872
Brand / Model ASRock X870E Challenger WiFi
Colour Black
Platform
CPU Support AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series
Chipset AMD X870E
Power Design 20+2+1 power phase, 110A SPS for VCore + SOC
BIOS 512Mb AMI UEFI with BIOS Flashback button
Memory
Slots 4x DDR5 DIMM, dual channel
Speed / Capacity Up to 8200+ MHz (OC) · max 256GB
Type DDR5 ECC / non-ECC un-buffered · XMP and EXPO
Expansion
PCIe Slots 1x PCIe 5.0 x16 (CPU) · 1x PCIe 3.0 x1 · 1x PCIe 3.0 x16 (x2 mode)
M.2 Key E 1x vertical 2230 for Wi-Fi/BT module
Storage
M.2 M2_1: 2280 PCIe Gen5 x4 (CPU) · M2_2 / M2_3 / M2_4: 2280 PCIe Gen4 x4 (chipset)
SATA 2x SATA3 6 Gb/s
RAID RAID 0/1 SATA · RAID 0/1/10 M.2 NVMe
Networking & Audio
LAN 1x 5GbE Realtek RTL8126
Wireless 802.11be 2x2 Wi-Fi 7 (2.4/5/6 GHz) + Bluetooth 5.4
Audio 7.1 CH HD Audio, Realtek ALC4082 · Nahimic · optical S/PDIF out
Rear I/O

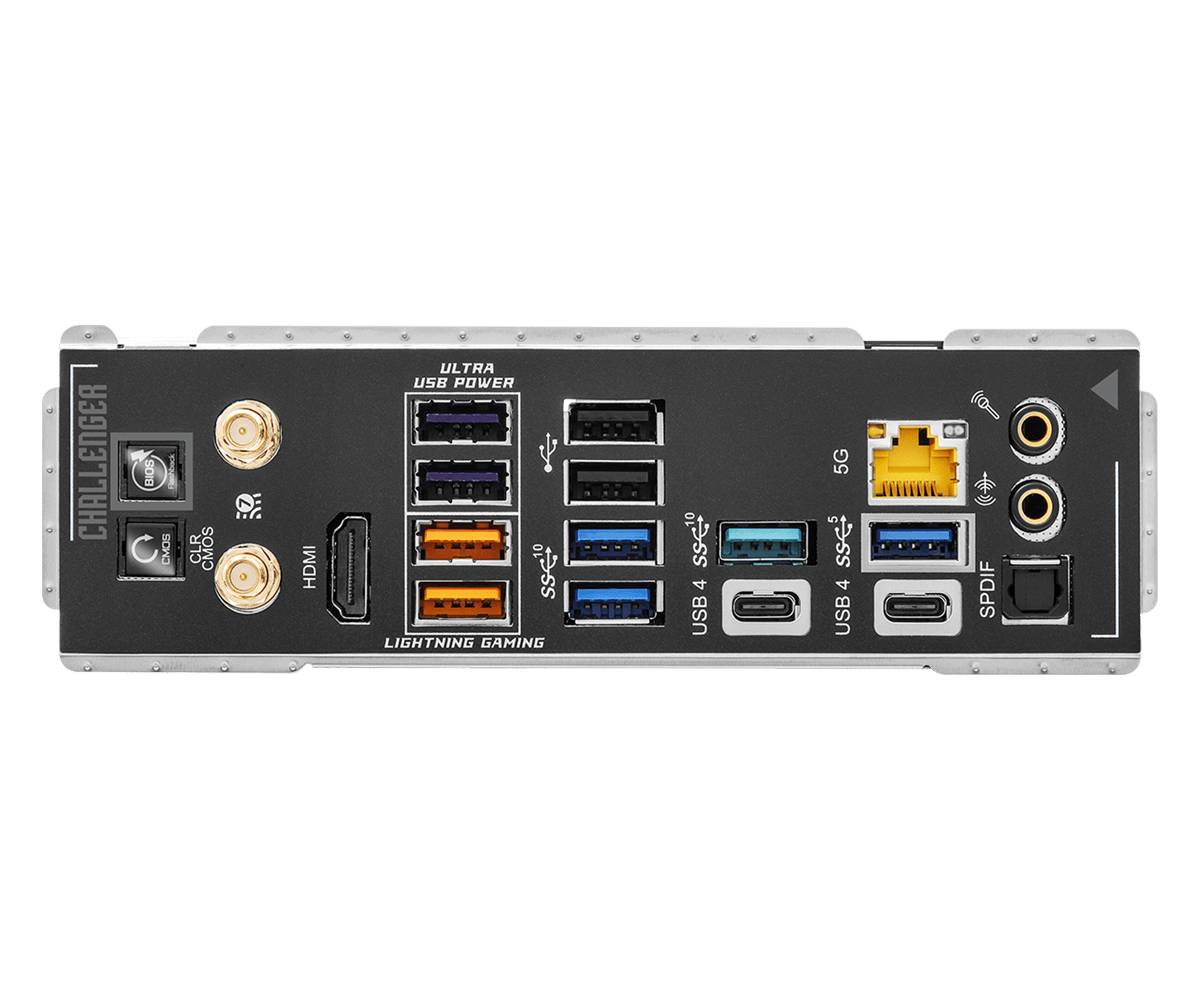

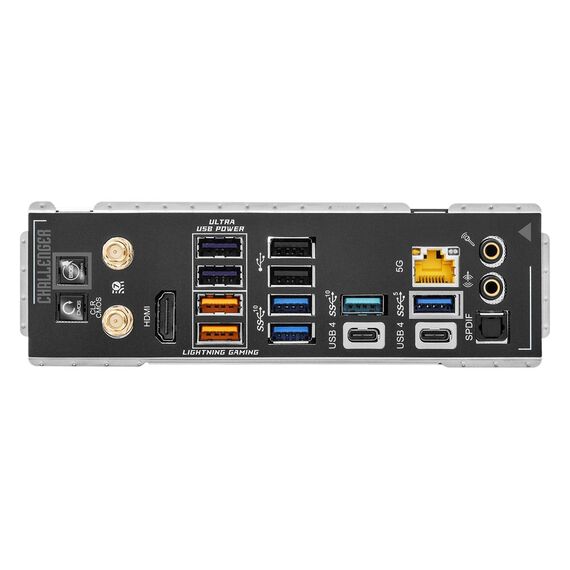

Ports 1x HDMI (4K 120Hz) · 2x USB4 Type-C 40 Gb/s (8K 30Hz, PD 15W) · 5x USB 3.2 Gen2 Type-A · 3x USB 3.2 Gen1 Type-A · 2x USB 2.0 · 1x RJ-45 · 2x antenna · Clear CMOS · BIOS Flashback · line out + mic
Internal Headers 1x front USB 3.2 Gen2x2 Type-C 20 Gb/s · 2x USB 3.2 Gen1 · 2x USB 2.0 · 2x CPU fan · 3x chassis fan · AIO pump · water pump · 1x RGB + 3x ARGB
Physical
Form Factor ATX, 30.5 x 24.4 cm, 8-layer, 2oz copper PCB
Power Connectors 1x 24-pin ATX + 2x 8-pin 12V

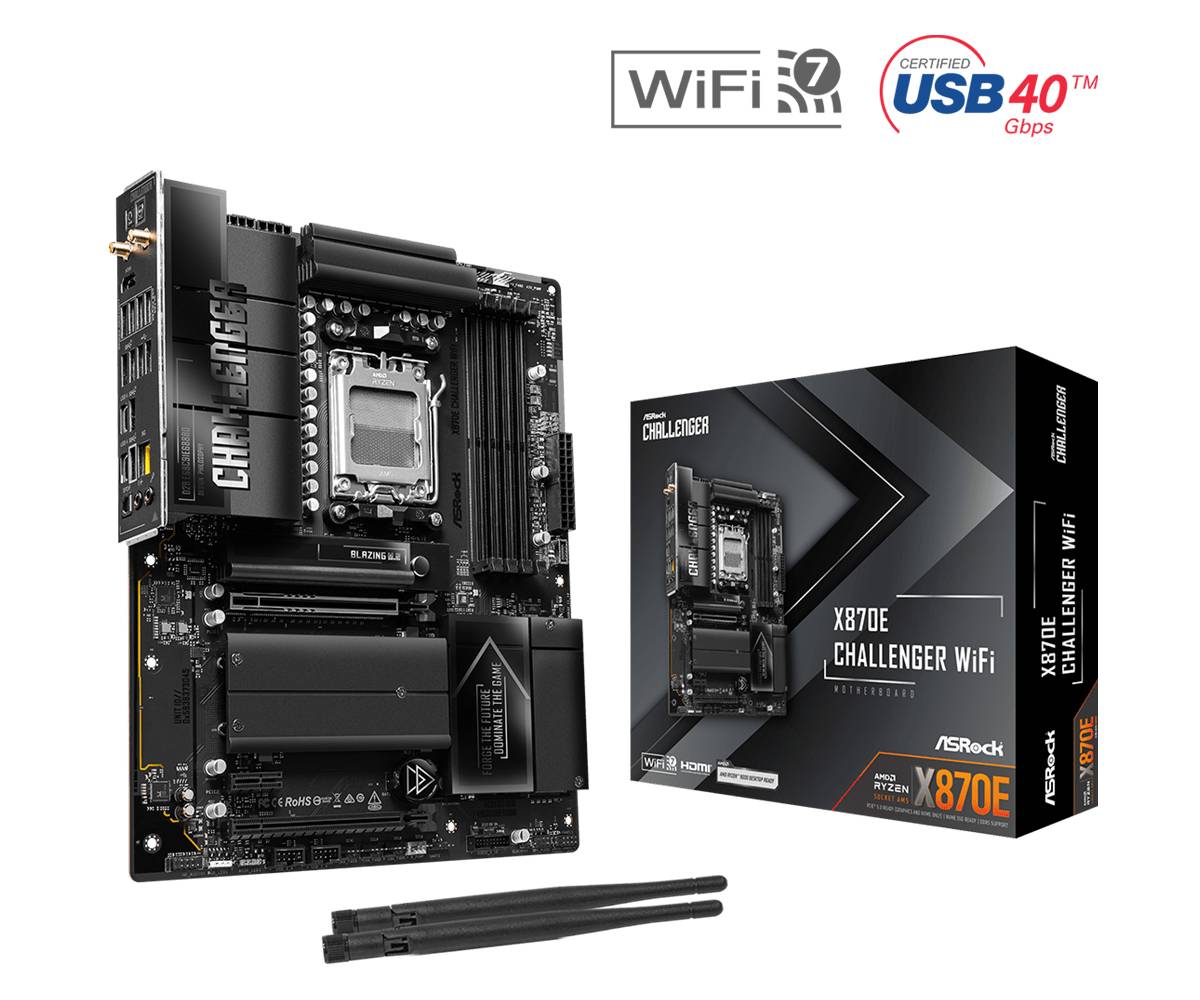

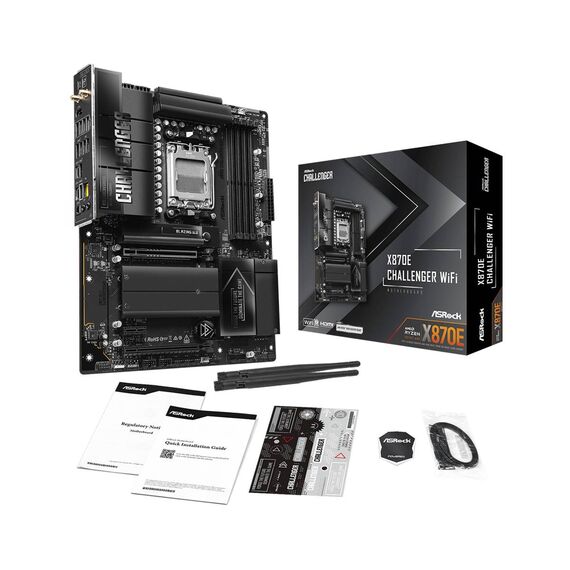

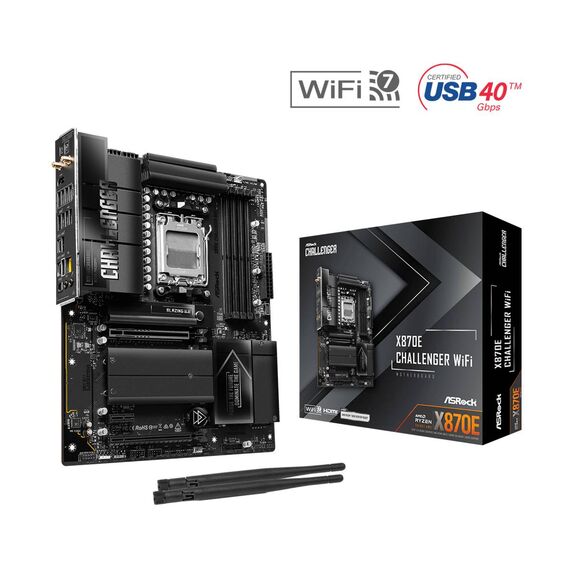

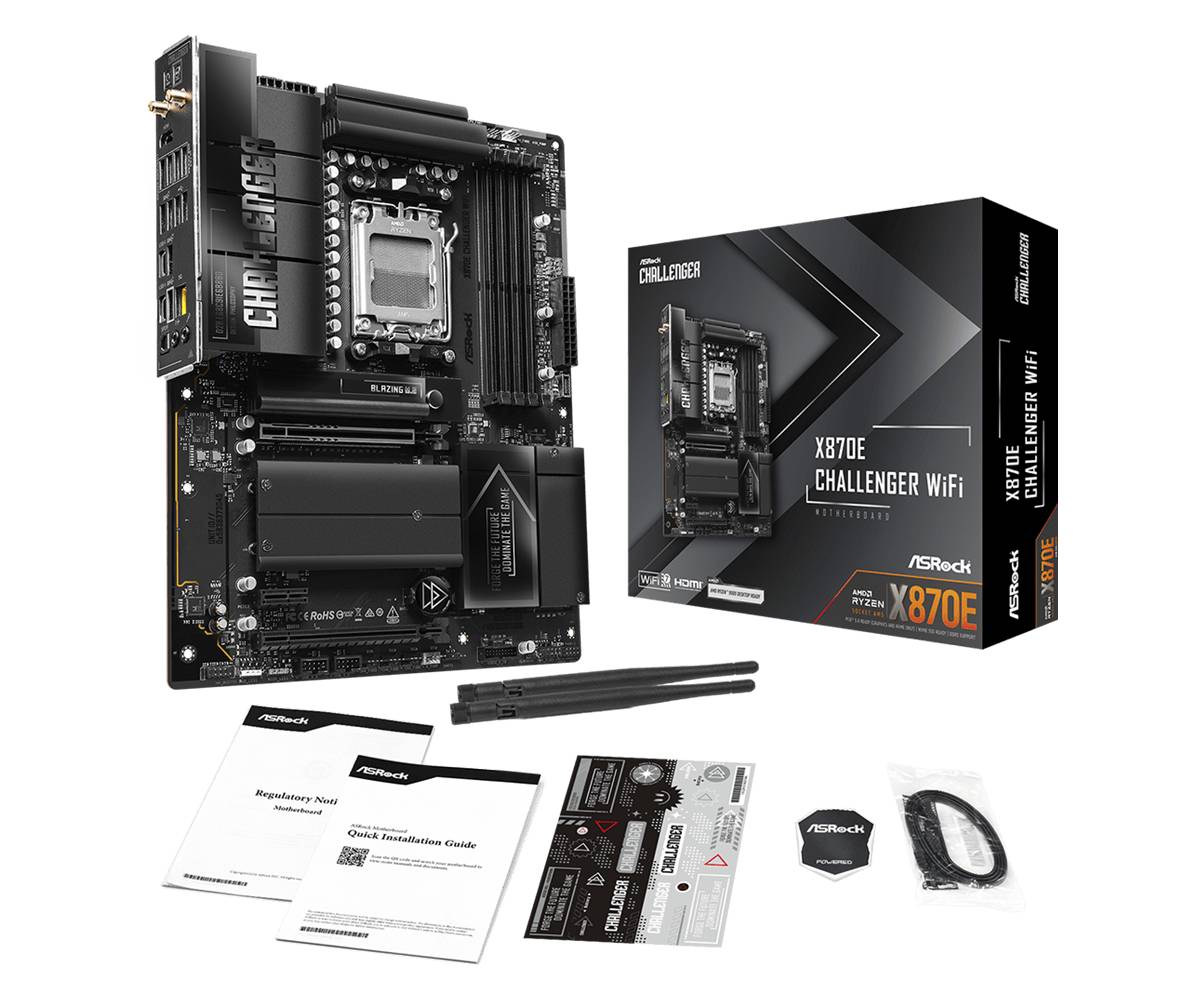

In the Box 2x SATA cables, 2x Wi-Fi antennas
OS Windows 10 / 11 64-bit (Wi-Fi 7: Windows 11 only)

Frequently Asked Questions

What is the difference between the X870E and X870 Challenger WiFi?
The X870E version adds a second chipset, so all four M.2 sockets run at full Gen5/Gen4 x4 without sharing with USB4, and it has 20+2+1 phases with 110A SPS, 5GbE instead of 2.5GbE, ALC4082 audio, optical out and more rear USB. The X870 Challenger WiFi is the lower-cost option.
Can I use USB4 and all four M.2 sockets at the same time?
Yes. On this board the USB4 controller does not share lanes with the M.2 sockets, so M2_1 to M2_4 and both USB4 ports can be used together.
Does it need a graphics card?
Not if the Ryzen CPU has integrated RDNA graphics: HDMI supports 4K 120Hz and the USB4 ports output up to 8K 30Hz. Processors without integrated graphics need a discrete card in the PCIe 5.0 x16 slot.
What do I need to know before buying?
CPU, cooler, DDR5 memory and SSDs are sold separately. The Wi-Fi 7 module has no Windows 10 driver, and 6 GHz availability depends on local regulations.
Singular Expert Insight
The X870E Challenger WiFi is the sweet spot for an AM5 gaming or enthusiast PC that wants X870E storage bandwidth: four full-speed M.2 sockets, strong 110A power stages and 5GbE without paying for a creator board. If you need two GPUs or 10GbE, step up to the X870 Taichi Creator; for a tighter budget with one GPU, the X870 Challenger WiFi covers the essentials.
✓ Buy it if you want four fast NVMe drives, USB4 and 5GbE on a single-GPU AM5 build.
✕ Skip it if you plan dual graphics cards or need 10GbE on board.
→ Also consider ASRock X870 Challenger WiFi to save budget, or X870 Taichi Creator for x8/x8 PCIe 5.0 and 10GbE.
