DIGITUS Keystone Frame Set for OBO Ackermann Floor Boxes — 6 Keystone Ports on Two Levels
6 keystone ports2-level45° outletOBO Ackermann GES

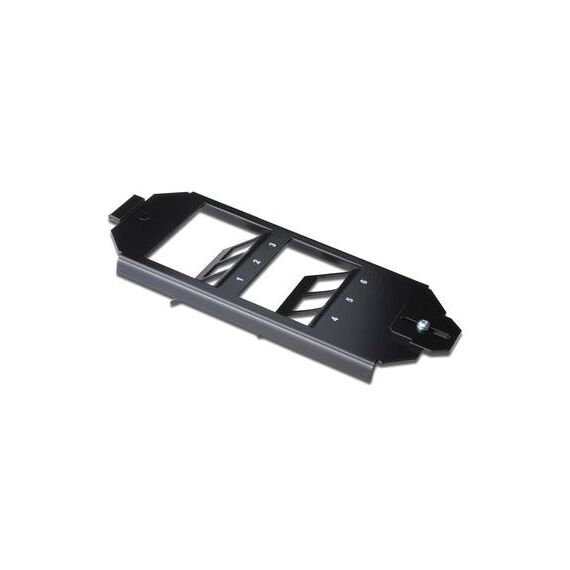

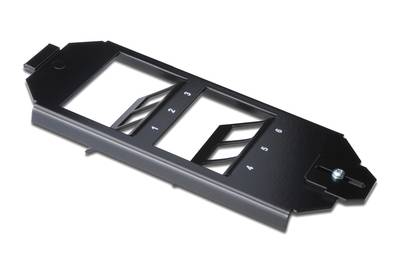

The DIGITUS AN-25178 is a metal frame set that holds six keystone jacks on two levels inside an OBO Bettermann (Ackermann) underfloor box, for installers bringing network outlets up through the floor in offices, conference rooms and open-plan spaces.
The keystone outlets sit at 45°, so patch cables leave the floor box at an angle instead of standing straight up — easier to close the box lid over plugged-in cables.
Before you order: Made for OBO Ackermann floor-box systems only. Keystone jacks are not included — order them separately (any DIGITUS keystone module).
What's in the Box
- 1 × DIGITUS keystone frame set, 2-level, for 6 keystone jacks
- Keystone modules are not included
What It Means in Practice
- Six data ports in one floor-box insert — enough for two or three desks from one box.
- 45° outlet lets the floor-box lid close over plugged-in patch cables.
- Choose the keystone type you need: Cat6, Cat6A, shielded or unshielded, even fibre or HDMI keystones.
- Two levels keep the ports accessible and the cables apart.
What Will Not Work
- It will not fit floor boxes from other manufacturers (only OBO Ackermann GES/GESR systems are listed).
- It does not include keystone jacks — on its own it carries no connection.
- It is not a wall faceplate.
- For 9 ports, the 3-level version AN-25179 is the one to order.
Key Features
6 keystone slots
Two levels of three keystone openings each.
45° outlet
Plugs enter at 45° for a lower cable profile.
Metal housing
Rigid metal frame for floor-box installation.
Standards
For cabling to ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Floor boxes are hard to change once the floor is closed, so plan the port count up front: six ports on AN-25178, nine on AN-25179. Add shielded Cat6A keystones and short patch cables for a clean desk-island install.
✓ Buy it if you are fitting network outlets into OBO Ackermann GES/GESR floor boxes and need up to six ports.
✕ Skip it if your floor boxes are from another system, or you need a wall faceplate.
→ Also consider DIGITUS AN-25179 (9 keystones) and DIGITUS Cat6A shielded keystone modules (4-pack).
Not sure which floor box you have? Send us the floor-box model and we will check the fit before you order.
