DIGITUS AK-400102-005-R SATA III Data Cable 0.5m Red 6Gbps with Latches
DIGITUS SATA III Internal Data Connection Cable

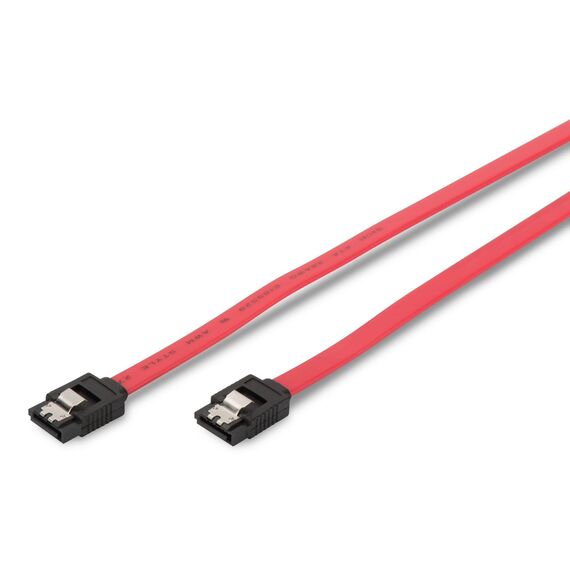

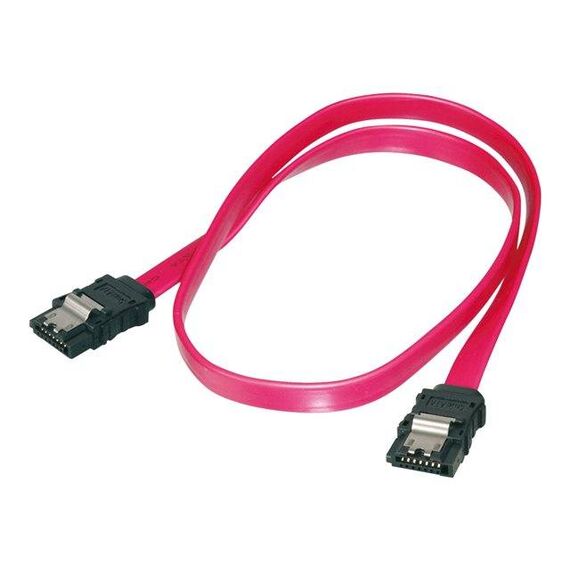

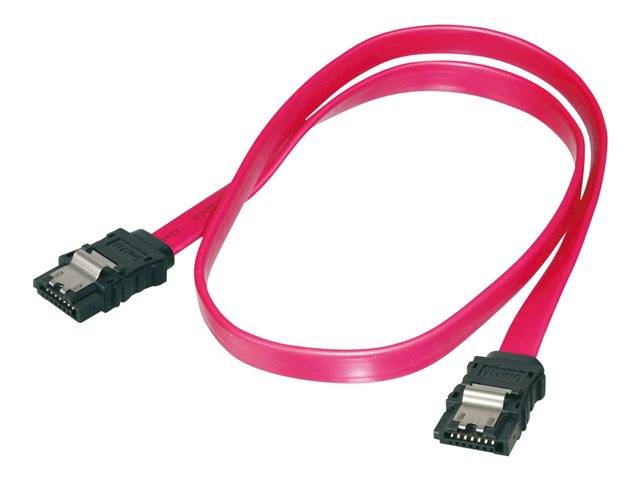

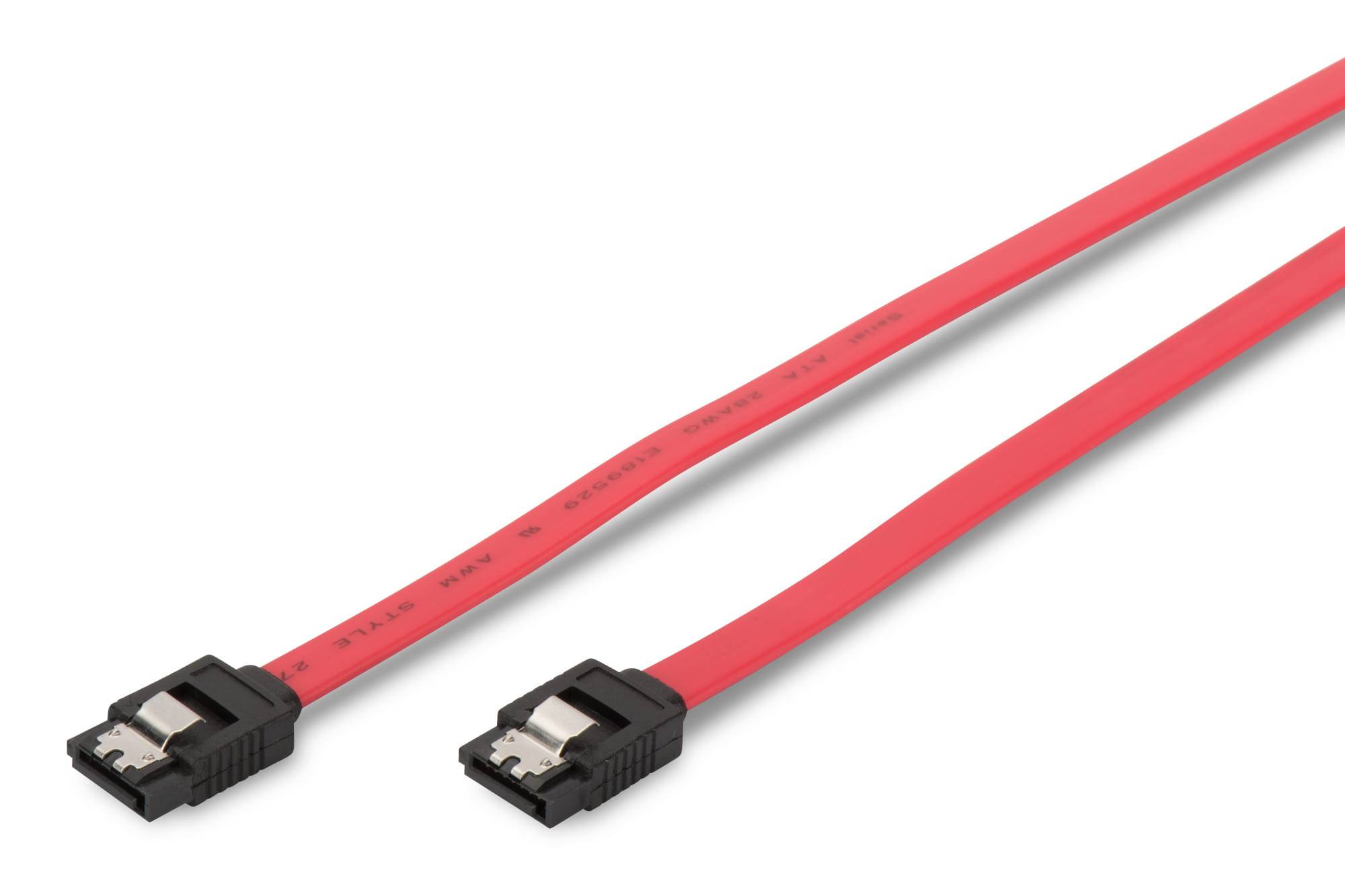

The DIGITUS AK-400102-005-R is a 0.5-metre internal SATA data cable designed to connect compatible hard drives, solid-state drives and optical drives to a computer motherboard or SATA controller. It supports SATA Revision 3 data rates up to 6Gbps and remains backward compatible with SATA Revision 2 and 1 equipment.
Key Features
Supports internal storage data transfers at speeds of up to 6Gbps with compatible hardware.
Both connectors include locking clips that help prevent accidental disconnection.
Suitable for SATA hard drives, SSDs, DVD writers, Blu-ray drives and other compatible devices.
Works with SATA Revision 2 and Revision 1 equipment at the supported interface speed.
Why Choose It?
This cable provides a dependable internal data connection for building, upgrading or repairing a desktop computer. Its 0.5-metre length suits common PC layouts, while the metal locking clips help keep the connections secure during installation and everyday use.
Technical Specifications
| Model | DIGITUS SATA Connection Cable |
| Manufacturer SKU | AK-400102-005-R |
| EAN | 4016032299950 |
| Cable Type | Internal SATA data cable |
| Connector 1 | SATA 7-pin connector, L-type |
| Connector 2 | SATA 7-pin connector, L-type |
| SATA Version | SATA Revision 3 |
| Maximum Data Rate | 6Gbps |
| Backward Compatibility | SATA Revision 2 and Revision 1 |
| Cable Length | 0.5m |
| Interlock | Metal latch on both connectors |
| Wire Gauge | 28 AWG |
| Wire Material | Copper |
| Cable Style | Flat, unshielded |
| Connector Hoods | Moulded |
| Cable Colour | Red |
| Connector Colour | Black |
Singular Expert Insight
This is a SATA data cable and does not supply power to the connected drive. A separate SATA power connector from the computer power supply is required for standard SATA hard drives, SSDs and optical drives.
Buyer’s Guide
Buy it if: You need a secure 6Gbps internal connection between a SATA drive and a motherboard or controller.
Skip it if: You require a SATA power cable, an external eSATA connection or an angled connector for restricted spaces.
Also consider: A shorter or longer SATA cable depending on the distance between the motherboard and storage drive.
FAQ
Does it support SATA III speeds?
Yes. It supports SATA Revision 3 data transfers at speeds of up to 6Gbps with compatible equipment.
Can it connect an SSD to a motherboard?
Yes. It can connect a standard 2.5-inch SATA SSD to a compatible motherboard or SATA controller.
Does it power the connected drive?
No. This cable carries data only; the drive requires a separate SATA power connection.
