DIGITUS DN-93901 CAT 5e Shielded RJ45 to RJ45 Modular Coupler

Brand:
Digitus
DIGITUS DN-93901 CAT 5e Shielded RJ45 to RJ45 Modular Coupler
DIGITUS DN-93901 CAT 5e Shielded RJ45 to RJ45 Modular Coupler
€4.65 inc. VAT
Buy
DN-93901
€3.91
€4.65 inc. VAT
Ships from EU stock: 182 item(s)
+ −
Add to wish list Ask a question
Product Code
04:81246
EAN Code
4016032266488
Manufacturer
Digitus

Quick Specs

Connection
2 × shielded RJ45 female
Network Category
CAT 5e Class D
Pin Assignment
1:1 straight-through
Contact Plating
Gold-plated 0.5µ
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

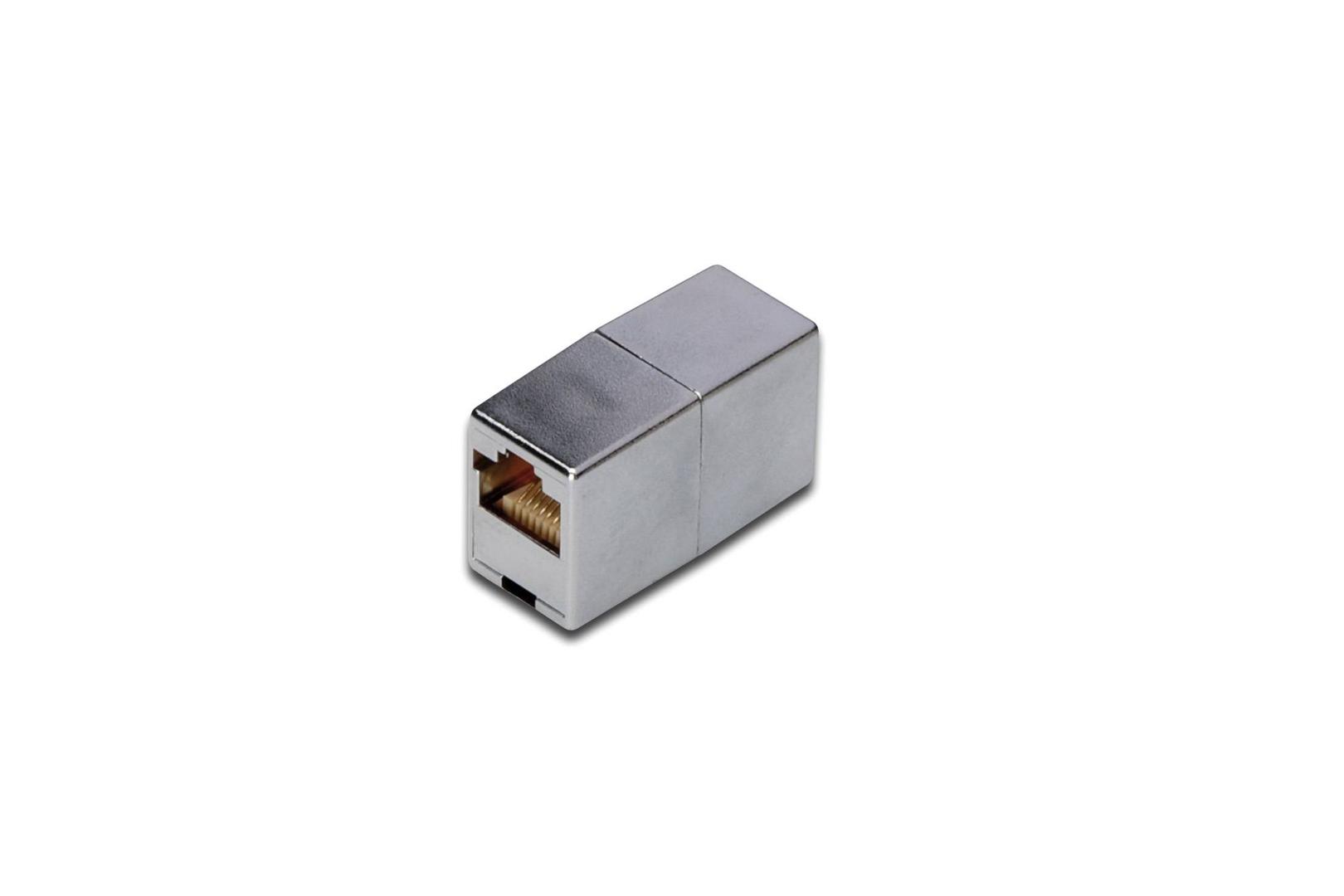

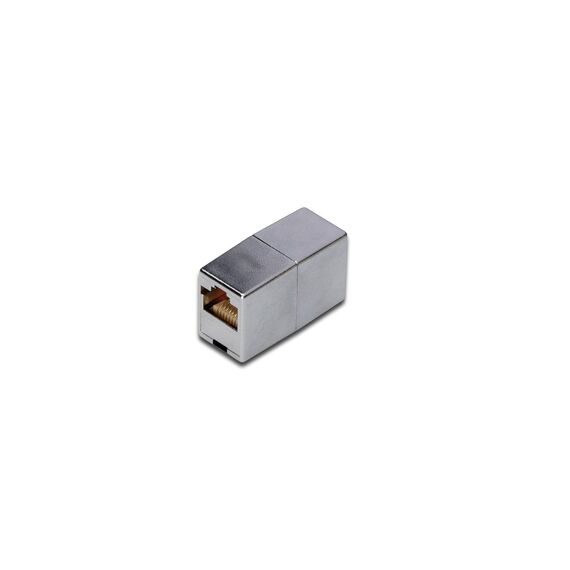

DIGITUS DN-93901 CAT 5e Shielded RJ45 to RJ45 Modular Coupler — Extend patch cable connections

CAT 5e Class D2 × RJ45 female1:1 wiringShielded

The DIGITUS DN-93901 is a compact CAT 5e Class D modular coupler with two shielded RJ45 female sockets and a 1:1 pin assignment. It provides a straightforward passive connection point for extending compatible RJ45 Ethernet patch cables in home, office and structured-cabling installations.

Compatibility & What's in the Box
Use this coupler to join two compatible RJ45 Ethernet patch cables with matching 8P8C connectors. It is a passive female-to-female coupler, not an Ethernet switch, signal repeater or RJ45 plug for cable termination. The package contains one DIGITUS DN-93901 modular coupler.

Best For

✓Extending compatible RJ45 Ethernet patch cables
✓CAT 5e Class D copper network links
✓Creating a compact 1:1 RJ45 connection point
✓Home and office Ethernet cable extensions
✓Structured-cabling repairs and installations
✓Shielded RJ45 connections requiring a coupler

Key Features


Shielded RJ45 female-to-female coupling
Two shielded RJ45 female sockets allow compatible Ethernet patch cables to be joined without changing the connector type or adding active electronics.

CAT 5e Class D with 1:1 assignment
The coupler is specified for CAT 5e Class D connections and uses a straight 1:1 pin assignment for compatible network cable extensions.

Durable contact construction
An ABS UL-94V-0 housing, tinned-bronze shielding and nickel contacts with 0.5µ gold plating are designed for reliable repeated connections.

Technical Specifications

Identification
Part Number DN-93901
EAN / GTIN 4016032266488
MPN DN-93901
Brand DIGITUS
Connectivity & Performance
Product Type Shielded modular coupler
Connector 1 RJ45 female
Connector 2 RJ45 female
Transmission Category CAT 5e Class D
Pin Assignment 1:1 straight-through
Signal Conversion None; passive coupler
Construction & Physical Properties
Housing Material ABS UL-94V-0
Contact Material Phosphor bronze
Contact Coating Nickel with 0.5µ gold plating
Shielding Tinned bronze
PCB Material FR4 UL 94V-0
Mating Cycles ≥ 750
Maximum Insertion Force 30N
Retention Strength 7.7kg between jack and plug
Net Product Dimensions 3.7 × 1.1 × 2.2cm

Frequently Asked Questions

What does the DIGITUS DN-93901 do?
It is a passive CAT 5e shielded RJ45 female-to-female coupler that joins two compatible Ethernet patch cables with a straight 1:1 pin assignment.
Does this coupler add Ethernet ports or boost the signal?
No. It has no active electronics and does not function as a network switch, repeater or extender. It simply connects two compatible RJ45 patch cables.
Can I use it to terminate a bare network cable?
No. The DN-93901 has two RJ45 female sockets. For direct field termination of an Ethernet cable, choose a suitable RJ45 plug or keystone jack instead.
Singular Expert Insight
Choose the DIGITUS DN-93901 for a simple compact extension between two compatible CAT 5e RJ45 patch cables. As with any passive coupler, overall connection performance depends on the complete cable run and installed components. For a permanent long run, a single correctly sized patch cable is usually the neater option.

Buyer's Guide

Buy it if

  • You need to join two compatible RJ45 patch cables
  • Your installation uses CAT 5e Class D cabling
  • You want a shielded passive cable coupler

Skip it if

  • You need an active Ethernet switch or repeater
  • You need to terminate a bare Ethernet cable
  • Your project requires a different connector type

Also consider

  • A single longer CAT 5e patch cable
  • A compatible CAT 5e keystone jack
  • A network switch for additional Ethernet ports
