DIGITUS Cat6A Shielded RJ45 Inline Coupler, Female to Female, 500 MHz, Class EA, 1:1, Gold-Plated Contacts, Metal
Brand:
Digitus
DIGITUS Cat6A Shielded RJ45 Inline Coupler, Female to Female, 500 MHz, Class EA, 1:1, Gold-Plated Contacts, Metal
€6.87 inc. VAT
DN-93905
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
DIGITUS DN-93905 · Cat6A RJ45 Inline Coupler · Shielded
Cat6A · 500 MHzRJ45 F/FFully shielded1:1 wiring

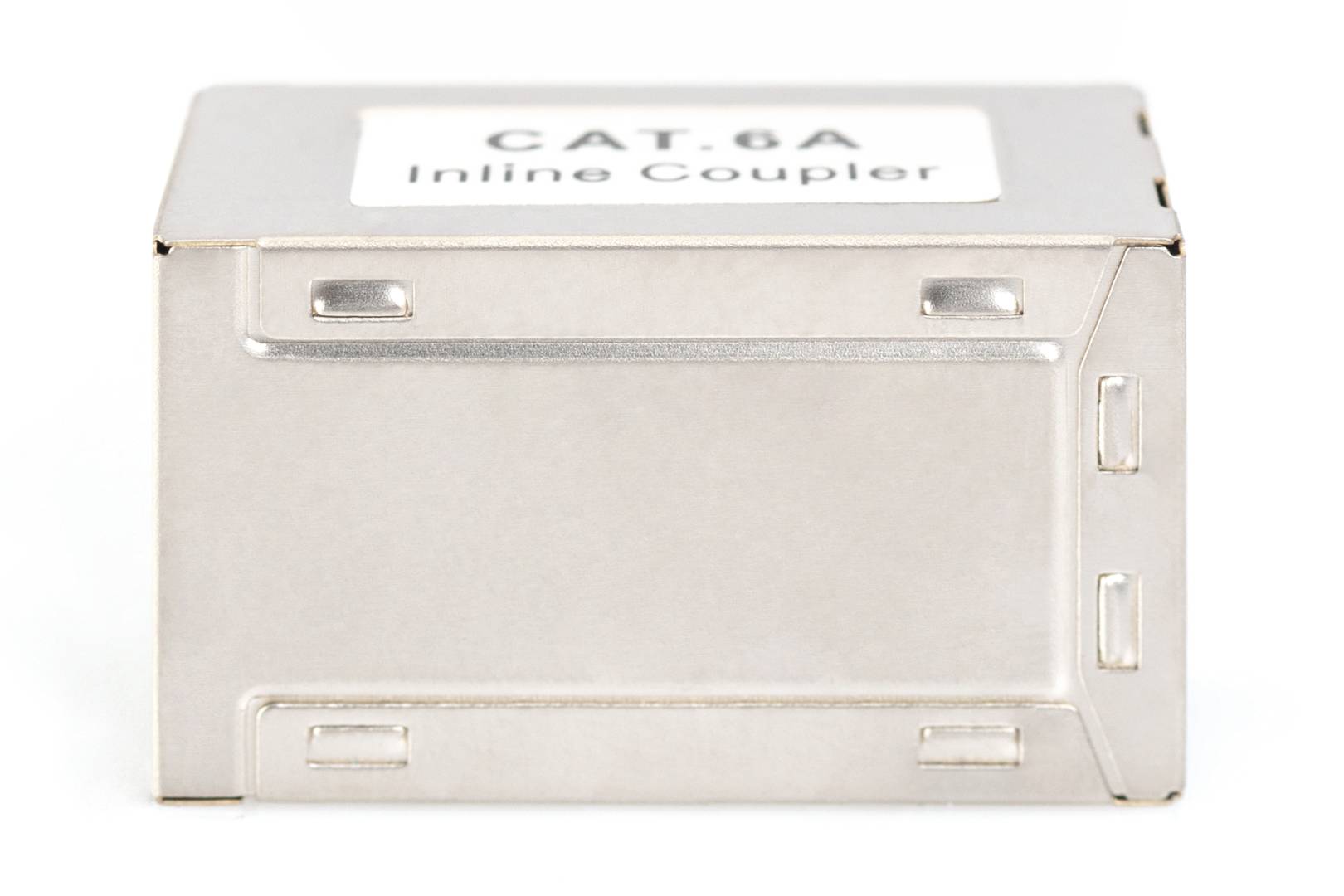

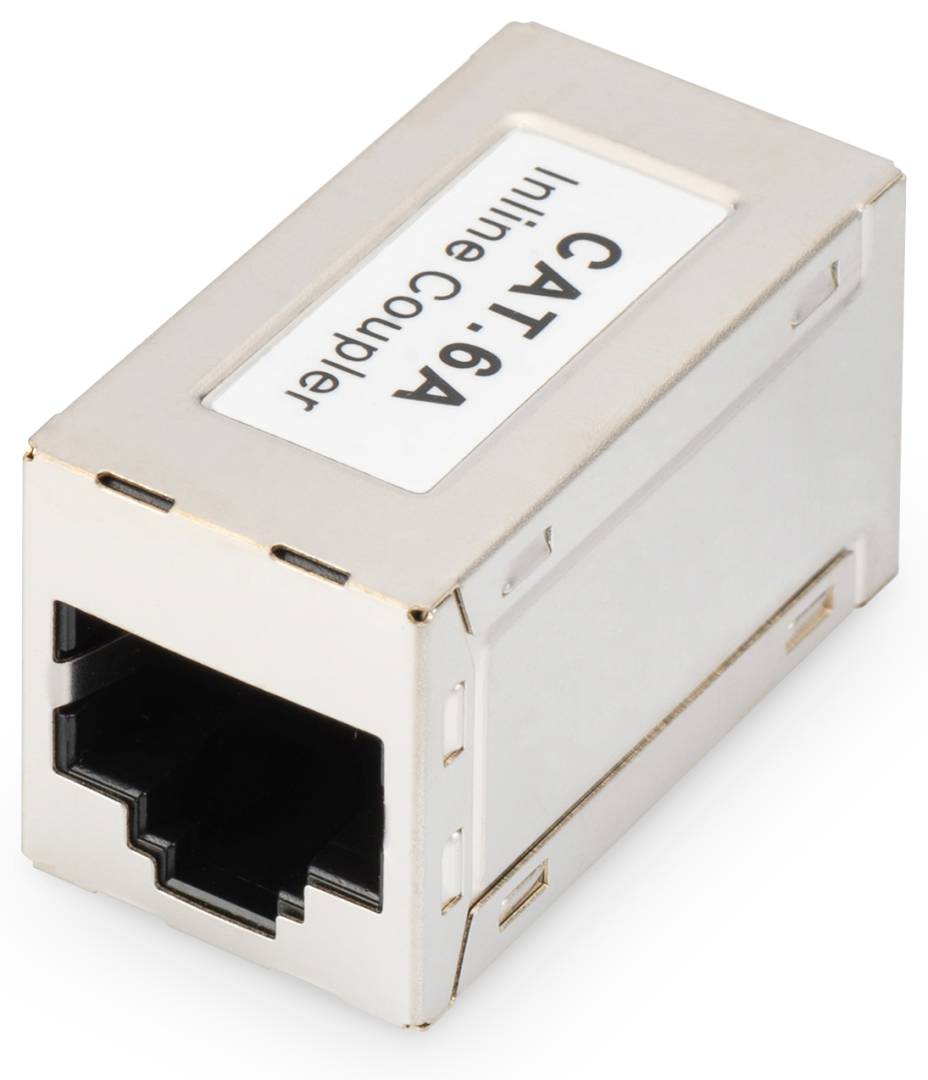

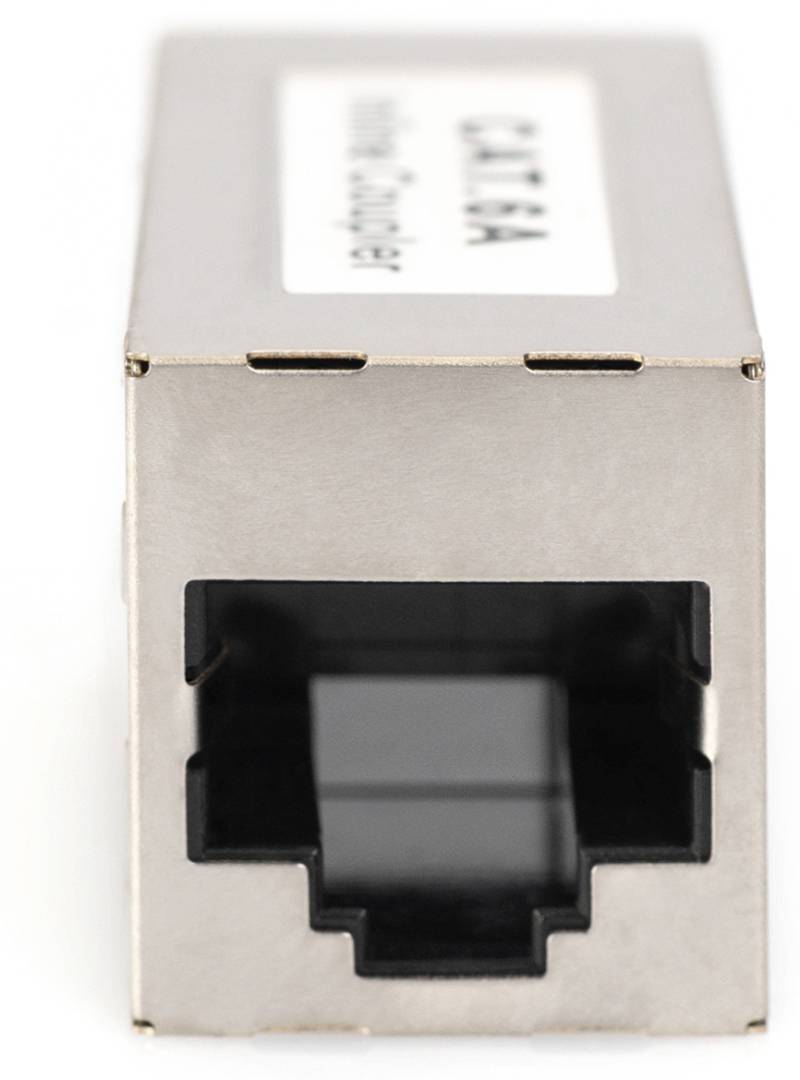

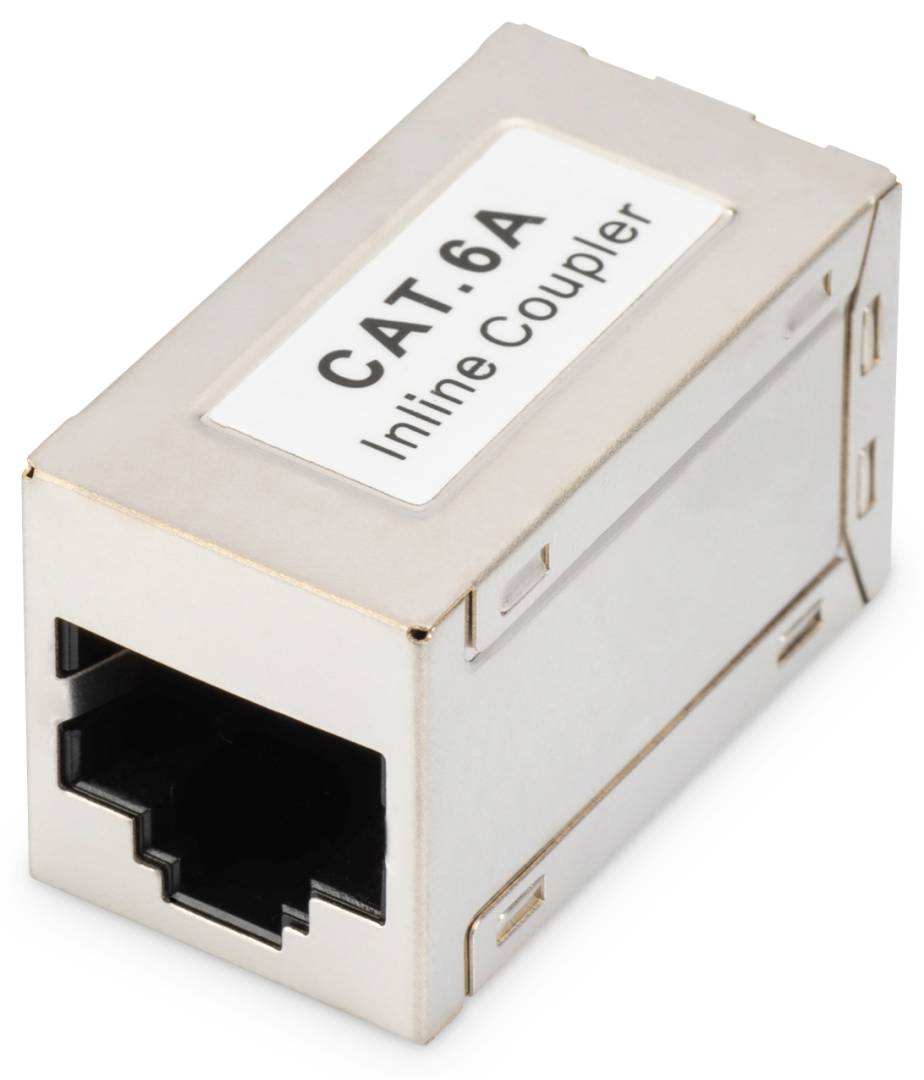

The DIGITUS DN-93905 is a fully shielded Cat6A RJ45 inline coupler, female to female, that joins two patch cords into one longer link, for users and IT staff who need a few extra metres without replacing the cable.
DIGITUS states that it meets ISO/IEC 11801 Class EA channel requirements up to 500 MHz, with 1:1 wiring, a polished nickel-plated brass housing and phosphor bronze contacts with 0.6 µm gold plating rated for at least 750 mating cycles.
What's in the Box
- 1 x DIGITUS DN-93905 Cat6A shielded RJ45 inline coupler
What It Means in Practice
- Join two patch cords when a device moved and the cable no longer reaches.
- Shielded metal housing keeps the shield continuous between two shielded patch cords.
- Straight 1:1 wiring passes Ethernet and PoE transparently — it is a passive joint.
- Compact 15 x 25 x 40 mm body fits behind desks and inside cabinets.
What Will Not Work
- It does not split one port into two and does not act as a switch.
- It does not turn a crossover cable into a straight one or vice versa (1:1 only).
- A coupler does not raise the category of the cables: two Cat5e cords joined with it remain a Cat5e link.
Key Features
Cat6A Class EA
Up to 500 MHz for 10GBase-T links when used with Cat6A cords.
Fully shielded
Nickel-plated brass housing for continuous shielding.
Durable contacts
Phosphor bronze, 0.6 µm gold, at least 750 mating cycles.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
An inline coupler is the quickest fix when a cable is a little too short, but keep it to one joint per link and use cords of the same category. For permanent or long runs a single cable of the right length is the cleaner solution — see our network cables.
✓ Buy it if you need to join two RJ45 patch cords into one longer Cat6A or lower link.
✕ Skip it if you need to split one port for two devices or join bare installation cable.
→ Also consider the DIGITUS DN-93909 field termination coupler for installation cable, or a longer patch cord.
Not sure which coupler you need? Tell us what you are connecting and we will check it for you.
Features - Digitus - DN-93905
Colour
silver
More Details
Product Code
04:227665
EAN Code
4016032291824
Manufacturer
Digitus
