Cat 6A Class EA Data Socket — surface mount
Cat 6A / 10GBase-TSurface mount2× RJ45 shieldedPure white

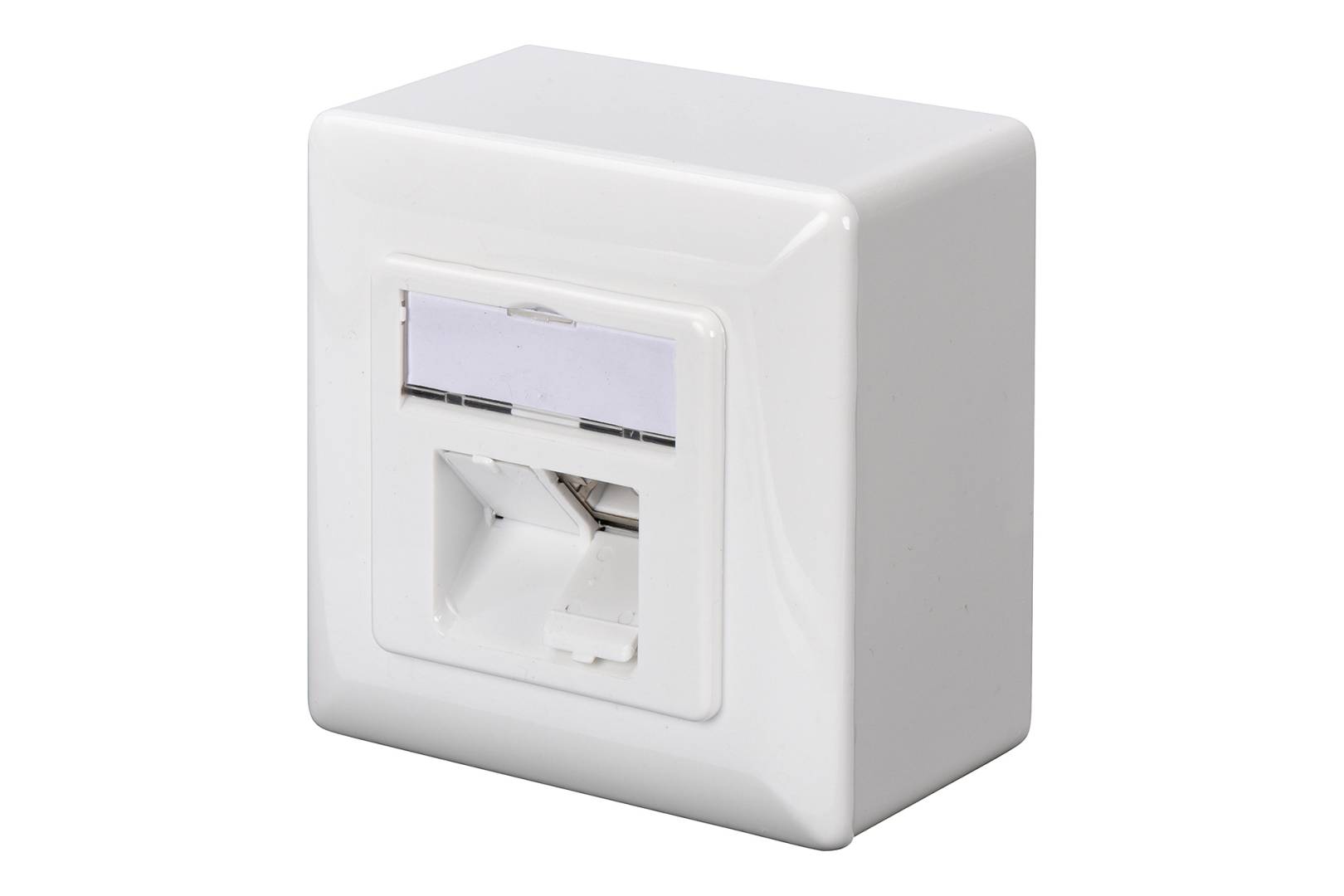

The DIGITUS DN-9007-S-1 is the surface-mounted version of DIGITUS’s Cat 6A Class EA data socket: two shielded RJ45 ports in a housing that sits on the wall, so no flush box is needed. It runs up to 500 MHz for 10GBase-T, carries PoE and PoE+ (IEEE 802.3af/at), and terminates on colour-coded LSA strips for 22–26 AWG solid or stranded conductors, to EIA/TIA 568 A or B. The die-cast metal shielding encloses the connection, the ports sit at 40° and the cable enters vertically. The junction box, screws and installation instructions are in the box. In practice it is the 10G wall point for concrete or tiled walls where cutting a flush box is not an option.
Compatibility — check before buying:
The S means surface-mounted — the socket is also shielded, like the flush DN-9007-1. The cable enters vertically. Termination is on LSA strips with a punch-down (LSA) tool; the tool and the installation cable are not included. Not sure which outlet suits your wall box or cable? Tell us the cable type and a photo of the wall point, and we check it for you.
Best For
✓ Concrete and stone walls
✓ Tiled walls and workshops
✓ Retrofits without flush boxes
✓ 10G desk points
✓ Access points and cameras on PoE+
✓ Server and technical rooms
Key Features
Cat 6A Class EA
500 MHz, ready for 10GBase-T.
Fully shielded
Die-cast metal housing encloses the connection.
Design-compatible
50 × 50 mm central plate fits common switch ranges; 80 × 80 mm frame.
Surface mount
Sits on the wall with its own housing; no flush box needed.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Surface sockets are the tidy answer for retrofits: no chasing, no dust, and the same 10G performance as the flush version. Run the cable in trunking up to the socket. For the active side, see our switches and access points. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.
Buyer’s Guide
Buy it if
You need a shielded 10G wall point without cutting a flush box.
Skip it if
You have flush boxes and want the socket flush with the wall.
Also consider
DIGITUS DN-9007-1 — the flush-mounted version.
Features - Digitus - DN-9007-S-1
Colour
white
More Details
Product Code
04:159054
EAN Code
4016032320203
Manufacturer
Digitus
