DIGITUS DN-91624S-EA — 24-Port Cat 6A Shielded Patch Panel, 19" 1U, Grey
24 portsCat 6A shielded19" · 1UKrone LSA+

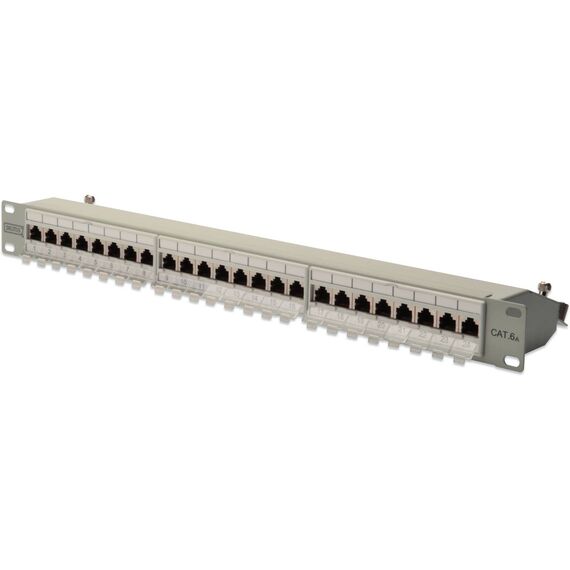

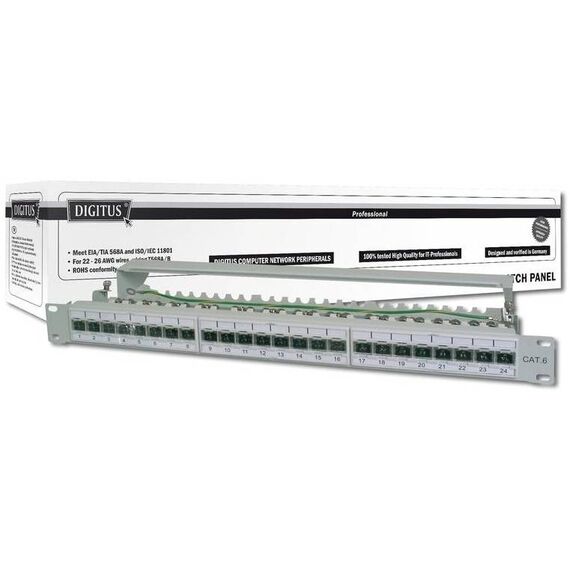

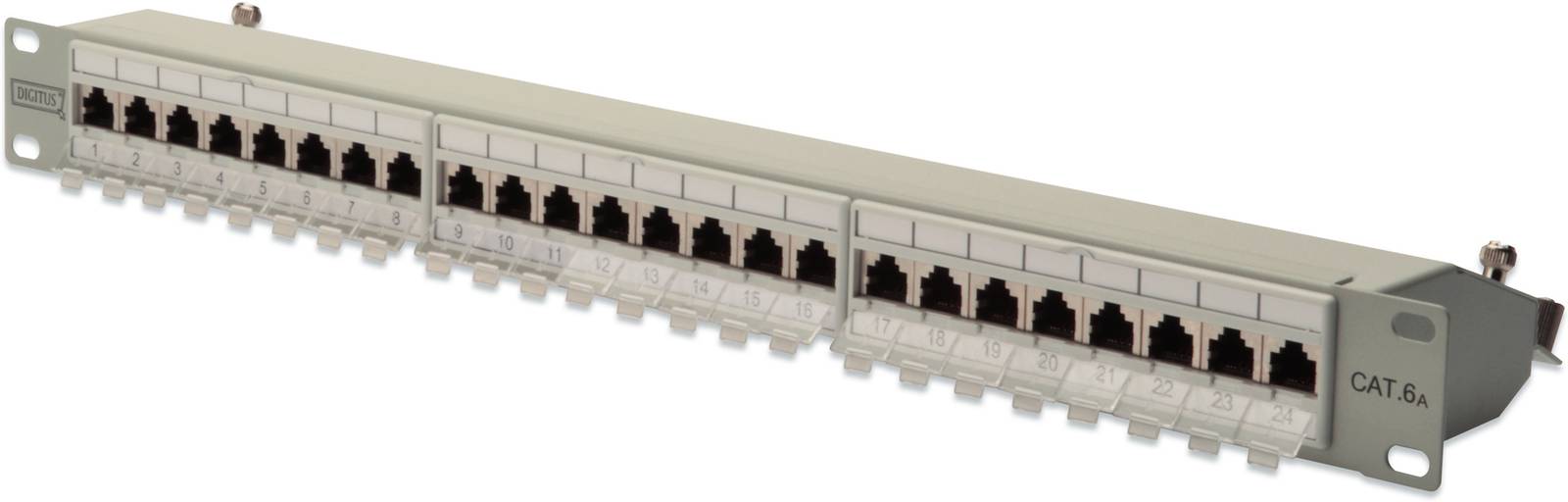

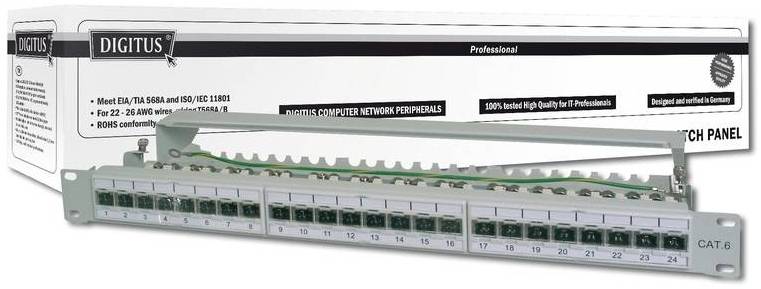

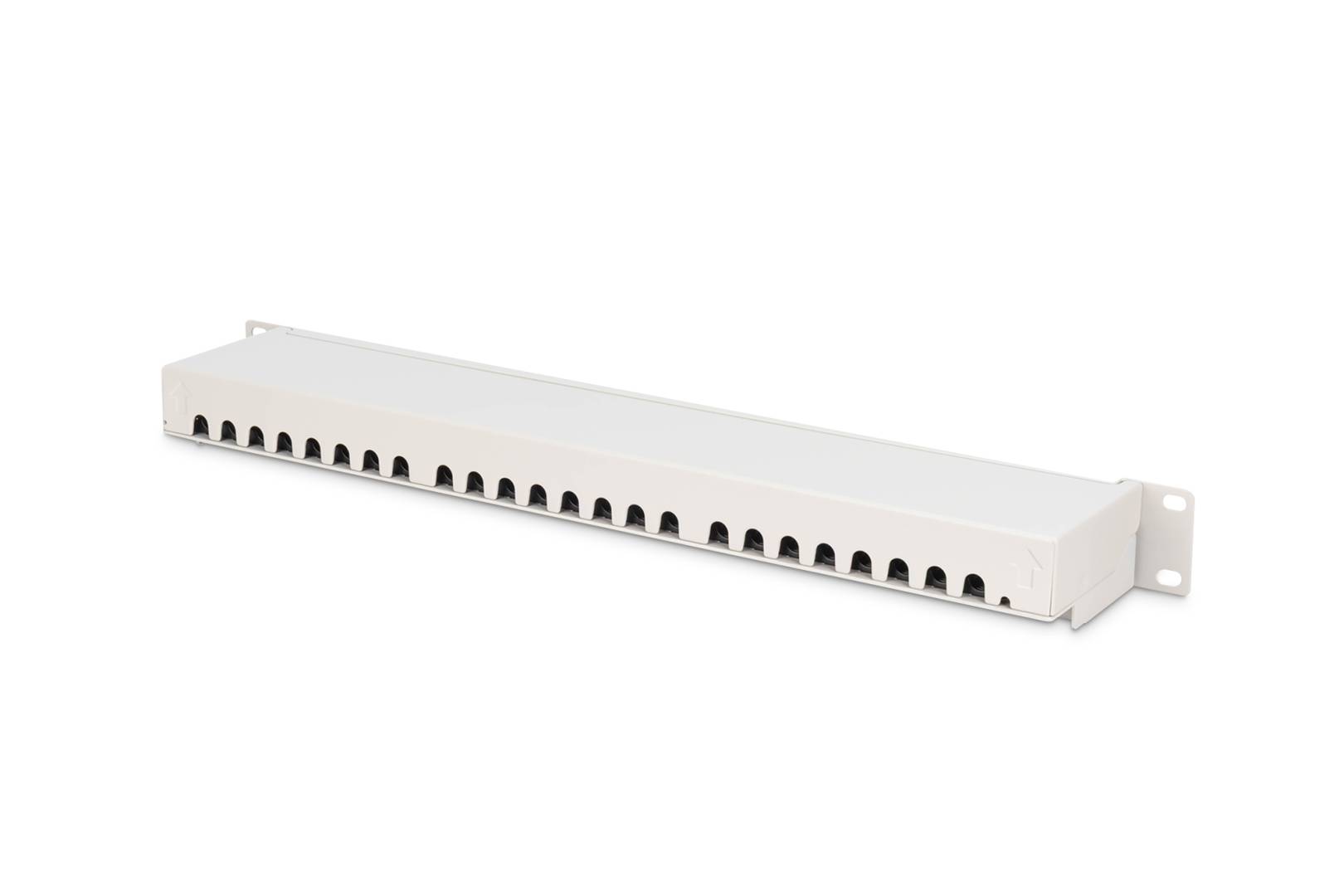

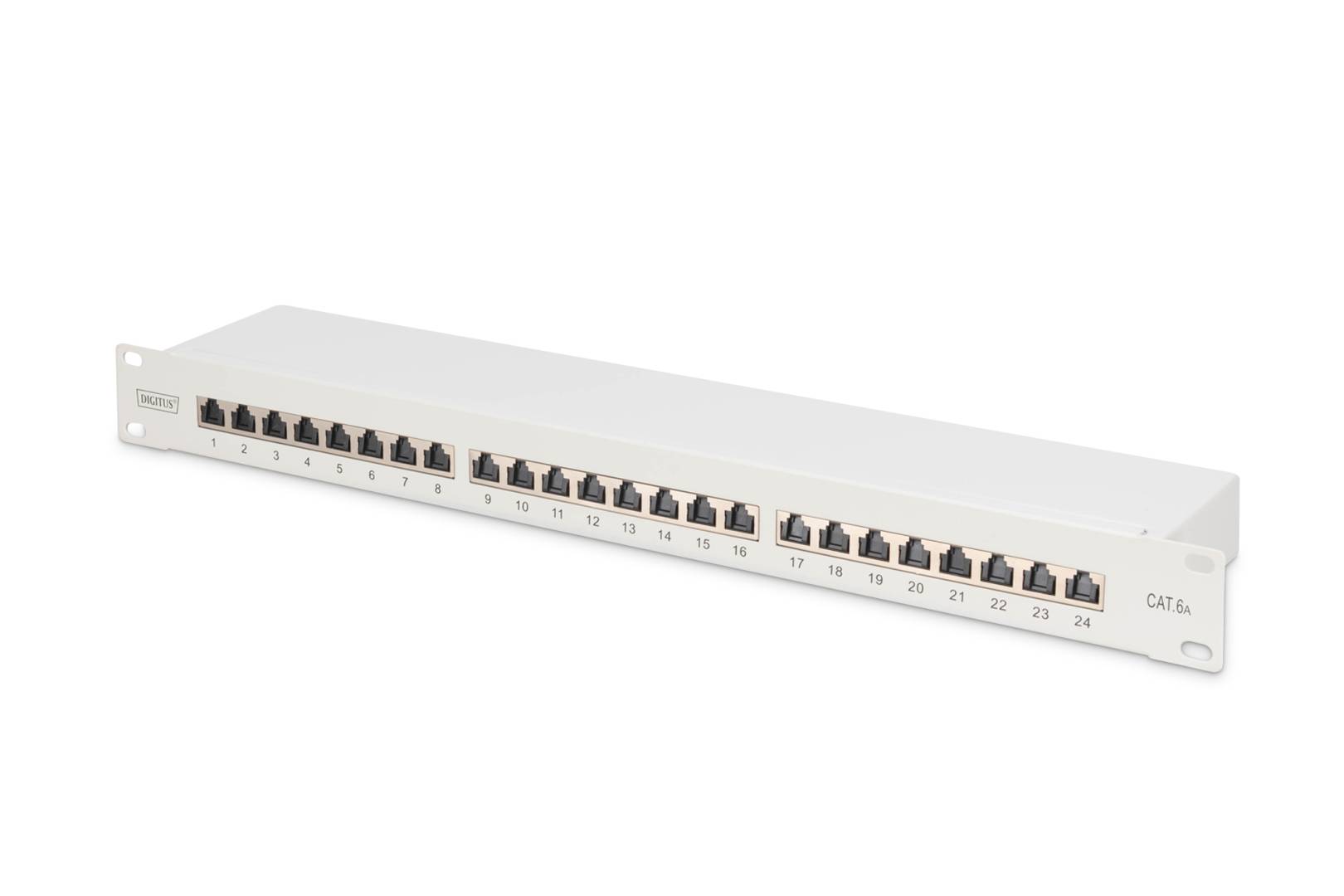

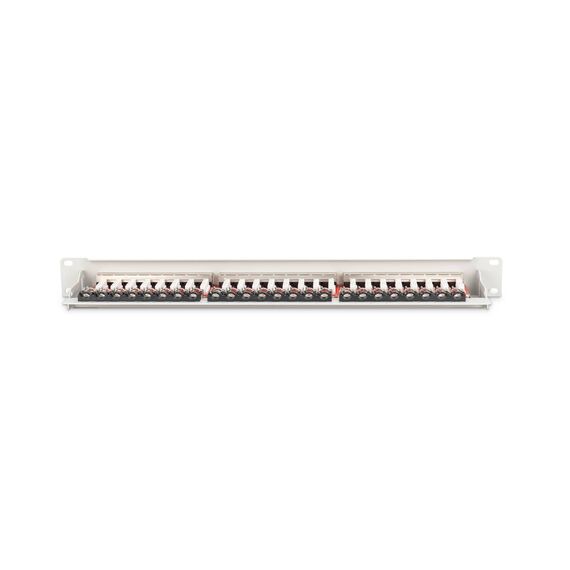

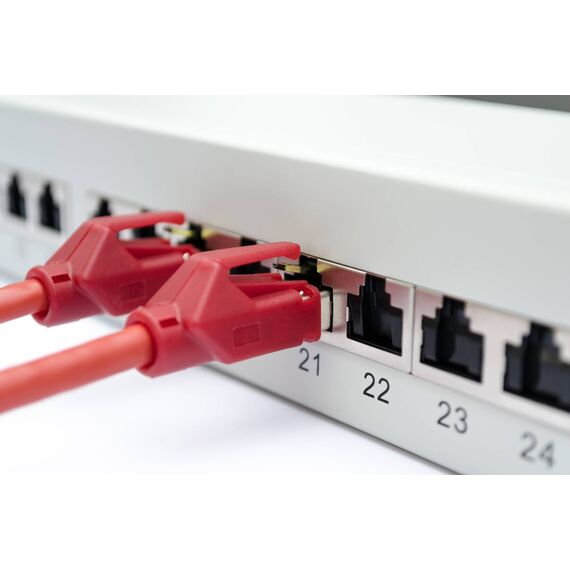

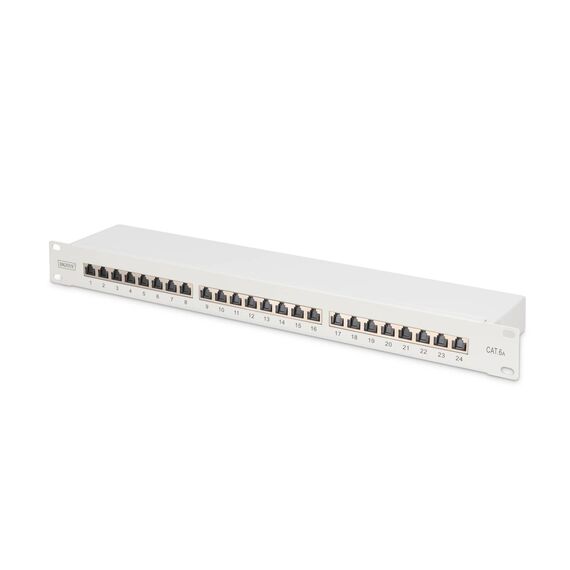

The DIGITUS DN-91624S-EA is a 24-port Cat 6A shielded 19-inch 1U patch panel in light grey (RAL 7035). It mounts in a 19-inch rack or cabinet and takes up 1U. Installation cable is punched down on the back with an LSA (Krone) punch-down tool, and the 24 RJ45 sockets on the front take ordinary patch cords, rated for 10 Gbit/s (10GBase-T). In practice it gives the cables coming from wall outlets and ceilings a fixed, labelled end point next to your switch, so that moves and changes are made with short patch cords at the panel instead of re-terminating installation cable. If you are planning a new rack, send us the number of outlets and the switch you use — we check that panel, cable and patch cords match before you order.
Compatibility — check before buying:
This is the light grey Cat 6A panel — the same panel in black is DN-91624S-EA-B, and DN-91624S without “-EA” is the lower Cat 6 model. The ports are fixed and terminated with an LSA (Krone) punch-down tool, which is not in the box. As a shielded panel it only gives its full screening with shielded cable and a grounded rack or earth point; DIGITUS states the earthing wire is not included. It needs a standard 19-inch rack or cabinet with 1U free. Not sure it matches your cabling? Send us the cable type and the rack or cabinet model and we check it.
Best For
✓ 19-inch server and network racks
✓ Office floor distribution
✓ Structured cabling projects
✓ Patching wall outlets to switches
✓ Data centres and comms rooms
✓ Labelled, serviceable terminations
Key Features
Krone LSA+ termination

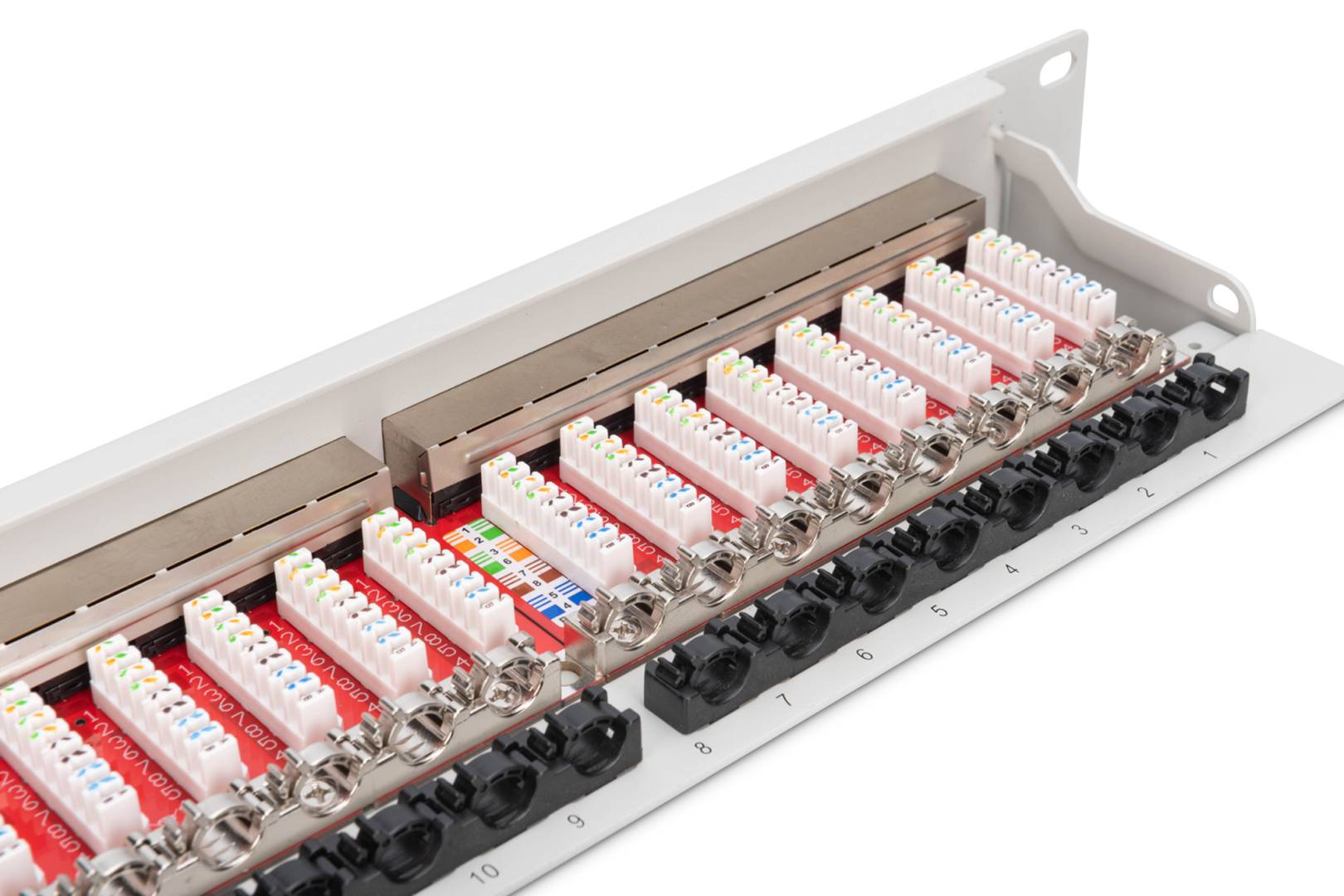

Krone LSA+ strips, colour-coded T568A/B, solid and stranded wire. Once the cable is terminated, every move is made with a patch cord at the front.
Cat 6A performance
Class EA, up to 500 MHz, 10GBase-T, PoE and PoE+ (IEEE 802.3af/at). The shielded design helps in electrically noisy rooms and with PoE-heavy cable bundles.
19-inch, 1U
Standard 19-inch width at 1U height, for any network rack or cabinet.
Dust flaps and label field

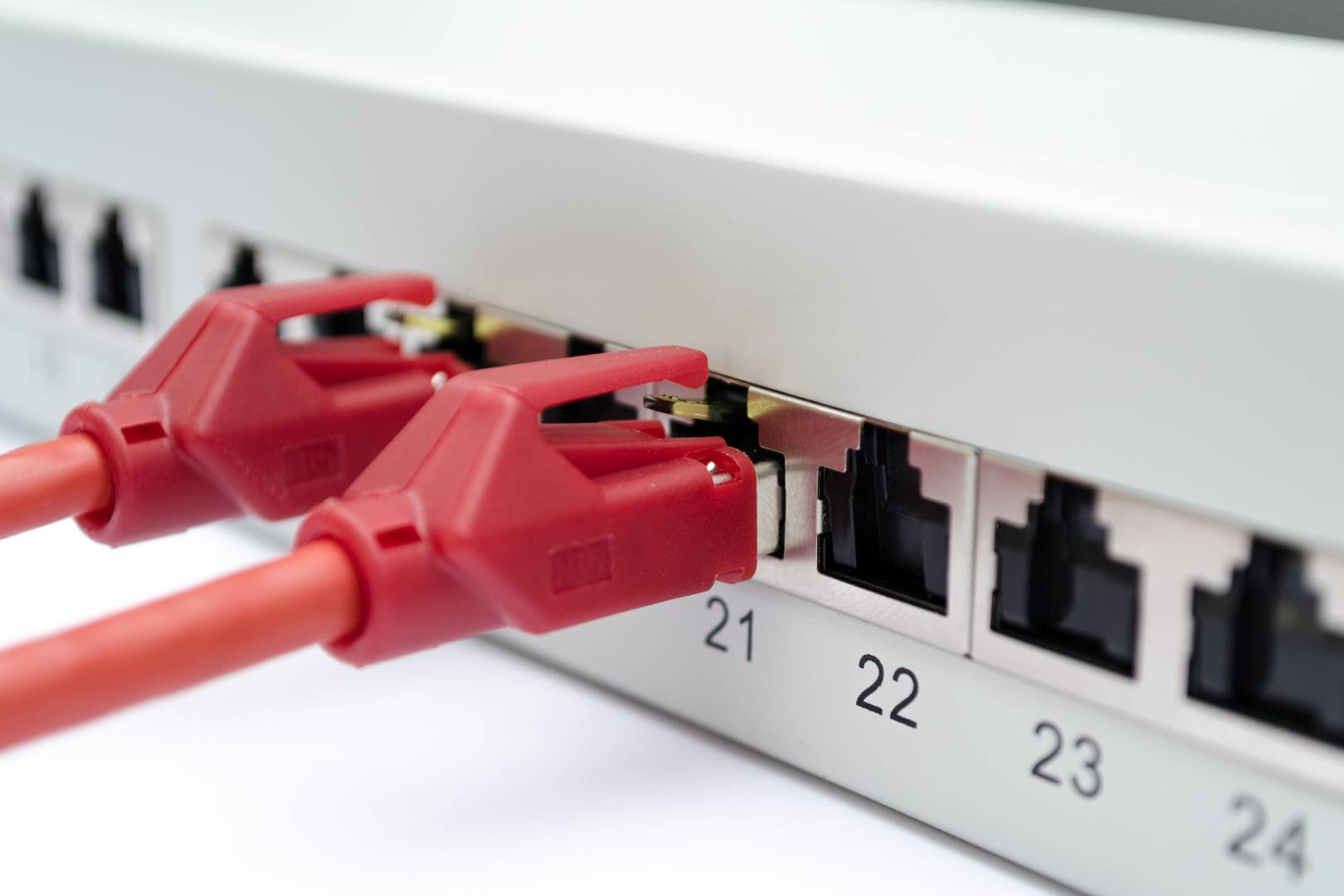

Every port has a dust flap, and a labelling field on the front lets you mark the ports as you terminate them.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the DN-91624S-EA as the standard 24-port Cat 6A panel for grey 19-inch racks, when the cabling is shielded and 10 Gbit/s is the aim. Plan the panel with cable and patch cords of the same category, and label the ports as you terminate them. Every order comes with Singular’s local support in Cyprus. See our patch panels or the network switches and network cables that complete the link.
Buyer’s Guide
Buy it if
You need 24 shielded Cat 6A ports in 1U of a grey 19-inch rack.
Skip it if
Your rack is black (DN-91624S-EA-B) or you need the ports in 0.5U (DN-91624S-SL-EA-G).
Also consider
equip 326524, a 24-port Cat 6A shielded panel in the same grey.
Features - Digitus - DN-91624S-EA
Colour
grey
More Details
Product Code
04:97760
EAN Code
4016032288428
Manufacturer
Digitus
