DIGITUS 1U Extendible Shelf for 800 mm Deep 19" Cabinets
1U · 19"Pull-out with handle25 kg loadRAL 7035 grey

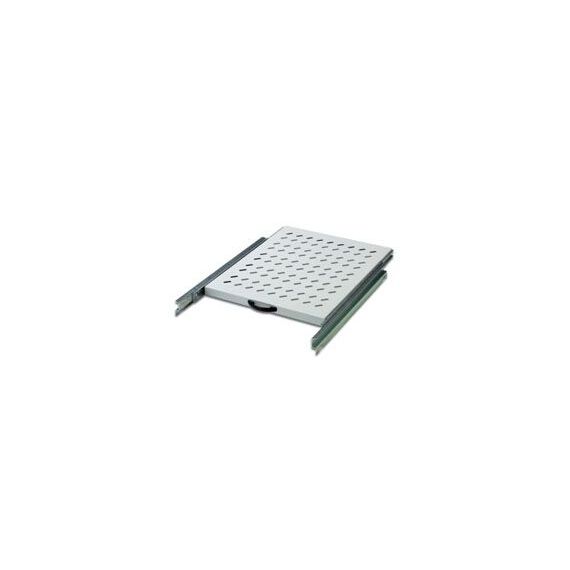

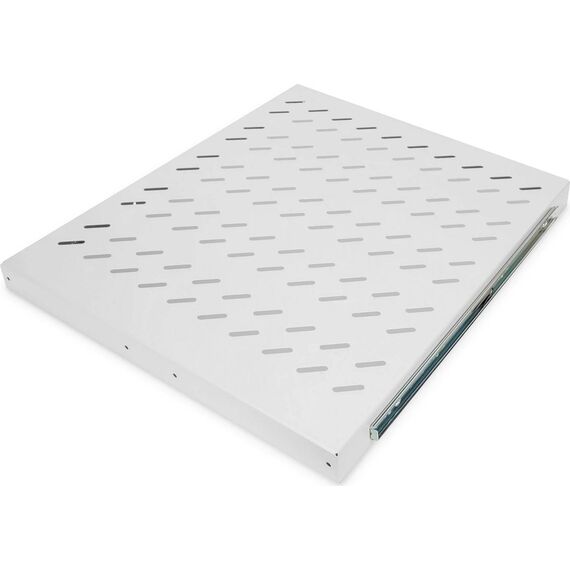

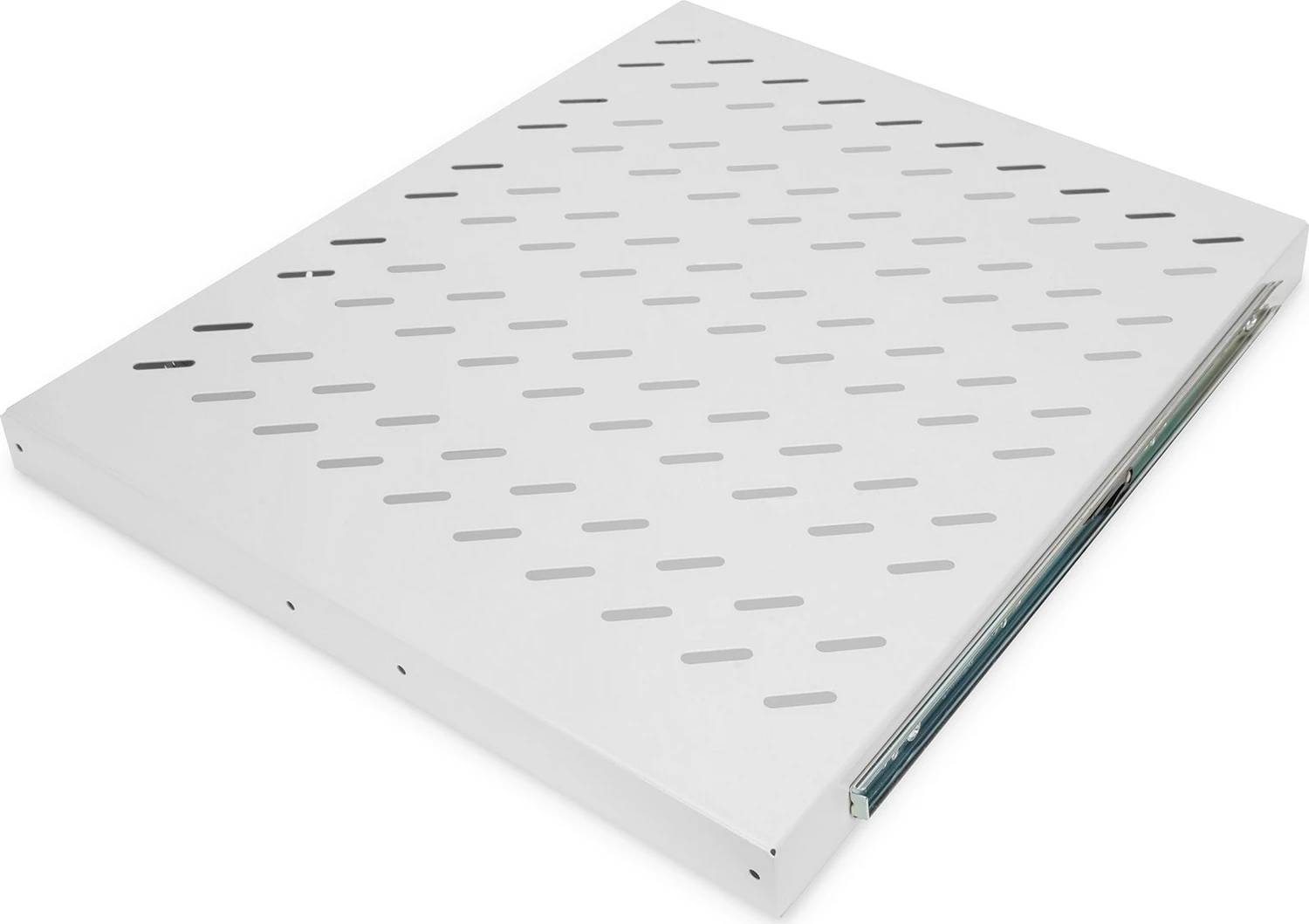

The DIGITUS DN-19 TRAY-2-800 is a 1U extendible (pull-out) shelf for 800 mm deep 19-inch network and server cabinets, carrying up to 25 kg, for anyone who needs to reach equipment on the shelf without unplugging it.
It fixes to all four 19-inch profile rails and slides forward on a handle bar, so you can pull a desktop router, a small NAS, a modem or a keyboard towards you for service and push it back in afterwards. The perforated steel tray lets air rise through it instead of trapping heat under the device.
Before you order: this shelf is sized for 800 mm deep cabinets with front and rear 19-inch rails; the adjustable mounting brackets span 355–680 mm between rails. For 600 mm or 1000 mm cabinets, DIGITUS makes separate variants — tell us your cabinet depth and we will match the right one.

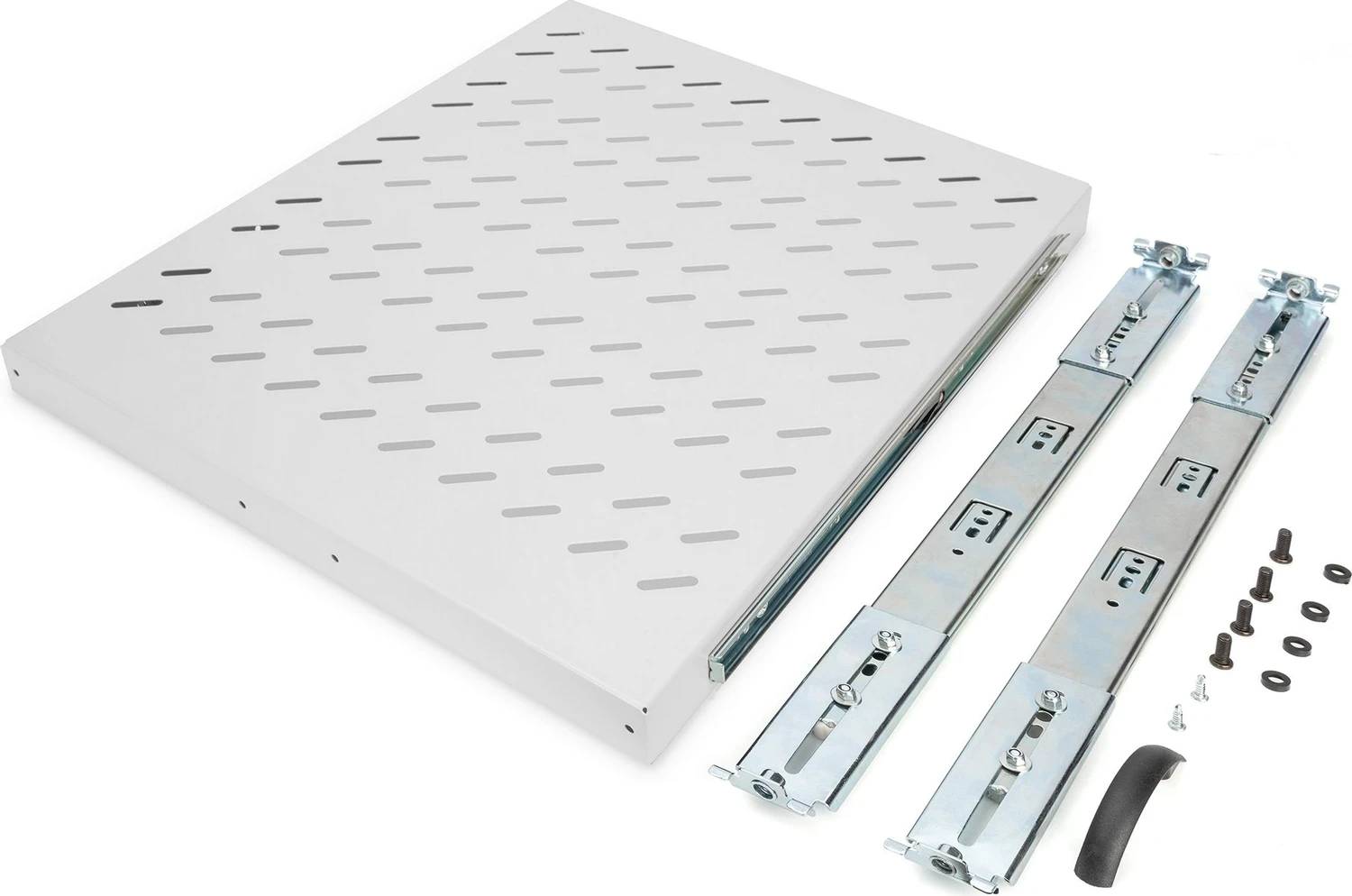

What's in the Box
- 1 × extendible 1U shelf with handle bar (RAL 7035 light grey)
- Installation set: screws, cage nuts and washers
What It Means in Practice
- Four-point fixing: brackets go on both front and rear rails, so the load sits on the full rack frame rather than hanging off the front.
- Pulling the shelf out gives you access to cables and buttons on the device without taking it off the shelf.
- Only 1U high, so it costs you the minimum rack space — the device itself determines how many U above the shelf you need to keep free.
- Perforated surface allows air to pass through for devices that vent downwards.
- Light grey RAL 7035 matches the classic grey cabinets from DIGITUS and many other manufacturers.
What Will Not Work
- 2-post open frames or wall brackets without rear rails — the shelf needs four rails.
- Cabinets whose front-to-rear rail spacing is outside 355–680 mm (for example many 600 mm or 1000 mm cabinets).
- Loads above 25 kg — heavier UPS units or servers need fixed rails or a heavy-duty shelf.
- Black cabinets where the colour must match — the black variant is a different part number.
Key Features

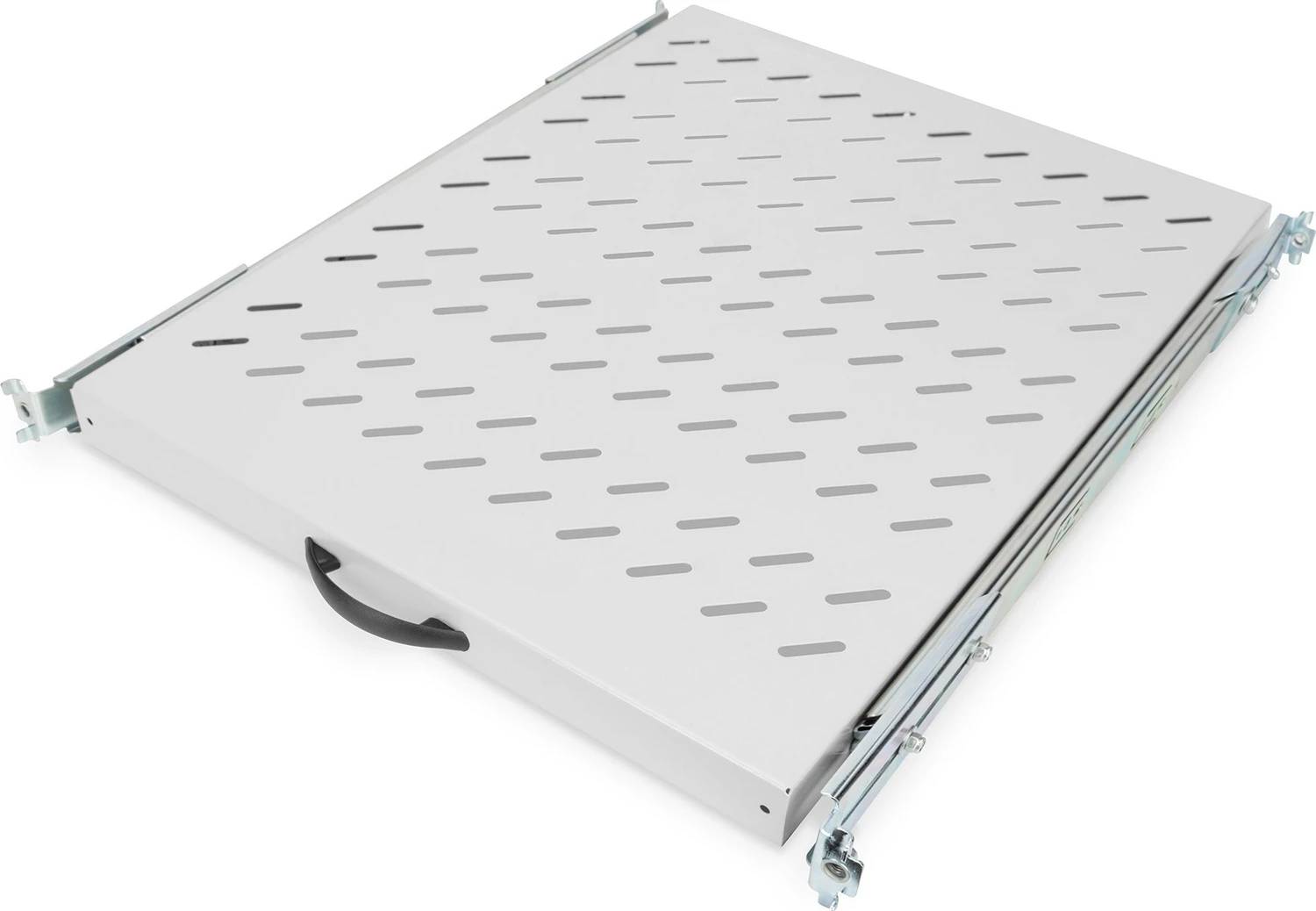

Pull-out access
A handle bar lets you slide the shelf forward to reach devices and connections without dismounting them.
Four-point fixing
Mounting on front and rear profile rails spreads the 25 kg load across the cabinet frame.

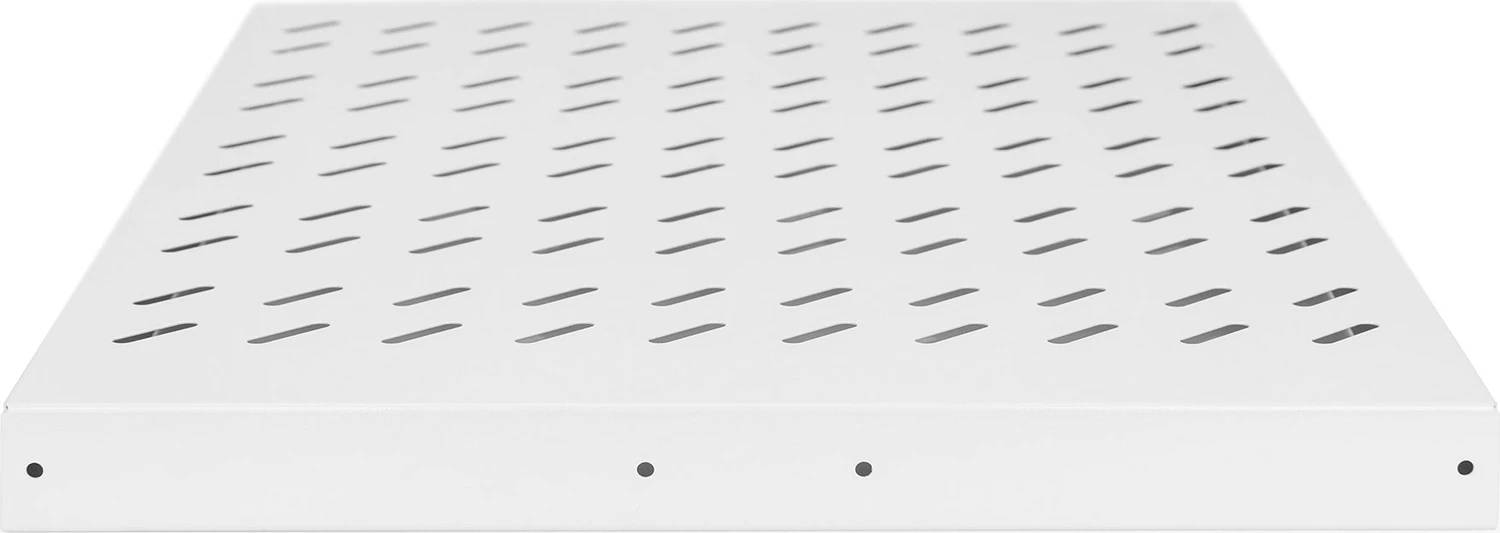

Ventilated tray
Perforated sheet steel lets heat escape from devices that vent through the base.
Adjustable brackets
Mounting brackets adjust between 355 and 680 mm to suit the rail positions inside 800 mm cabinets.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
An extendible shelf pays off when the device on it needs regular hands-on work — resetting a modem, swapping a USB drive, checking LEDs. If the equipment never moves, a fixed shelf is cheaper and slightly stronger. Match the shelf to your cabinet depth first; see our other rack accessories for fixed shelves, fan units and cable management.
✓ Buy it if you have an 800 mm deep 19-inch cabinet and want pull-out access to non-rackable devices up to 25 kg.
✕ Skip it if your cabinet is 600 mm or 1000 mm deep, has no rear rails, or the load is above 25 kg.
→ Also consider a fixed cantilever shelf for front-rail-only mounting, or the DIGITUS variants for other cabinet depths.
Not sure it fits? Send us your cabinet model and depth and we will confirm the right shelf before you order.
Features - Digitus - DN-19 TRAY-2-800
Colour
grey
More Details
Product Code
04:61211
EAN Code
4016032135470
Manufacturer
Digitus
