Digitus Splice Cassette with 12 Pre-assembled LC/APC Pigtails, OS2 Single-mode
12 × LC/APCOS2 9/125 µmSplice cassetteIEC 60304 colours

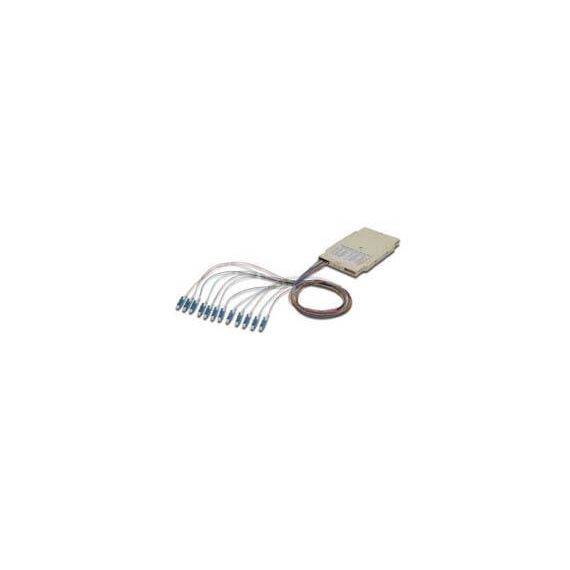

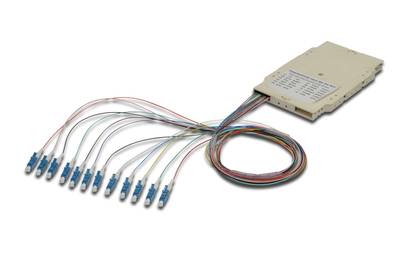

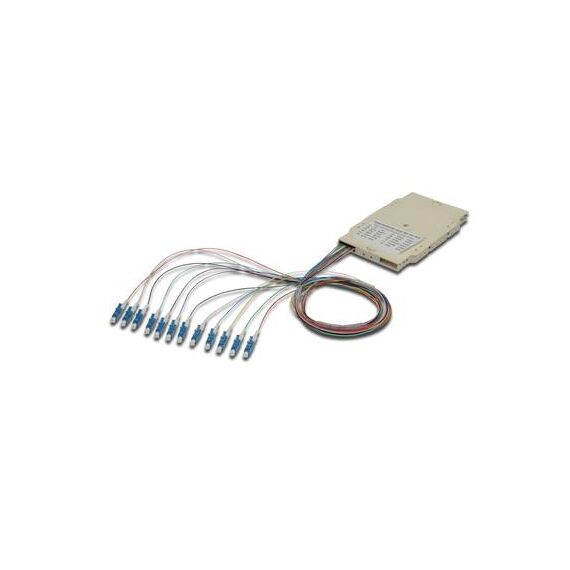

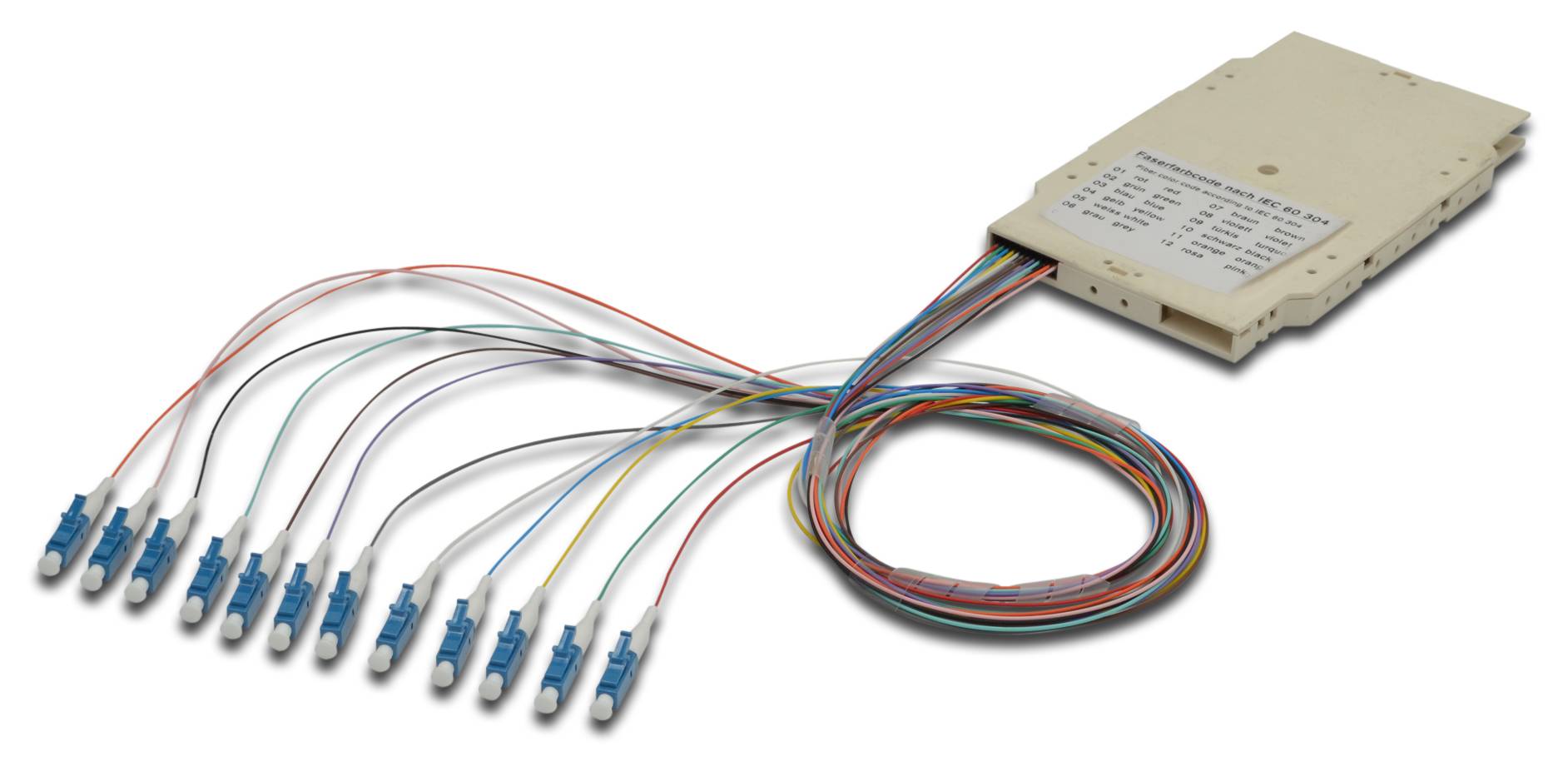

The Digitus A-96933-02-APC is a splice cassette that comes with twelve single-mode OS2 9/125 µm pigtails already pre-assembled and cut to length, each terminated with an LC/APC connector, for terminating a 12-fibre single-mode cable inside a fibre splice box or distribution panel.

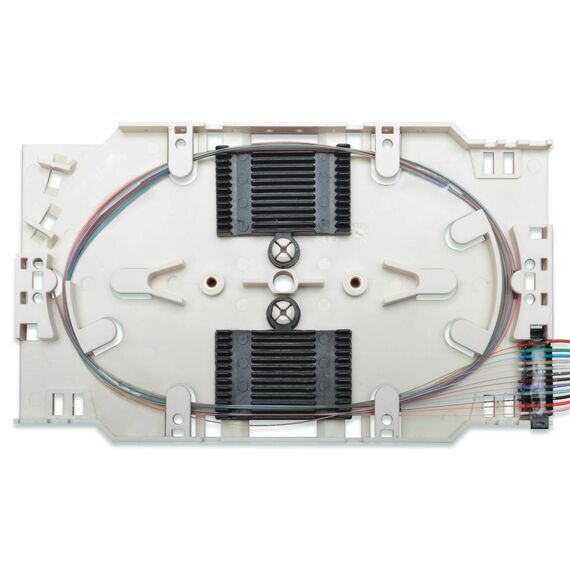

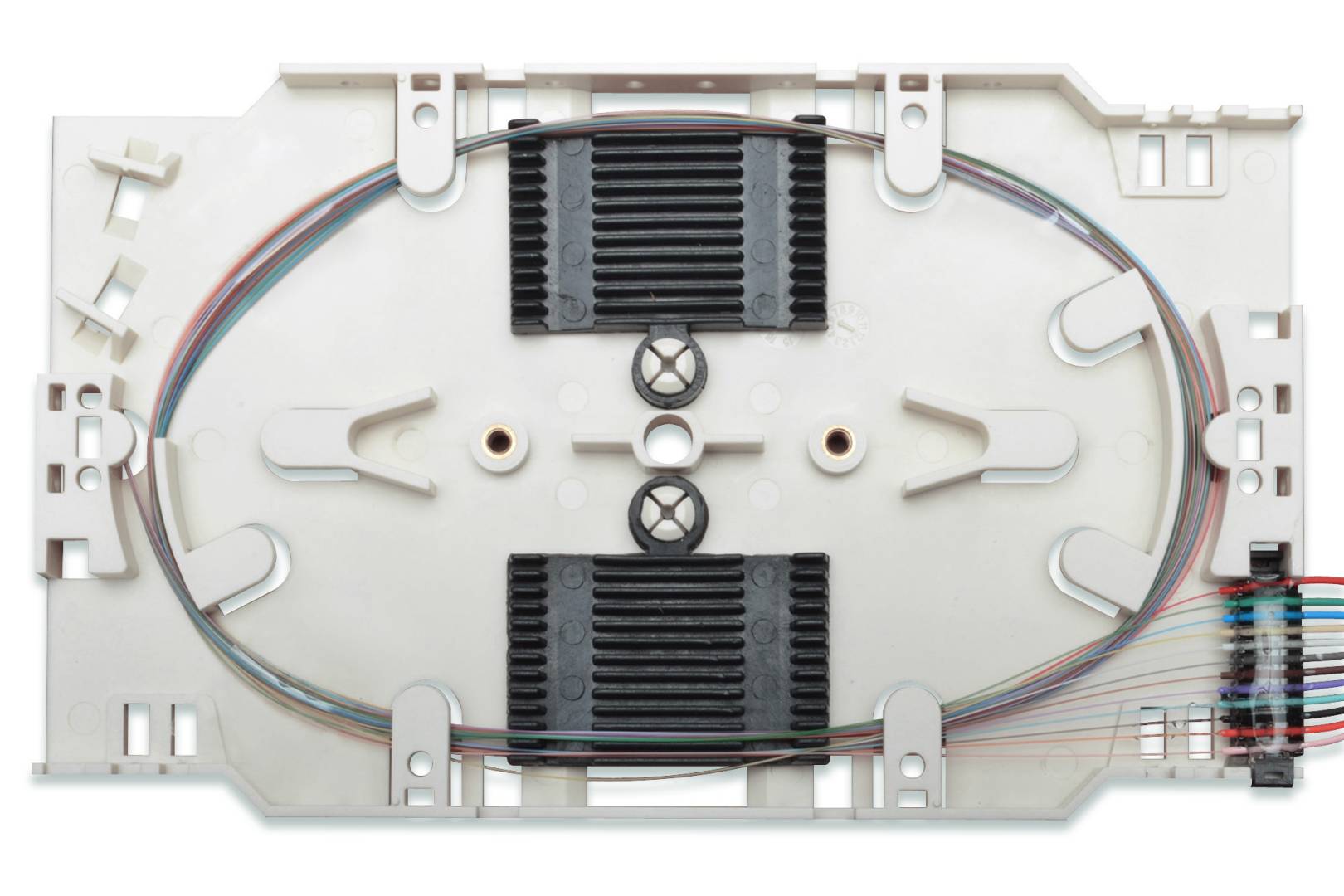

Instead of routing loose pigtails and fitting splice holders yourself, you mount the ready-made cassette, splice each incoming fibre to the pigtail of the same colour and plug the LC/APC connectors into the box's adapters. The pigtails are colour-coded to IEC 60304 and a colour-code sticker sits on the cassette lid.
Before you order: APC single-mode only: the LC/APC (green) connectors need LC/APC adapters in your box or panel and OS2 single-mode fibre on the incoming side. The cassette is a DIN 47662-type insert — check that your splice box accepts this cassette format before ordering.
What's in the Box
- 1 × splice cassette (white ABS) with lid
- 12 × pre-assembled LC/APC OS2 pigtails, colour-coded, cut to length
- Crimp splice holders (splice comb) and spiral tubes
- Test report per pigtail set
What It Means in Practice
- Typical use: terminating a 12-fibre single-mode cable for FTTH, PON or telecom hand-off in a wall or rack splice box with LC/APC adapters.
- The pigtails arrive pre-routed in the cassette, so the work on site is splicing and closing the lid — cleaner and faster than handling twelve loose pigtails.
- Matching each incoming fibre to the pigtail of the same IEC 60304 colour keeps fibre 1 on port 1 across the whole link.
- APC connectors keep back-reflection low, the requirement for GPON/XGS-PON and RF video over fibre.
What Will Not Work
- UPC (blue) adapters or equipment — APC and UPC end-faces must not be mated.
- Multimode (OM3/OM4) cables — the pigtails are OS2 single-mode.
- Splice boxes that do not accept DIN 47662-type cassettes.
- Splicing without a fusion splicer and splice protection sleeves — the sleeves and tools are not part of the set.
Key Features
Pre-assembled
Twelve LC/APC pigtails already routed and cut to length in the cassette.
IEC 60304 colours
Colour-coded fibres plus a code sticker on the lid for error-free assignment.
Splice holders included
Crimp splice comb ready for the protected splices.
Tested
Each pigtail set is supplied with a test report.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
This cassette saves the fiddly part of a 12-fibre single-mode termination: the pigtails, colour coding and splice holders are already in place, and you only splice and plug in. Confirm your box takes a DIN 47662-type cassette and has LC/APC adapters. See also our rack accessories for the surrounding hardware.
✓ Buy it if you are terminating a 12-fibre OS2 cable into LC/APC adapters in a compatible splice box.
✕ Skip it if your system is UPC or multimode, or your box uses a different cassette format.
→ Also consider LC/APC single-mode patch cables for the connections from the panel to the equipment.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
