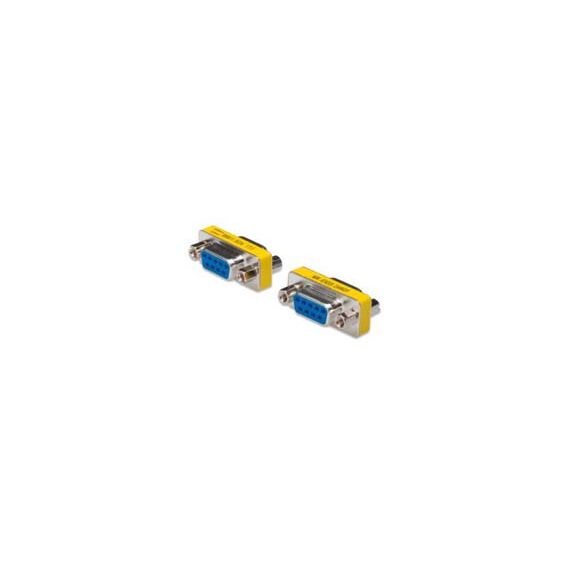

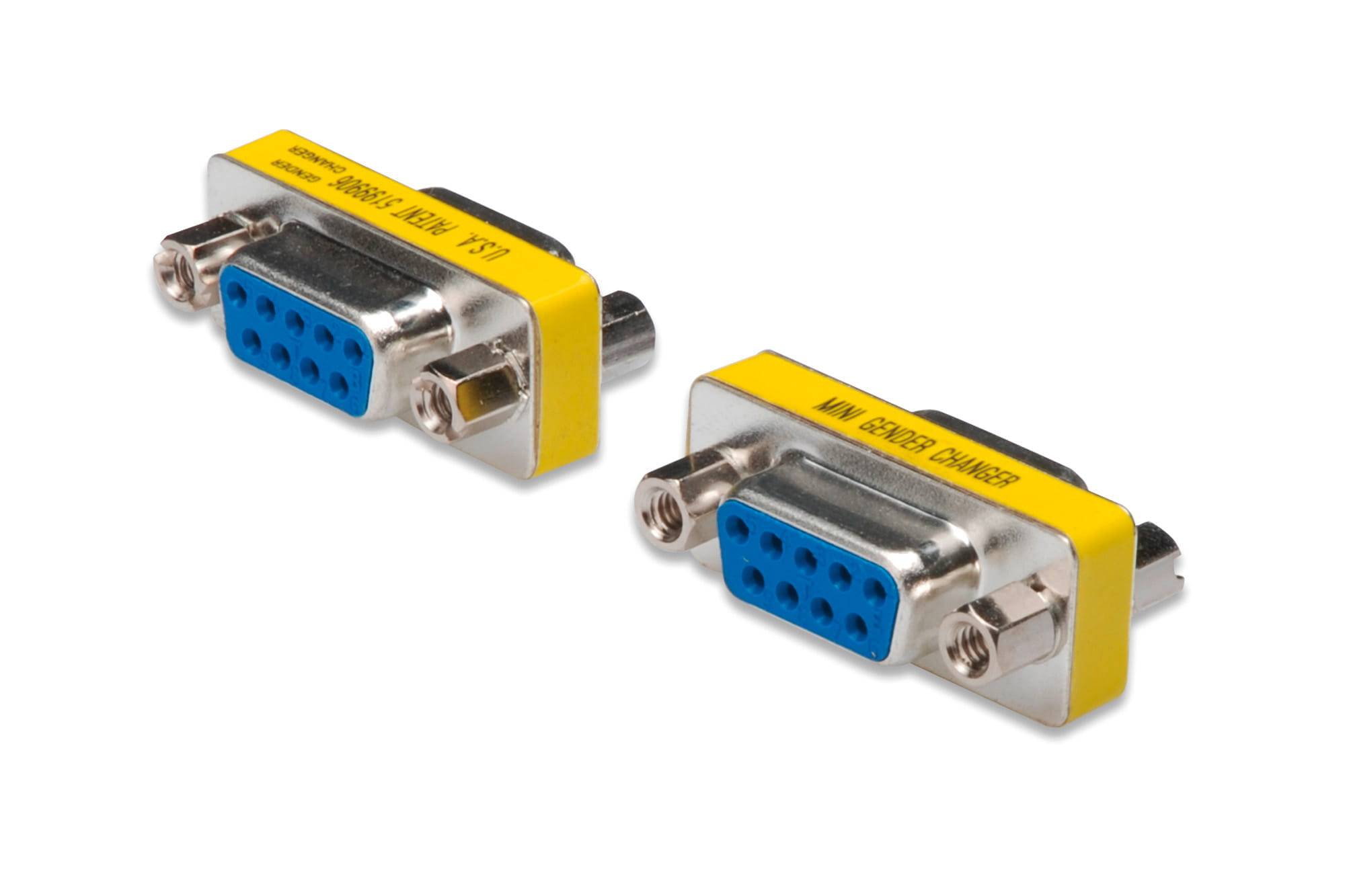

DIGITUS AK-610506-000-I DB9 Female-to-Female Serial Gender Changer
DIGITUS DB9 Female-to-Female Mini Gender Changer
The DIGITUS AK-610506-000-I is a compact D-Sub 9-pin female-to-female gender changer for connecting two compatible male serial connectors. Its straight-through 1:1 pin assignment maintains the original signal layout without converting or crossing the connections.
Key Features
Joins two cables or devices equipped with male 9-pin D-Sub connectors.
Uses a direct 1:1 assignment across all nine connector pins.
Provides a durable compact enclosure suitable for regular installation use.
Integrated hex nuts help secure compatible serial connectors in place.
Why Choose It?
This adapter provides a simple solution when two DB9 male serial connections need to be joined without replacing the existing cable or equipment. Its miniature design occupies minimal space and requires no external power or software.
Technical Specifications
| Model | DIGITUS Mini Gender Changer / 9-Pin |
| Manufacturer SKU | AK-610506-000-I |
| EAN | 4016032319573 |
| Adapter Type | Serial gender changer |
| Connector 1 | D-Sub 9-pin female |
| Connector 2 | D-Sub 9-pin female |
| Pin Assignment | 1:1 straight-through |
| Number of Conductors | 9 |
| Housing | Metal |
| Fastening | Hex nuts |
| Length | 0.03m |
| Packaging | Polybag |
Singular Expert Insight
This is a straight-through 1:1 adapter, not a null-modem converter. Confirm that the connected equipment requires direct pin mapping and that both existing connectors are DB9 male before ordering.
Buyer’s Guide
Buy it if: You need to join two male DB9 serial connectors while retaining a direct 1:1 pin assignment.
Skip it if: You require a male-to-female extension adapter, DB25 connectivity or crossed null-modem wiring.
Also consider: A DB9 serial extension cable when additional distance is required between the connected devices.
FAQ
Are both connectors female?
Yes. Both sides are equipped with 9-pin D-Sub female connectors.
Is this a null-modem adapter?
No. It uses a straight-through 1:1 pin assignment and does not cross the transmit and receive lines.
Does it require drivers?
No. This is a passive physical adapter and does not require software, drivers or external power.
