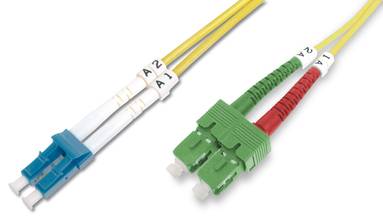

DIGITUS OS2 SC/APC to LC/PC Duplex Singlemode Fibre Patch Cord, 2 m
OS2 SinglemodeSC/APC → LC/PCDuplex · 2 mLSZH · 2.0 mm
The DIGITUS DK-292SCA3LC-02 is a 2 m duplex singlemode fibre optic patch cord (9/125 µm, OS2) with an SC/APC connector on one end and an LC/PC connector on the other, for connecting switches, transceivers, patch panels and singlemode network equipment in singlemode installations.
Reach is set by the optics, not by this cord: singlemode transceivers such as 10GBASE-LR are specified by IEEE 802.3 for up to 10 km over OS2 fibre, so a short OS2 patch cord never limits the link.
Before you order: This is an APC-to-PC conversion cord. The SC/APC end (green, 8° angled polish) must go into APC equipment — typically FTTH ONT/OLT gear, RF-over-fibre or an APC patch panel — and the LC/PC end into standard PC/UPC ports such as SFP transceivers. Plugging an APC connector into a PC/UPC port (or the reverse) causes very high loss and can damage both end faces.
What's in the Box
- 1 × DIGITUS OS2 SC/APC to LC/PC duplex fibre patch cord, 2 m
- Individual test report (supplied with each cord by the manufacturer)
- Single-packed in a DIGITUS polybag
What It Means in Practice
- SC — the larger square push-pull connector found on many patch panels, media converters, FTTH ONTs and older switch optics
- LC — the small-form-factor latch connector used on SFP, SFP+, SFP28 and QSFP transceivers and on most current switches and patch panels
- Duplex means two fibres in one cord — one transmits, one receives — the normal format for a switch-to-switch, switch-to-server or switch-to-patch-panel link.
- At 2 m it suits patching within a rack or to the next rack in the same row.
- LSZH jacket, 2.0 mm outer diameter: low smoke and zero halogen if it ever burns, which is what most offices, server rooms and public buildings ask for indoors.
- If a new duplex link stays down, the most common cause is crossed transmit/receive — swap the two fibres at one end and test again. Also check that both transceivers are the same type and wavelength.
What Will Not Work
- Multimode transceivers (SR/SX) and multimode patch panels — singlemode and multimode fibre cannot be mixed on one link.
- Swapping the ends: the APC end must not go into a PC/UPC port and the PC end must not go into an APC port.
- Ports with a different connector: this cord needs an SC port at one end and an LC port at the other. For any other combination choose a different cord rather than adding adapters to the link.
- Copper RJ45 ports — a fibre cord needs an optical port, an SFP/SFP+ transceiver or a media converter at each end.
Key Features
OS2 singlemode fibre
9/125 µm singlemode fibre, ITU-T G.657.A2 bend-insensitive — for singlemode networks, building backbones and carrier hand-offs.
Ceramic ferrules
SC/APC and LC/PC connectors with ceramic ferrules.
LSZH jacket
2.0 mm LSZH (low smoke, zero halogen) jacket in yellow.
Tested individually
Each cord is supplied with its own measurement/test report from the manufacturer.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Before ordering a fibre patch cord, check four things at both ends: singlemode or multimode, connector type (SC/APC / LC/PC), polish (PC/UPC or APC) and duplex or simplex. This DIGITUS cord is singlemode OS2, SC/APC to LC/PC, duplex, 2 m. If you are planning the active side as well, see our switches with SFP fibre ports and pick the transceivers to match the fibre.
✓ Buy it if your equipment has SC at one end and LC at the other, the link is singlemode with APC where marked and 2 m covers the route with some slack.
✕ Skip it if your optics are multimode SR/SX, your ports use a different connector or polish, or you need a different length.
→ Also consider the same cord in other lengths, APC versions for FTTH equipment, and fibre patch panels or couplers for structured cabling — ask us and we will match them to this cord.
Not sure it fits? Send us the model of your switch, transceiver or patch panel and we will confirm connector, polish and fibre type before you order.
Features - Digitus - DK-292SCA3LC-02
Colour
yellow
Length
2m
More Details
Product Code
04:352529
EAN Code
4016032309277
Manufacturer
Digitus
