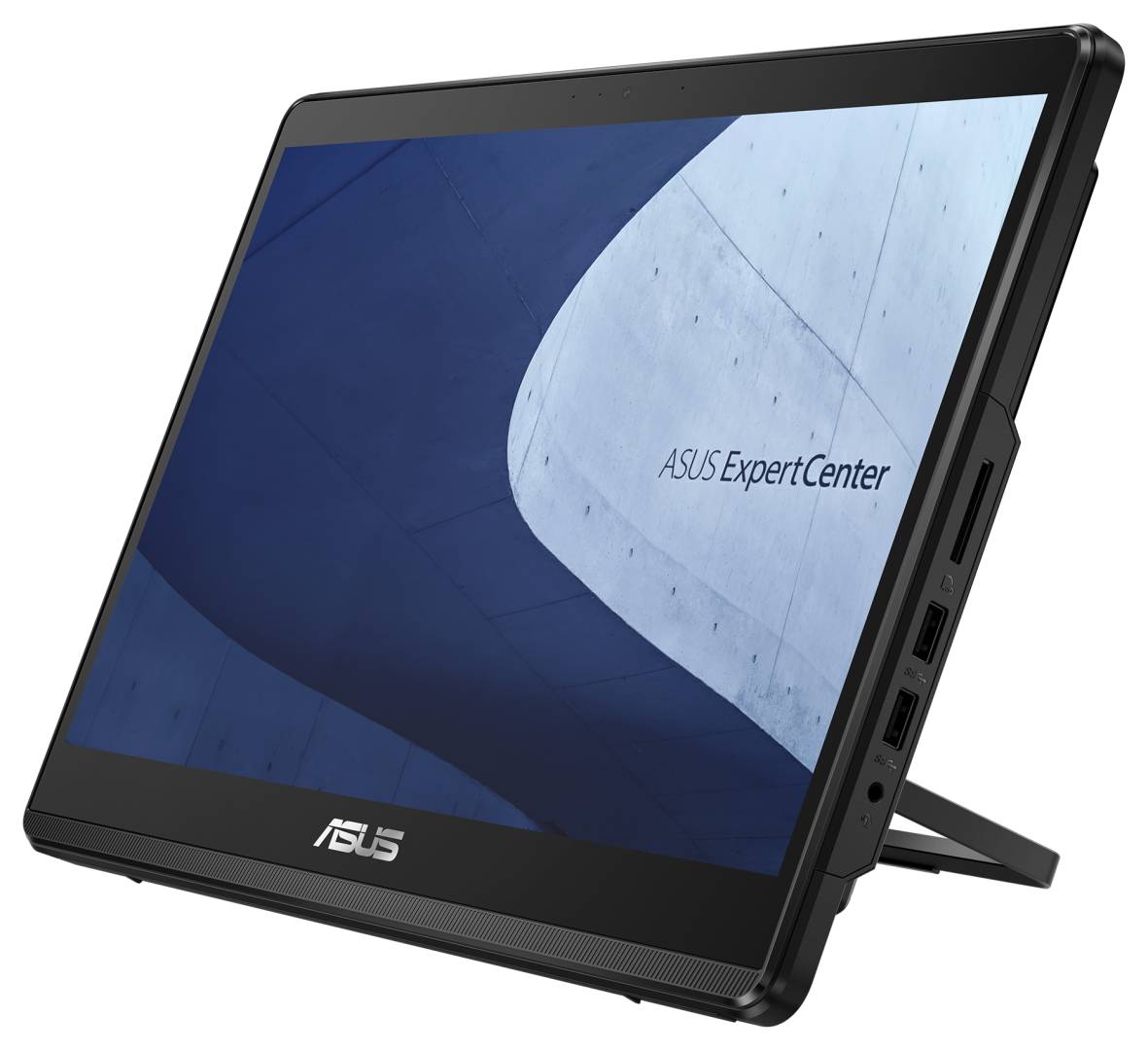

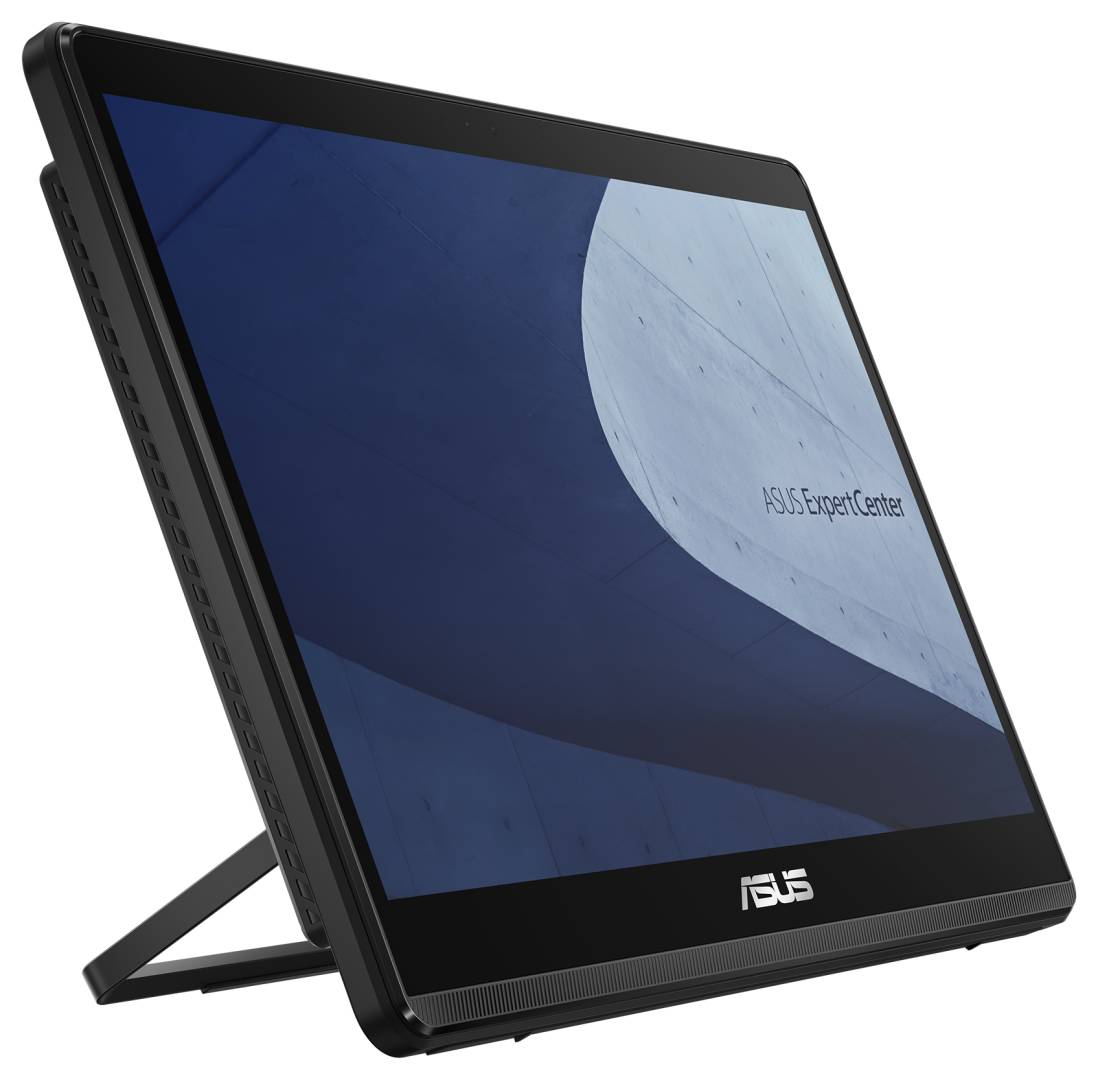

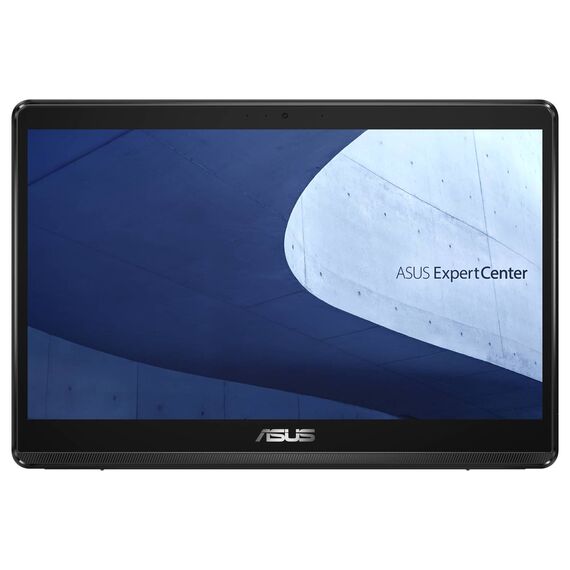

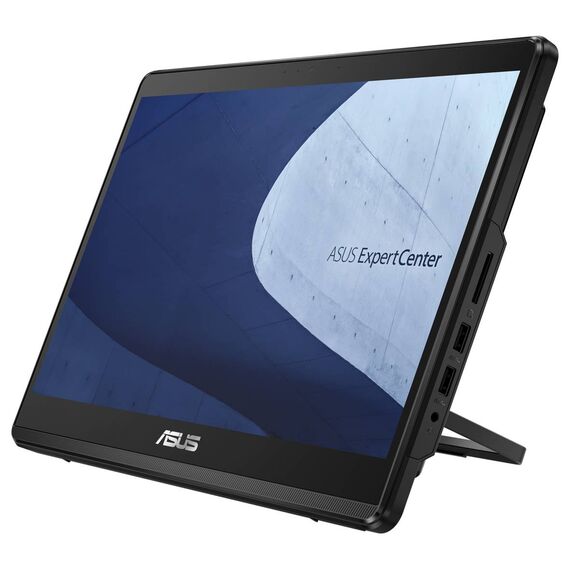

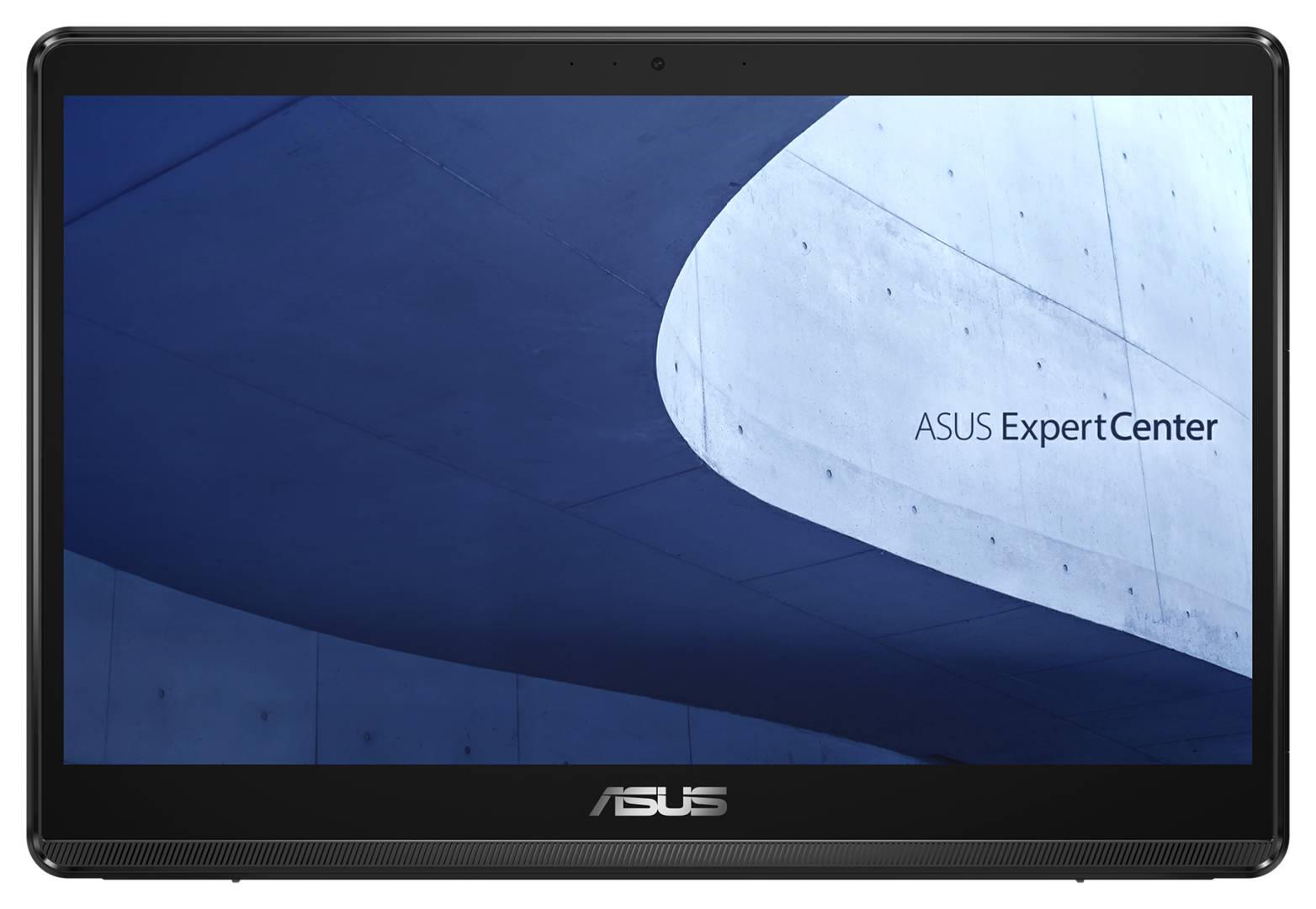

ASUS ExpertCenter E1 AiO (E1600WKAT) — 15.6" Full HD touch all-in-one, fanless, Windows 11 Pro
15.6" FHD touchCeleron N4500Fanless2x COM ports
The ASUS ExpertCenter E1 AiO (E1600WKAT-BMR106X) is a compact 15.6-inch Full HD touchscreen all-in-one PC with an Intel Celeron N4500, 4GB DDR4, a 128GB NVMe SSD and Windows 11 Pro, made for reception desks, point-of-service counters, kiosks and light office tasks where space is tight.
It is fanless, so it runs silently and collects less dust, and has two serial (COM) ports for receipt printers, scanners and other legacy devices that business software still uses. A 10-point capacitive touch panel, 720p webcam, Gigabit Ethernet, Wi-Fi 5 with Bluetooth and a VESA-mount option complete a practical front-of-house machine. A wired keyboard and mouse are included.
Before you order: This is an entry-level system: 4GB RAM and a dual-core Celeron are fine for a browser, POS or booking software and email, but slow for many open tabs, Teams calls with screen sharing or large spreadsheets. ASUS lists memory up to 8GB; tell us your software and we will advise whether to upgrade.
What's in the Box
- ASUS ExpertCenter E1 AiO (E1600WKAT-BMR106X) with stand
- 65W external power adapter (19V / 3.42A)
- Wired keyboard and mouse (layout not specified — ask us)
- Windows 11 Pro preinstalled
What It Means in Practice
- Touch-first use at a counter or reception: customers or staff tap the screen directly.
- COM ports connect older receipt printers, pole displays or scanners without USB adapters.
- No fan means no noise and no air intake to clog in dusty or busy areas.
- Wall or arm mounting via VESA frees the counter completely (wall-mount screws are optional per ASUS).
What Will Not Work
- It is not suited to heavy multitasking, video editing or gaming: Celeron N4500 with 4GB is entry level.
- The TN panel has narrower viewing angles than IPS; colours shift when viewed from the side.
- 128GB fills up quickly with Windows updates and local files; plan for network or cloud storage.
- There is no built-in battery (UPS) in this configuration; a power cut switches it off.
Key Features
15.6" FHD touchscreen
1920x1080, 10-point capacitive touch, 250 nits, glossy.
Silent fanless design
Passive cooling for quiet, low-dust operation.
Business I/O
2x COM, 4x USB 5Gbps Type-A, USB-C 5Gbps, HDMI out, Gigabit LAN, SD reader.
Windows 11 Pro
Ready for domain join, BitLocker and remote management.
Technical Specifications
| Identification |
| Part Number |
90PT0391-M015V0 |
| EAN / GTIN |
4711636178129 |
| Model |
ExpertCenter E1 AiO E1600WKAT-BMR106X |
| Brand |
ASUS |
| Processor and memory |
| CPU |
Intel Celeron N4500, 2 cores / 2 threads, 1.1–2.8 GHz, 4MB cache |
| Graphics |
Intel UHD Graphics |
| Memory |
4GB DDR4 SO-DIMM, max 8GB |
| Storage |
128GB M.2 NVMe PCIe 3.0 SSD |
| Display |
| Size |
15.6", 16:9 |
| Resolution |
1920x1080 (Full HD) |
| Panel |
TN, glossy, LED backlit, 250 nits, 45% NTSC |
| Touch |
10-point capacitive |
| Connectivity |
| Side |
2x USB 3.2 Gen 1 Type-A, 3.5 mm combo audio, SD/MMC card reader |
| Rear |

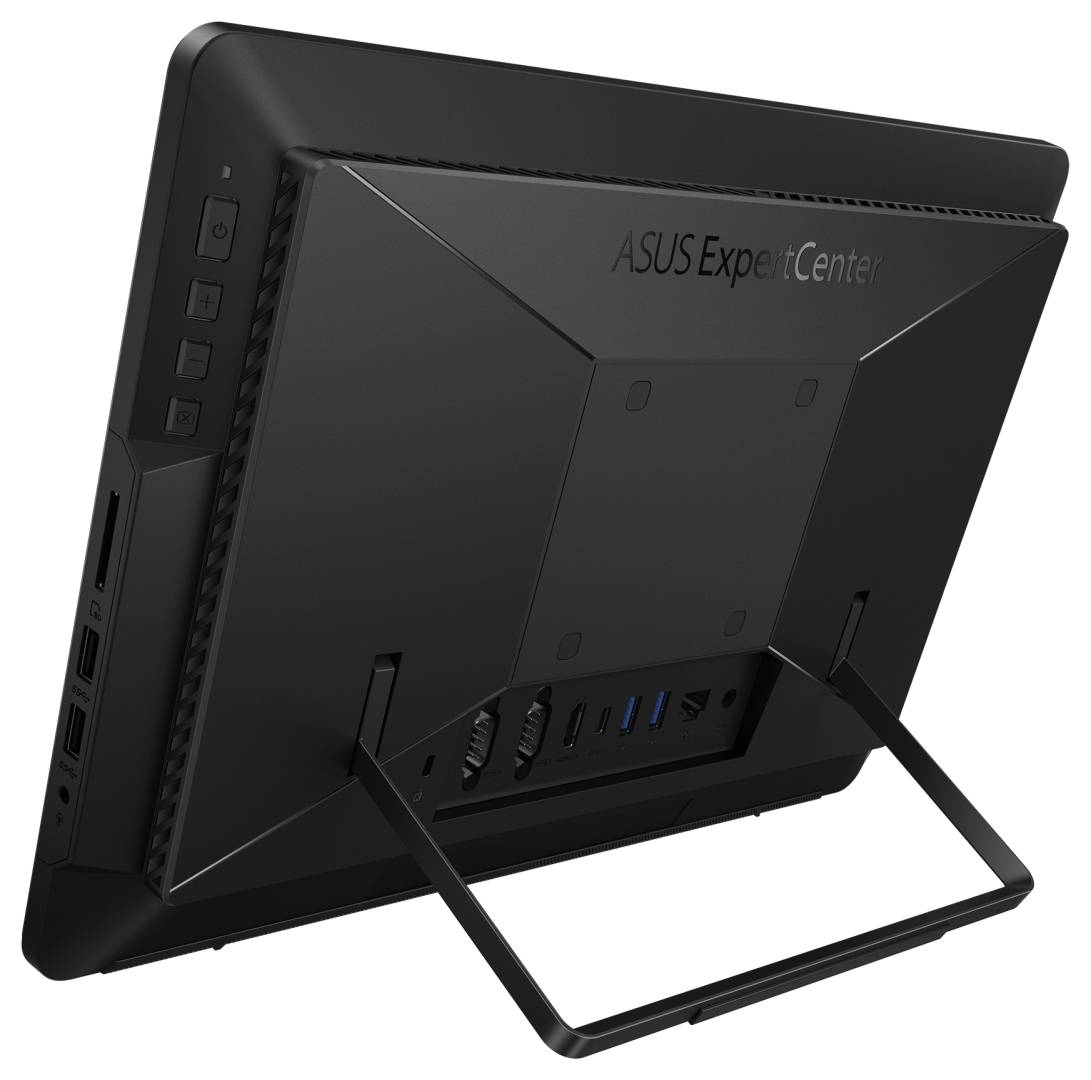

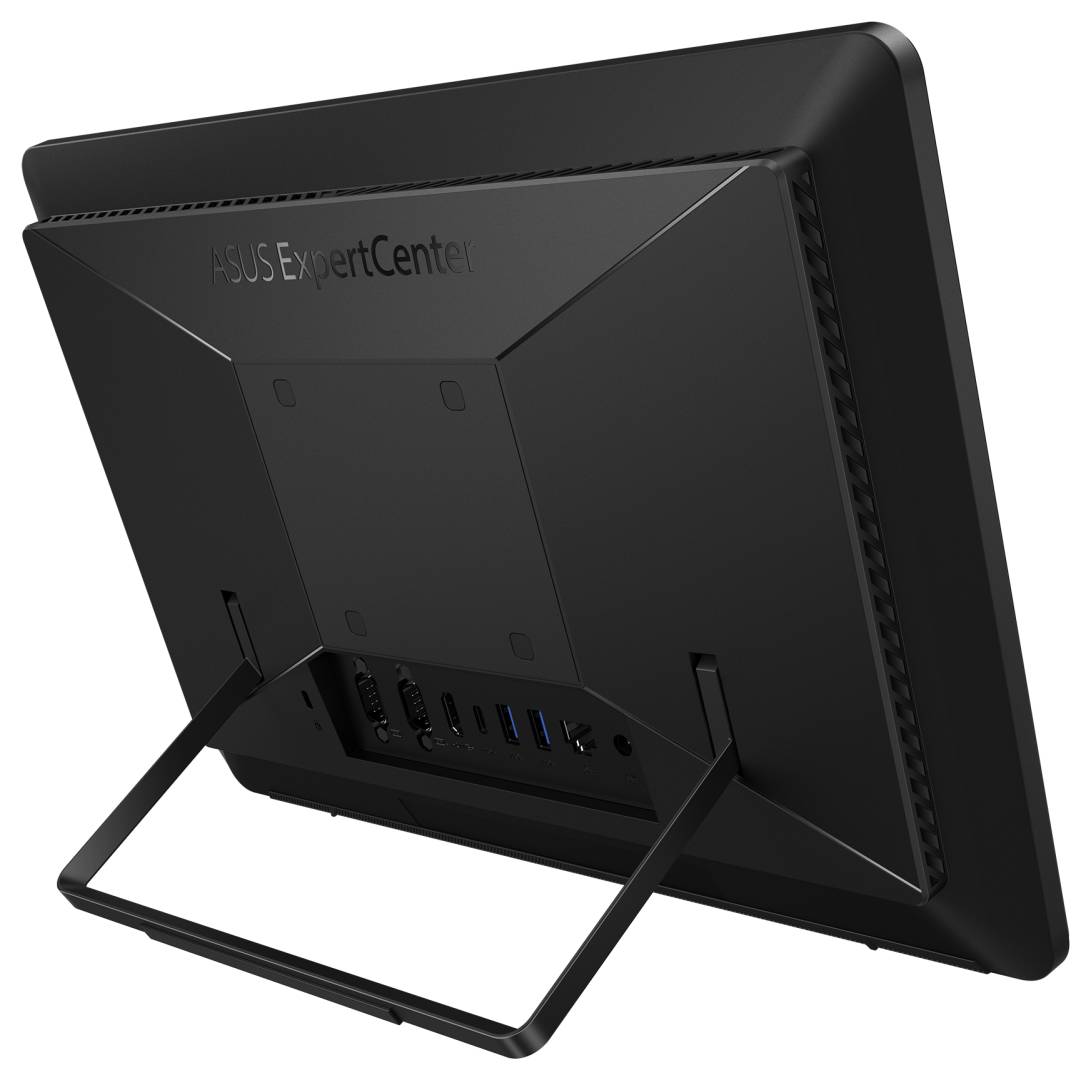

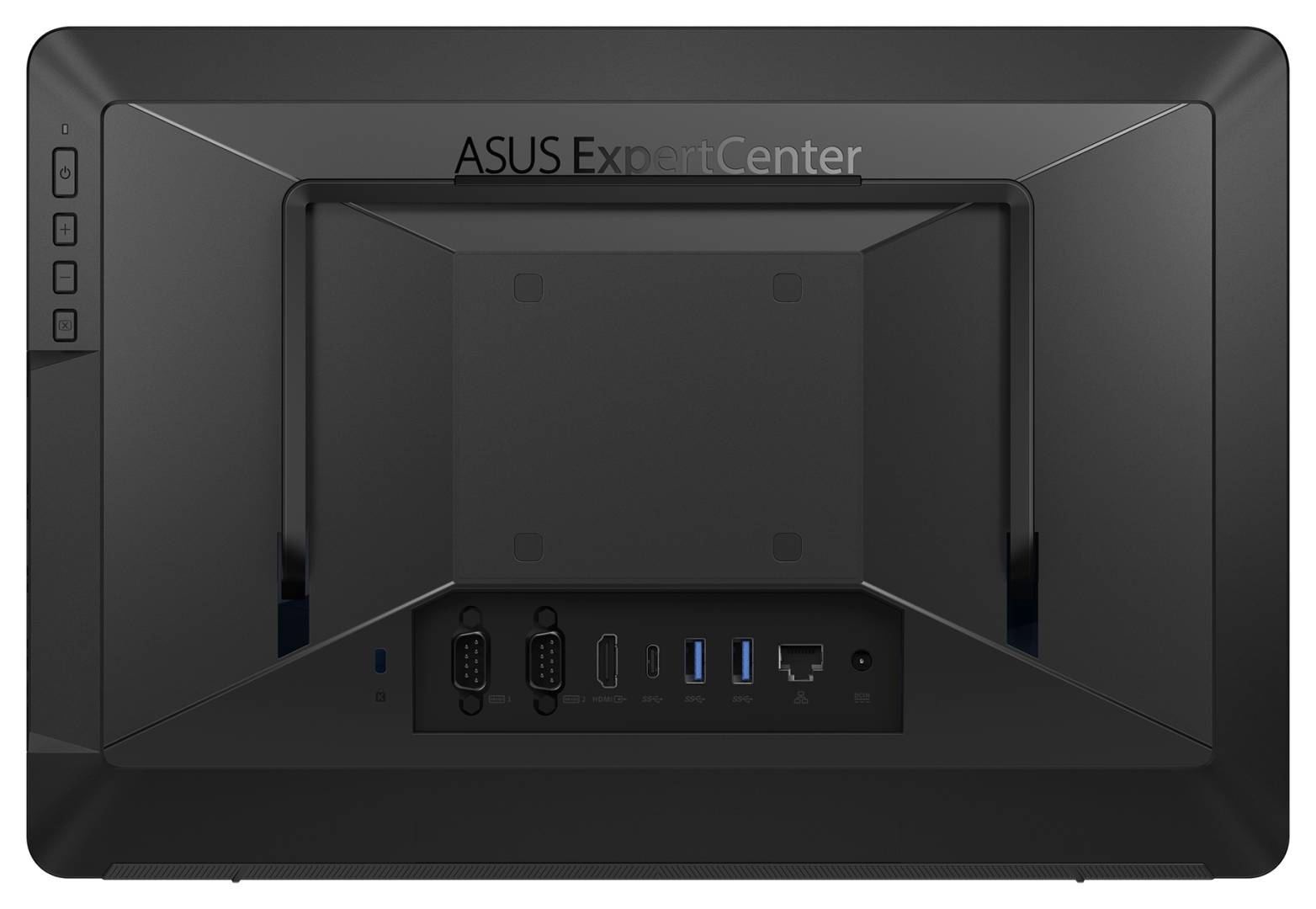

2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 1 Type-C, HDMI out, RJ45 Gigabit, 2x COM, DC-in, Kensington lock |
| Wireless |
Wi-Fi 5 (802.11ac) + Bluetooth |
| Camera / audio |
720p HD webcam, built-in speakers and microphone |
| System |
| Operating system |
Windows 11 Pro |
| Cooling |
Fanless |
| Power |
65W external adapter, 19V / 3.42A |
| Security |
TPM, Kensington slot, BIOS and HDD password |
| Physical |
| Dimensions |
36.6 x 24.7 x 3.7–15.0 cm |
| Weight |
2.24 kg |
| Mounting |
VESA mount compatible |
| Colour |
Black |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
ASUS does not publish the standard warranty length for this part number; claims are handled through Singular |
Frequently Asked Questions
Can I upgrade the memory?
ASUS lists a maximum of 8GB DDR4. We can supply and fit the upgrade if you order it together with the PC.
Can I connect a second monitor?
Yes, through the HDMI output.
Will my receipt printer work?
Printers on USB or serial (COM) connect directly; check that your POS software has Windows 11 drivers. Send us the model and we check.
Singular Expert Insight · Buyer's Guide
A good fit for a reception desk, shop counter or kiosk where you need a small touch PC with COM ports that runs silently. For anything beyond light single-task use, add a
memory upgrade to 8GB at purchase. For office desks with heavier work, a mini tower or larger AiO with a Core-class CPU is the better choice.
✓ Buy it if you need a compact, silent touchscreen PC for POS, reception, kiosk or light office work.
✕ Skip it if your users multitask heavily or need a large, wide-angle screen.
→ Also consider a memory upgrade to 8GB, and a VESA arm or wall mount for counter installations.
Using it with POS or booking software? Send us the software name and your peripherals and we will check compatibility before you order.
