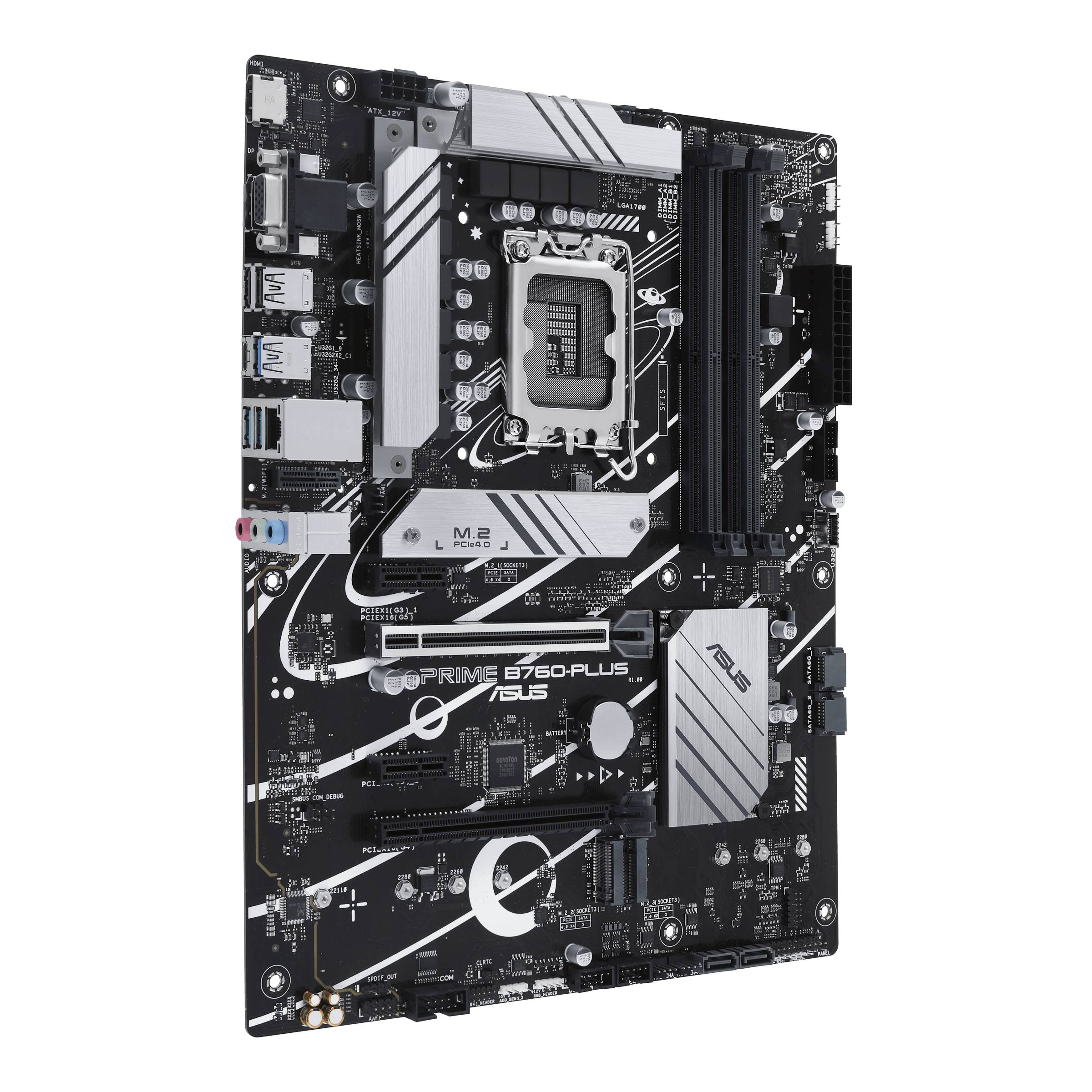

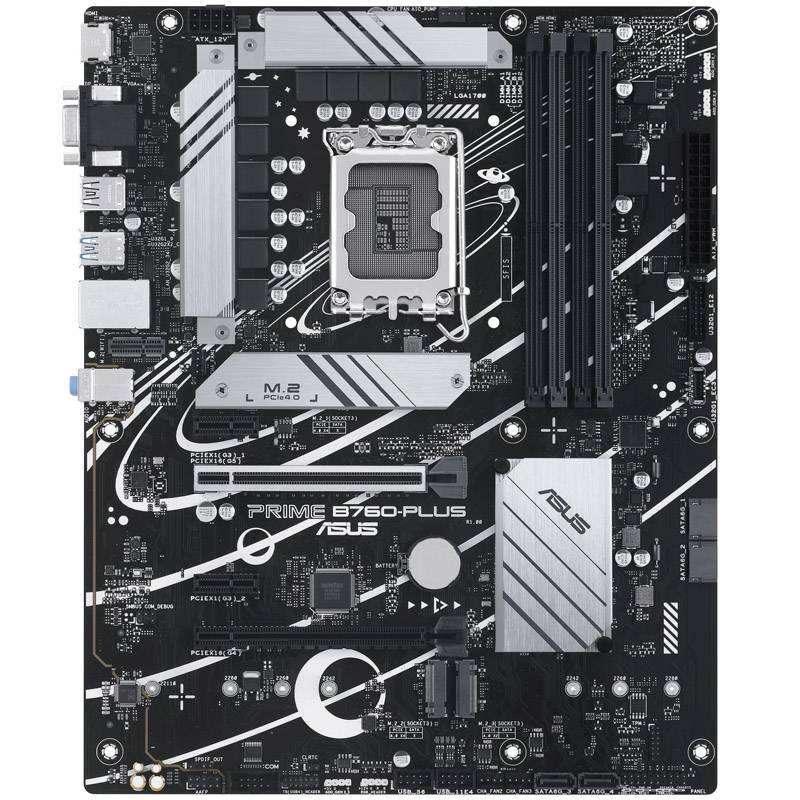

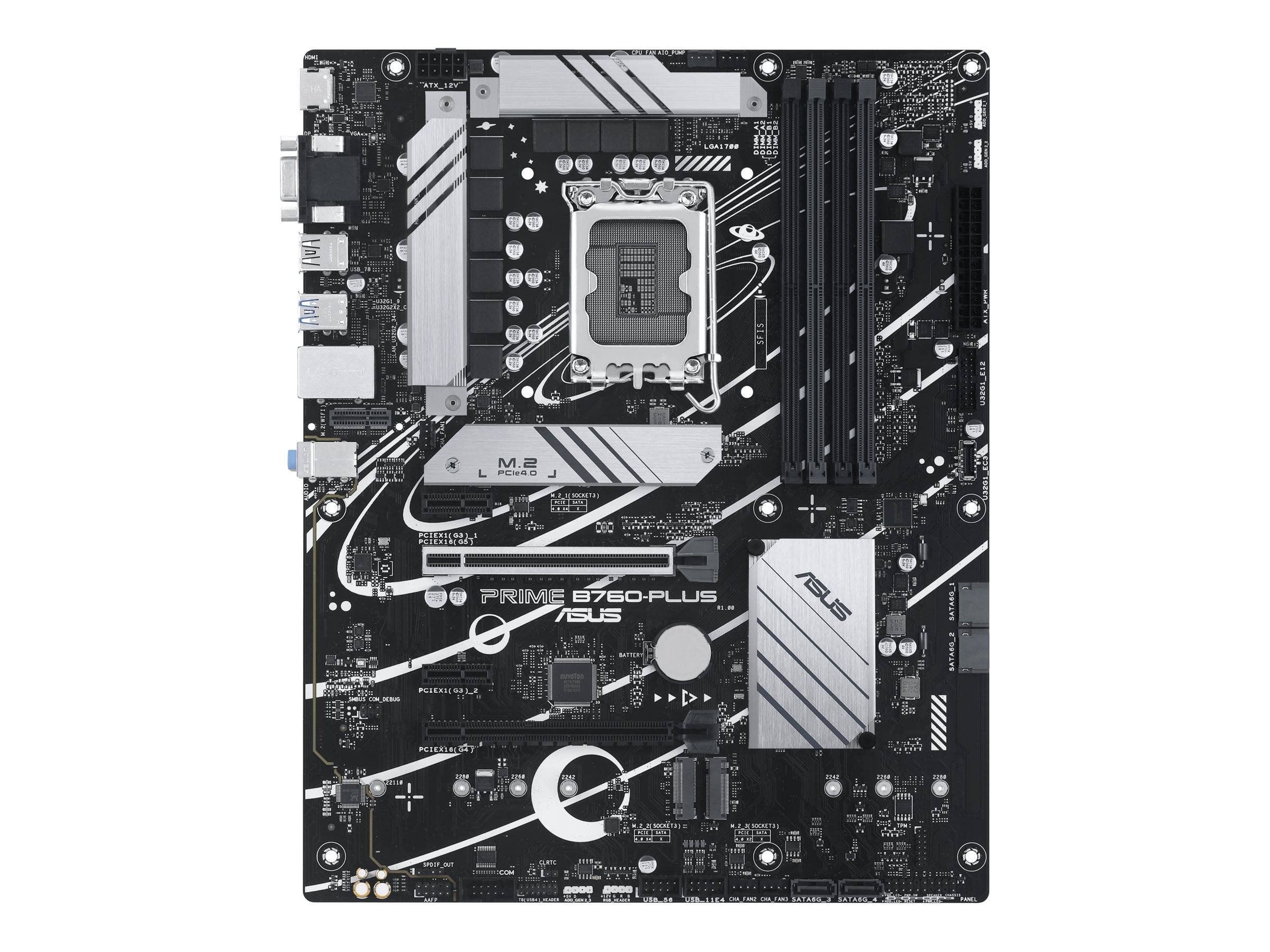

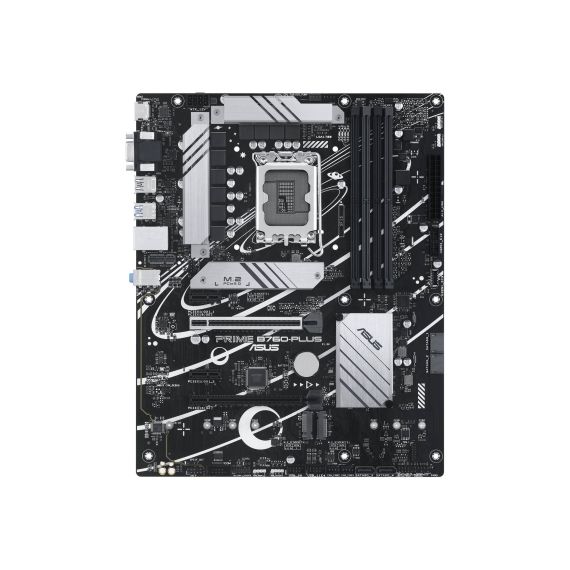

ASUS PRIME B760-PLUS / Motherboard / ATX / LGA1700 Socket / B760 Chipset / USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1EF0-M1EAY0
ASUS PRIME B760-PLUS / Motherboard / ATX / LGA1700 Socket / B760 Chipset / USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1EF0-M1EAY0
€196.79 inc. VAT
90MB1EF0-M1EAY0
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Flexibility
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. - Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. - Cooling
PRIME B760-PLUS motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. - Performance
The PRIME B760-PLUS motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel Core processor. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Special Features
- Intel LGA 1700 Socket - ready for 13th and 12th Gen Intel processors
- Ultrafast connectivity - PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C and Thunderbolt (USB4) header support
- Comprehensive cooling - VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers
- Exclusive memory technology - ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting - Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 3.0 x1 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 |
| RAID Features | Intel Rapid Storage Technology |

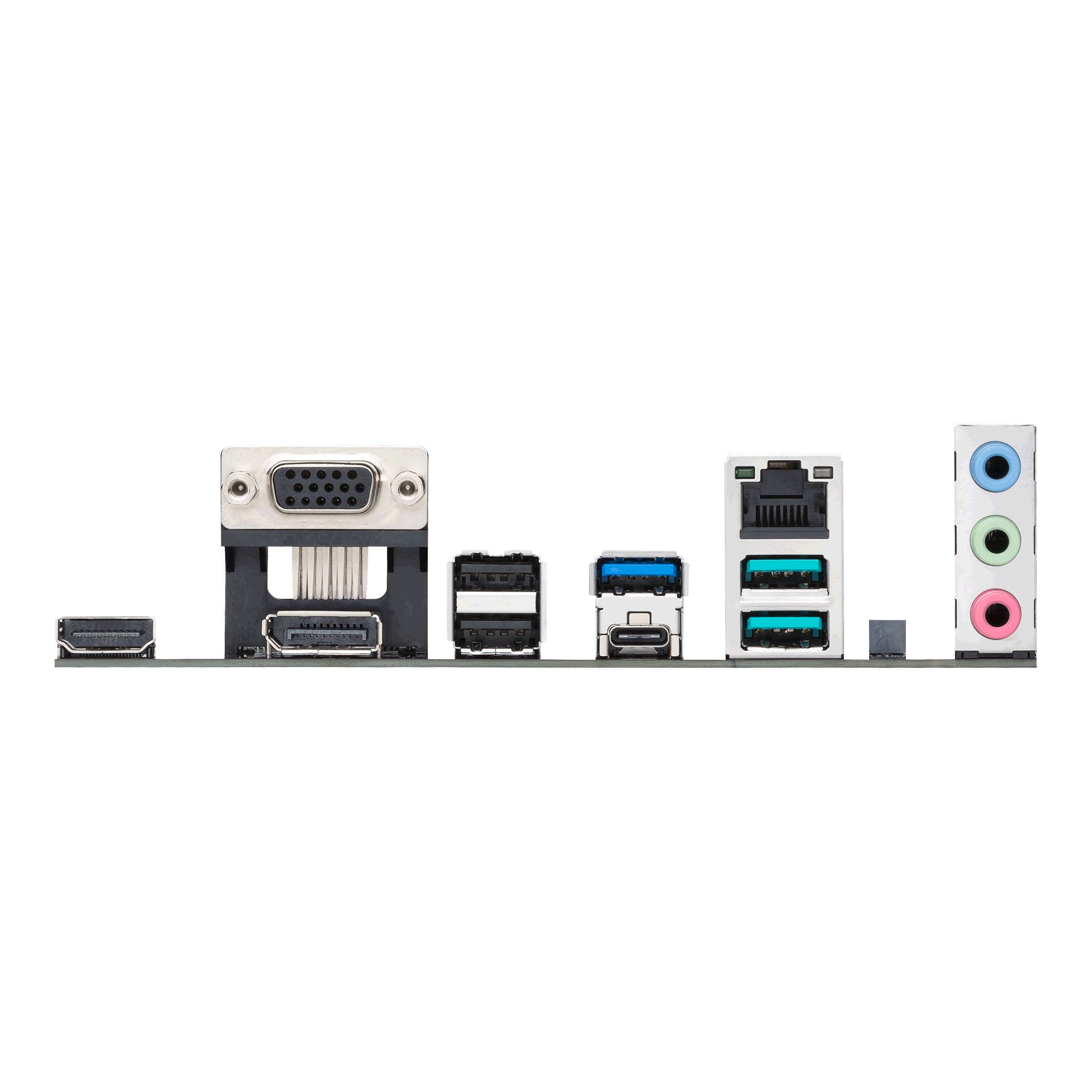

| Interfaces | 1 x DisplayPort 1 x VGA 1 x HDMI 1 x USB-C 3.2 Gen2x2 2 x USB 3.2 Gen 2 1 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x serial - header 1 x audio - header 1 x SPDIF out - header 1 x SPI - header 1 x Thunderbolt - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS UEFI BIOS EZ Mode, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS EZ DIY, CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS OptiMem II, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS ProCool, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, LANGuard, M.2 heatsink, overvoltage protection, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, audio jack detect technology, jack retasking, DIY Friendly Design |
| Miscellaneous | Miscellaneous |

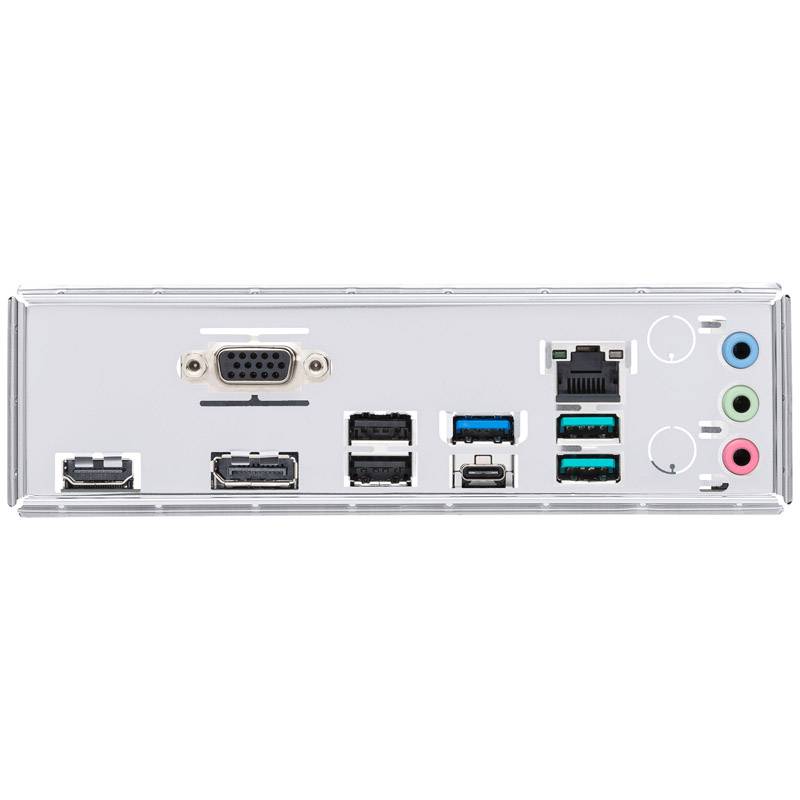

| Included Accessories | IO shield, 1 x M.2 rubber package, 2 x M.2 SSD screw package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1EF0-M1EAY0
CPU Socket
- Socket 1700
More Details
Product Code
04:425816
EAN Code
4711387102985
Manufacturer
Asus
